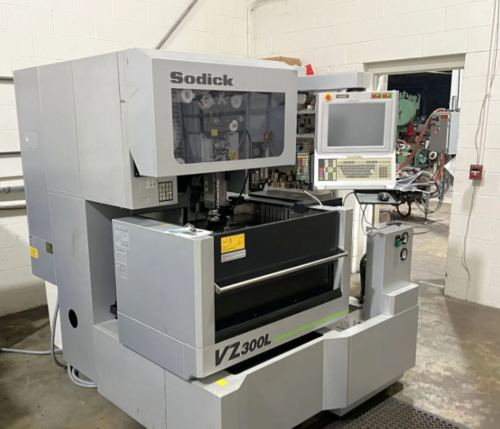

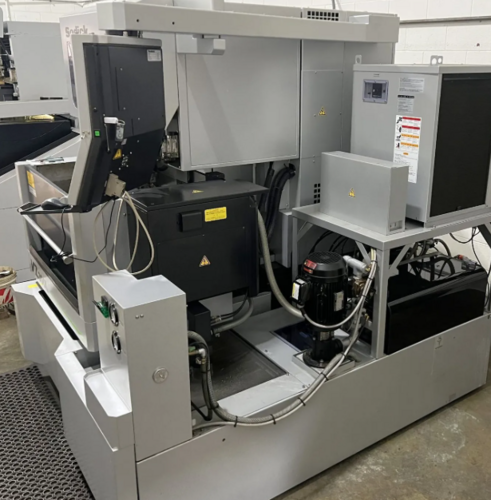

Sodick #VZ300L, CNC Wire Electrical Discharge Machine, 13.8" X, 9.8" Y, 8.7" Z, .0059"-.011" diameter, 2015

13.77” X 9.84” X 8.66” Wire EDM with Linear Motors (X / Y/ Z Axes), Absolute Linear Scale (X / Y / Z), Ceramic Components, Linear Motor Cooling Unit, LN2W Generator, Sodick Fine Corner Control, FTII (Fine Pick - Up Function), Super Jet Automatic Wire Threader, Lan Interface and USB Port.
GENERAL SPECIFICATIONS

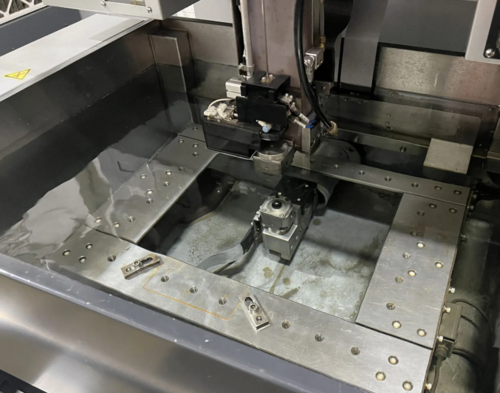

Tank Size: 31.88” X 25.59”
Max. Part Weight: 1,200 Lbs
X - Axis Travel: 13.77”
Y - Axis Travel: 9.84”
Z - Axis Travel: 8.66”
U & V Axis Travels: 3.14
Max. Taper Angle: ±15°
Wire Diameter: .0059” - .011”
Dimensions: 27.95” X 81.49” X 70.86”
Weight: 5,280 Lbs

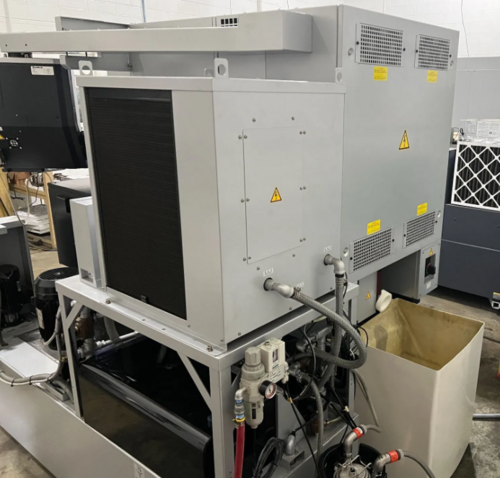

INCLUDES: Linear Motors (X / Y/ Z Axes), Absolute Linear Scale (X / Y / Z), Ceramic Components, Linear Motor Cooling Unit, LN2W Generator, Sodick Fine Corner Control, FTII (Fine Pick - Up Function), Super Jet Automatic Wire Threader, Lan Interface and USB Port.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
