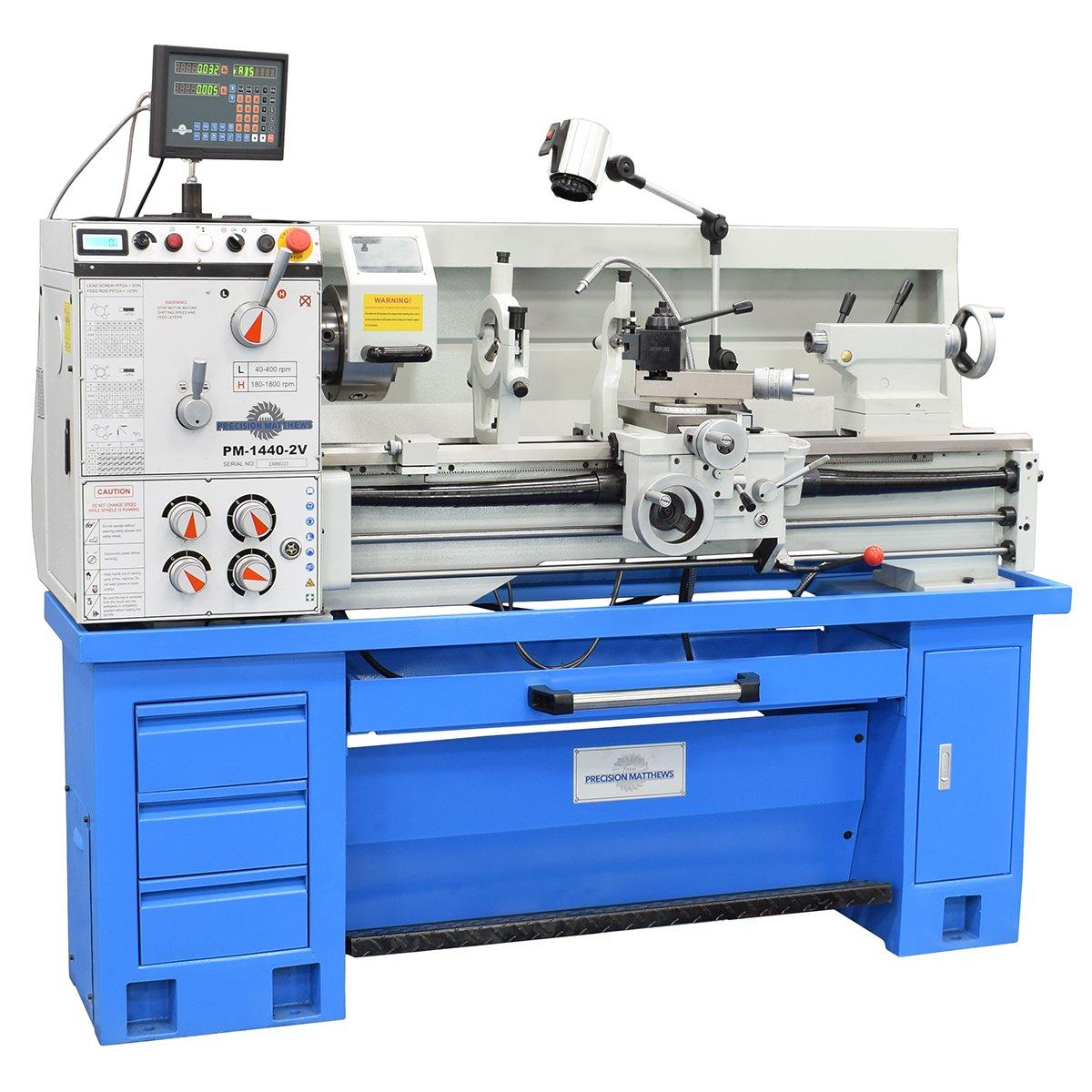

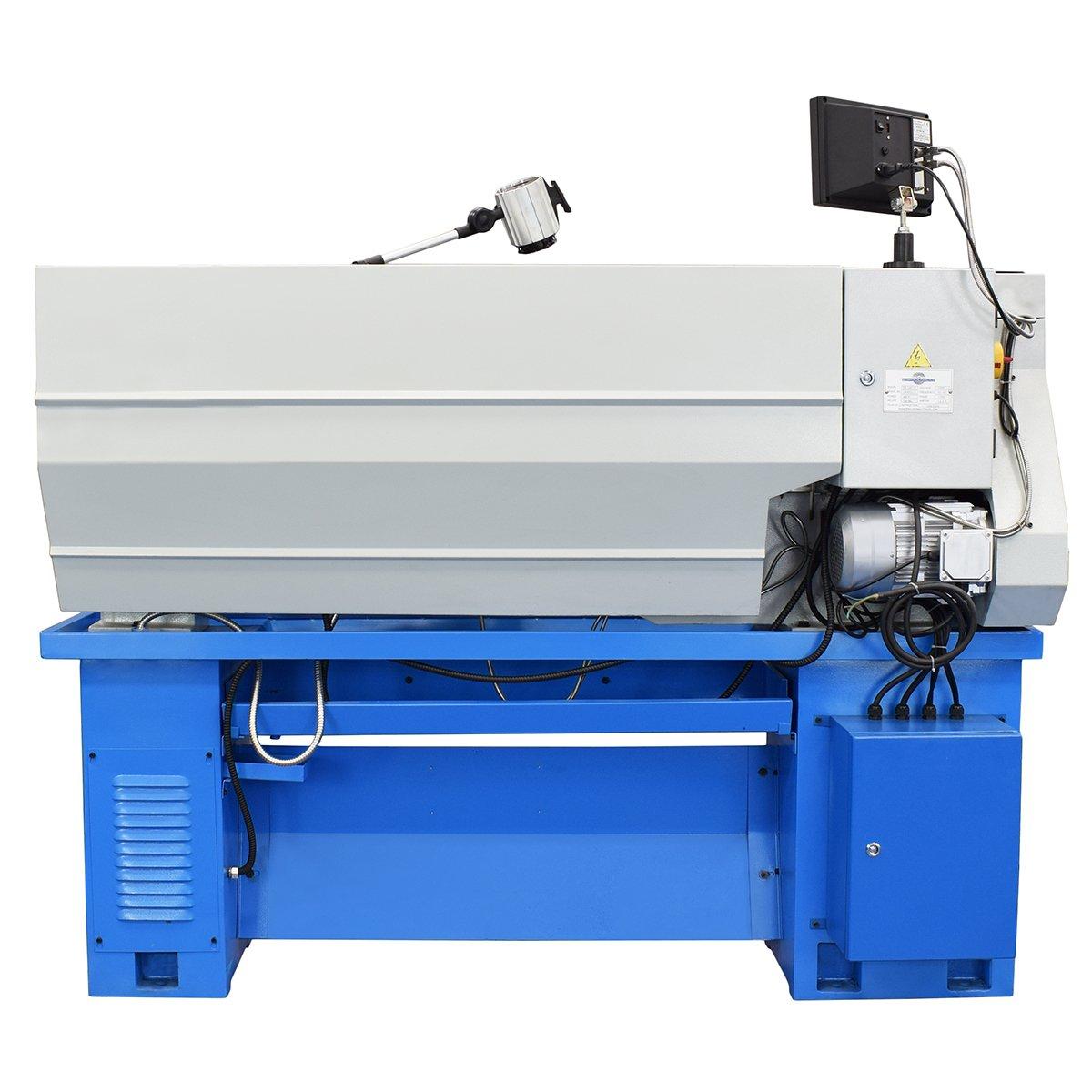

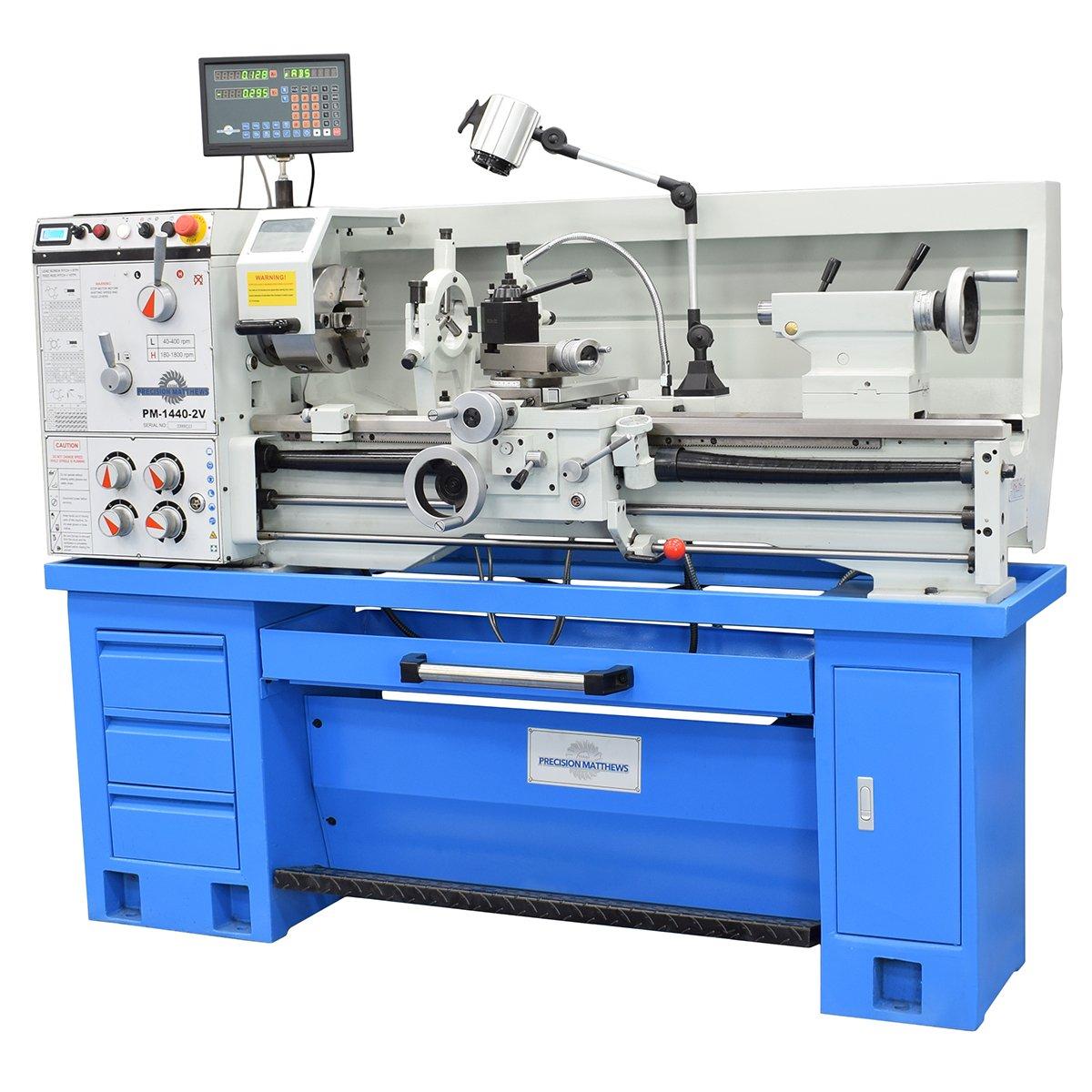

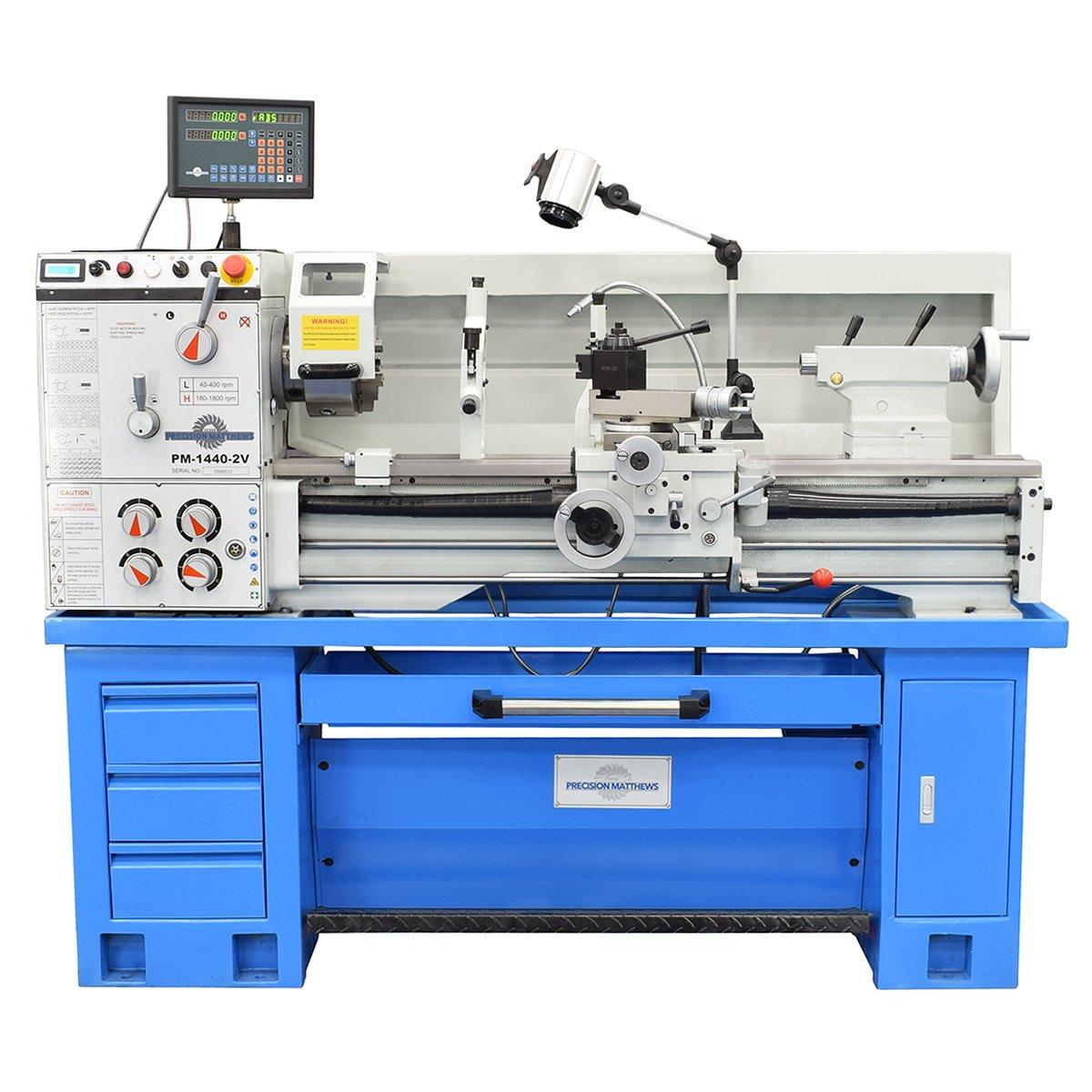

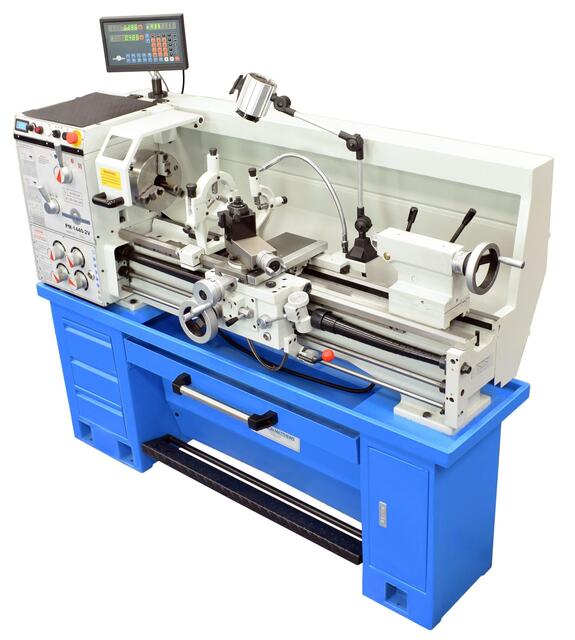

Manufacturer: Precision Matthews
Model: PM-1440-2V-W/2AXDRO
Year: 2026
Swing: 14.0
Centers: 40.0
Stock # PM-1440-2V-w/2axDRO
Price: $9,999 USD
1 / 10
Click to zoom in
1 / 10
For Sale by Precision Matthews Machinery Co
Surplus Record Dealer Since 2024
Location: Coraopolis, PA
Contact Sales Dept.
Phone Number: 412...> Show Phone Number 412-787-2876
Let the seller know you found their listing on Surplus Record!
$9,999 USD
Description
Main Specifications PM-14402V:
- Swing Over Bed 14″
- Center Distance 40″
- Max. Swing in Gap 20″
- Max. Swing Over Cross Slide 9″
- Width of Bed 7-3/8″
- Spindle Taper (Internal) MT 6
- Spindle Bore 2″

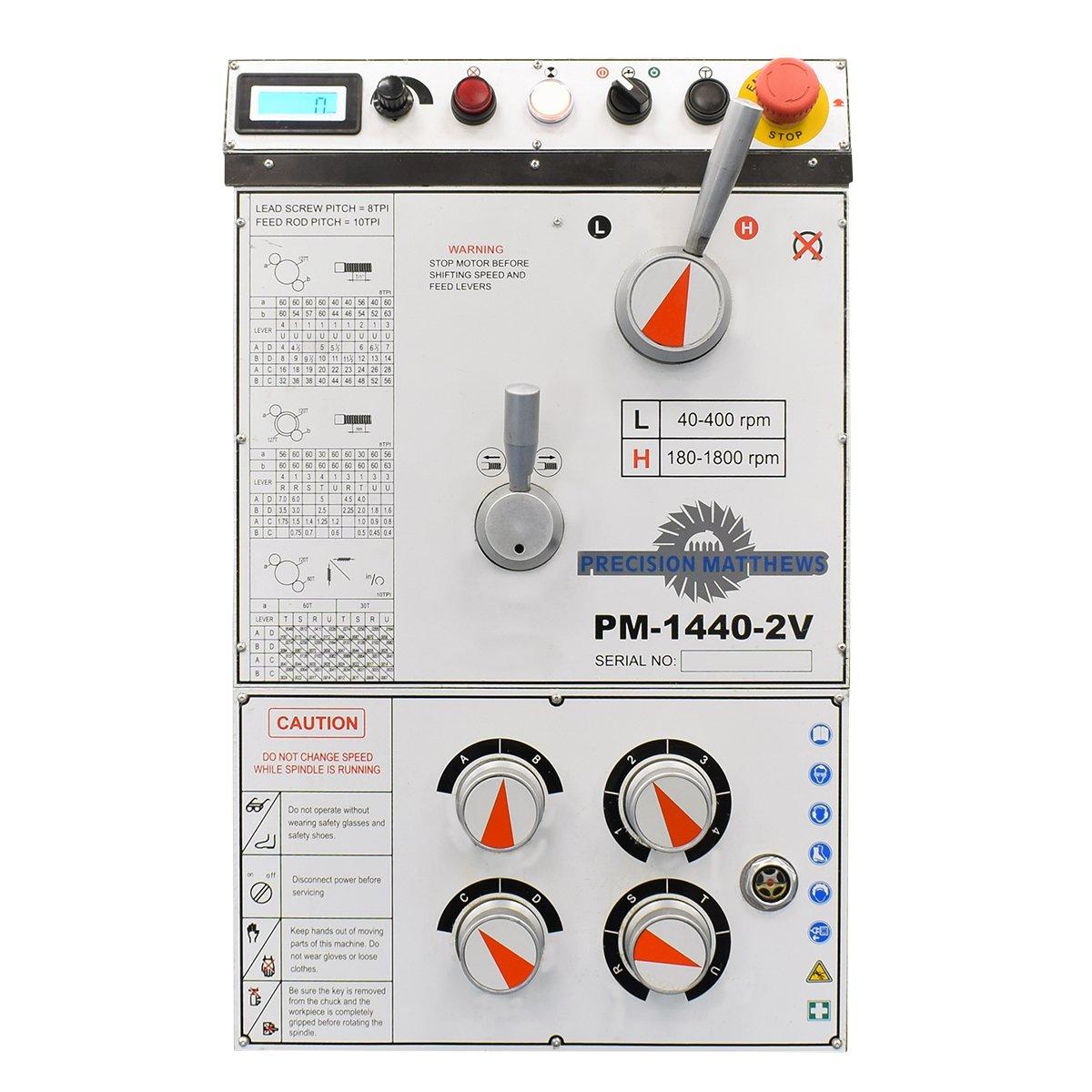

- Spindle Speed Range 40-1800 RPM, 2 Steps (High and Low Lever) Variable (Turn a dial to adjust speeds up and down, even while running)
- Tailstock Taper MT 4
- Inch Threads 4-56 TPI
- Metric Thread Pitch .4 – 7.0mm pitch
- Compound Travel 3″
- Cross Slide Travel 7″
- Tailstock Quill Travel 4″
- Tailstock Quill Diameter Approx. 1.260″
- Spindle Mount D1-5 Camlock
- Cross Feeds .0007-.0187 IPR
- Longitudinal Feeds .002-0.046 IPR
- Motor 3hp (2.2kW), 240 volt, Variable Speed (Driven by VFD Drive)
- Dimensions: 72″ Long, x 24″ Front to back
- Country of Origin: China
- Net Weight 1,800 pounds
- Cord Connection/Type: Cord approx. 5′ length, User to supply plug needed for your outlet (20A 240V With Ground, No Neutral Required)
Main Features:
- 2″ Spindle Bore, allows larger work through the headstock
- Variable Speed – Change speeds while running to dial in for the best surface finish
- DRO, Quick Change Tool Post, Foot Brake, and much more included standard!
- Cast Iron base for extra rigidity
- 240V Single Phase Power, no phase converters needed
- Short spindle length, 16-1/2″, great for gunsmithing operations through the headstock
- Priced very, very reasonably when compared with other similar models – And others are lacking the 2″ Spindle Bore, DRO, Wedge Type Tool Post, Cast Iron Base, and much more
- Leadscrews Are True Inch Pitch Screws (Not Metric Conversions Like Many) – Cross Slide, Compound, Tailstock are 10 Threads Per Inch (.100” Per Turn), Main leadscrew used for threading is 8 TPI
- Backed by an industry leading 3 year warranty
Standard Accessories:
- 2 Axis DRO Comes Standard
- Variable Spindle Speeds, from 40-1800 RPM
- Wedge Type quick change tool post set with 5 holders
- 2″ Spindle Bore!
- Heavier Cast Iron Base, with storage drawers
- 8″ 3 Jaw Chuck
- 8″ 4 Jaw Chuck
- Face Plate
- Steady Rest
- Follow Rest
- Coolant System
- L.E.D. Work Light
- Inch and Metric Threading Capability
- Thread Chasing Dial
- Foot Brake
- Splash Guard
- 3 year Warranty
Inquire Further with Precision Matthews Machinery Co!
