Description

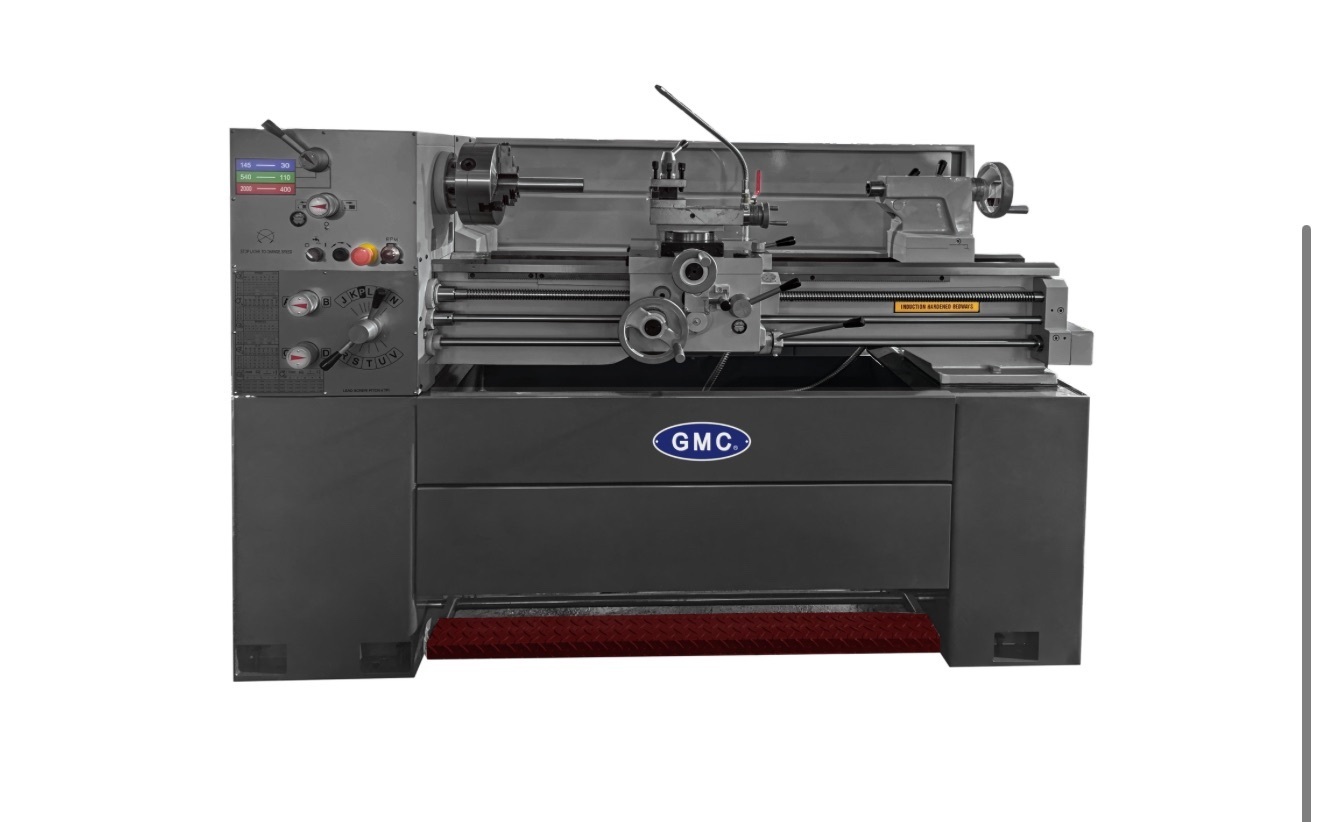

Made in Taiwan ISO 9001 certified Machine bed is made of high tensile cast iron FC25 With free CARMAR DRO installed Full Geared-head precision Engine Lathe with foot brake Quick-change gearbox with fast and easy threading set up Inverter drive main motor 3HP, 220V, works on both power 3 phase/1 phase Spindle bore 1 1/2 Heavy Duty spindle D1-4 Heavy Duty guideway width 7-1/2 Variable spindle speeds from 30-2,000 rpm 32 kinds of inch threads, and 32 kinds of metric threads Spindle is balanced, hardened and precision ground All gears and shafts are hardened and precision ground Guideways induction hardened and precision ground Automatic lubrication system in headstock and feed box One year warranty for parts Specifications GML-1440VT Max. swing over bed 14 Max. length of workpiece / Max. length of cutting 40 / 34 Max. swing over cross slide 8-5/8 Max. swing over gap 20-1/4 Width of Bed 7-1/2 Spindle bore 1 , D1-4 Taper of spindle center MT# 5 (MT5/MT3 with reducing sleeve) Spindle speeds, variable 30-2,000 rpm variable Longitudinal feeds .0016-.00368IPR, 40 kinds Cross feeds .0008-.00122IPR, 40 kinds Inch threads 4-56 TPI, 32 kinds Metric threads 0.4-7.0 mm , 32 kinds Max. travel of top slide 3-1/2 Max. travel of cross slide 6-5/16 Longitudinal leadscrew Dia 1 / 4TPI Diameter of tailstock quill 1-9/16 Max. travel of tailstock quill 3-1/2 Taper of tailstock quill center M.T. # 3 Oil for headstock/ Gear box/Apron #30 weight machine oil, TEXACO regal R&O/100, 3 Gal. Main motor with 5HP inverter drive Amperage draw 3HP, 220V, 1phase 3HP, 220V, 3 phase 10 Amp 10 Amp Coolant pump 1/16HP, 220V, 1phase, water base coolant Machine weight, approx. 1,930 LBS Overall dimensions, LxWxH 73 x 35 x 59 Machine Shipping dimensions LWH 75 x 30 x75 x 30 x 75 x 30 x 55 77 x 30 x 61
Stock #: Sharp-1440FBrand: SharpModel: 1440FApprox. Shipping Weight: 1650 lbs / 748.42 KgApprox. Shipping Dimensions: 6.41′ L x 2.41′ W x 3.91′ H / 1.95m x 0.73m x 1.19m, Swing Over Bed: 14 in. / 335.6 mmSwing Over Cross Slide: 8.62 in. / 218.94 mmSwing Over Gap: 20 in. / 508 mmGap Width (In Front Of ...more
Main PM-14402V:, Swing Over Bed 14″ Center Distance 40″ Max. Swing in Gap 20″ Max. Swing Over Cross Slide 9″ Width of Bed 7-3/8″ Spindle Taper (Internal) MT 6 Spindle Bore 2″ Spindle Speed Range 40-1800 RPM, 2 Steps (High and Low Lever) Variable (Turn a dial to adjust speeds up and ...more
14 x 40 High Speed Geared Head Precision Toolroom Metal Lathe GML-1440BGF-3, Our 14"x40" engine lathe is suitable for machining in metalworking machine shops, tool rooms, and repair shops. Ideal for making threads and turning metal parts like, shafts, spindles, sleeves, discs, weapon components, and many more parts. ...more
Stock #: Sharp-1440VBrand: SharpModel: 1440VApprox. Shipping Weight: 1650 lbs / 748.42 KgApprox. Shipping Dimensions: 6.29′ L x 2.41′ W x 3.91′ H / 1.95m x 0.73m x 1.19m, Swing Over Bed: 14 in. / 355.6 mmSwing Over Cross Slide: 8.62 in. / 218.94 mmSwing Over Gap: 20 in. / 508 mmGap Width (In Front Of ...more
Main of PM-1440E-LB Lathe:, Swing Over Bed 14″ Center Distance 40″ Max. Swing in Gap 20″ Max. Swing Over Cross Slide 9″ Width of Bed 7-3/8″ Spindle Taper (Internal) MT 6 Spindle Bore 2″ Spindle Speed Range 70-2000 RPM, 8 Steps Tailstock Taper MT 4 Inch Threads 4-60 TPI, Choice of 34 ...more
