For Sale by Sterling Machinery Exchange
Surplus Record Dealer Since 1970
Location: South El Monte, CA
Contact Adam Mattes
Phone Number: 626...> Show Phone Number 626-444-0311
Let the seller know you found their listing on Surplus Record!
$23,500 USD
Finance for as low as $476/mth
Description
DETAILED SPECIFICATION
| Spindle Capacity With Chuck | 6" |
| Capacity w/ Expanding Collets | 3" |
| Capacity w/ Round 5C Collets | 1-1/16" |
| Capacity w/ Hexagon 5C Collets | 7/8" |
| Capacity w/ Square 5C Collets | 3/4" |
| Capacity w/ Step Chucks | 1 1/16" - 6" |
| Spindle Nose Diameter | 2.189" |
| Spindle Nose | 5C (10°) / 4° Taper |
| Spindle RPM (Variable) | 50-4,000 rpm (5C) / 50-3,000 rpm ( with 6" 3-jaw chuck) |
| Spindle Motor | 3 HP / 5 HP (Optional) |
| Hole Through Spindle | 1-1/4" |
| Bar Stock Diameter (5C Collet) Collet) | 1-1/16" |
| Swing Over Carriage | 9" |
| Swing Over Cross Slide | 6" |
| Carriage Power Feed Range | 5/16" ~ 7" |
| Cross Slide Travel | 6" |
| Quick-Action Compound Slide Travel | 0.1" |
| Compound Slide Travel | 3" |
| Coolant Pump | 1/8 HP, 220V, 3PH |
| Feed Motor | 220V |
| Dimensions (LxWxH) | 75" x 33" x 73" |
| WEIGHT | 2,500 Lbs. |

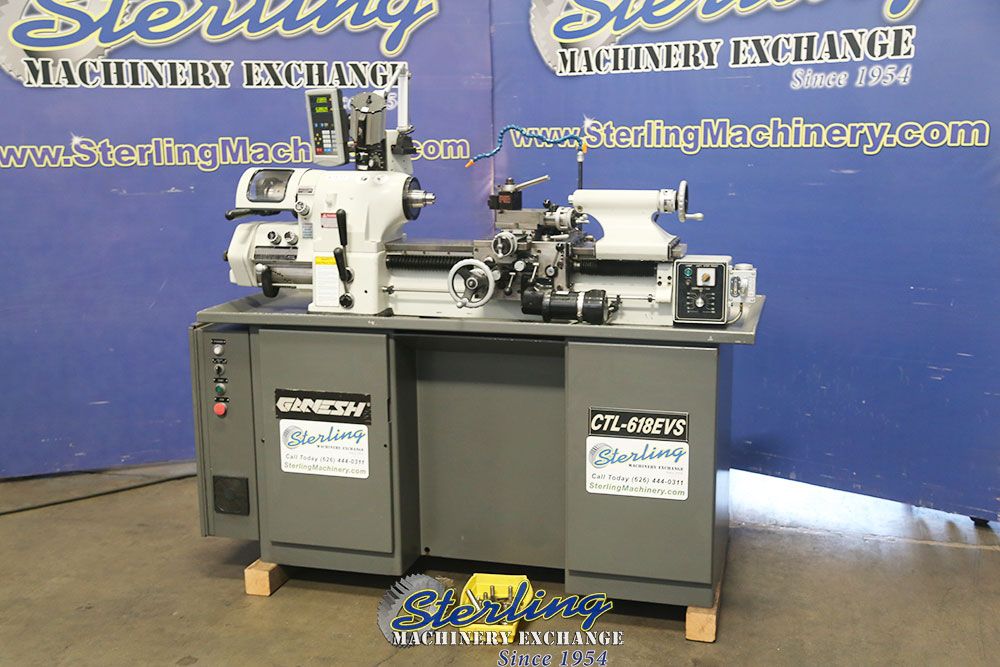

Features
Work Light
3 Jaw Chuck
Rack Of 5C Collets
Inch And Metric Threading

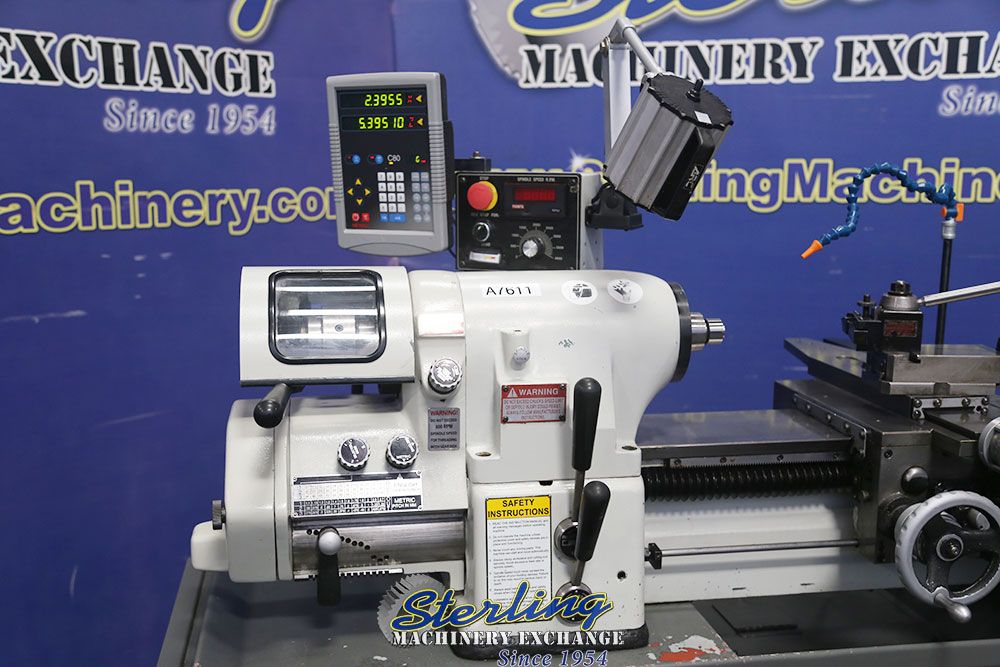

Newall 2 Axis Dro
Collet Closure
Variable Speed Controller
Aloris Tool Post
Inquire Further with Sterling Machinery Exchange!
