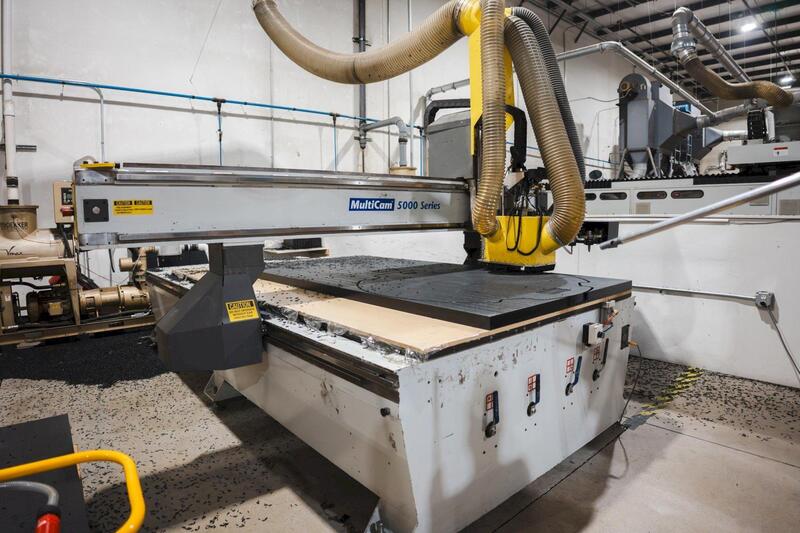

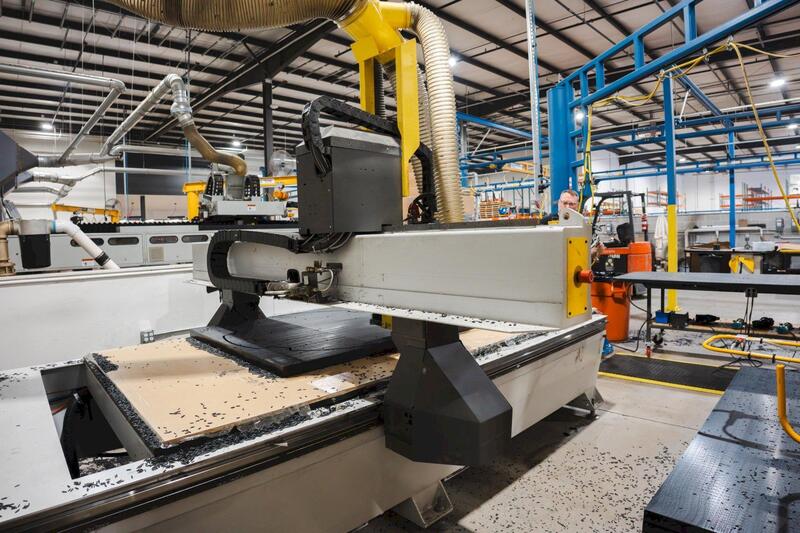

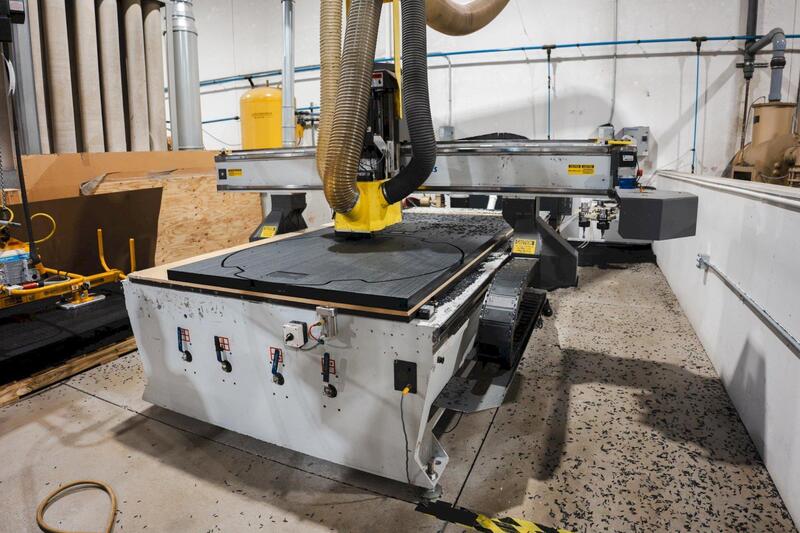

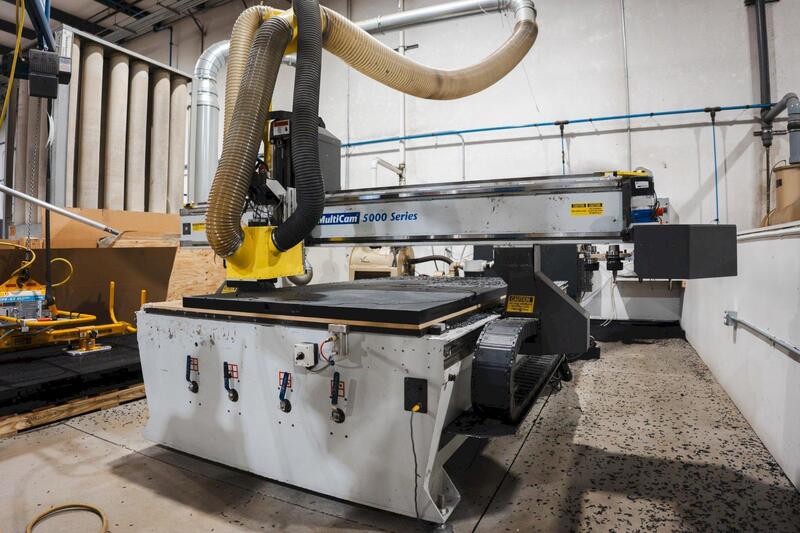

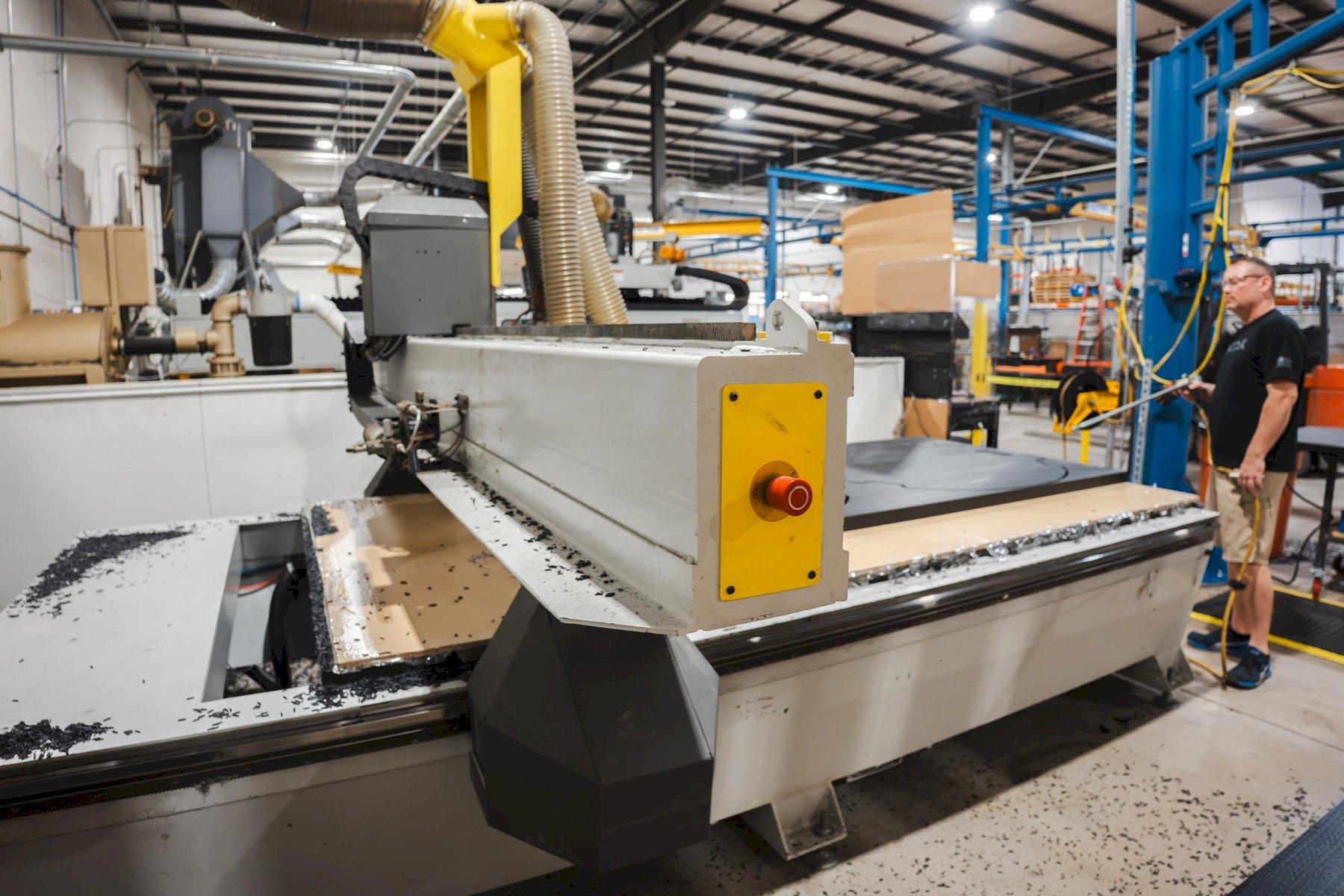

Multicam #5000, CNC Router, 2015

Specifications:

• 25 mm and 35 mm linear ball-bearing profile rails

• Z-axis clearance: 8” (20 cm)

• Cut speed: 1,800 IPM (45,5 m / min)

• Rapid traverse: 3,000 IPM (76 m / min)

• Repeatability: +/- 0.001” (0,025 mm)

• Drive system X and Y-axis: helical rack and pinion

• Drive system Z-axis: ball screw

• (Specifications subject to change without notice)

• Basic Information:

  • 5.5 – 20 HP

  • Working area: 50” x 50” to 120” x 242” (127 cm x 127 cm to 305 cm x 615 cm)

  • Rapid traverse: 3,000 IPM (76 m / min)

  • Repeatability: +/- 0.001” (0,025 mm)

  • Standard Work surface: 1” (2,54 cm) phenolic

  • Standard Features:

    • MultiCam EZ Control® and EZ G-Code™ software

    • Heavy, all-steel gusseted plate frame construction

    • High-speed three-axis motion-control system

    • Unlimited file size transfers

    • Brushless digital AC servo drives

    • (Features subject to change without notice)
