For Sale by CNC Exchange div. Gray Machinery Co.
Surplus Record Dealer Since 1966
Location: Prospect Heights, IL
Contact Glenn Gray
Phone Number: 847...> Show Phone Number 847-537-7700
Let the seller know you found their listing on Surplus Record!
Description

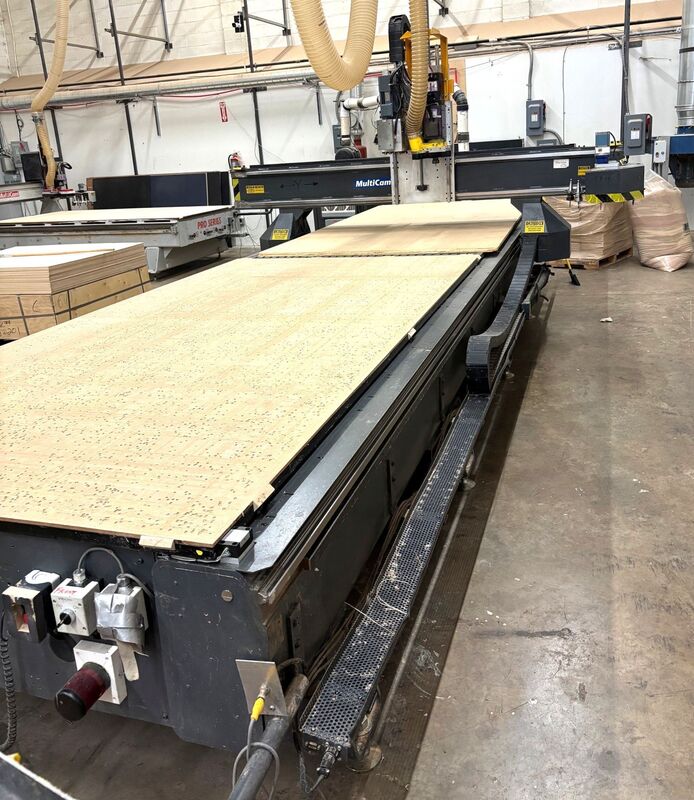

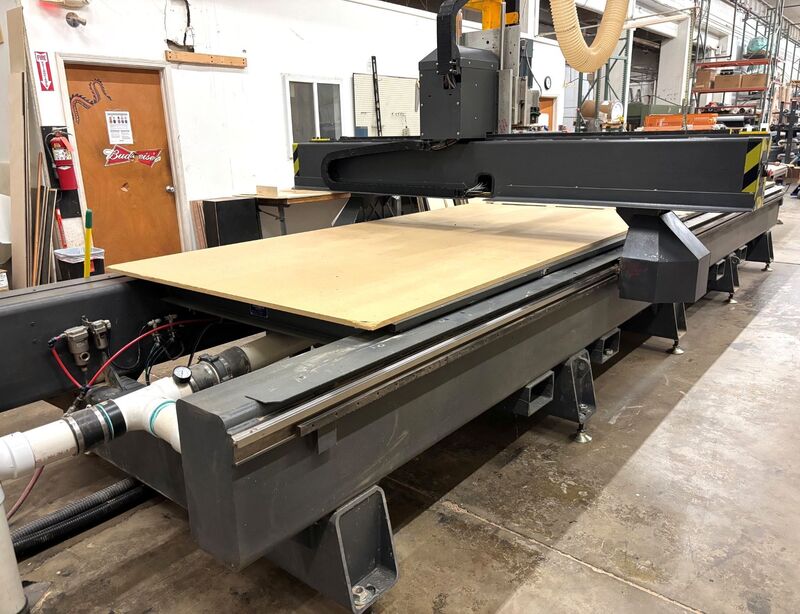

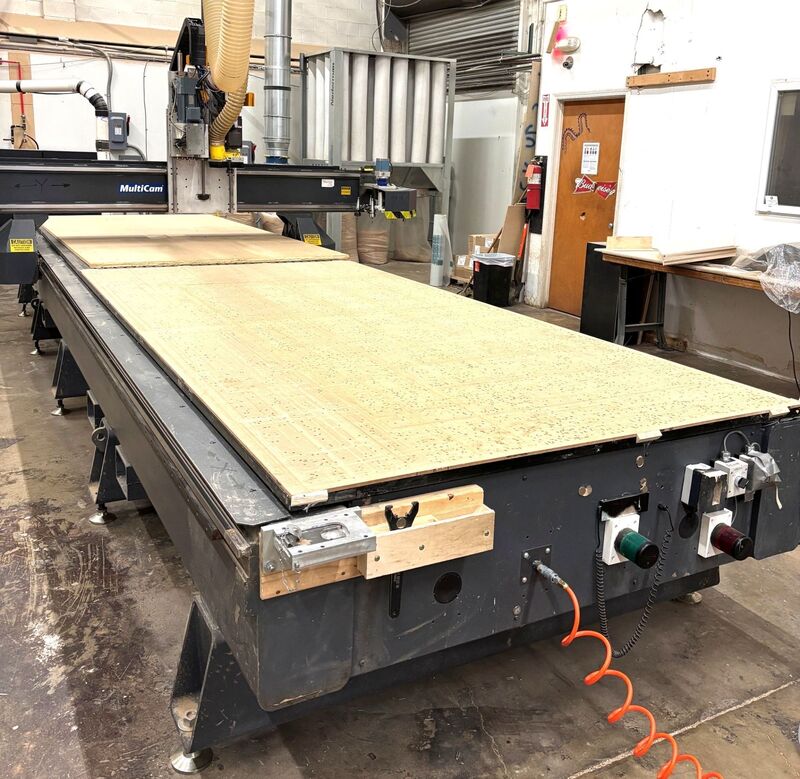

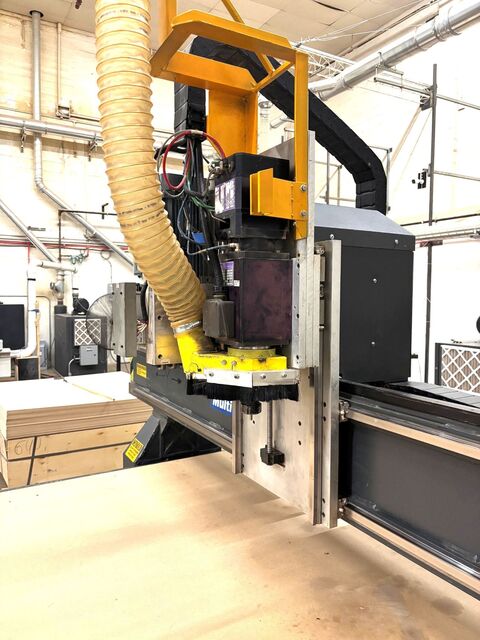

5' X 20' MULTICAM 5000 SERIES CNC ROUTER, NEW 2004, 10 HP 24,000 RPM COLUMBO SPINDLE,
12 POS ROTARY TOOL CHANGER , 4 ZONE VACUUM TABLE, DRILL BANK
MULTICAM
Model: 5000 SERIES
Year: 2004
High-Speed CNC Router
Moving Gantry System
Usage: Plastics, Metals, Woods
OEM: MultiCam (Dallas, TX)
Model: 5000 Series Router
DOM: 2004
System Power: 380 VAC, 3 Phase, 50-60 Cycle, 64 FLA
Spindle Power: 380 VAC, 3 Phase, 50-60 Cycle, 30 FLA
Features and Specifications:

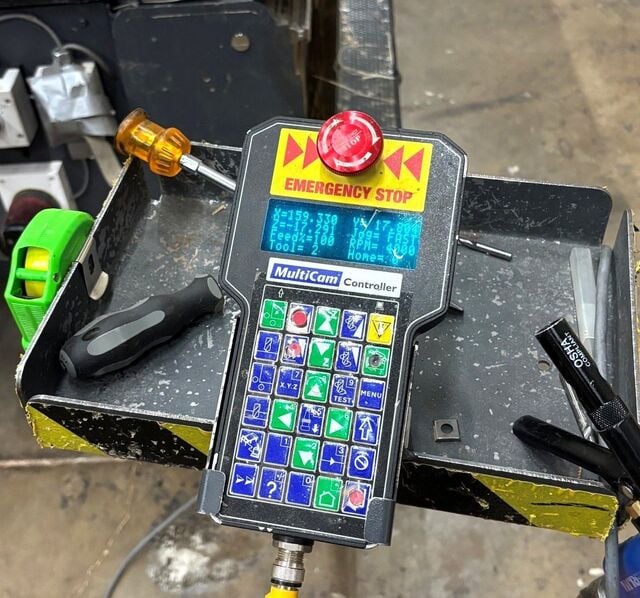

...CNC Controls: MultiCam EZ Control w/ Pendant

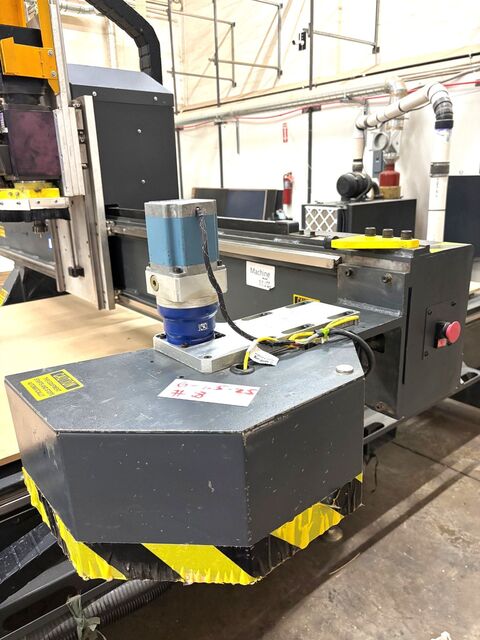

...Tool changer Positions: 12
...Spindle Speed: 24,000 RPM (Standard)

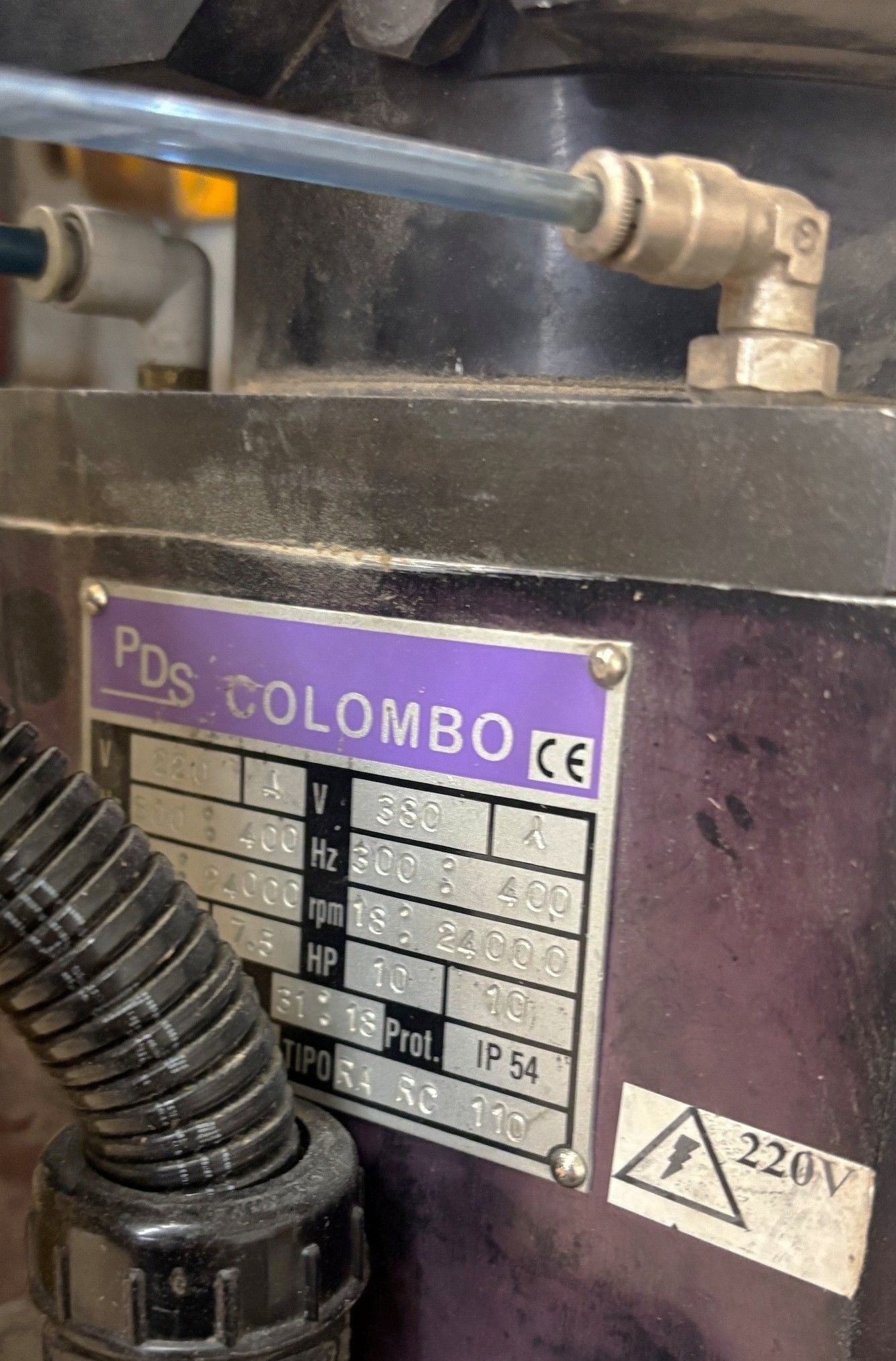

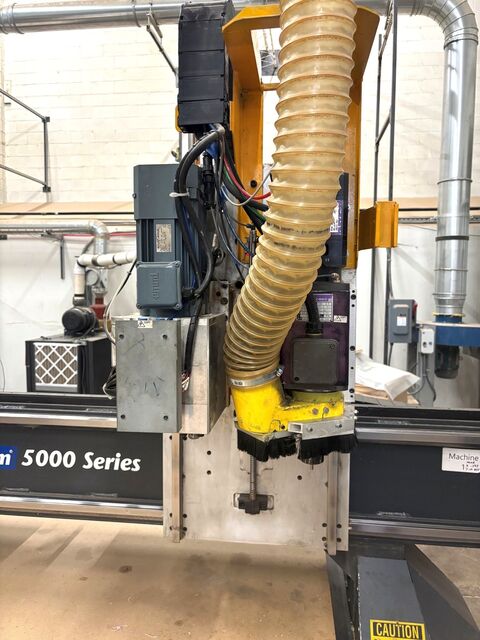

COLUMBO 10HP Spindle
...Cut Speed: 1,800 IPM
...Rapid Traverse: 3,000 IPM
...Z-Axis Clearance: 8"
...Table Size: 5' x 20'
...Table Surface: Phenolic w/ Grid Pattern
...Repeatability: 1/1000th Inch
...Helical Rack & Pinion on X, Y Axis
...Ball Screw on Z-Axis
Pneumatic pop up pins
4 zone vacuum table
Additional 8 position bar type tool changer
Machine Size (approx.)256" x 118" x 96"

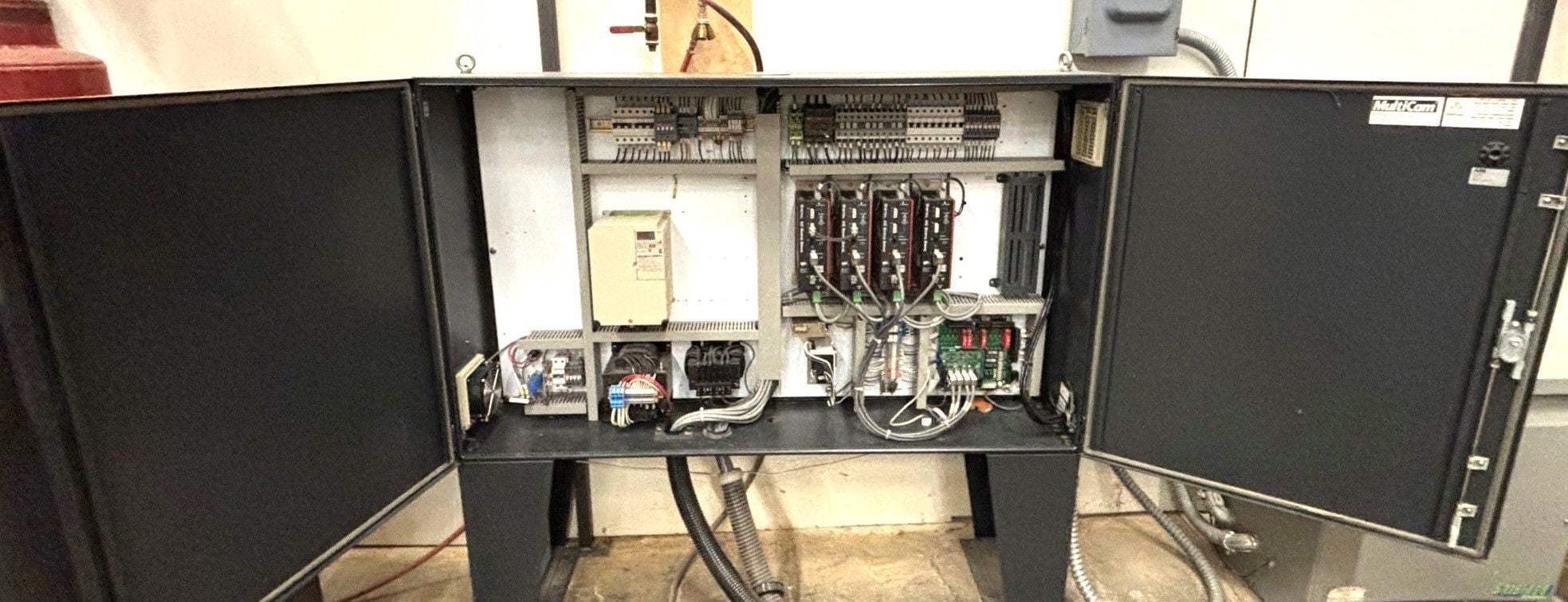

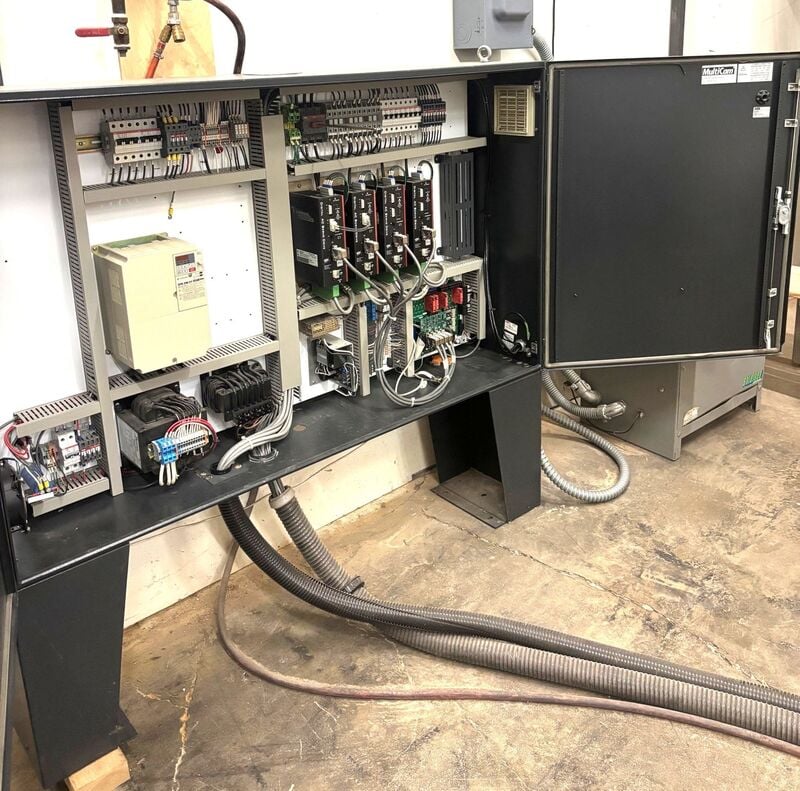

Control Cabinet (approx.): 67" x 16" x 55"
Machine Weight (approx.) 20,000 lbs.
Approximate specifications
12 POS ROTARY TOOL CHANGER , 4 ZONE VACUUM TABLE, DRILL BANK
MULTICAM
Model: 5000 SERIES
Year: 2004
High-Speed CNC Router
Moving Gantry System
Usage: Plastics, Metals, Woods
OEM: MultiCam (Dallas, TX)
Model: 5000 Series Router
DOM: 2004
System Power: 380 VAC, 3 Phase, 50-60 Cycle, 64 FLA
Spindle Power: 380 VAC, 3 Phase, 50-60 Cycle, 30 FLA
Features and Specifications:
...CNC Controls: MultiCam EZ Control w/ Pendant
...Tool changer Positions: 12
...Spindle Speed: 24,000 RPM (Standard)
COLUMBO 10HP Spindle
...Cut Speed: 1,800 IPM
...Rapid Traverse: 3,000 IPM
...Z-Axis Clearance: 8"
...Table Size: 5' x 20'
...Table Surface: Phenolic w/ Grid Pattern
...Repeatability: 1/1000th Inch
...Helical Rack & Pinion on X, Y Axis
...Ball Screw on Z-Axis
Pneumatic pop up pins
4 zone vacuum table
Additional 8 position bar type tool changer
Machine Size (approx.)256" x 118" x 96"
Control Cabinet (approx.): 67" x 16" x 55"
Machine Weight (approx.) 20,000 lbs.
Approximate specifications
Get Your Price from CNC Exchange div. Gray Machinery Co.!
