Description

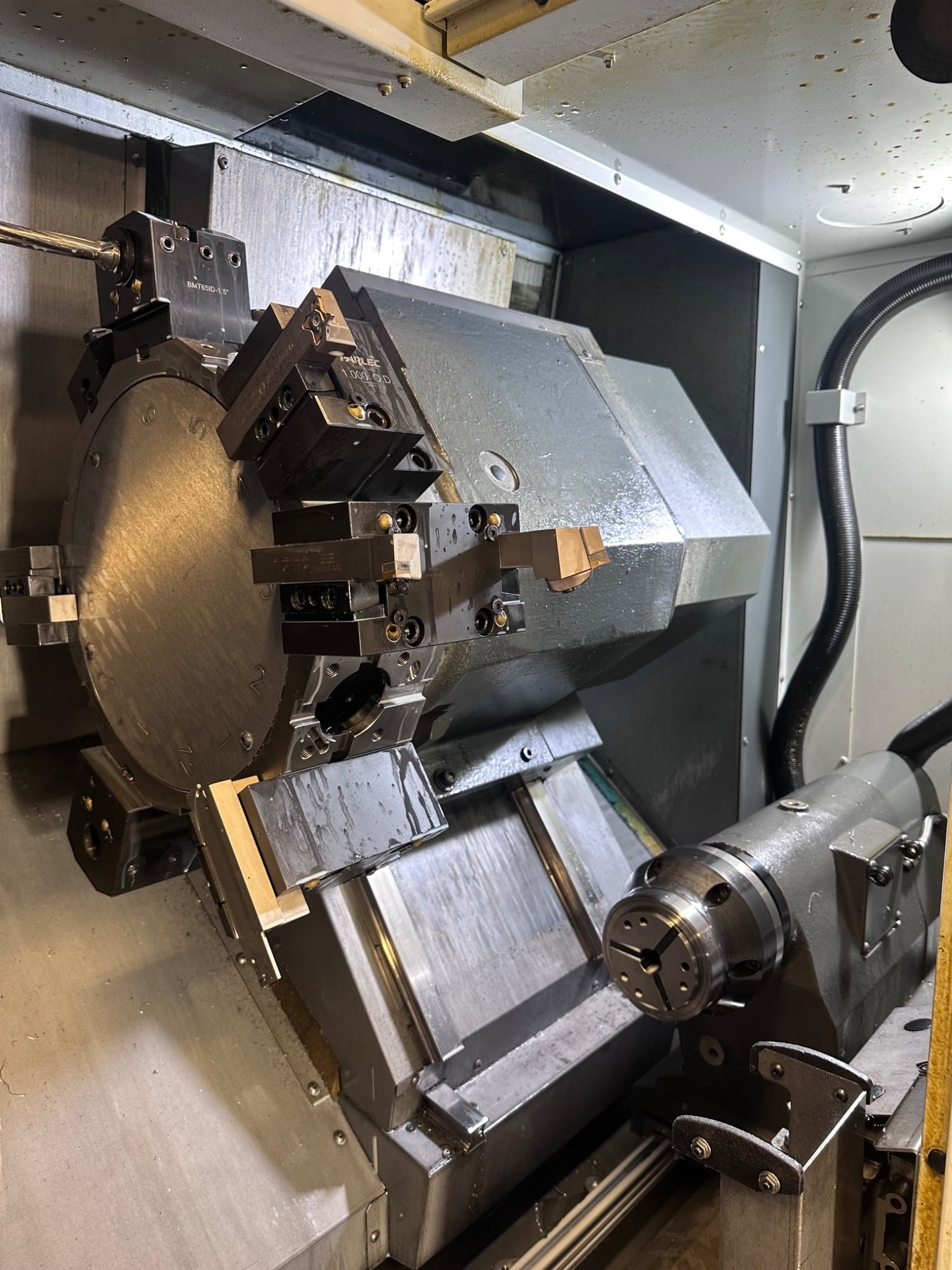

HAAS ST 25YS CNC lathe, ideal for precision machining with 21" swing over bed, 11.75" turning diameter, and 3,400 RPM spindle speeds. Includes HAAS CNC control, parts catcher, and 6000 RPM live tooling upgrade. Enhanced with features like WiFi camera and touch screen.
2022 HAAS ST 25Y
SPECIFICATIONS:
Swing Over Bed................ 21"
Turning Diameter.............. 11.75"
Turning Length................ 22.5"
Chuck Size 1.................. 10"
Spindle Nose 1................ A2-6
Spindle Bore Diameter 1....... 3.5"
Bar Capacity 1................ 3"
Spindle Speeds 1.............. 3,400 RPM
Spindle Horsepower 1.......... 30 hp
Chuck Size 2.................. 5.3"
Spindle Nose 2................ A2-5
Spindle Speeds 2.............. 6,000 RPM
X1 - Axis Travel.............. 8.4"
Z1 - Axis Travel.............. 22.5"
Y1 - Axis Travel.............. -2"
C - Axis Indexing 1........... 0.001
C - Axis Indexing 2........... 0.001
Rapid Traverse Rate - X1...... 945 ipm
Rapid Traverse Rate - Z1...... 945 ipm
Rapid Traverse Rate - Y1...... 472 ipm
Turret Tool Positions 1....... 12 station
Turret Rotary Tool Speeds 1... 6,000 RPM
Programmable Tailstock........ 'No'
Machine Weight................ 10,000 lb
Control....................... CNC (HAAS CNC CONTROL)
Dimensions.................... 130" x 78" x 77"
Weight........................ 12500
EQUIPPED WITH:
HAAS CNC CONTROL
PARTS CATCHER
BELT TYPE CHIP CONVEYOR
HAAS V2 BAR FEEDER 3"
VISUAL PART PROGRAMMING
USER DEFINED MACROS
55 GALLON COOLANT TANK
BMT TURRET
EARLY POWER FAILURE DETECTION MODULE
ETHERNET INTERFACE
HAAS CONNECT REMOTE MONITORING
HAAS DROP
MEDIA DISPLAY M-CODE M130
RIGID TAPPING
SPINDLE ORIENTATION
TOUCH SCREEN CONTROL
WIFI CONNECTION
CONTROL CABINET COOLER
A2-5 FINISHING SUBSPINDLE
6000 RPM UPGRADE FOR LIVE TOOLING
HIGH PRESSURE COOLANT
AUTO TOOL PRESETTER
CHUCK AIRBLAST
SUB SPINDLE AIRBLAST
WIFI CAMERA
LOW VOLT
AUXILIARY COOLANT FILTER
CHIP TRAY FILTER KIT
COOLANT TANK OIL SKIMMER
2022 HAAS ST 25Y
SPECIFICATIONS:
Swing Over Bed................ 21"
Turning Diameter.............. 11.75"
Turning Length................ 22.5"
Chuck Size 1.................. 10"
Spindle Nose 1................ A2-6
Spindle Bore Diameter 1....... 3.5"
Bar Capacity 1................ 3"
Spindle Speeds 1.............. 3,400 RPM
Spindle Horsepower 1.......... 30 hp
Chuck Size 2.................. 5.3"
Spindle Nose 2................ A2-5
Spindle Speeds 2.............. 6,000 RPM
X1 - Axis Travel.............. 8.4"
Z1 - Axis Travel.............. 22.5"
Y1 - Axis Travel.............. -2"
C - Axis Indexing 1........... 0.001
C - Axis Indexing 2........... 0.001
Rapid Traverse Rate - X1...... 945 ipm
Rapid Traverse Rate - Z1...... 945 ipm
Rapid Traverse Rate - Y1...... 472 ipm
Turret Tool Positions 1....... 12 station
Turret Rotary Tool Speeds 1... 6,000 RPM
Programmable Tailstock........ 'No'
Machine Weight................ 10,000 lb
Control....................... CNC (HAAS CNC CONTROL)
Dimensions.................... 130" x 78" x 77"
Weight........................ 12500
EQUIPPED WITH:
HAAS CNC CONTROL
PARTS CATCHER
BELT TYPE CHIP CONVEYOR
HAAS V2 BAR FEEDER 3"
VISUAL PART PROGRAMMING
USER DEFINED MACROS
55 GALLON COOLANT TANK
BMT TURRET
EARLY POWER FAILURE DETECTION MODULE
ETHERNET INTERFACE
HAAS CONNECT REMOTE MONITORING
HAAS DROP
MEDIA DISPLAY M-CODE M130
RIGID TAPPING
SPINDLE ORIENTATION
TOUCH SCREEN CONTROL
WIFI CONNECTION
CONTROL CABINET COOLER
A2-5 FINISHING SUBSPINDLE
6000 RPM UPGRADE FOR LIVE TOOLING
HIGH PRESSURE COOLANT
AUTO TOOL PRESETTER
CHUCK AIRBLAST
SUB SPINDLE AIRBLAST
WIFI CAMERA
LOW VOLT
AUXILIARY COOLANT FILTER
CHIP TRAY FILTER KIT
COOLANT TANK OIL SKIMMER
Get Your Price from Used CNC LLC!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!

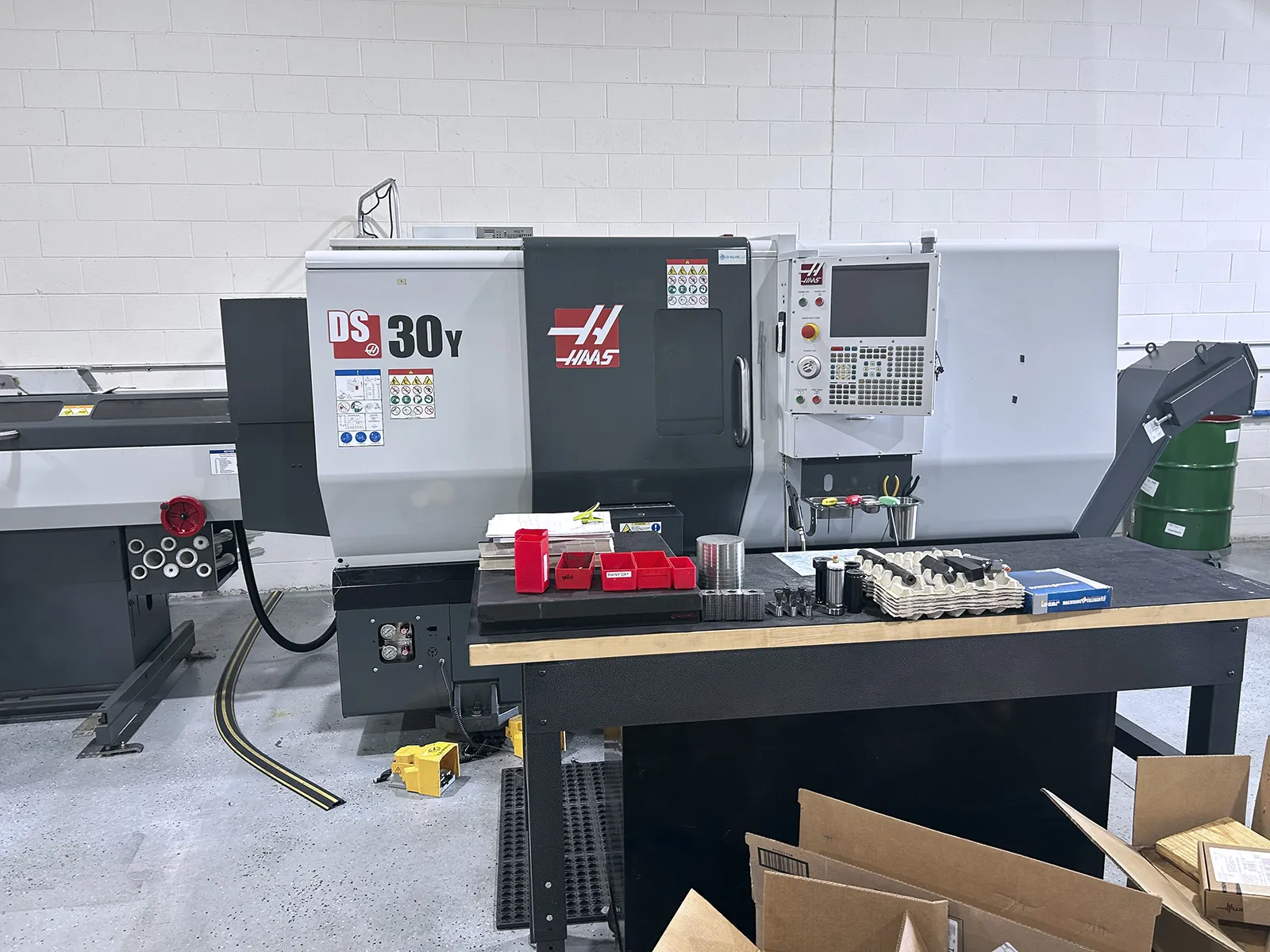

Haas #DS-30Y, CNC lathe, 21" swing, 10" chuck, 3" bar, 13.75" diameter, 32.5" length, 30 HP, 4500 RPM, sub spindle, 12 turret, Y-axis, live tooling, 2019
Category: CNC Lathes and Turning Centers
Seller: Machinery Marketing International
Location: Chicago, IL
Mfr: Haas
Model: DS-30Y
Year: 2019
Used Haas DS-30Y 2019 CNC Turning Center is a high-productivity done-in-one machining system combining dual-face turning and milling. Reduce setups, cycle times, and handling errors while maximizing throughput. Ideal for aerospace, automotive, medical, fluid control, and high-volume contract manufacturing., Haas Next ...more
JUST ADDED!
Haas #DS-30Y, CNC dual spindle lathe, Y-Axis, 21" swing, 13.75" turning diameter, 32.5" length, 10" chuck, 3" bar, 4500 RPM, 30 HP, 12 turret, 2019
Category: CNC Lathes and Turning Centers
Seller: Machine Tool Bids
Location: Chicago, IL
Mfr: Haas
Model: DS-30Y
Year: 2019
Used Haas DS-30Y 2019 CNC Turning Center is a high-productivity done-in-one machining system combining dual-face turning and milling. Reduce setups, cycle times, and handling errors while maximizing throughput. Ideal for aerospace, automotive, medical, fluid control, and high-volume contract manufacturing., MACHINE ...more
JUST ADDED!
Haas #ST-30, CNC lathe, 21" swing, 26" machining length, 10" chuck, 3" bar, 3.5" bore, 30 HP, 3400 RPM, 12-station turret, chip conveyor, 2011
Category: CNC Lathes and Turning Centers
Seller: Southern Fabricating Mchy Sales
Location: Lithia, FL
Mfr: Haas
Model: ST-30
Year: 2011
21” X 26” CNC Turning Center with 10” 3-Jaw Hydraulic Chuck, Automatic Tool Presetter, Parts Catcher, Chip Conveyor, High Pressure Coolant, Rigid Tapping and USB Port., Max. Cutting Diameter: 21”, Max. Cutting Length: 26”, X - Axis Travel: 12.5”, Z - Axis Travel: 26”, Chuck ...more
JUST ADDED!

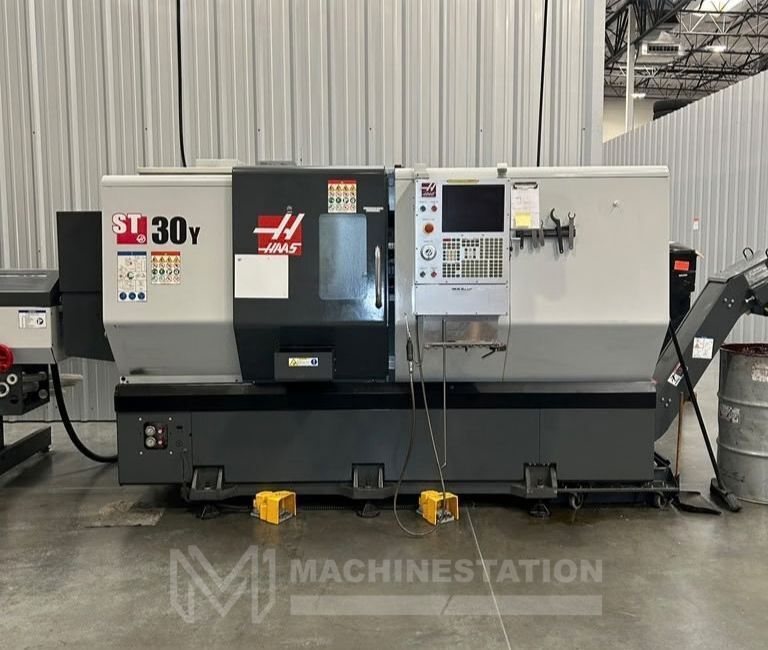

Haas #ST-30Y, CNC lathe, 21" swing, 32.5" centers, 10" chuck, 3" bar, A2-6, 12-station live turret, Y-Axis, 30 HP, 3400 RPM, bar feeder, 2019
