Description
Description

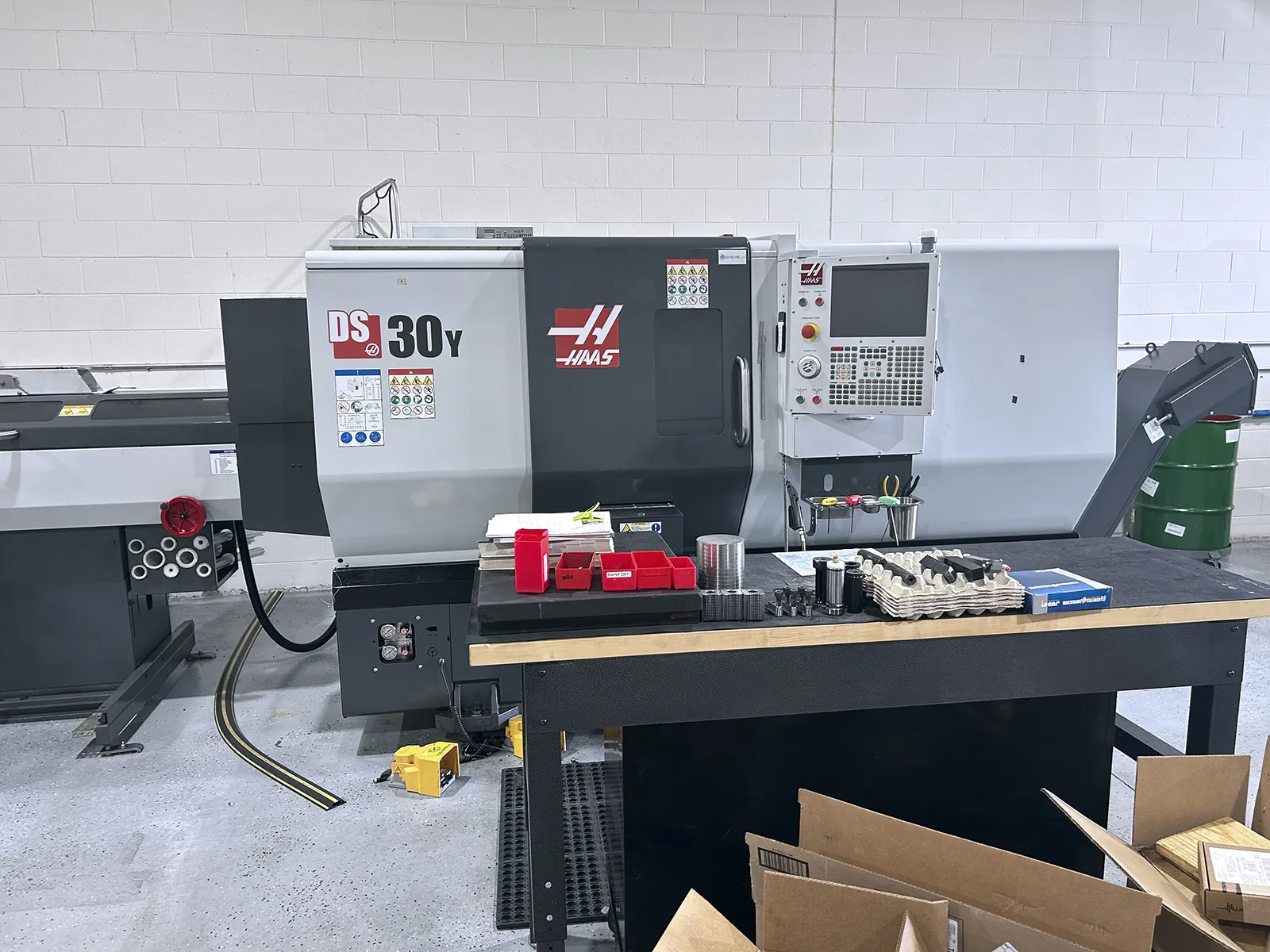

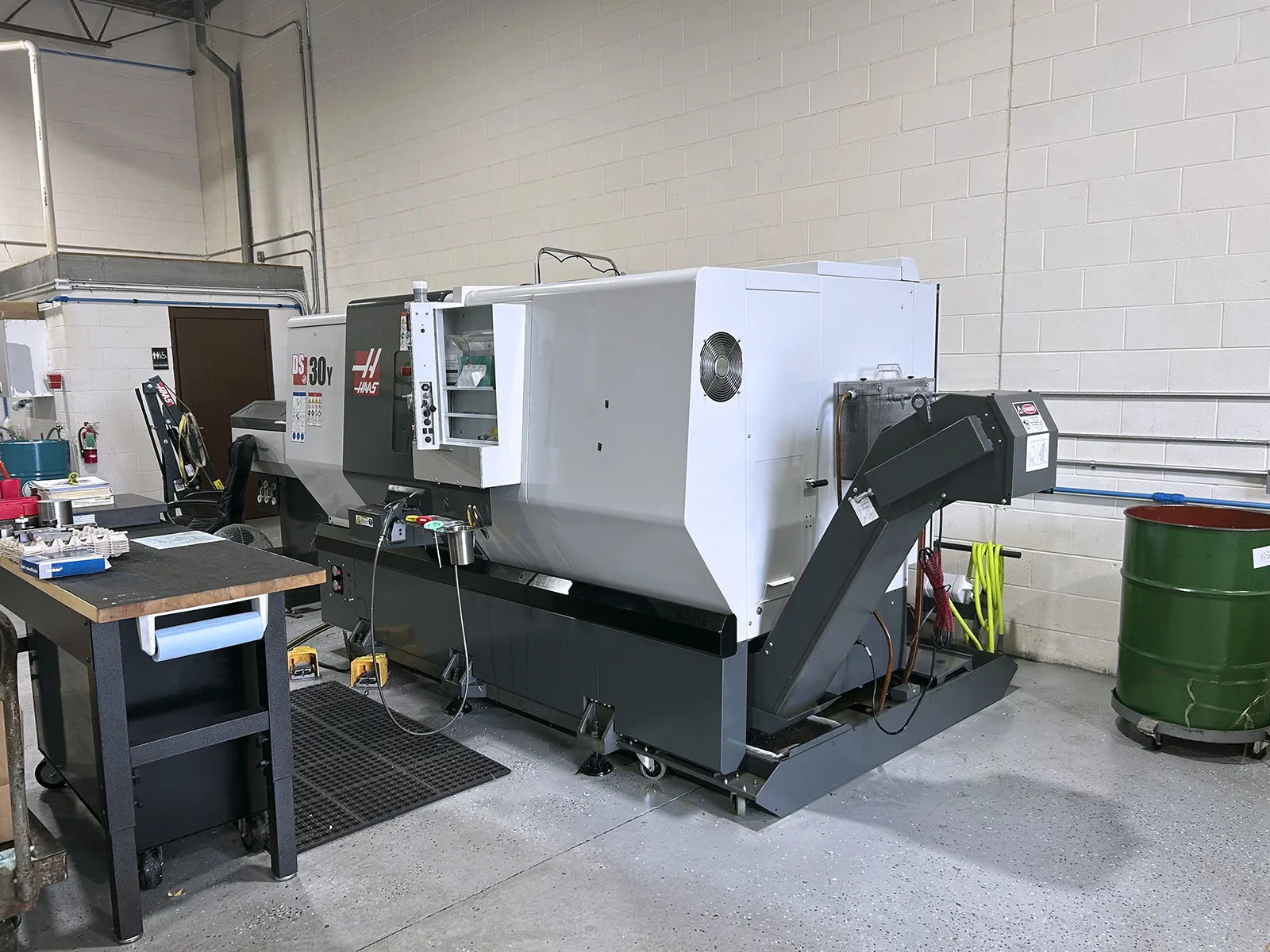

Used Haas DS-30Y 2019 CNC Turning Center is a high-productivity done-in-one machining system combining dual-face turning and milling. Reduce setups, cycle times, and handling errors while maximizing throughput. Ideal for aerospace, automotive, medical, fluid control, and high-volume contract manufacturing.
MACHINE SPECIFICATION
Main Chuck Size: 10"
Sub-Spindle Chuck Size: 8.3"
Maximum Part Swing: 21.0"
Maximum Cutting Diameter: 13.75"
Maximum Cutting Length: 32.5"
Maximum Bar Capacity: 3.00"
DISTANCE BETWEEN CENTERS: 32.5"
X-Axis Travel: 9.40"
Y-Axis Travel: 2.00" (4.00" total)
Z-Axis Travel: 32.50"
Main Spindle Speed: 4,500 RPM
Main Spindle Motor: 30 HP
Main Spindle Torque: 275 ft-lb @ 500 RPM
Main Spindle Nose: A2-6
Main Spindle Bore: 3.50"
Main Spindle C-Axis: Full Interpolated C-Axis
C Axis Positioning: 0.01
Sub-Spindle Speed: 4,000 RPM
Sub-Spindle Motor: 15 HP
sub-spindle torque: 100 ft-lb @ 870 RPM
Sub-Spindle Nose: A2-5
Sub-Spindle Bore: 2.31"
Sub-Spindle C-Axis: Full Interpolated C-Axis
Maximum Synchronized Speed: 4,000 RPM
Turret Capacity: 12 Stations
Turret Type: BMT65
Live Tooling Speed: 4,000 RPM
Live Tooling Drive Ratio: 1:1
Coolant Capacity: 55 Gallons
Approx. Machine Weight: 12,200 lbs
Used Haas DS-30Y 2019 CNC Turning Center is a high-productivity done-in-one machining system combining dual-face turning and milling. Reduce setups, cycle times, and handling errors while maximizing throughput. Ideal for aerospace, automotive, medical, fluid control, and high-volume contract manufacturing.
MACHINE SPECIFICATION
Main Chuck Size: 10"
Sub-Spindle Chuck Size: 8.3"
Maximum Part Swing: 21.0"
Maximum Cutting Diameter: 13.75"
Maximum Cutting Length: 32.5"
Maximum Bar Capacity: 3.00"
DISTANCE BETWEEN CENTERS: 32.5"
X-Axis Travel: 9.40"
Y-Axis Travel: 2.00" (4.00" total)
Z-Axis Travel: 32.50"
Main Spindle Speed: 4,500 RPM
Main Spindle Motor: 30 HP
Main Spindle Torque: 275 ft-lb @ 500 RPM
Main Spindle Nose: A2-6
Main Spindle Bore: 3.50"
Main Spindle C-Axis: Full Interpolated C-Axis
C Axis Positioning: 0.01
Sub-Spindle Speed: 4,000 RPM
Sub-Spindle Motor: 15 HP
sub-spindle torque: 100 ft-lb @ 870 RPM
Sub-Spindle Nose: A2-5
Sub-Spindle Bore: 2.31"
Sub-Spindle C-Axis: Full Interpolated C-Axis
Maximum Synchronized Speed: 4,000 RPM
Turret Capacity: 12 Stations
Turret Type: BMT65
Live Tooling Speed: 4,000 RPM
Live Tooling Drive Ratio: 1:1
Coolant Capacity: 55 Gallons
Approx. Machine Weight: 12,200 lbs
