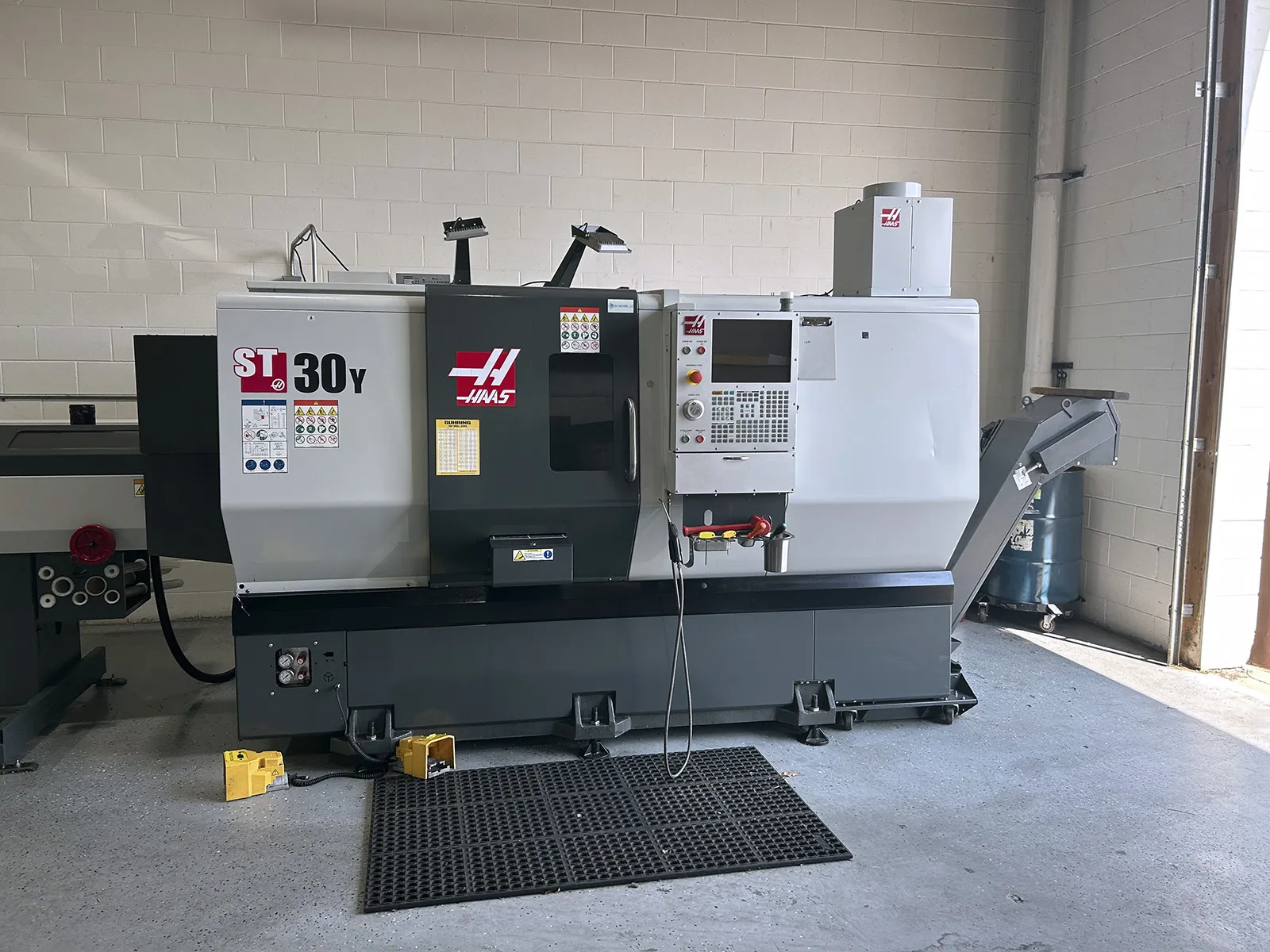

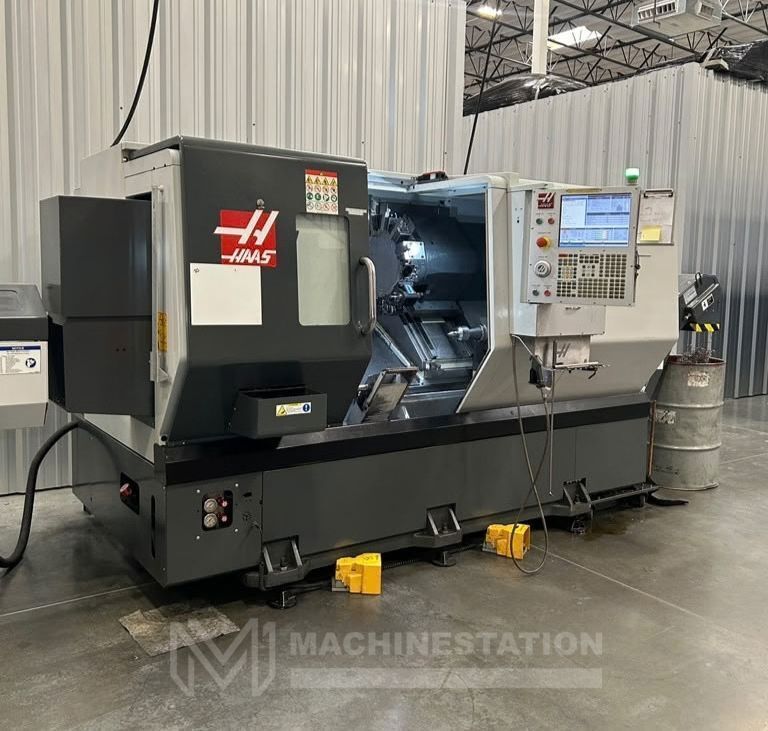

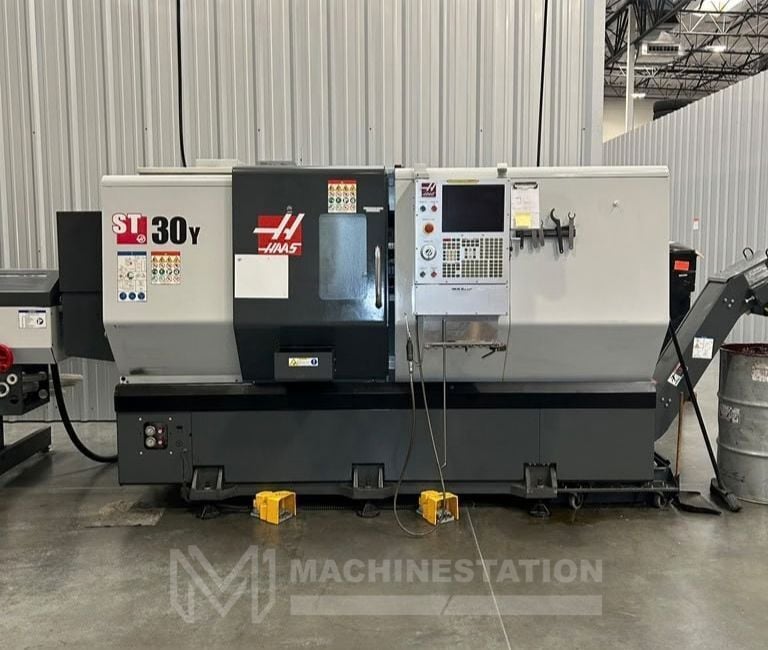

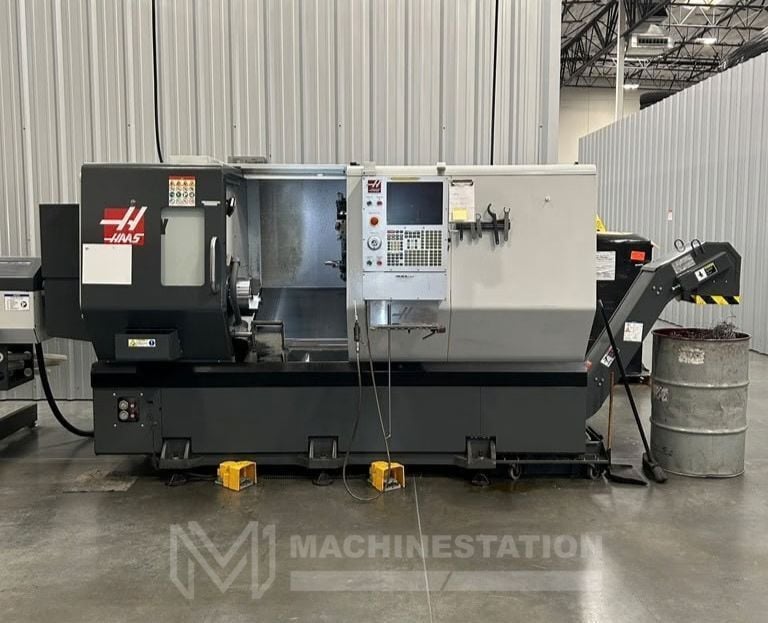

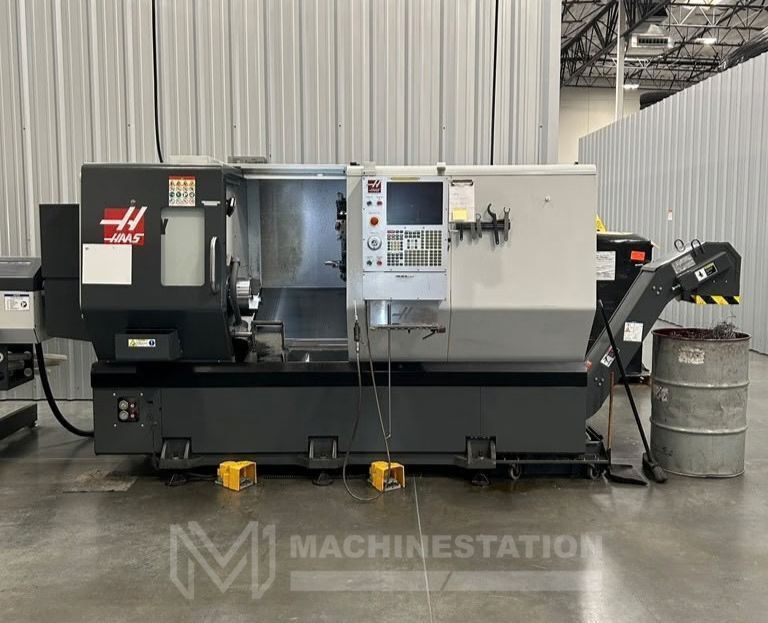

Haas #ST-30Y, CNC lathe, 21" swing, 32.5" centers, 10" chuck, 3" bar, A2-6, 12-station live turret, Y-Axis, 30 HP, 3400 RPM, bar feeder, 2019

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

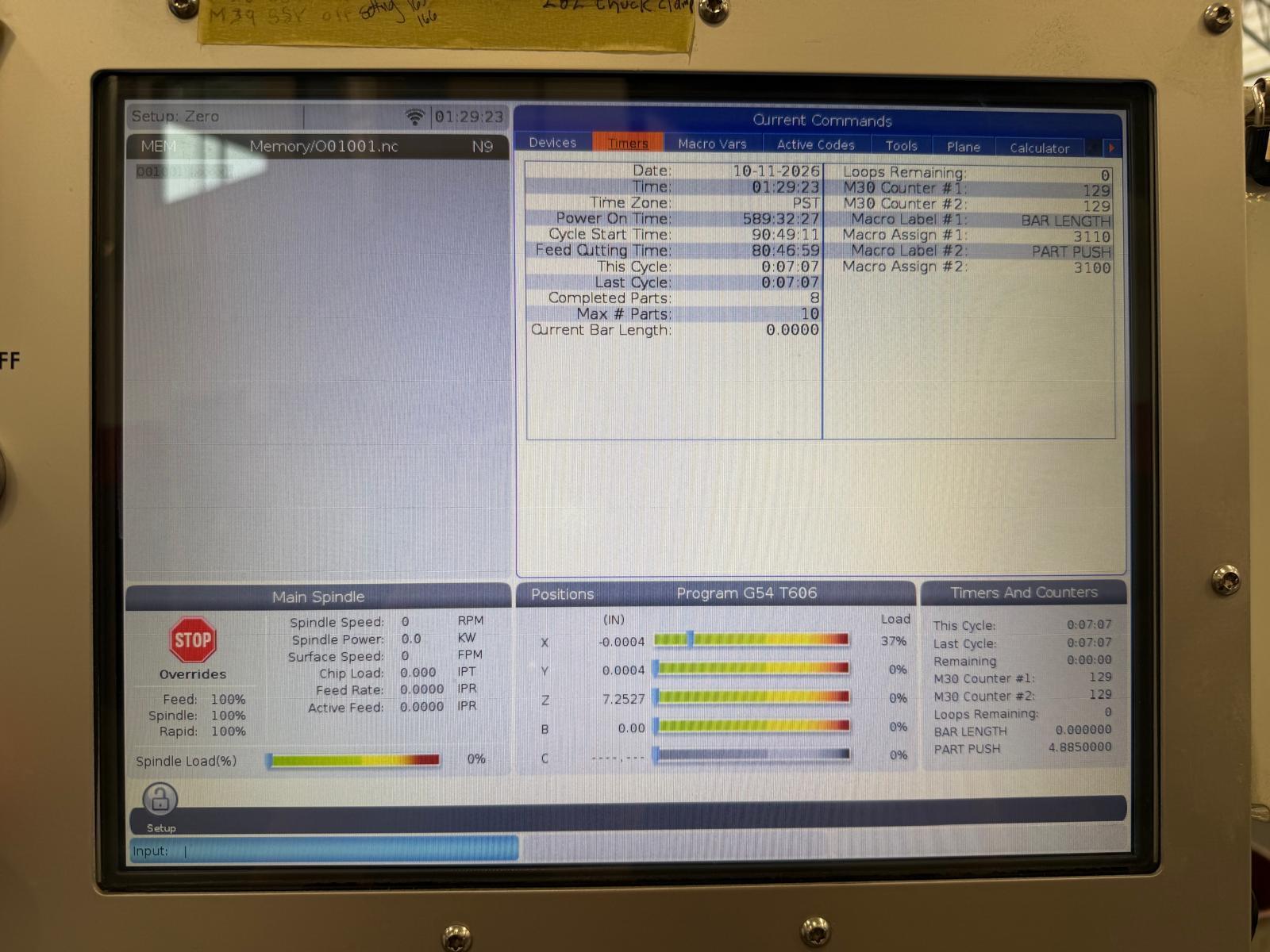

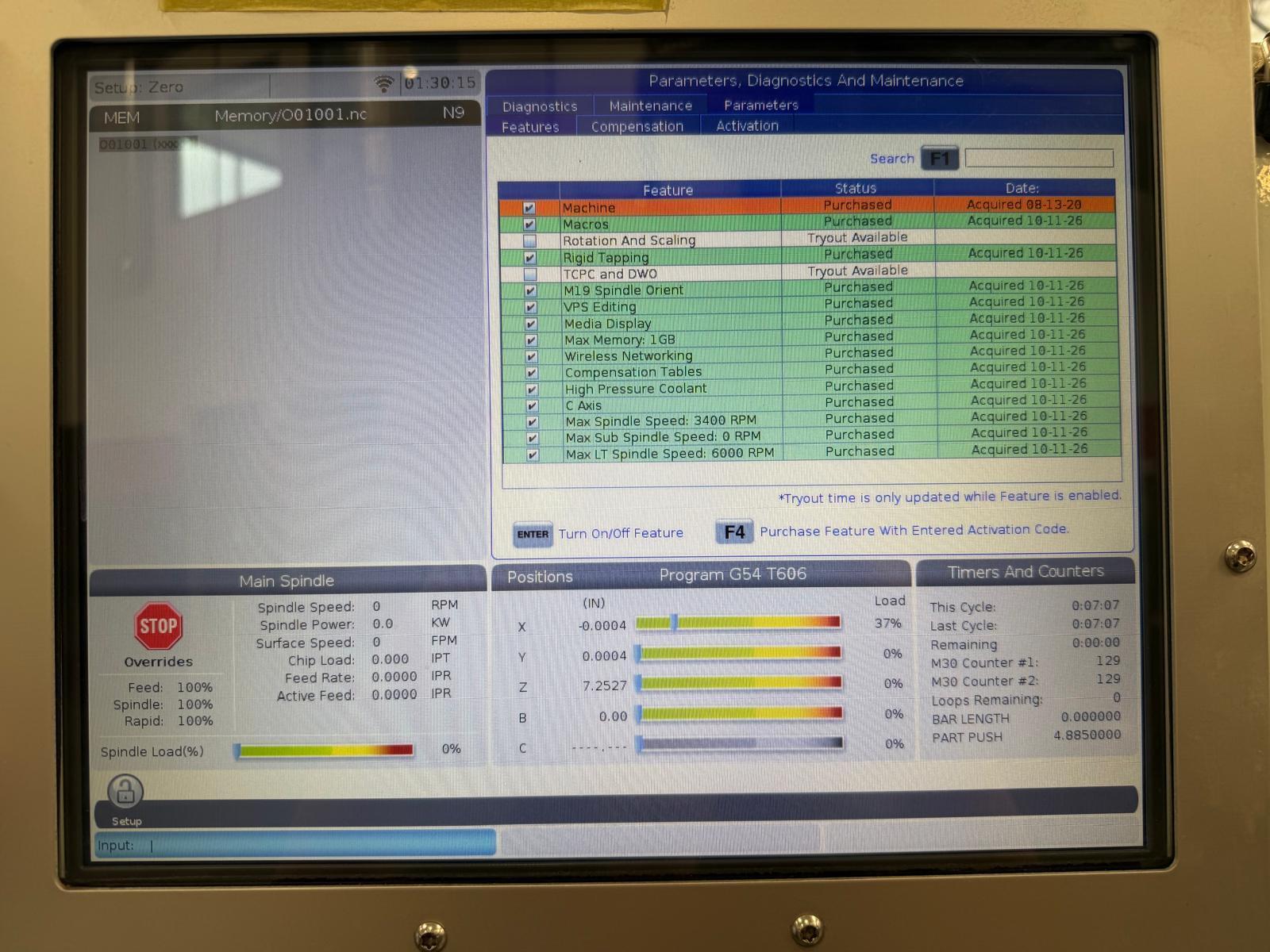

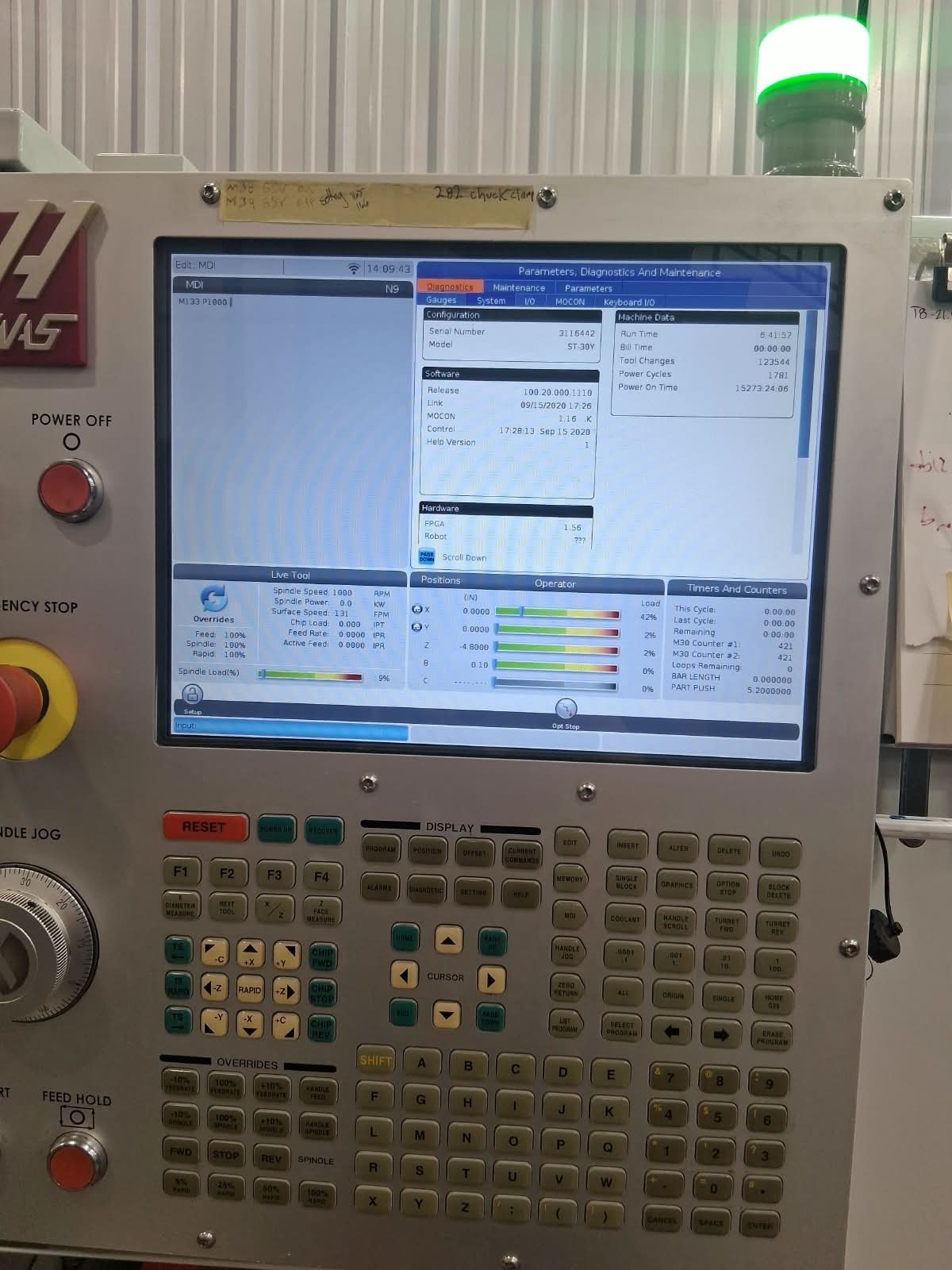

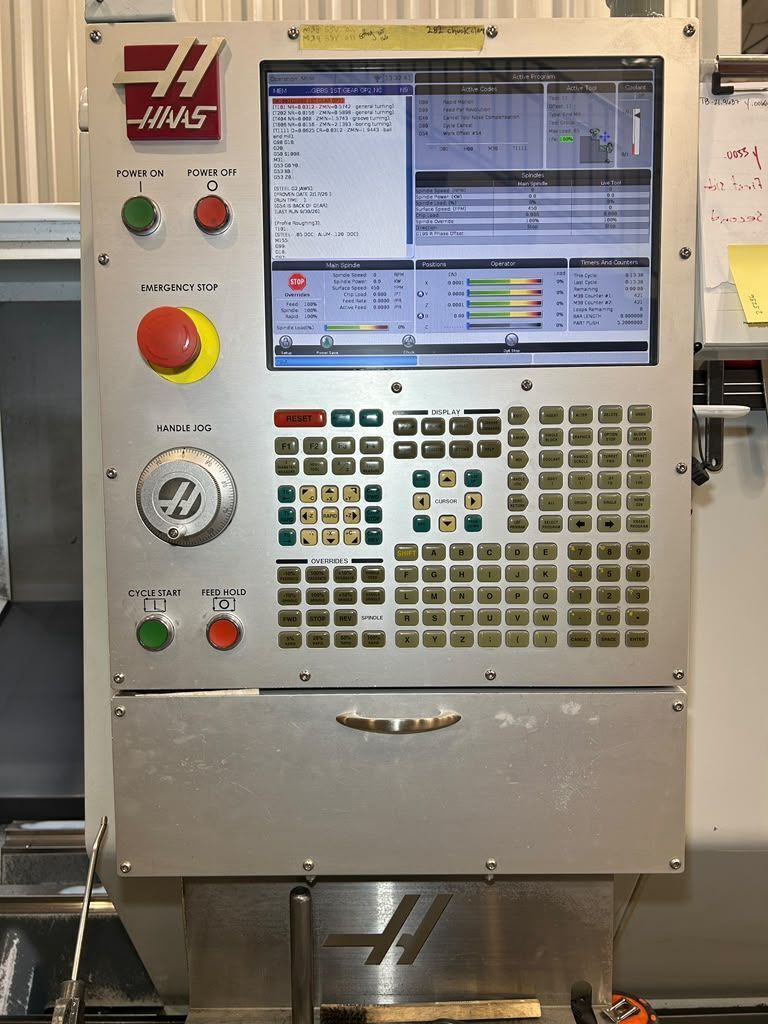

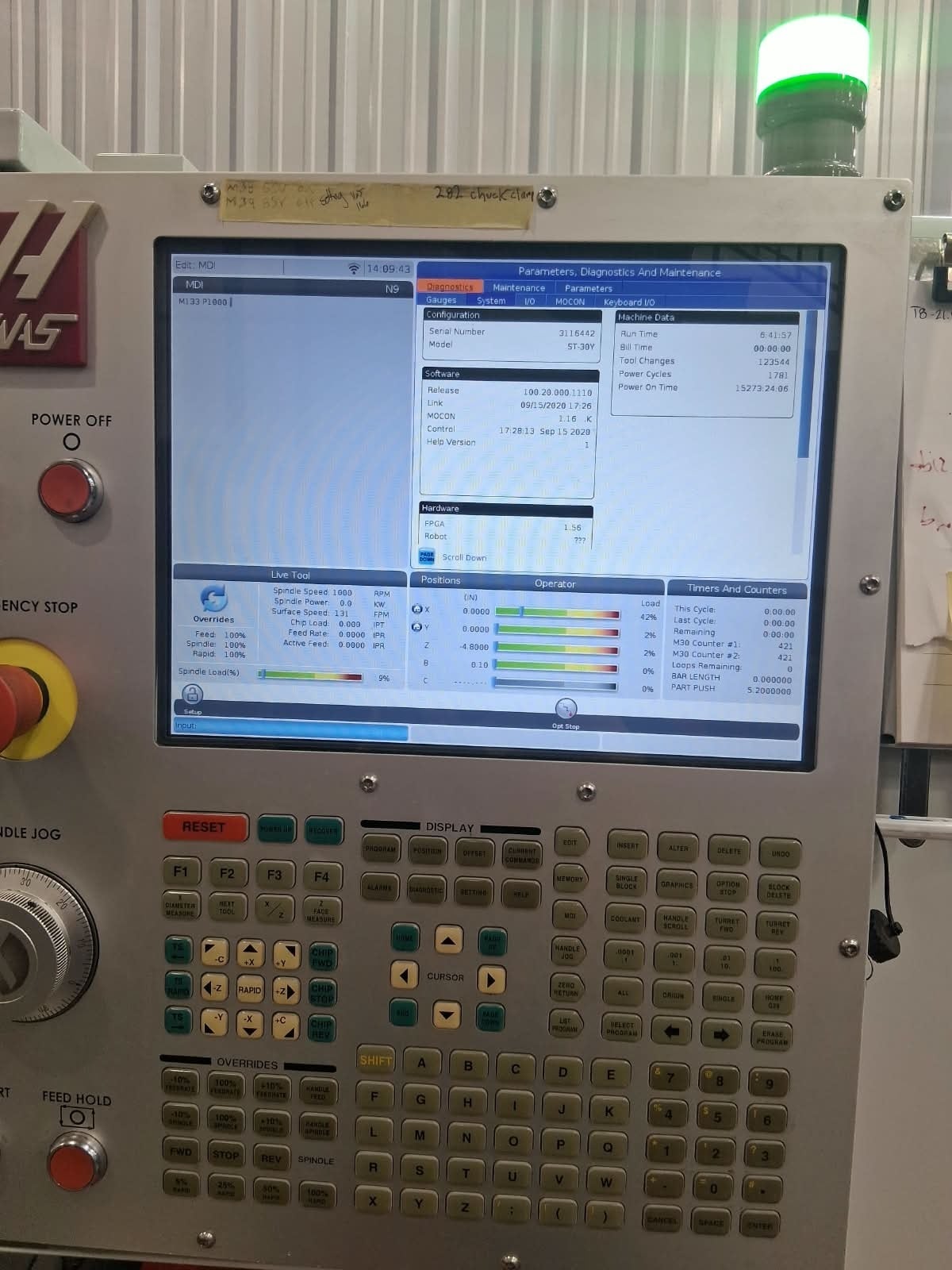

Haas CNC Control
30 HP Vector Dual Drive
A2-6 Spindle
3.5 inch Big Bore Spindle
Rigid Tapping
Spindle Orientation
Visual Part Programming System & User-Definable Macro
Media Display
1 GB Max Memory
Compensation Tables
Wireless Networking
USB Port
Coolant Tank
Note: Tool Holders Are Not Included with The Machine
Capacity:
Max Turning Diameter : 13.75 inch
Max Swing Over Bed : 21.0 inch
Max Turning Length: 32.5 inch
Max Bar Capacity : 3.0 inch
Distance Between Centers : 32.5 inch
Travels:
X Axis Travel : 9.4 inch
Y Axis Travel : ± 2.0 inch
Z Axis Travel : 32.5 inch
C Axis : 0.01 °
Feedrate:
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Y Axis: 472 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.5 inch
Spindle Speed: 3400 RPM
Spindle Motor: 30 HP

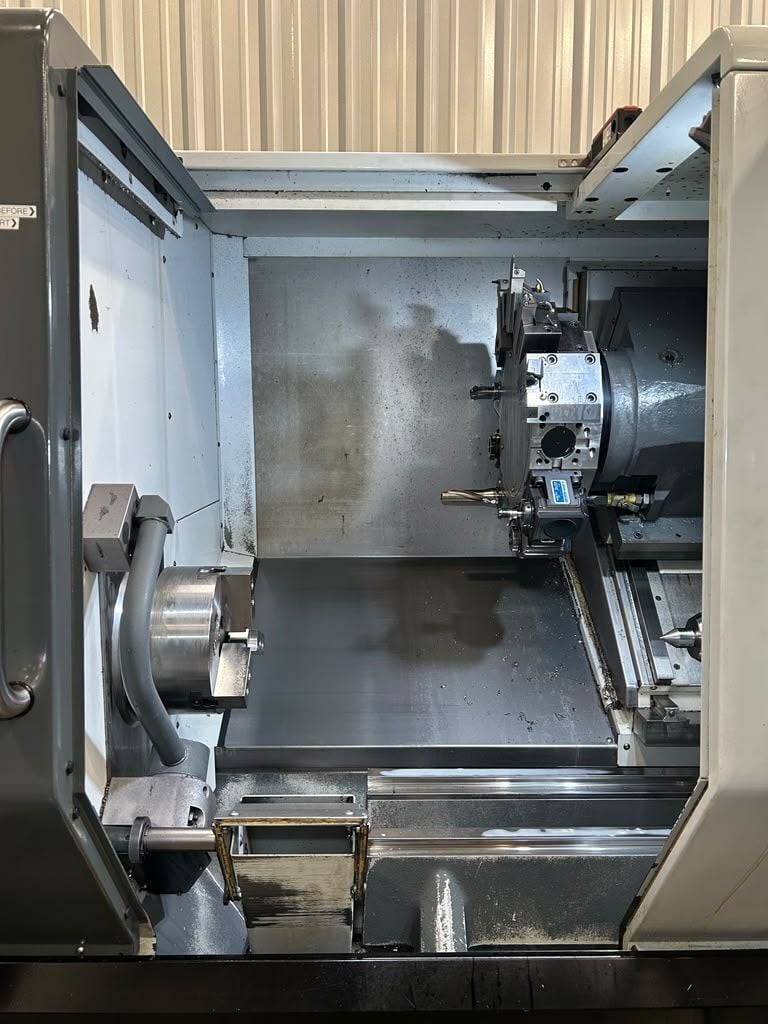

Turret:
Turret Capacity: 12 Stations 24 Positions
Live Tool Speed: 6,000 RPM
Turret Type: BMT-65
Tailstock:
Tailstock Taper: MT-4
Tailstock Type: Programmable
General:
Air Required: 100 psi 4 scfm
Power Source: 440v / 3-Phase / 50/60 Hz
Machine Dimensions: 170 inch x 90 inch x 98 inch High Approx.
Machine Weight: 11,340 lbs Approx.

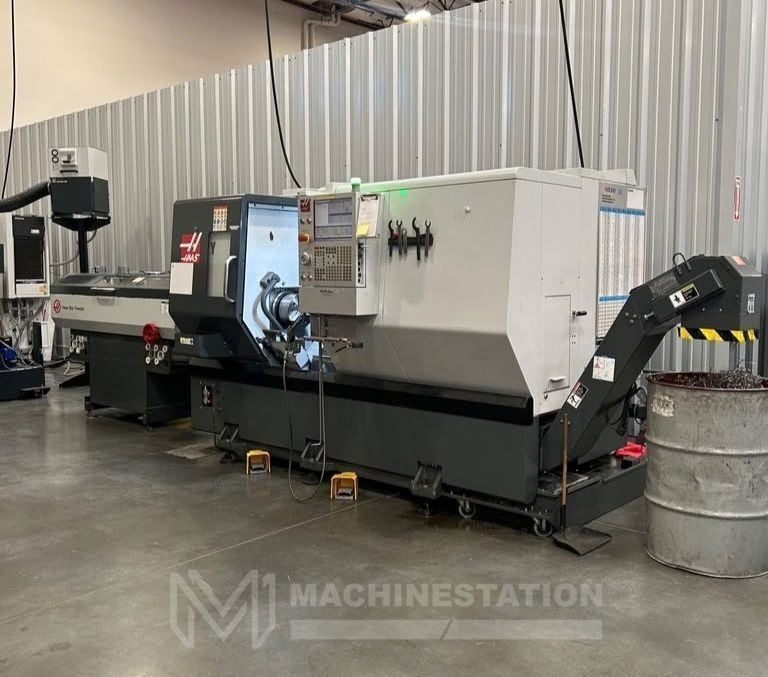

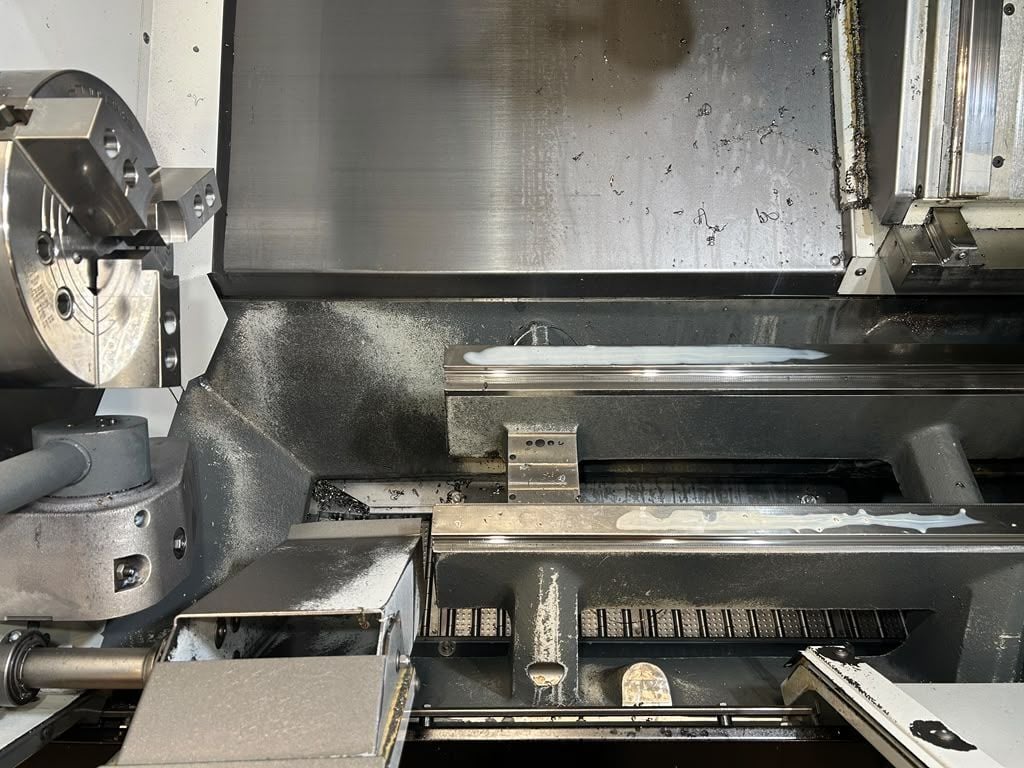

2019 Haas ST-30Y is fully equipped with 10" Chuck, C & Y Axis, Tool Presetter, Part Catcher, Programmable Tailstock and Chip Conveyor.
