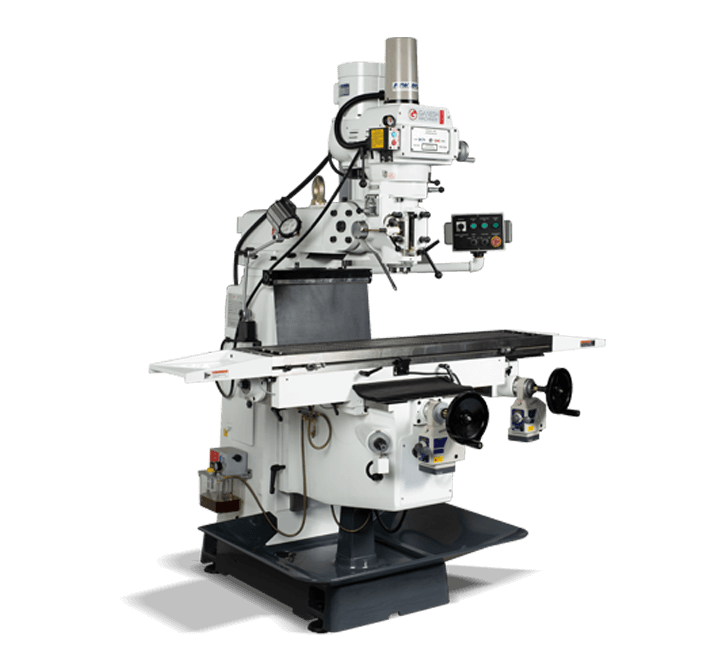

Expand Machinery #GMC-5, CNC Mill, 12" x58" table, 5 HP, NT #40-Taper

Table Size (W x L)12" x 58"

T-slot Width (3 Hardened & Ground T-Slots) 5/8" with ground reference edges (15.9 mm wide)

Table Capacity 1,500 lbs

MACHINE TRAVELS & CAPACITY

Table Travel X Axis (With or without Power Feed) 40.5"

Cross Travel Y Axis 15.75"

Knee Travel Z Axis 16"

Ram Travel (Overarm) / Swivel 17.7"

Spindle Nose-to-Table Surface Travel 2" 18"

Quill Travel Manual & Power Feed 5"

Quill Feeds With Trip Release Inch 0.0015" / 0.003" / 0.006"

Quill Diameter 4.13"

Leadscrew ground pitch (X & Y) 0.2" per rev.

SPINDLE HEAD

Head Tilt (Left-to-Right)90° 0 90°

Head Tilt (Front-to-Back / Up-Down)45° 0 45°

Head Swivel 360°

Spindle Motor 5 HP / 3 Phase / 220 vac

Spindle Taper NT #40-Taper

Spindle Runout 0.0002" maximum runout (0.005 mm)

Spindle Bearings ABEC-7 matched set of Class-7 bearings

Variable Speed Drive Dual Range 80 520 RPM (low-range) / 600 4,000 RPM (high-range)

NOTE: 5,000 RPM Spindle available with optional

AC Inverter Spindle Head
