For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With

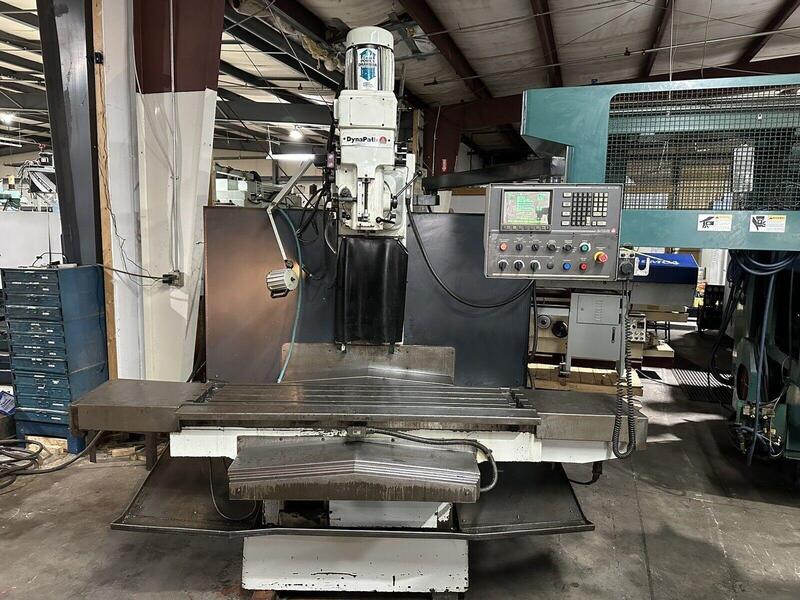

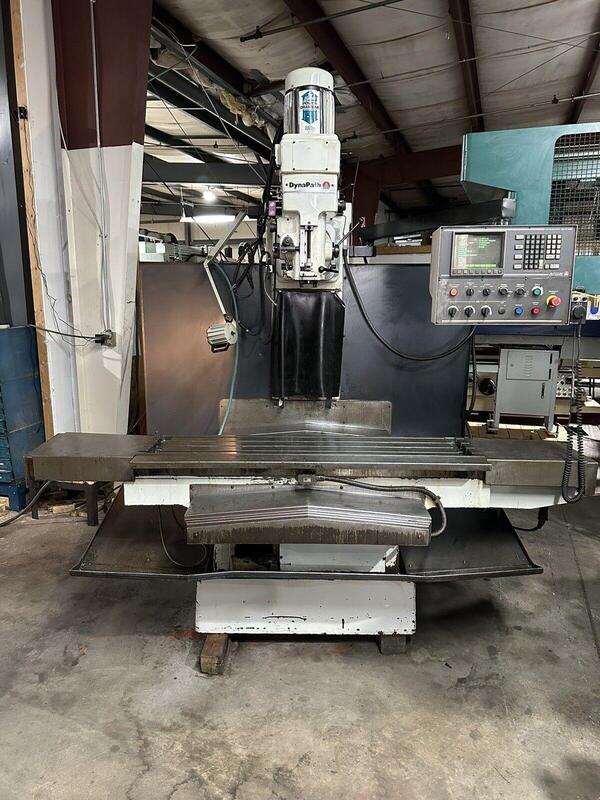

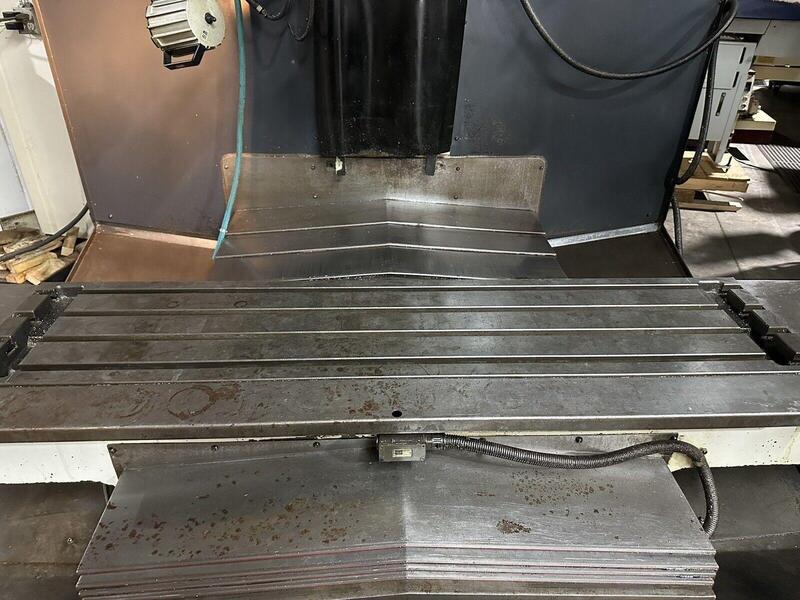

| Table Size | 13" x 58" |
| X-Axis Travel | 50 inches |
| Y-Axis Travel | 22 inches |
| Knee Travel | 22 inches |
| Quill Travel | 6 inches |
| Spindle Motor | 7.5 HP |
| Spindle Taper | Cat 40 |
| Spindle Speed | 20-3950 RPM |
| M41 | 20-260 RPM |
| M42 | 130-1,530 RPM |
| M43 | 100-650 RPM |
| M44 | 500-3,950 RPM |
| Motor | 220 Volts, 50 Hz, 3 Phase, 3.7 KVA |
| Interrupting Capacity | 10,000 Amps |
| Machine Weight (Approx.) | 6000 pounds |
Equipped With
Equipped With
Equipped With:

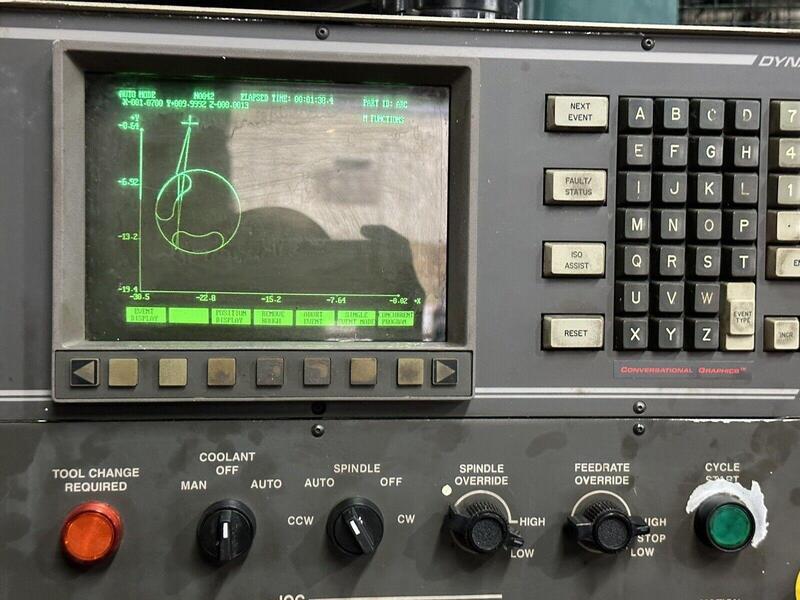

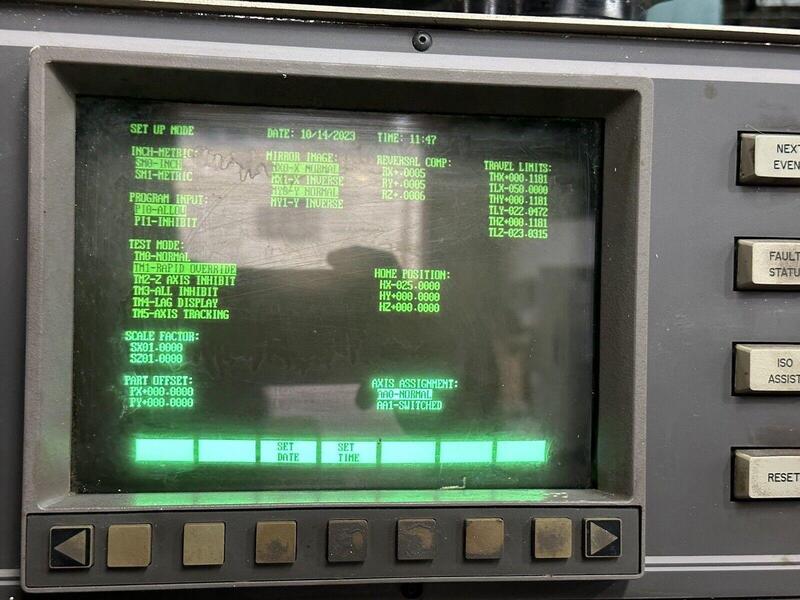

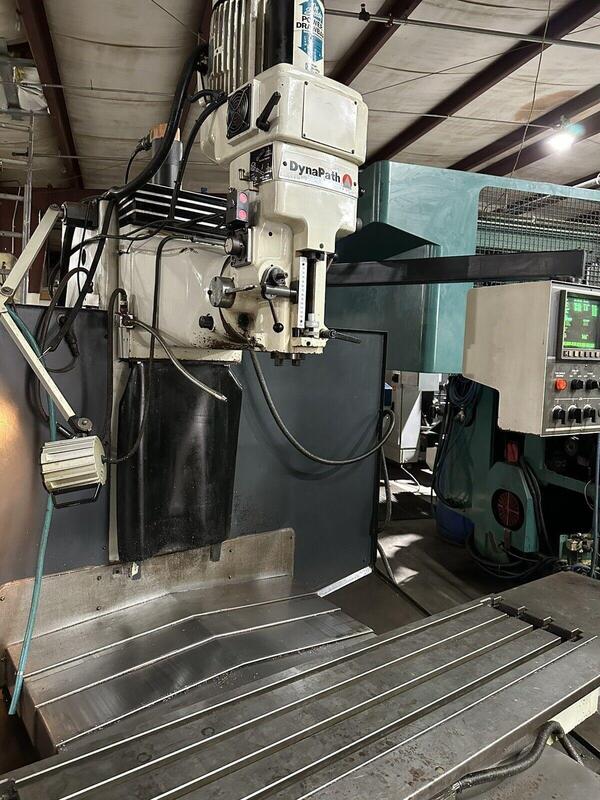

* DYNAPATH DELTA AUTOCON CNC CONTROL

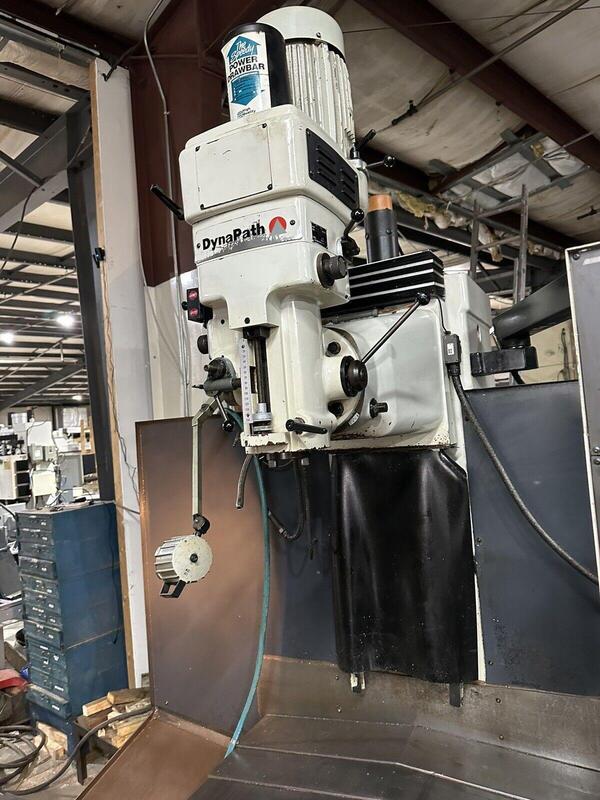

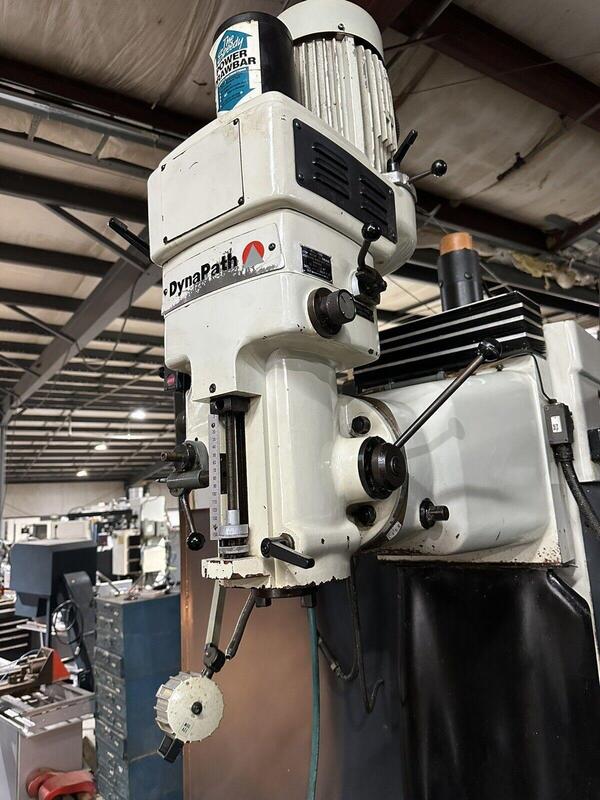

* POWER DRAW BAR
* AUTO LUBRICATION
* MANUAL PULSE GENERATOR
* MISC. MANUALS
* WAY COVERS
* WORK LIGHT
* DYNAPATH DELTA AUTOCON CNC CONTROL
* POWER DRAW BAR
* AUTO LUBRICATION
* MANUAL PULSE GENERATOR
* MISC. MANUALS
* WAY COVERS
* WORK LIGHT
Get Your Price from Smith Machinery Co!
