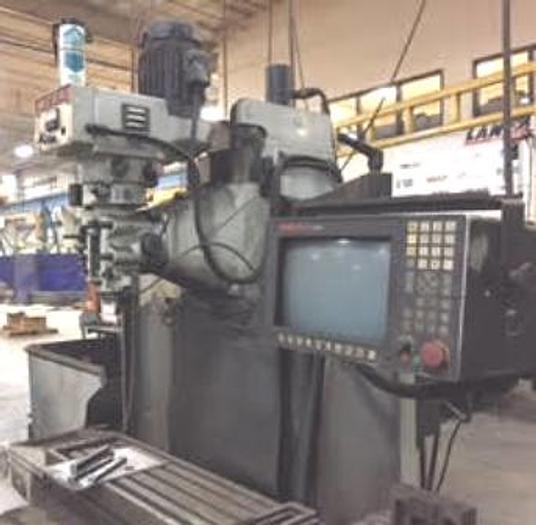

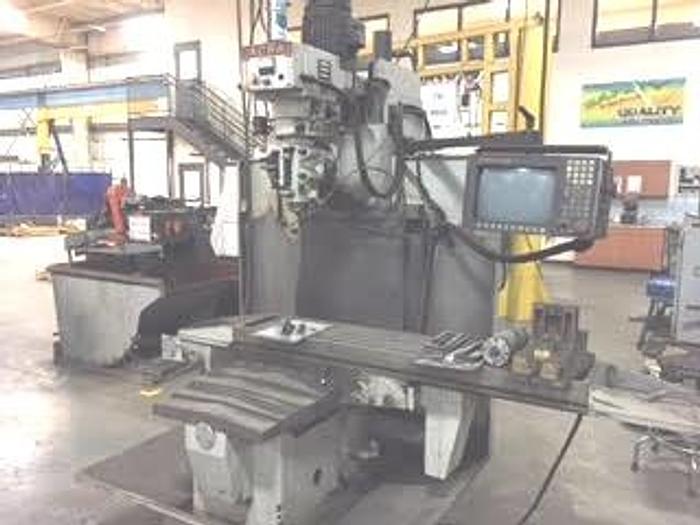

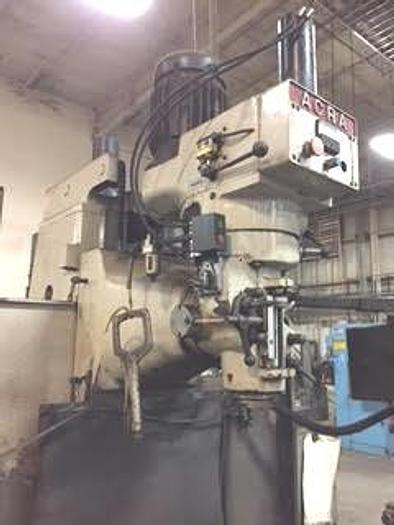

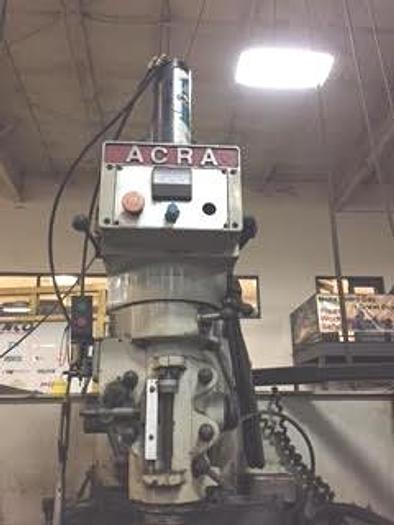

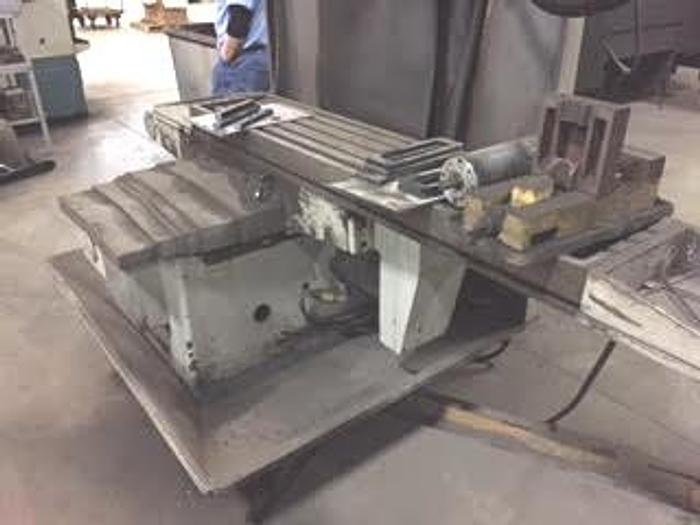

Acra, CNC Mill, 12" x60" table, Anilam 1100 CNC, 40 Taper, Air Power Draw Bar

The ACRA CNC Knee Mills Are Fast And Precise Vertical Milling Machines Built
On A Rugged Frame And Ideally Suited For Accurate Milling, Boring, And
Drilling Operations. Accuracy, Speed, And Reliability Are Achieved By The
Combination Of Meehanite Cast, Precision Ground Ways, Turcite-B Mating
Surfaces Coupled To An Anilam Dual Processor Control With Color L.C.D., Manual
Pulse Generator, And Operator Friendly Software (Other Controls Available) For
Quicker, Easier Programming And Set-Up. The Larger Anilam Axis Drives Make
Heavier, More Precise Machining A Reality.
SPECIFICATIONS
5V(AC) CNC
TABLE......................12"x58"
Max Table Load.............990 LBS
TRAVELS:X..................38"
Y..................15"
Z..................5"
Spindle to Table (max).....20"
SPINDLE Taper..............#40
RPM........................750 RPM
RAPID: X Axis..............200 IPM
Y Axis..............200 IPM
Z Axis..............100 IPM
ACCURACIES.................JIS Standard
*This machine does not currently run, needs new monitor/display.
*Make offer!

Freight charges are not included in sale price. Freight scheduling and costs are responsibility of the buyer. Packaging charges to ensure safety of equipment during transport for arrival on buyers truck will be added when applicable.
