1.251" Dynobend #DB-60-SL, U-tube bender, complete line, 2011

DYNOBEND #DB60SL U-TUBE BENDER
BRAND: DYNOBEND
MODEL: DB 60 SL
NEW APPROX.: 2011
TECHNICAL SPECIFICATION
MAX. DIAMETER OF TUBE ( 1.251 ") 31.75 MM
MAX. BENDING RADIUS ( 47.28 ") 1200 MM

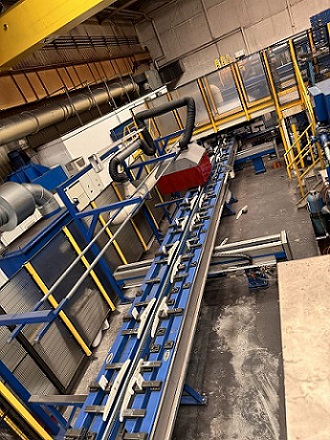

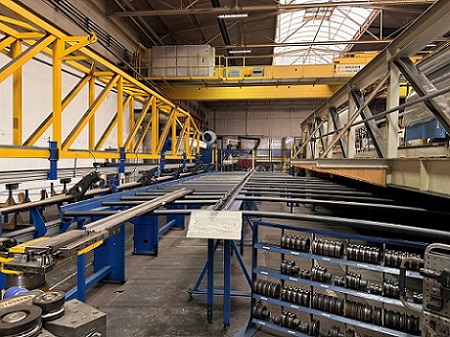

COMPLETE LINE FOR U-TUBES THAT ARE PRIMARILY USED FOR LARGE HEAT EXCHANGERS
THE LINE IS PRODUCING A COMPLETE SET OF U-TUBES OF DIFFERENT RADIUS BENDS FOR
A HEAT EXCHANGER, PREPARED AS A BUNDLE.
- BENDING MACHINE MANUFACTURER: DYNOBEND DB60SL
MAX. PRIMARY MATERIAL TUBE LENGTH: 25.000 MM
MIN. BENDING RADIUS: 10XD
MAX. BENDING RADIUS: 1.200 MM
MIN. LEG LENGTH: 3.000MM
MAX. LEG LENGTH: 11.600MM
MIN. OD: 15MM
MAX. OD: 31,75MM

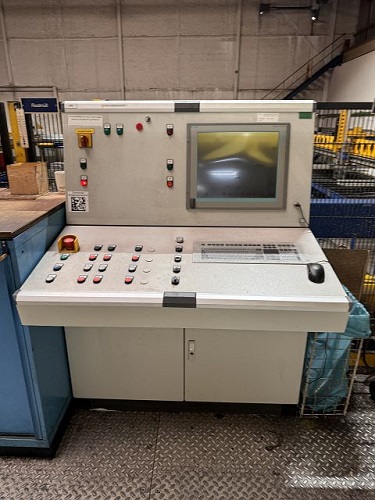

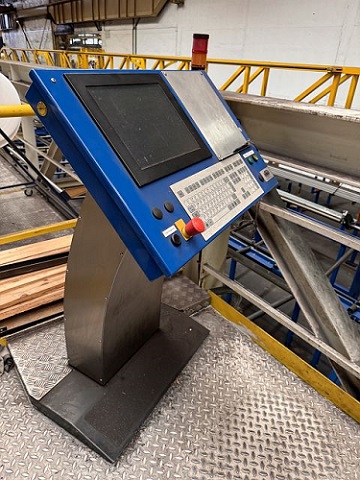

CAMERA SEPARATION SYSTEM
CONTROL SYSTEM: BECKHOFF

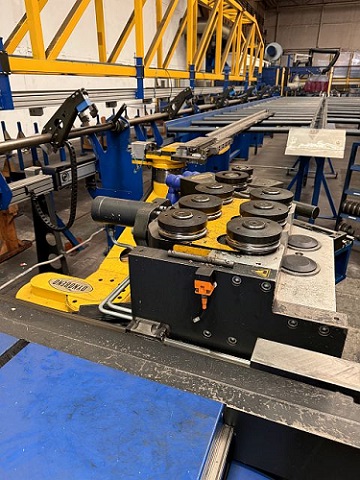

BENDING TOOL SET: 8 BENDING ROLLS
AVAILABLE TOOL SETS FOR OD: 15 MM, 15.88 MM, 16 - 18 MM, 19.05 MM, 20 MM, 22 -
23 MM, 25 MM, 25.4 MM, 31.75 MM
BYPASS SYSTEM FOR BENDING AND ANNEALING SMALLER RADIUS <10XD
TRANSPORT WITH STROTHMANN PORTAL

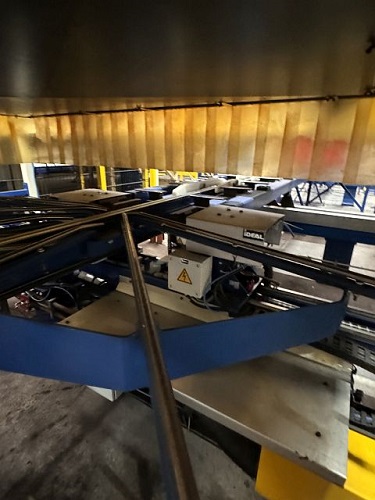

- RESISTANCE ANEALING MACHINE MANUFACTURER IDEAL-WERK WER300
TEMPERATUR CONTROL: PYROMETER
HOLDING TIME: 5 SEC
ANNEALING UNDER PROTECTIVE GAS ATMOSPHERE BY FILLING THE TUBE WITH NITROGEN
GAS

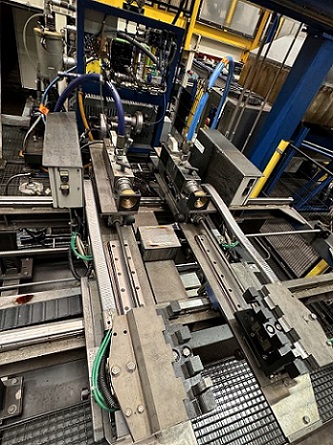

- HYDROSTATIC TEST, 2 STATIONS
PRESSURE: MAX. 700 BAR
HIGH PRESSURE PUMPS HAMMELMANN
HOLDING TIME: MAX. 10 SEC
TEST MEDIUM: DEMINERALIZED WATER AND ADDITIVES
FILTERING SYSTEM FOR THE TEST MEDIUM

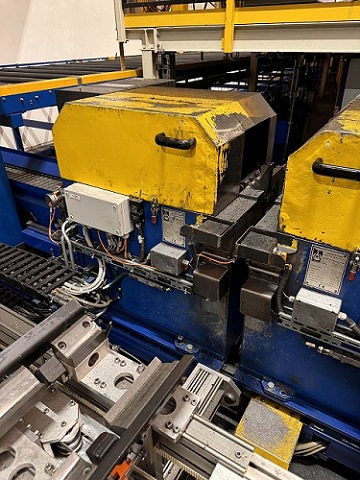

- CIRCULAR SAWING MACHINE
SAW BLADE: 315 X 2.5 X 50 MM
ROTATING DEBURRING WITH STEEL BRUSHES
