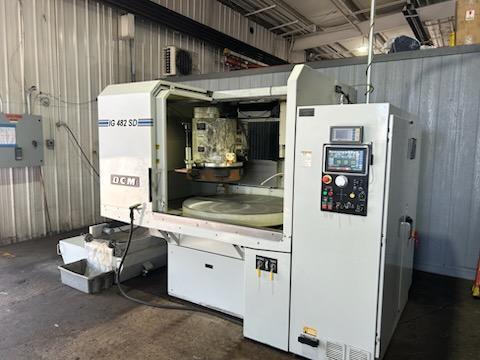

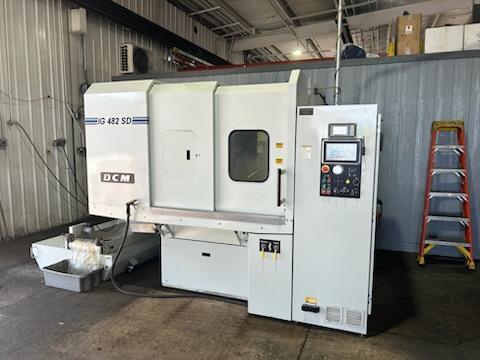

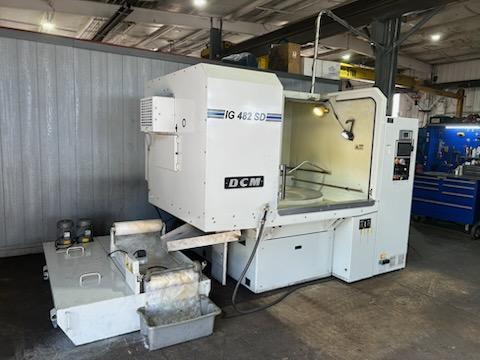

DCM, vertical spindle rotary surface grinder, 48" vari-speed electromagnetic chuck, 50 HP, Mitsubishi FX5U PLC

Specifications Chuck Dia.: No Specs Attached inches
Spindle (Horz/Vert): No Specs Attached
Power: No Specs Attached horsepower
Swing: No Specs Attached inches
Under Wheel: No Specs Attached inches
Grinding Wheel Width: No Specs Attached inches
Grinding Wheel Dia.: No Specs Attached inches
CNC Control: No Specs Attached
Type of CNC Control: No Specs Attached
Dimensions: No Specs Attached
Weight: No Specs Attached ounces
Table Speeds: No Specs Attached
Table Motor Horsepower: No Specs Attached horsepower
- 48” variable speed electromagnetic chuck w/ auto demag cycle

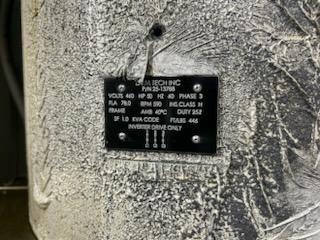

- 50HP grinding spindle motor

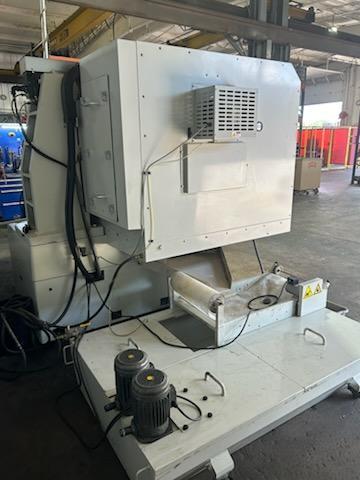

- Integral coolant filtration & mist collection systems

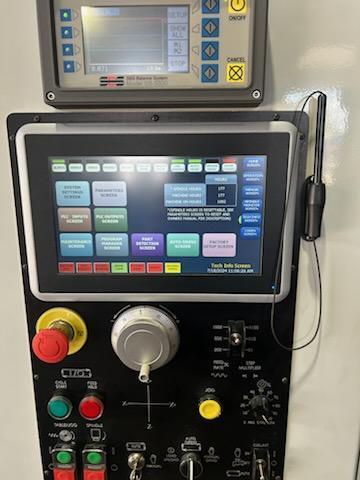

- Easy to operate touchscreen controls

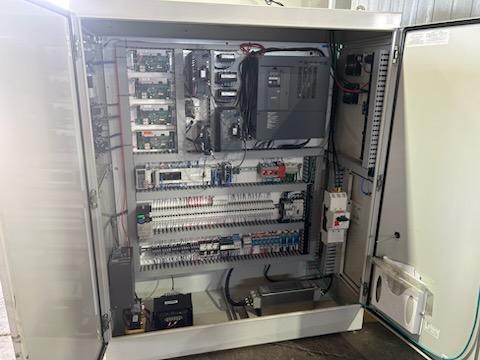

- Mitsubishi FX5U PLC
- 3 Grinding Modes - Conventional, Incremental and Grind to Height
- Regrind feature allows re-running previous grind sequence with reprogramming
- Continuous grind – the machine can automatically cycle through grind 1, 2 & 3
- Servo-driven precision control of both Z and X-axis with absolute home positioning
- The cross slide X-axis moves with manual pulse generator
- Backlash compensation on both axes
- Password protection & operator lockout features
- Ethernet switch connection for SECS/GEM or Scada type software interfacing
- Data logging and HMI audit trail capability
