For Sale by Mohawk Machinery Inc
Surplus Record Dealer Since 1956
Location: Cincinnati, OH
Contact Mr. Secord
Phone Number: 513...> Show Phone Number 513-771-1952
Let the seller know you found their listing on Surplus Record!
$14,500 USD
Finance for as low as $294/mth
Description
36" ELGIN B36" VERTICAL SPINDLE ROTARY SURFACE GRINDER - 36" Maximum Swing, 30" Electro-Magnetic Chuck - 18" Segmented Wheel - 12" Height Under Spindle

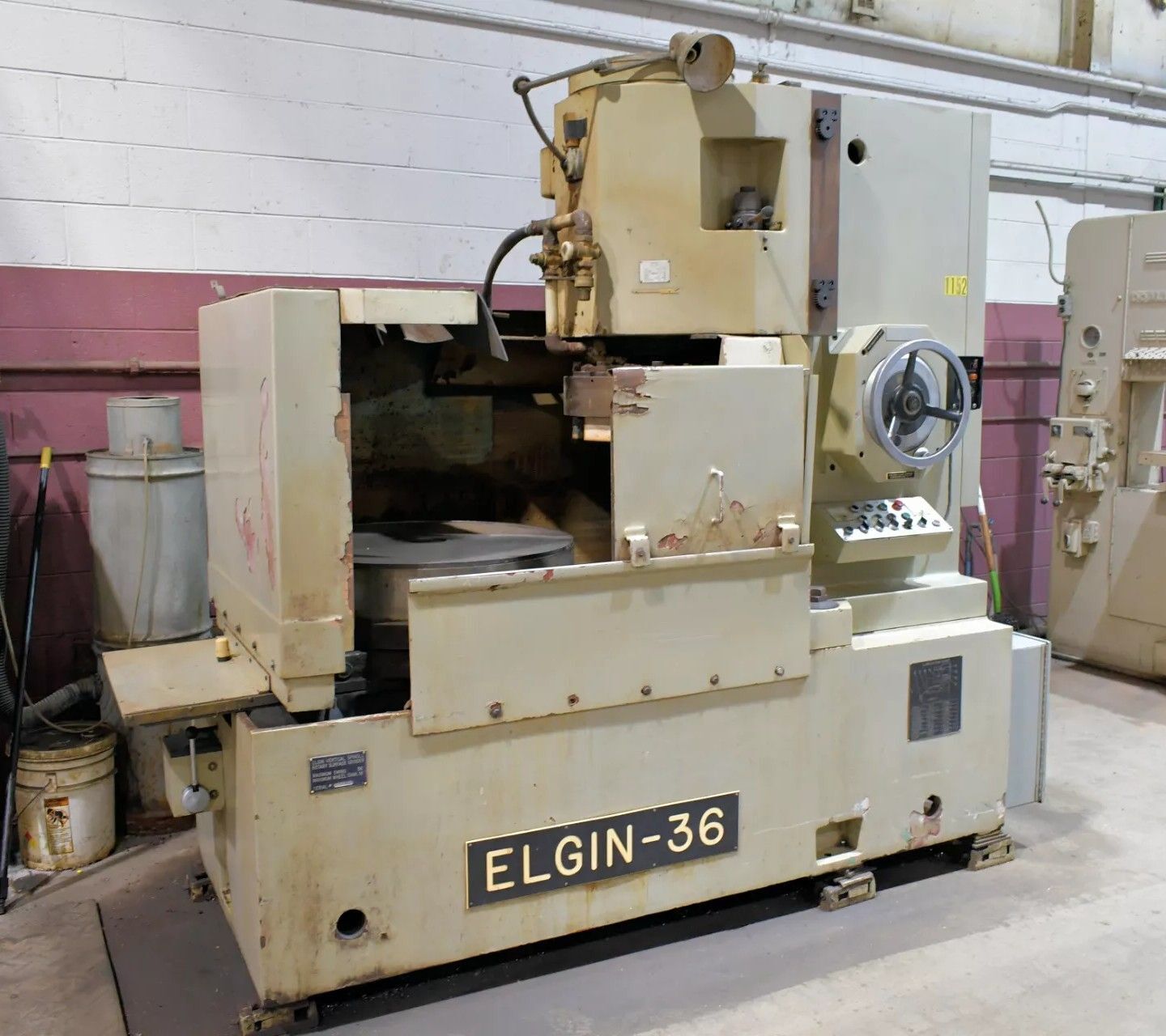

36" ELGIN VERTICAL SPINDLE ROTARY SURFACE GRINDER

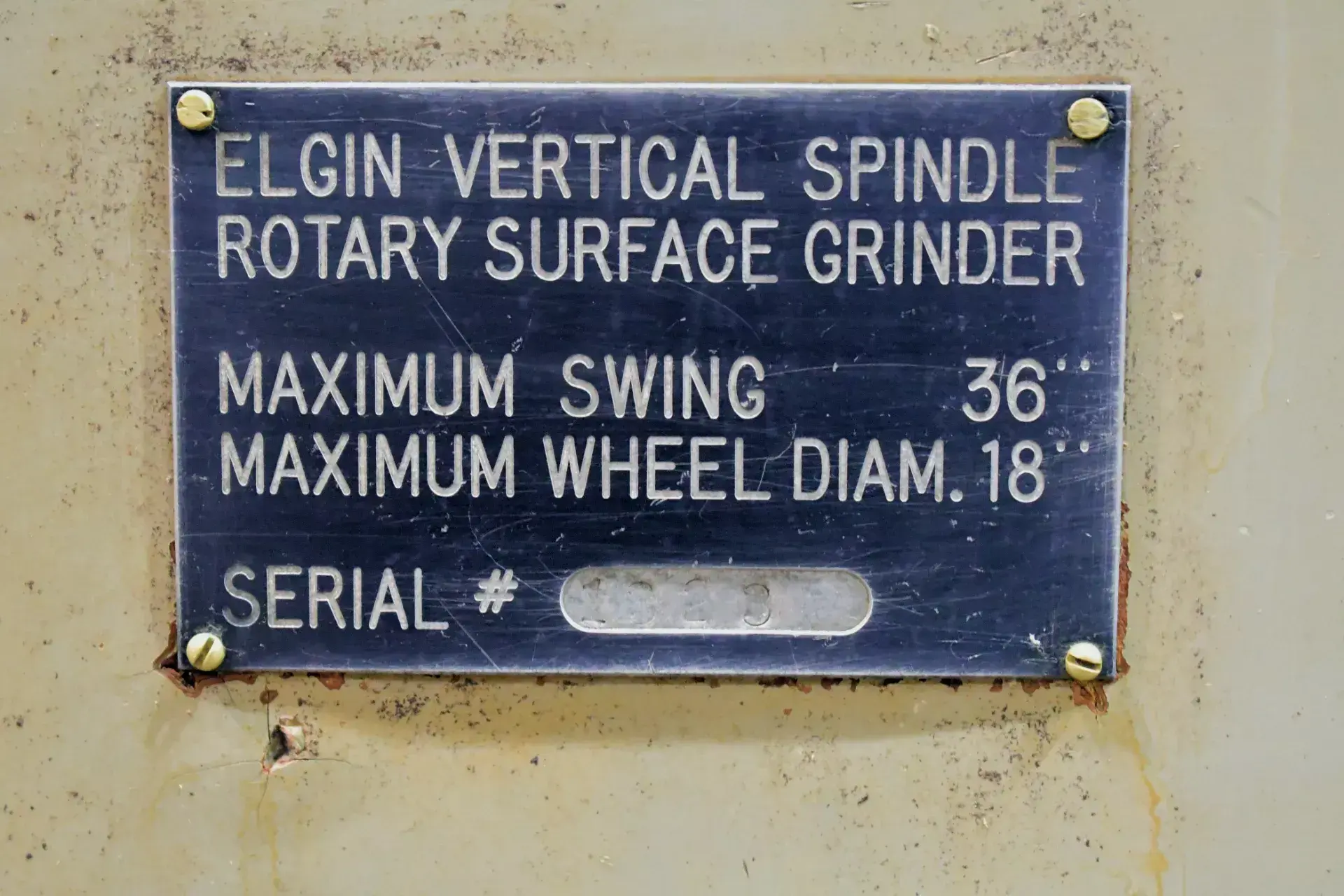

Serial No. 1323, Model 36
EQUIPPED WITH:

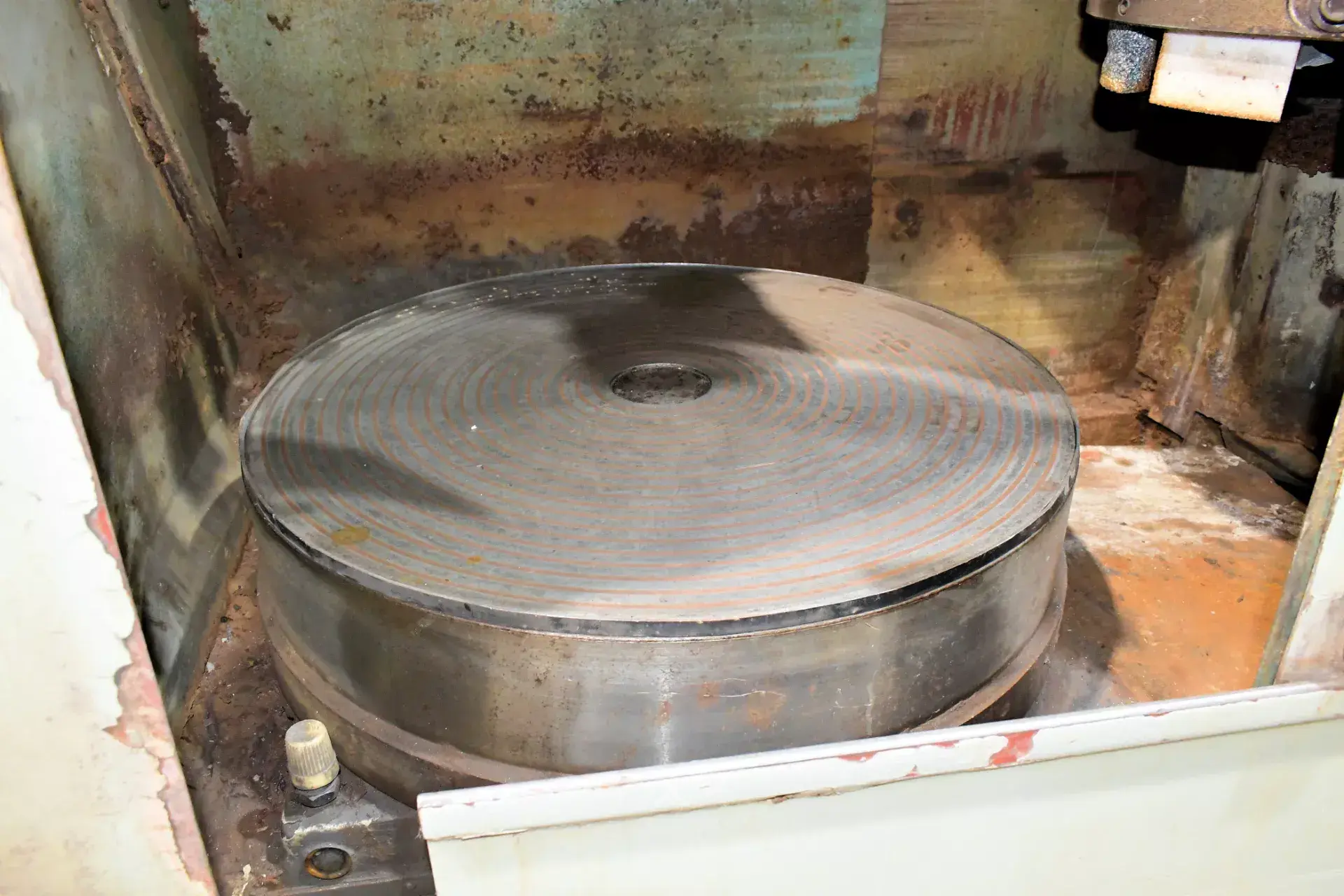

30-1/2" Diameter Magnetic Chuck

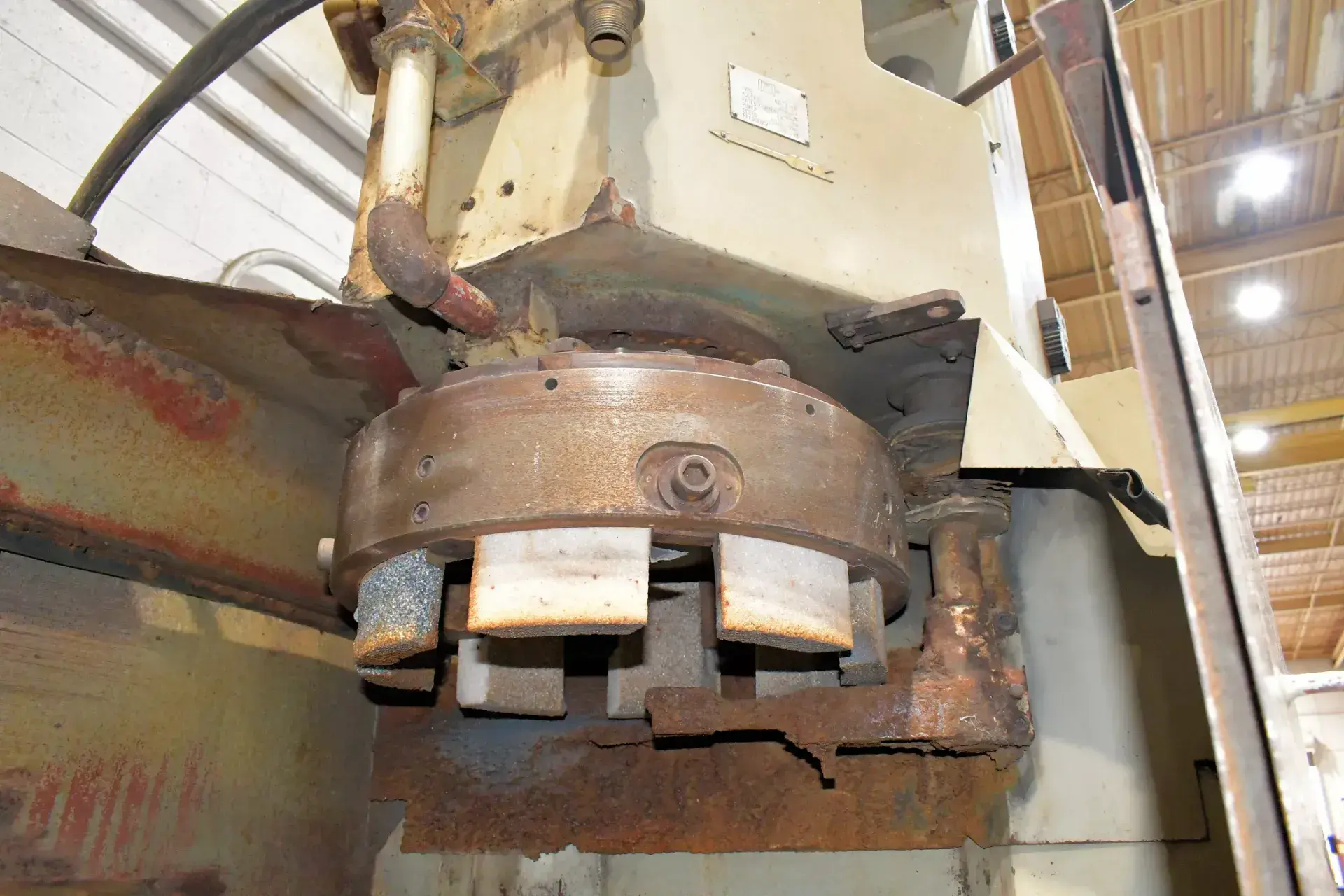

18" Segmented Grinding Wheel

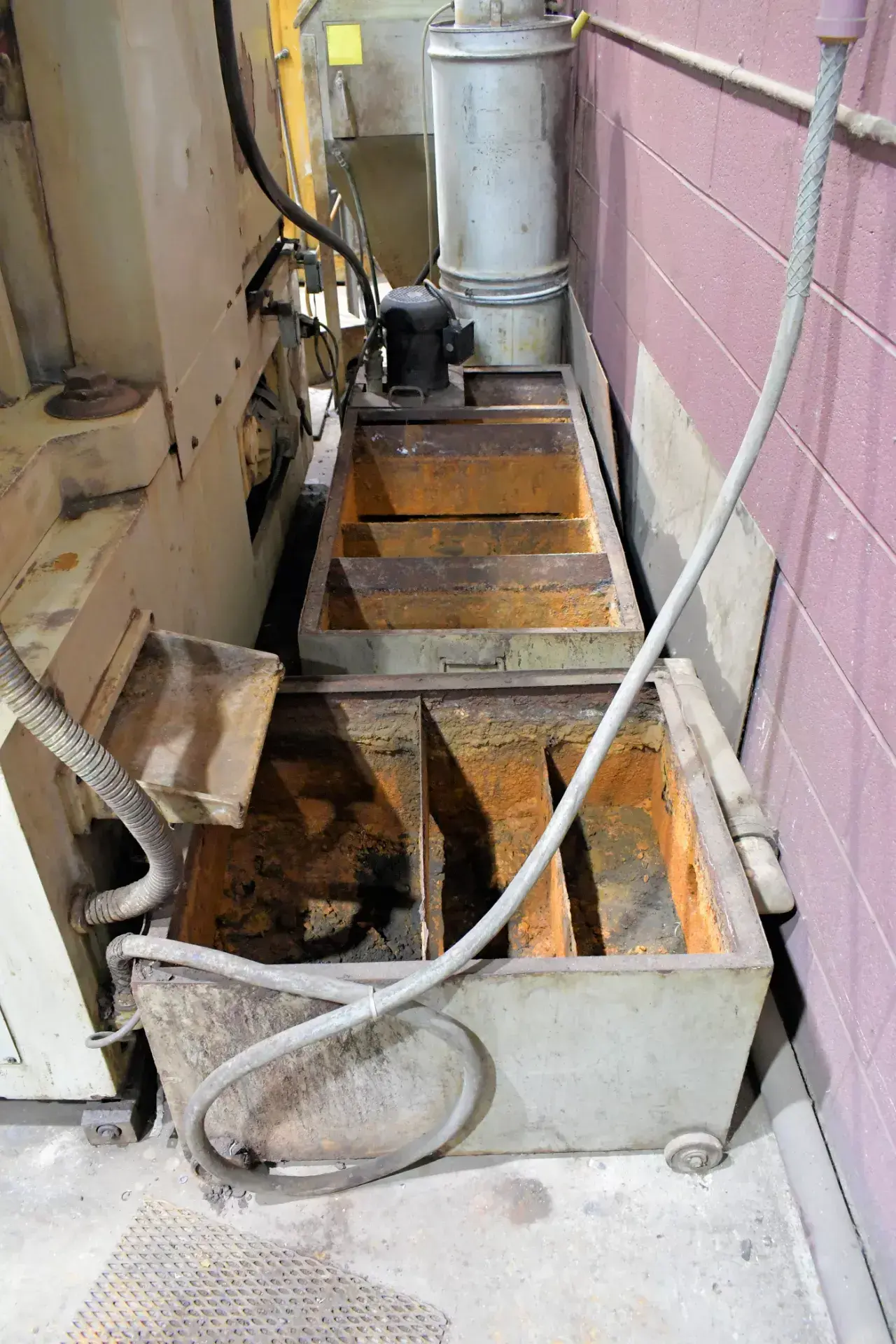

Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:
Magnetic Chuck, Diameter 30-1/2"
Swing Between Coolant-Guards, Max. 36"
Grinding Wheel, Diameter 18"
Grinding Wheel, Hole Diameter 6"
Height Of Workpiece, Maximum 12"
(2) Chuck Speeds 15.6 & 24 RPM
Grinding Wheel Speed 1000 RPM
Power Down Feeds, Range .0001 to .0024 IPM
Rapid Elevating Speed 11 IPM
Chuck In-Feeds, Range 80 to 165 IPM
Travel of Table Carriage 18"
Distance Between Spindle
Face & Table, Maximum 17"
Spindle Motor, KW 25 KW 34 HP

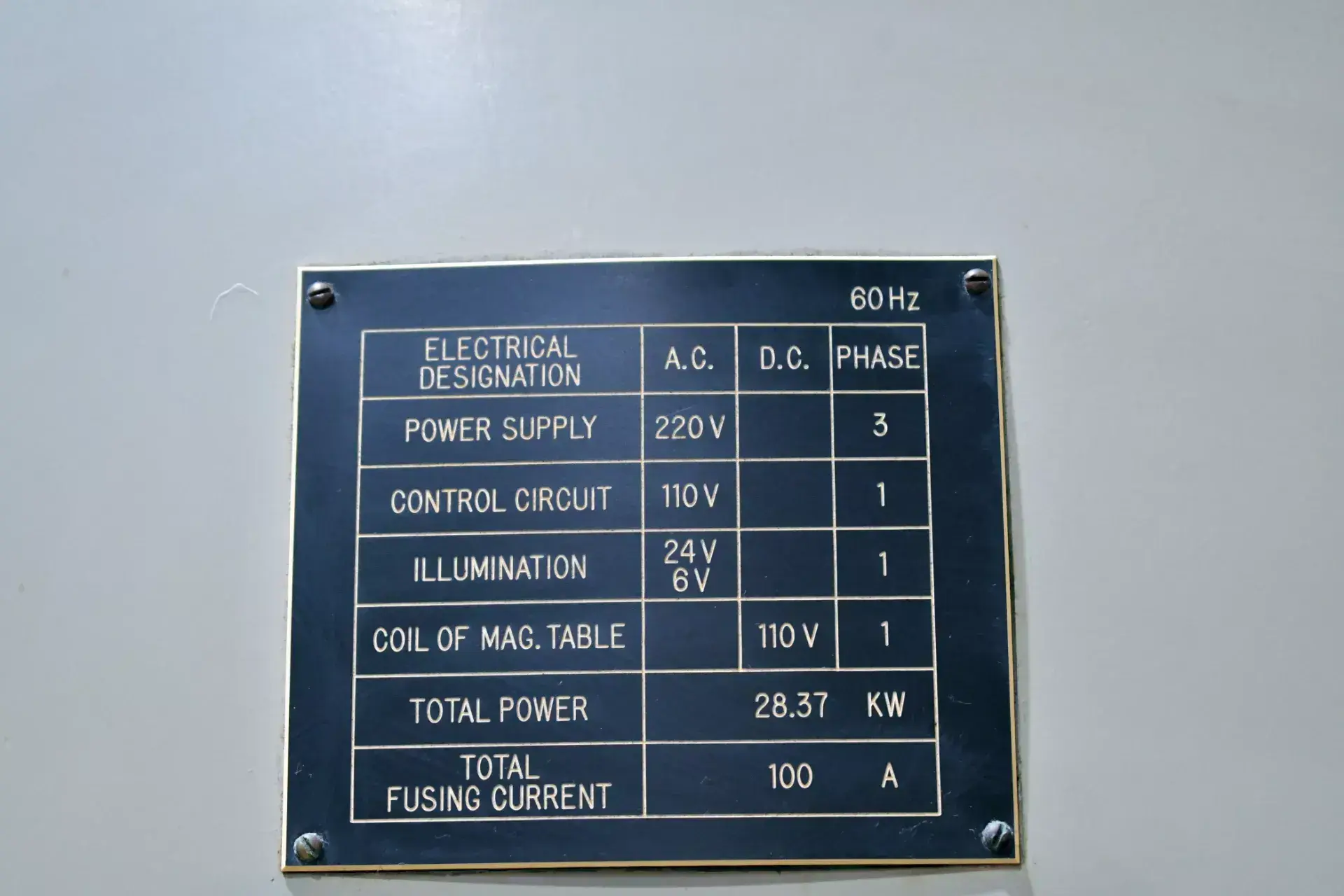

Electrical System 220/3/60
Overall Dimensions, L x W 8'4" x 3'11"
Overall Height 7'4"
Weight, Approximately 14,000 LBS
F.O.B. OUR WAREHOUSE
36" ELGIN VERTICAL SPINDLE ROTARY SURFACE GRINDER
Serial No. 1323, Model 36
EQUIPPED WITH:
30-1/2" Diameter Magnetic Chuck
18" Segmented Grinding Wheel
Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:
Magnetic Chuck, Diameter 30-1/2"
Swing Between Coolant-Guards, Max. 36"
Grinding Wheel, Diameter 18"
Grinding Wheel, Hole Diameter 6"
Height Of Workpiece, Maximum 12"
(2) Chuck Speeds 15.6 & 24 RPM
Grinding Wheel Speed 1000 RPM
Power Down Feeds, Range .0001 to .0024 IPM
Rapid Elevating Speed 11 IPM
Chuck In-Feeds, Range 80 to 165 IPM
Travel of Table Carriage 18"
Distance Between Spindle
Face & Table, Maximum 17"
Spindle Motor, KW 25 KW 34 HP
Electrical System 220/3/60
Overall Dimensions, L x W 8'4" x 3'11"
Overall Height 7'4"
Weight, Approximately 14,000 LBS
F.O.B. OUR WAREHOUSE
Inquire Further with Mohawk Machinery Inc!
