For Sale by Bullseye Industrial Sales LLC
Surplus Record Dealer Since 2017
Location: Middlebury, IN
Contact Keith Couturier
Phone Number: 574...> Show Phone Number 574-825-4990
Let the seller know you found their listing on Surplus Record!
$277,875 USD

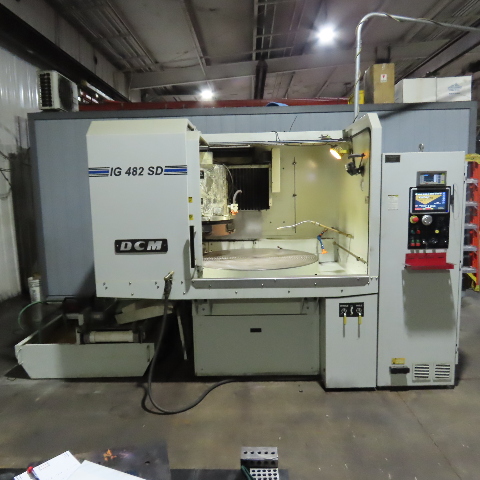

Description
- Condition: Used
- Brand: DCM
- Model: IG 482 SD
- Country of Manufacture: United States
- Machine is currently offsite still under power and can be seen in operation by Appointment Only.
- Like new condition with only 180 spindle hours

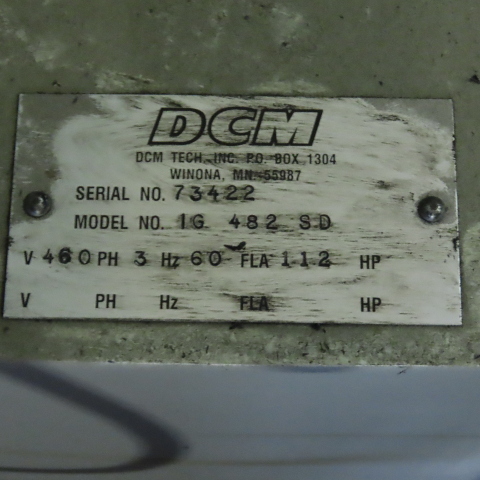

- Model Number : ID 482 SD
- Serial No. 73422
- 460V Only 3-Phase 60 HZ 112 FLA
- Very low spindle hours at 180 hr.
- Machine hours 180
- Machine on hours: 1119
- Work piece swing 52"

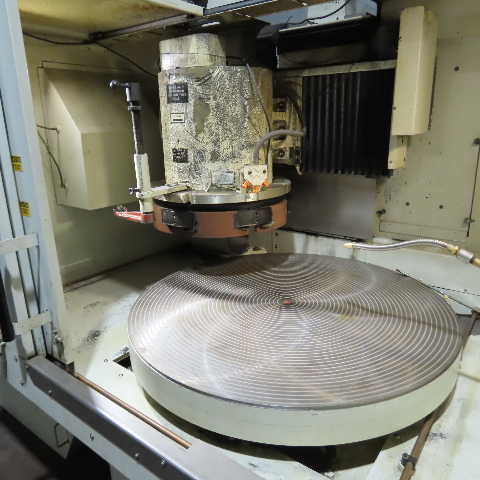

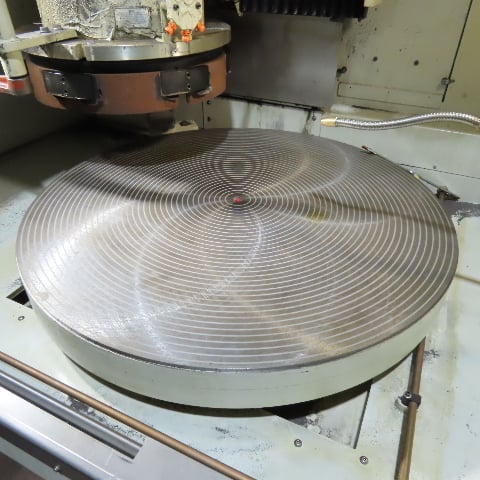

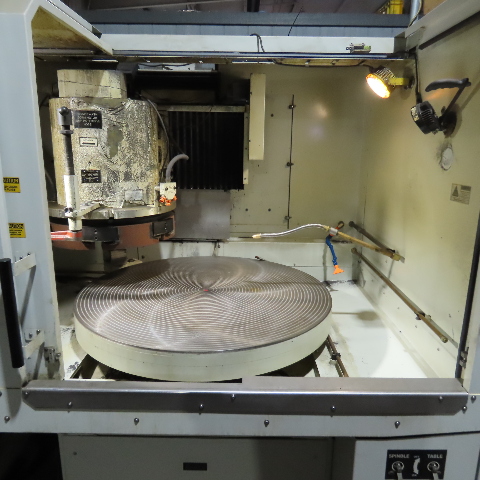

- Table diameter 48". Chuck/table is electromagnetic with auto demag cycle

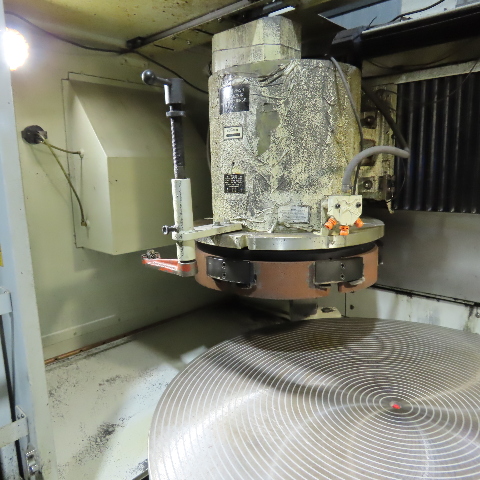

- Grinding wheel diameter 26"
- Worktable to Grinding Wheel Clearance with New 4 Wheel : 11
- Maximum Horizontal Spindle Traverse (from center of chuck) 15.75

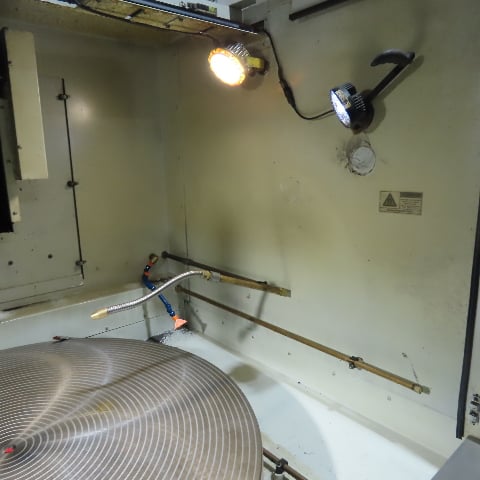

- Coolant System Capacity 60 Gal
- Floor Space Required (with electrical door clearance), plus operator and load/unload space 127 W x 92 D x 87 H
- Net Weight 14,500 lbs.
- Spindle (3 Phase) 200-1200 RPM 50 HP
- Table (3 Phase) 10-70 RPM 3 HP
- Coolant Pump (3 Phase) 45 GPM 1/2 HP
- Vertical Head Traverse 0-100 IPM 1 1/2 HP
- Horizontal Traverse 0-50 IPM 3/4 HP
- The machine was purchased brand new and used for testing. It was never put into production. The new purchase price was over $460,000.
- The machine is being sold with no return. The machine will be loaded on your truck at no charge or we can set up the shipping. Contact us for a quote!
Inquire Further with Bullseye Industrial Sales LLC!
