For Sale by Mohawk Machinery Inc
Surplus Record Dealer Since 1956
Location: Cincinnati, OH
Contact Mr. Secord
Phone Number: 513...> Show Phone Number 513-771-1952
Let the seller know you found their listing on Surplus Record!
$9,950 USD
Description

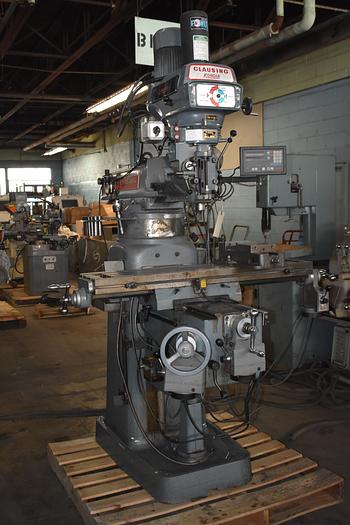

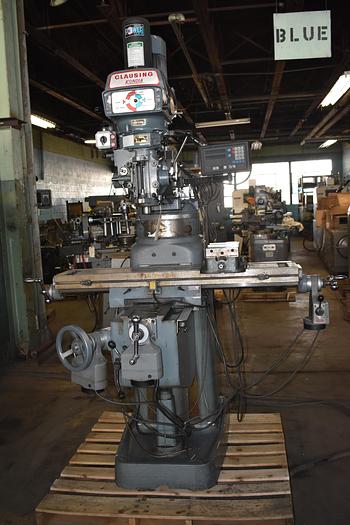

FV-1 CLAUSING/KONDIA VERTICAL MILL w/DIGITAL READOUTS
Serial No AP-452, Model FV-1,
FV-1 CLAUSING/KONDIA VERTICAL MILL w/DIGITAL READOUTS
Serial No AP-452, Model FV-1,
EQUIPPED WITH:

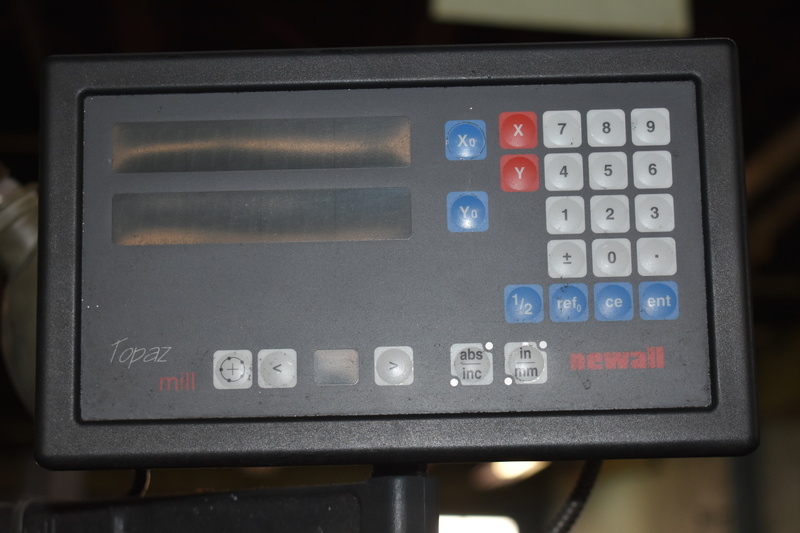

Newall Topax Digital Readouts
Power Longitudinal Table Feed (Optional)
Power Cross Table Feed (Optional)
Power Vertical Table Feed (Optional)
Power Down-Feed to Quill
Power Draw Bar - Automatic Lube System
Kurt Manual Vise
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 9" x 48"
Table Longitudinal Travel (X-Axis) 32.5"
Saddle Cross Travel (Y-Axis) 15"
Knee Vertical Travel (Z-Axis) 16.5"
Spindle Taper #R-8
Spindle-Head Swivel, Degrees 90-DEGREES
Spindle-Head Tilt, Degrees 45-DEGREES
Spindle Speeds, Range 60 to 4000 RPM
Spindle Motor, Horsepower 3 HP
Weight, Approximately 3100 LBS
F.O.B. OUR WAREHOUSE
Serial No AP-452, Model FV-1,
FV-1 CLAUSING/KONDIA VERTICAL MILL w/DIGITAL READOUTS
Serial No AP-452, Model FV-1,
EQUIPPED WITH:
Newall Topax Digital Readouts
Power Longitudinal Table Feed (Optional)
Power Cross Table Feed (Optional)
Power Vertical Table Feed (Optional)
Power Down-Feed to Quill
Power Draw Bar - Automatic Lube System
Kurt Manual Vise
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 9" x 48"
Table Longitudinal Travel (X-Axis) 32.5"
Saddle Cross Travel (Y-Axis) 15"
Knee Vertical Travel (Z-Axis) 16.5"
Spindle Taper #R-8
Spindle-Head Swivel, Degrees 90-DEGREES
Spindle-Head Tilt, Degrees 45-DEGREES
Spindle Speeds, Range 60 to 4000 RPM
Spindle Motor, Horsepower 3 HP
Weight, Approximately 3100 LBS
F.O.B. OUR WAREHOUSE
Inquire Further with Mohawk Machinery Inc!
