For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact David Valitt
Phone Number: 973...> Show Phone Number 973-497-7570
Let the seller know you found their listing on Surplus Record!
Description

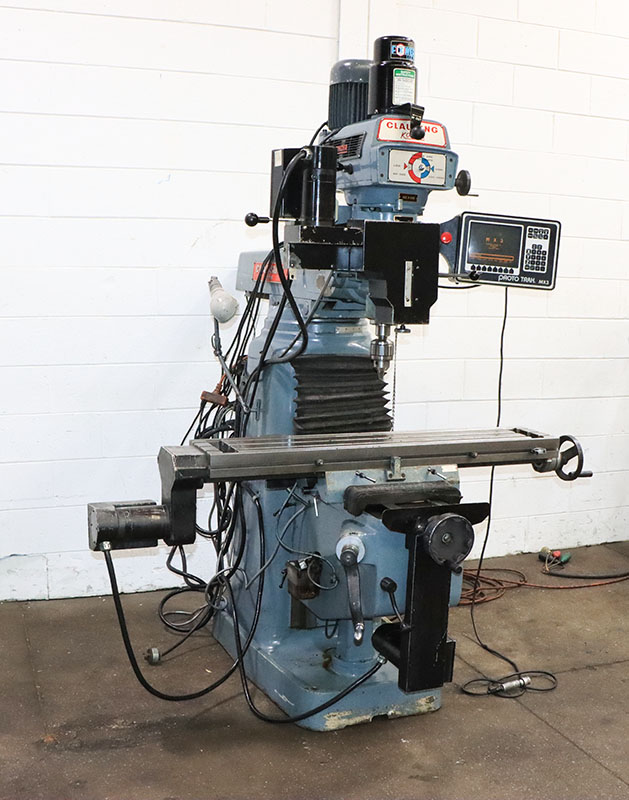

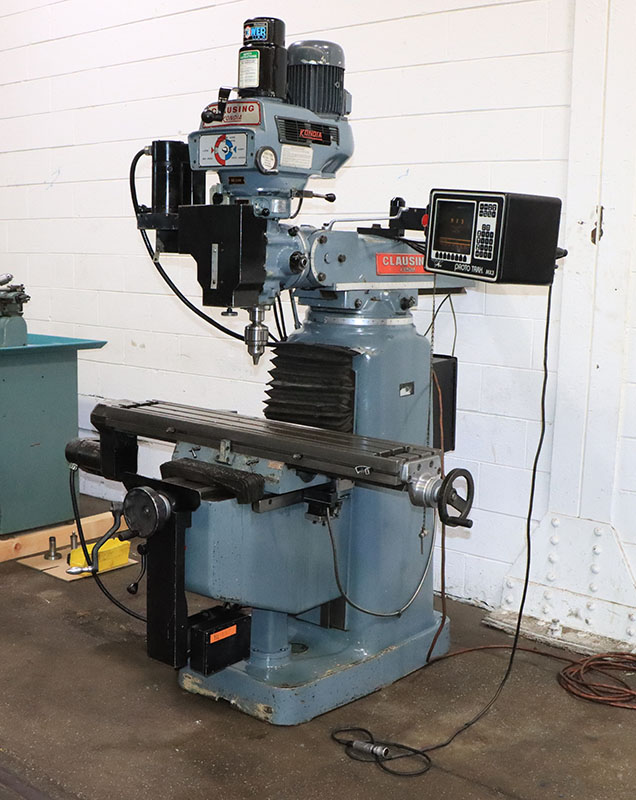

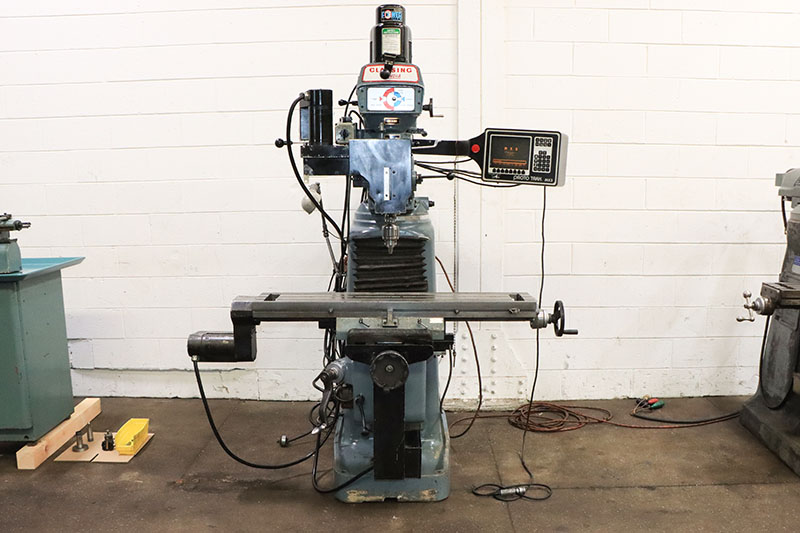

CLAUSING-KONDIA″-AXIS
CNC VERTICAL MILL
MODEL: FV-1 W/PROTOTRAK MX-3
S/N: 66
MACHINE RETROFITTED IN 1995… CONTROL BOX UPDATED IN 2010
SPECIFICATIONS:
WORKING SURFACE OF TABLE ................. 9" x 48"
LONGITUDINAL TABLE TRAVEL ................″0"
CROSS TABLE TRAVEL ....................... 14.5"
QUILL TRAVEL ............................. 5"
KNEE TRAVEL .............................. 16-1/2"
SPINDLE TAPER ............................ R-8
VARIABLE SPINDLE SPEEDS .................. 60 TO 4200 RPM
SPINDLE FEEDS(3) ................... .0015, .003, .0047" IPR
FLOOR SPACE: ............................. 60" x 78" x 82-1/2"H
WEIGHT APPROXIMATELY: ....................″,200 LBS.
EQUIPPED WITH:

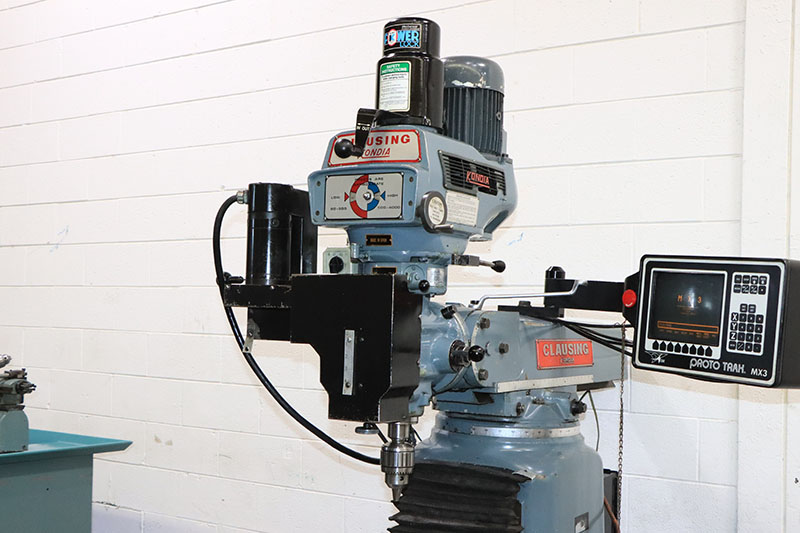

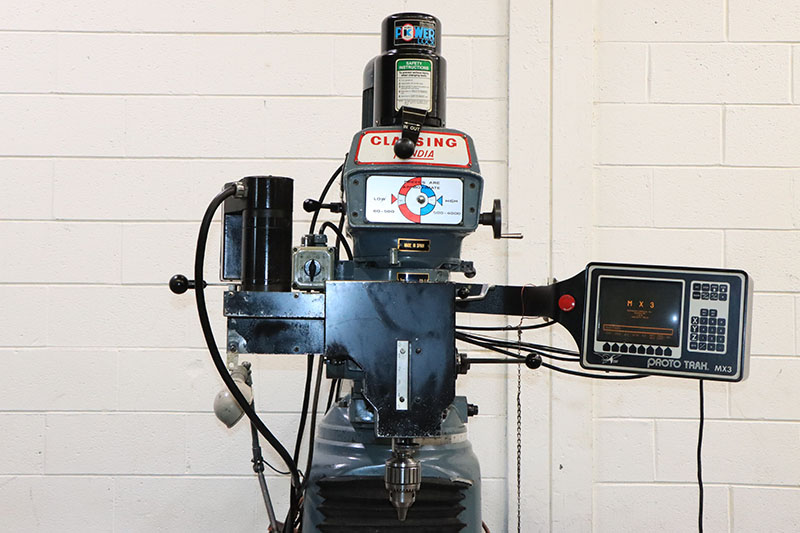

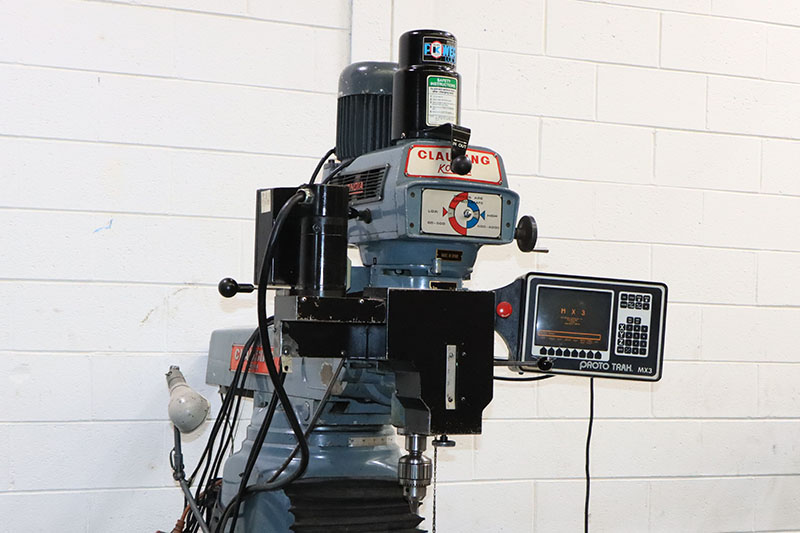

SOUTHWEST INDUSTRIES TRAK MX″-AXIS CNC CONTROL SYSTEM
WITH SERVO MOTORS, MANUAL DATA INPUT″ AXIS
LINEAR& CIRCULAR INTERPOLATION, PROGRAM DOWNLOAD,
BOLT HOLE PATTERNS, PART GRAPHICS
IN MANUAL OPERATION, CONTROL BECOMES″ AXIS DIGITAL READOUT
REMOTE GO SWITCH
HARDENED… GROUND BALLSCREWS ON TABLE, SADDLE… SPINDLE
HARDENED… GROUND WAYS AND TABLE
KURT AIR ACTUATED PWER DRAW BAR
ONE-SHOT LUBRICATION SYSTEM
3 HORSE POWER MAIN MOTOR
TRANSITION FREELY FROM 2-AXIS CNC TO MANUAL
PERFECT FOR A TOOLROOM OR PROTO-TYPE WORK
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
