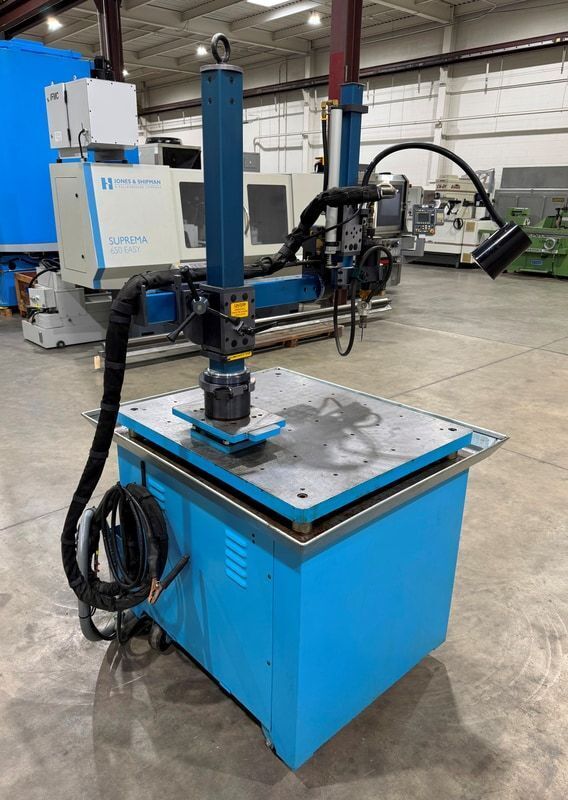

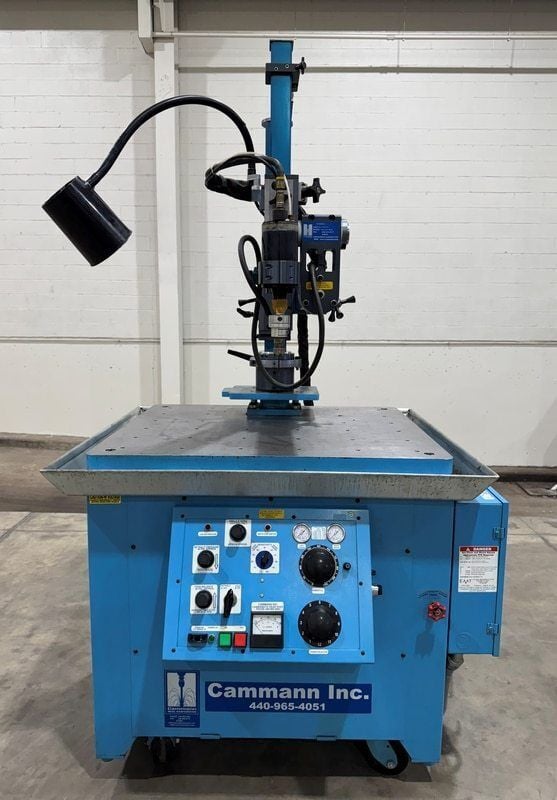

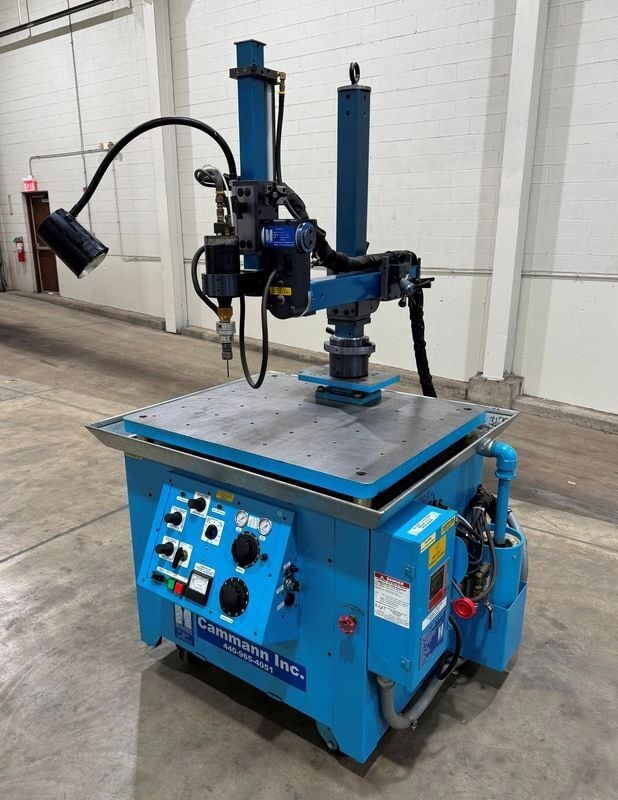

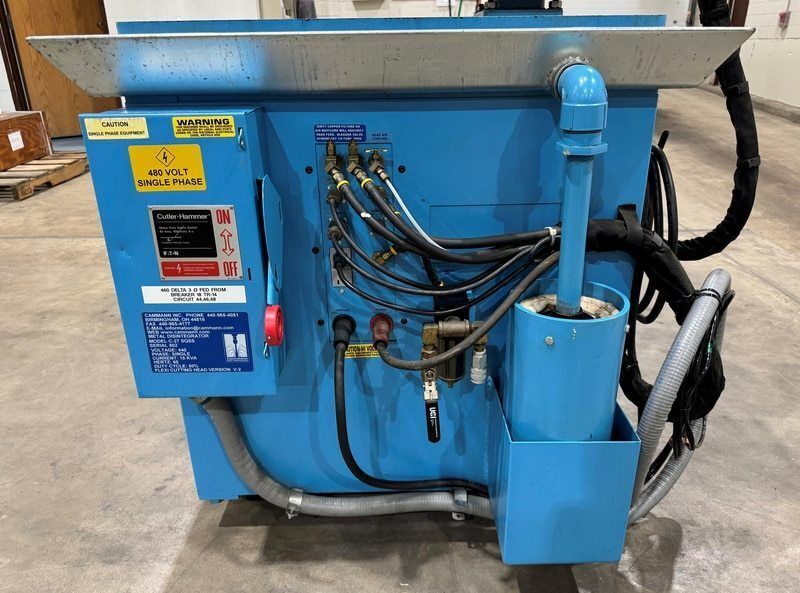

Cammann #C-27SQSS, 15 KVA, 1-1/2" one-cut tap capacity, 4-Axis, 360° rotation, 2002

New - 2002
Serial No. 802
CATALOG SPECIFICATIONS:
Normal Cutting Amperage............15kVA
Achievable Tap Sizes............2-56 - 1-1/2"Ø in one cut
Capacity............1/4"-20 taps 1" Depth/Minute
Work Table:
- Size............36"(L-R) x 30"(F-B) x 1-3/4"H
- Workholding............(42) 1/2"-13 Tapped Holes
- Workpiece Fixturing............(36) 1/2-13 mounting holes tapped in work table
Head quill travel............12"
Ram:
- Travel............17.5"
- Max reach to c/1 of electrode............27"
Column:
- Travel............22"
- Length............34"
Max opening (throat) for work piece............30.25"
Electrics............440V/60Hz
Dimensions - from manual............42"(L-R) x 36"(F-B) x 80"(H)
Weight - from manual............1,000 Lbs.
EQUIPPED WITH:

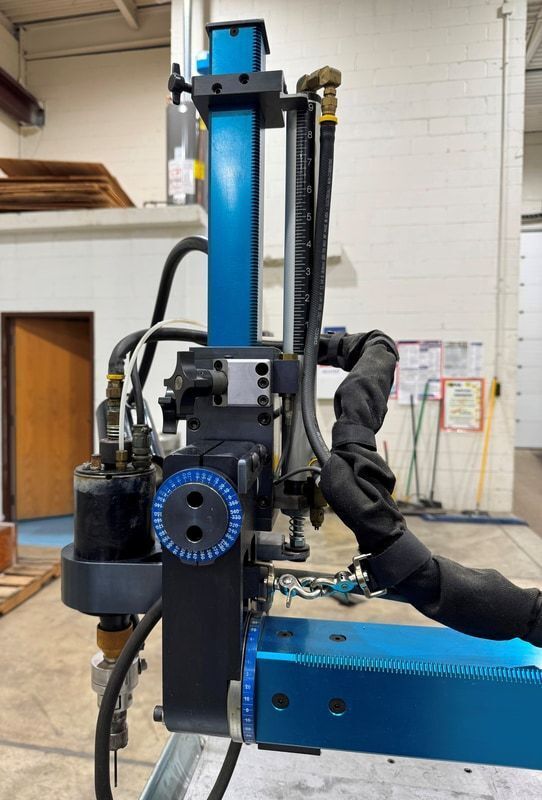

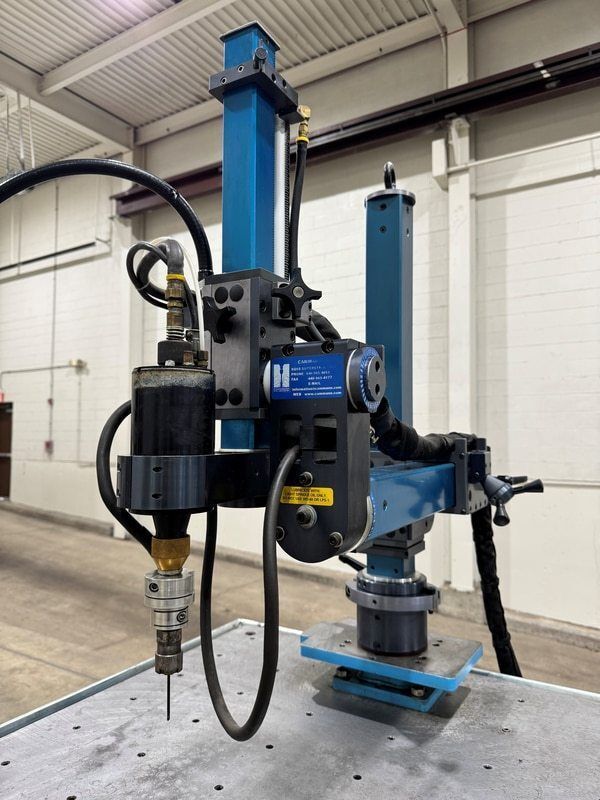

SQSS Superstructure Electrode Positioner
- Provides 8-motion, all angle, 4-axis 360° rotation
- Disintegrates true to the alignment of the electrode
- No deflection or skewing of the electrode
- No depth restriction on broken tool removal
- Adjustable 6" bearing surfaces
Automatic Disintegration with auto-depth shutoff
SQSS Cutting Head Vibration Control (0-100% - This control changes the intensity of vibration at the SQSS cutting head spindle, where the electrode attaches, fine tunes cutting action for proper ammeter reading, and synchronizes with the Cammamatic Feed. Note: larger diameter electrodes and deep hole cutting require more vibrations)
Cammamatic Feed (A pneumatic SQSS cutting head feed system that converts electrical cutting signals into pneumatic signals and read on the ammeter by both the operator and the machine. A cutting current limiter selects cutting amps according to electrode diameter and power setting for the Cammamatic feed to read. Disruption of cut due to buildup of cut particles, low coolant flush, coretip, or operator overfeed causes the Cammamatic feed to start “clear path cut”. This clear path cut is done by either slight electrode retraction or total electrode retraction to automatic shutdown of power machining cycles. The objective is for the Cammamatic Feed to maintain stable cutting amps and to correct operator error)

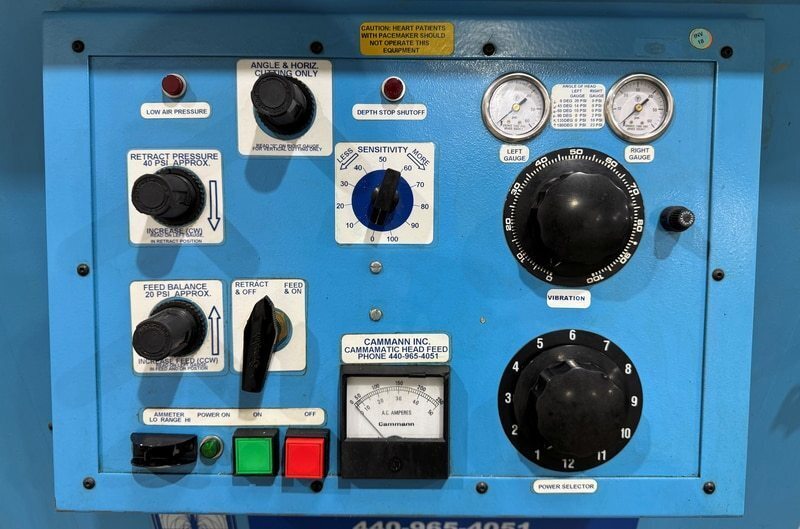

Switchable Dual Scale Ammeter for Reading Cut Amperage

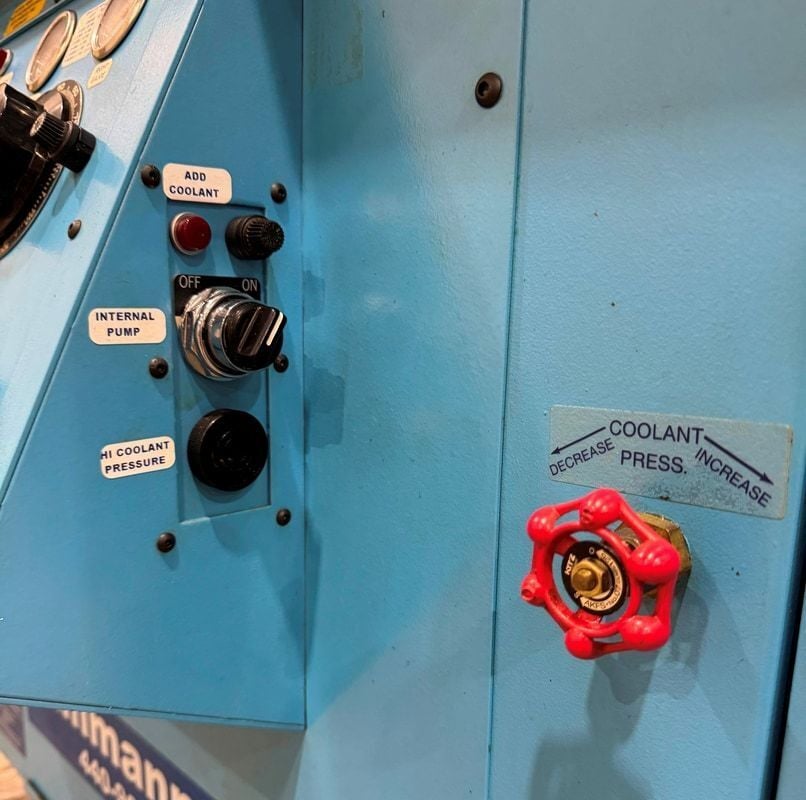

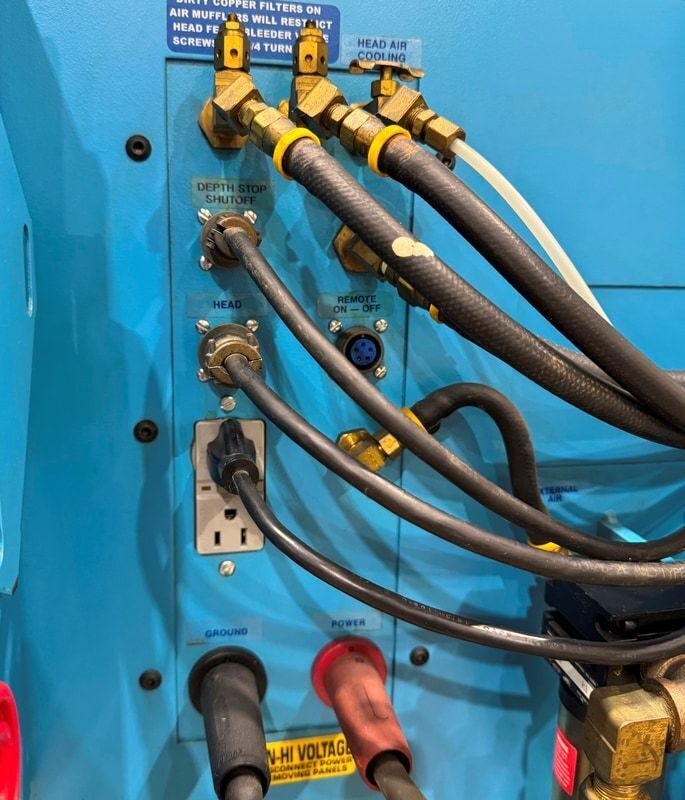

Adjustable Coolant Pressure System with Sonar Alert and On/Off Internal Pump Switch
Low Air Pressure Indicator Light
Air Pressure Regulator
Depth Stop Indicator Light
Transformer High Temperature Limit Indicator Light
Add Coolant Indicator Light
Left & Right Air Pressure Guages
Power Selector Switch (12 positions)
Cutting Current Limiter Switch (0-100%)
Sensing/Retract Light (when light is steady on, machine will not start. When light is flickering
machine is sensing over current)
*Catalog specifications, pending confirmation.
