Description

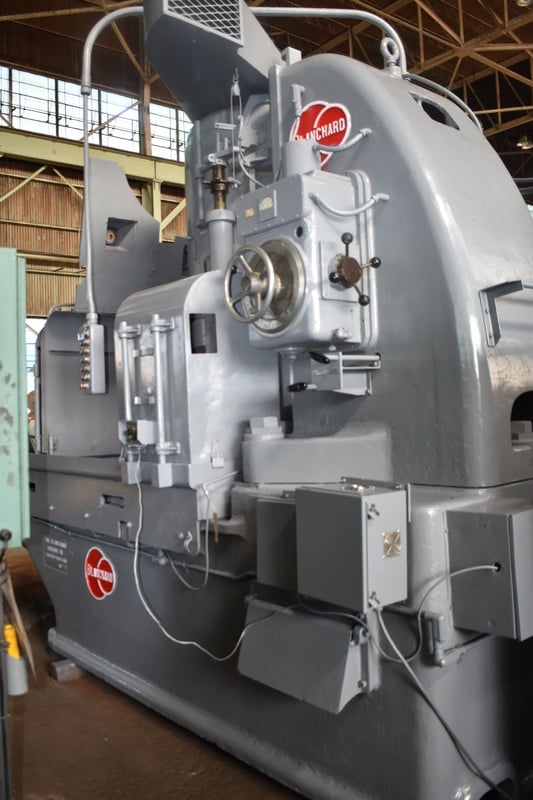

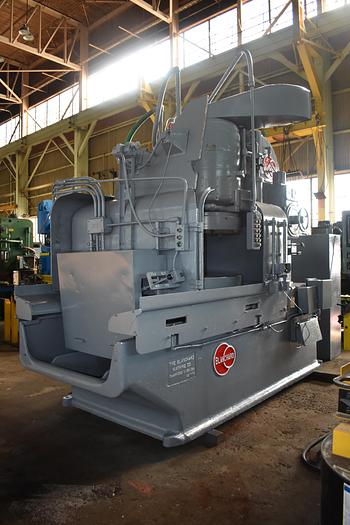

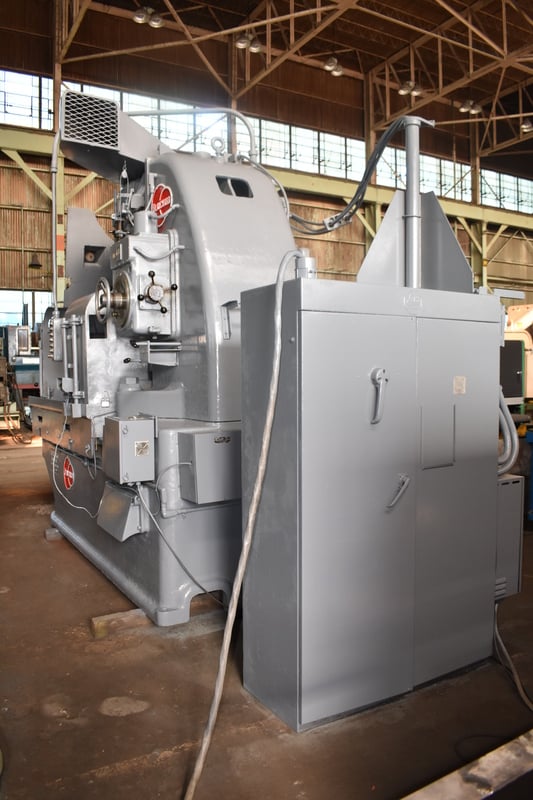

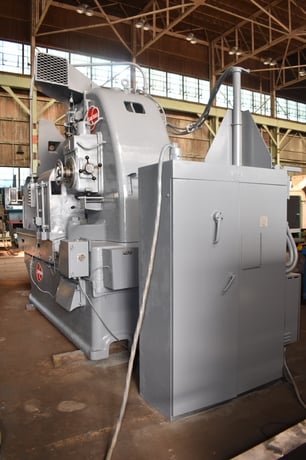

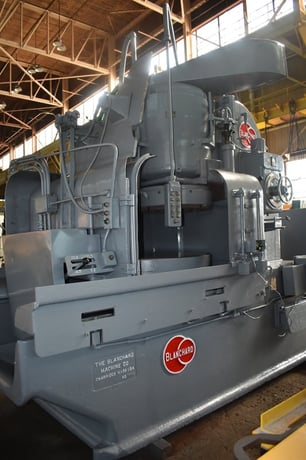

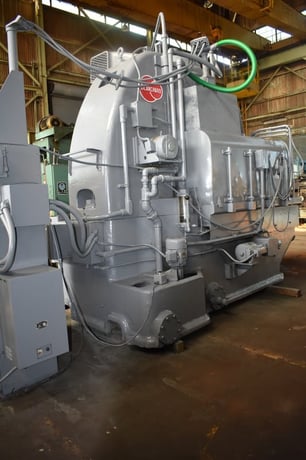

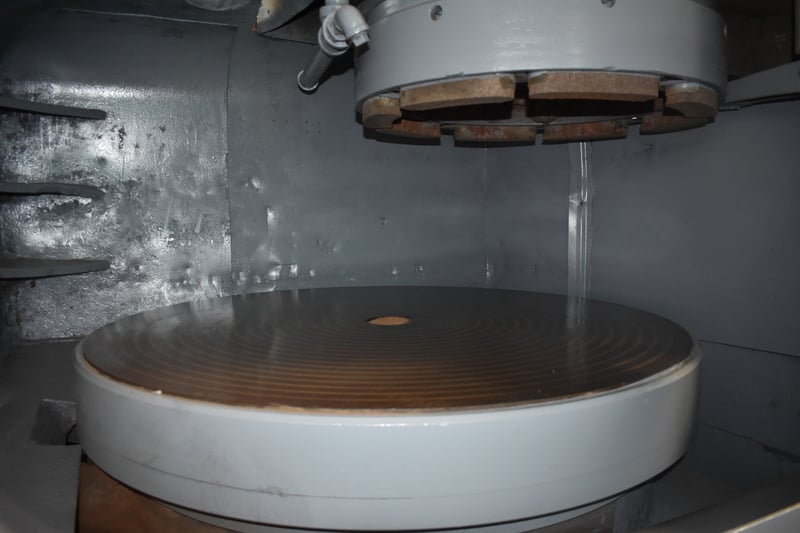

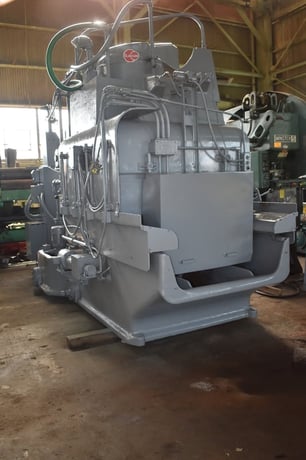

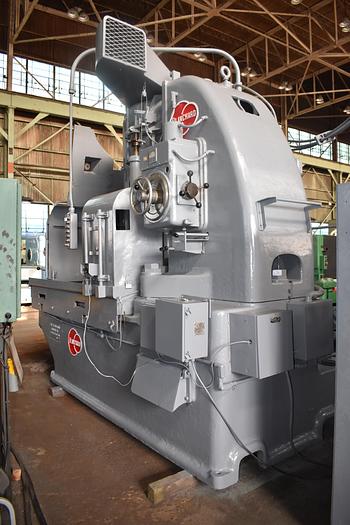

48/60" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER Serial No 9802, Model 32-48 48/60" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER Serial No 9802, Model 32-48 EQUIPPED WITH: Updated 48" Diameter Magnetic Chuck w/Magna-Flux Controller Variable Neutrofier 32" Segmented Grinding Wheel 60 HP Spindle Motor - 16" Vertical Range Centromatic Lubrication System Coolant System (Built-In) CATALOGUE SPECIFICATIONS: Magnetic Chuck, Diameter 48" Swing Diameter Inside Workguards 60" Grinding Vertical Range, Maximum 16" Grinding Wheel Speed 514 RPM Chuck Speeds, Range 3 to 13 RPM Power Down Feeds, Range .000 to .005 IPR Spindle Motor, Horsepower 60 HP Chuck Rotation Motor 5 HP Electrical System 440/3/60 Overall Dimensions, L x W 12'4" x 7'1" Overall Height 10'9" Weight, Approximately 34000 LBS F.O.B. OUR WAREHOUSE
Chuck Dia.: 48 inches Spindle (Horz/Vert): No Attached Power: 100 horsepower Swing: No Attached inches Under Wheel: No Attached inches Table Speeds: No Attached Grinding Wheel Width: No Attached inches Table Motor Horsepower: No Attached horsepower Grinding Wheel Dia.: No Attached inches CNC Control: No Attached Type ...more
