Description

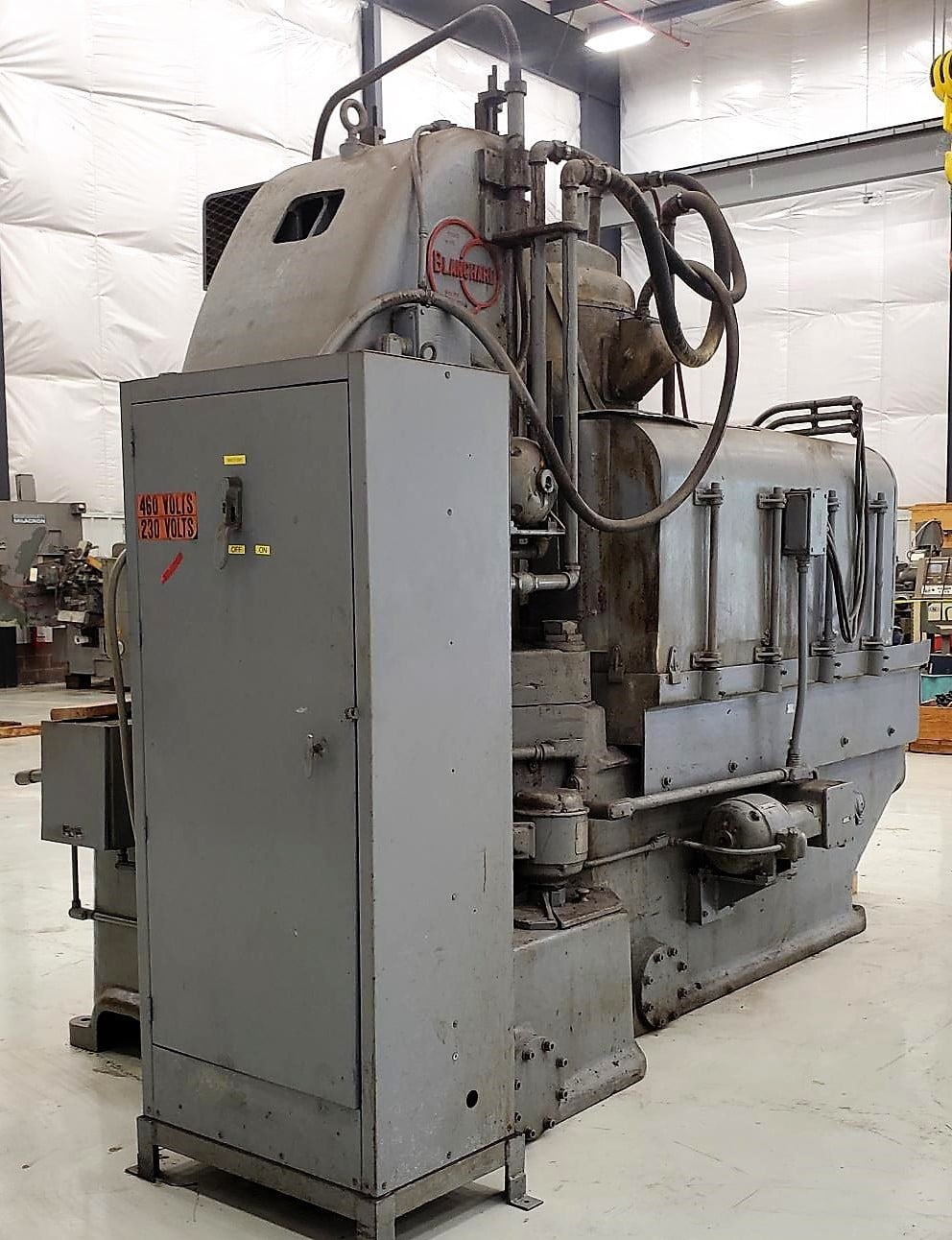

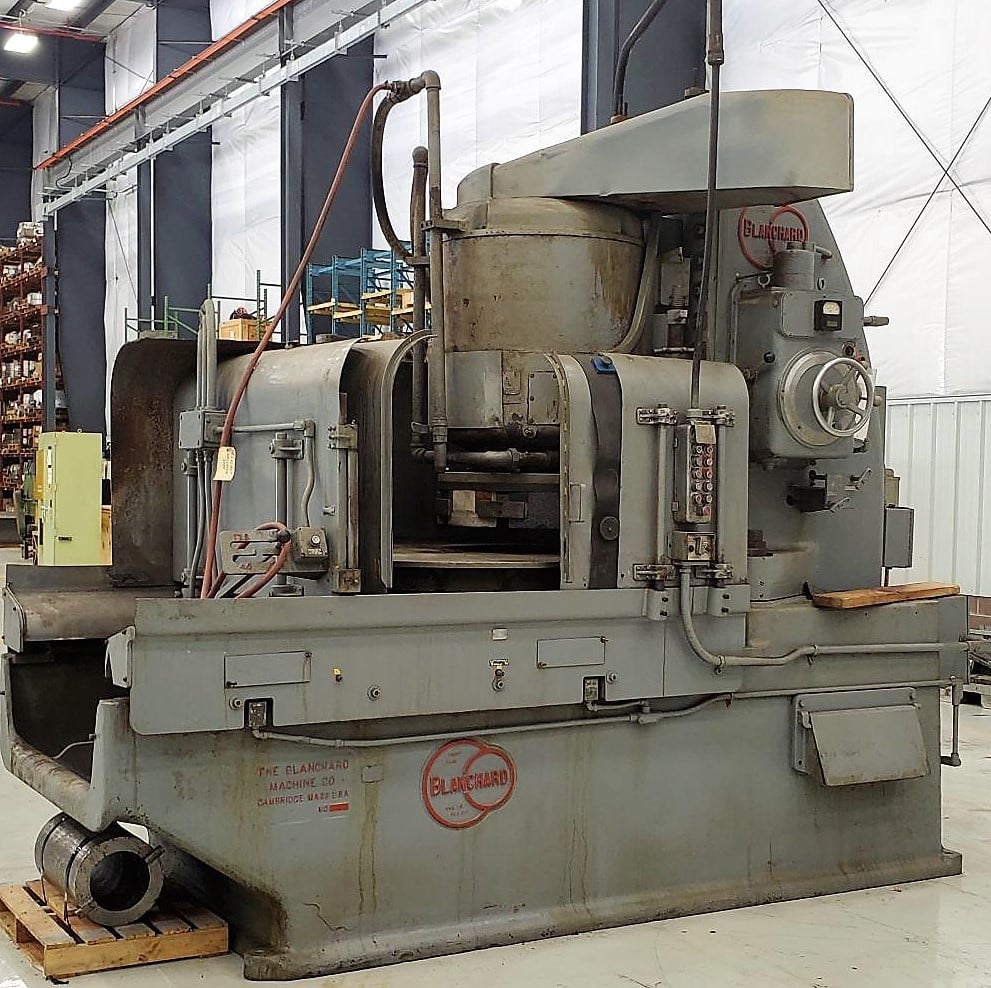

BLANCHARD 48/60
SPECIFICATIONS:
Table Dia... 48"
Power....... 60 hp
EQUIPPED WITH:
48" Diameter Magnetic Chuck WITH 60"Extension Ring
30" Segmented Grinding Wheel Hub with 7 Segments
Coolant to Inside and Outside Wheel Hub
24" Max Under Wheel
Pendent Control
Wheel Amp Meter
Neutrol Chuck Control
Neutrol Chuck Control w/ Electro-Matic Rectifier
(4) Ranges of Chuck Speeds, 4.5, 7, 7.2, 17.8 RPM
Wheel Head Feed rates 0- 80 Thousands per Minute
435 RPM Wheel Speed
60 HP, 3 Phase, 60 Cycle, 440 Volt 435RPM
Coolant in Base w/ Pump
Overall Size 84" W x 160" L x 139" H
Electrical Cabinet 22" x 36" x 83" with A&B electrics
Approx. Weight 45,000 lbs
Purchased out of Bearing Co. had put New Bearing 2014
SPECIFICATIONS:
Table Dia... 48"
Power....... 60 hp
EQUIPPED WITH:
48" Diameter Magnetic Chuck WITH 60"Extension Ring
30" Segmented Grinding Wheel Hub with 7 Segments
Coolant to Inside and Outside Wheel Hub
24" Max Under Wheel
Pendent Control
Wheel Amp Meter
Neutrol Chuck Control
Neutrol Chuck Control w/ Electro-Matic Rectifier
(4) Ranges of Chuck Speeds, 4.5, 7, 7.2, 17.8 RPM
Wheel Head Feed rates 0- 80 Thousands per Minute
435 RPM Wheel Speed
60 HP, 3 Phase, 60 Cycle, 440 Volt 435RPM
Coolant in Base w/ Pump
Overall Size 84" W x 160" L x 139" H
Electrical Cabinet 22" x 36" x 83" with A&B electrics
Approx. Weight 45,000 lbs
Purchased out of Bearing Co. had put New Bearing 2014
