Description

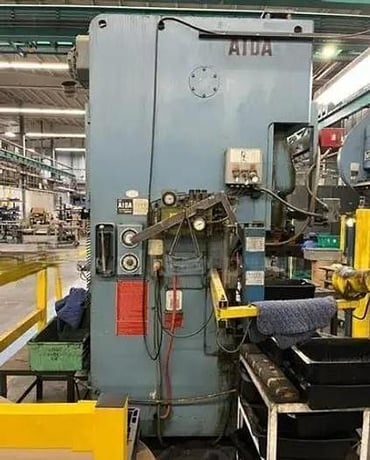

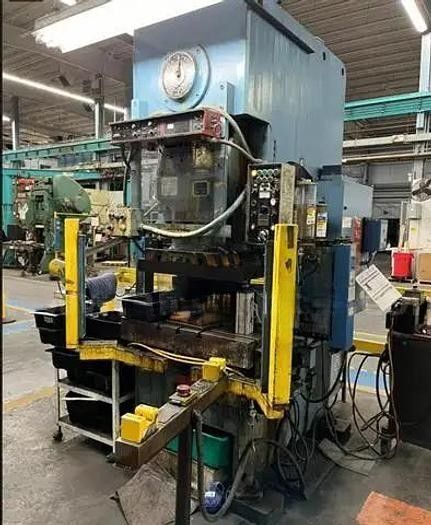

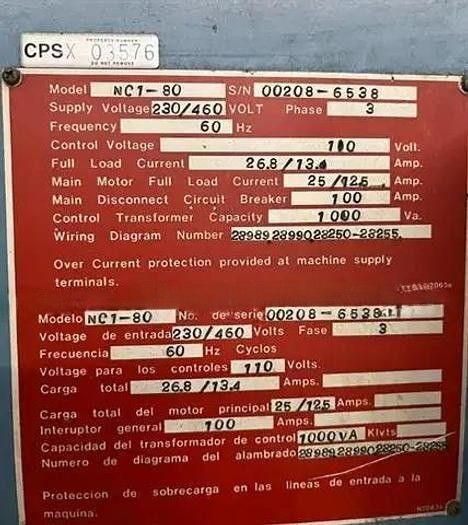

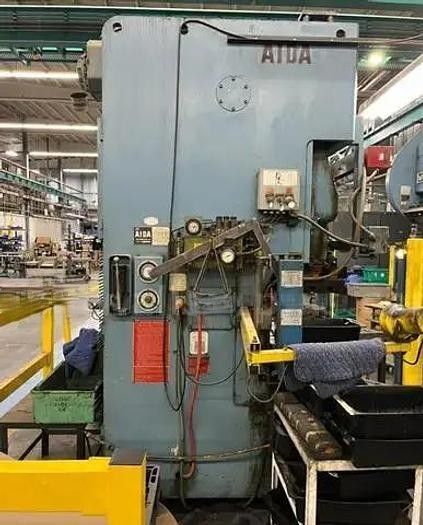

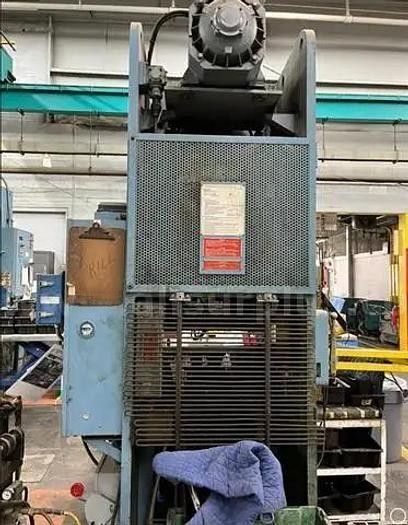

Description: Boost your production with this used 88 Ton AIDA NC1-80(1) single-crank gap-frame press. Features include a 3.93" stroke, 10 HP power, 37.4" x 18.11" bed, variable SPM of 55110, and air clutch for enhanced functionality. Located in Cincinnati. Spec Sheet: 88 TON AIDA SINGLE-CRANK GAP-FRAME PRESS Serial No 00208-6538, Model NC1-80(1) EQUIPPED WITH: Air Clutch & Brake Hydraulic Overload Protection CATALOG SPECIFICATIONS: Tonnage Capacity, (Nominal) 80 TONS Tonnage Capacity, (Short Tons) 88 TON Stroke Length 3.93" Slide Adjustment 3.14" Slide Area, L-R x F-B 21.25" x 18.11" Bolster Area, L-R x F-B 37.4" x 18.11" Strokes per Minute, Variable 55 to 110 SPM Motor Horsepower 10 HP Floor Space Required, W x D 40" x 54" F.O.B. OUR CINCINNATI WAREHOUSE
THIS AIDA NC1-80(1) SINGLE-CRANK GAP-FRAME PRESS OFFERS A NOMINAL TONNAGE CAPACITY OF 80 TONS (88 SHORT TONS). IT S A STROKE LENGTH OF 3.93 INCHES AND A SLIDE ADJUSTMENT OF 3.14 INCHES. THE PRESS IS POWERED BY A 10 HORSEPOWER MOTOR AND OPERATES AT A VARIABLE SPEED RANGE OF 55 TO 110 STROKES PER MINUTE (SPM). THE ...more
3.93" Stroke (100mm) 11.8" Shut Height Over Bolster (300mm) 3.14" Adjustment (80mm) 55 - 110 SPM Variable Speed 37.4" x 18.1" Bolster Area (950mm x 460mm) 21.26" x 18.1" Slide Area (540mm x 460mm) 10 HP Main Motor (7.5kw) Light Curtains Vibration Mounts Pascal Hydraulic Die lift & Clamping, 54" x 68" x 109" T ...more
SERIAL NUMBER. C0408-0077 MODEL. NC1-80(2) STROKE. 6.3" SPEED. 40 TO 85 SPM DIE HEIGHT OVER BOLSTER. 12.6" SLIDE ADJUSTMENT. 3.15" SLIDE AREA: LR X FB. 21.3 X 18.1" BOLSTER AREA LR X FB. 37.4 X 23.6" CLUTCH & BRAKE. AIR CONTROLS. YES, PALM & FOOT TRIP MAIN MOTOR. 10 HP.
CAPACITY88 US TONS STROKE6.3" DIE HEIGHT12.6" SDAU OVER 5.5" H BOLSTER PLATE BED AREA37.4" X 23.6" (rl x FB) BOLSTER PLATE5.5" H X 37.4" RL X 23.6" FB (T-SLOT) SLIDE AREA21.3" RL X 18.1" FB (T-SLOT) SLIDE ADJUSTMENT3.1" MOTORIZED DISTANCE BETWEEN UPRIGHTS24.5" FLOOR TO BED HEIGHT31" CLUTCHAIDA wet CLUTCH / BRAKE ...more
AIDA 88 TON GAP FRAME PRESS, S/N 10208-9061, STOCK# 14431J, 3.93" Stroke (100mm), 11.8" Shut Height Over Bolster (300mm), 3.14" Adjustment (80mm), 55 - 110 SPM Variable Speed, 37.4" x 18.1" Bolster Area (950mm x 460mm), 21.26" x 18.1" Slide Area (540mm x 460mm), 10 HP Main Motor (7.5kw), Light Curtains, Vibration ...more
