Click to zoom in
For Sale by Alma Machinery Co-Columbia TN
Surplus Record Dealer Since 1960
Location: Columbia, TN
Contact Ken King
Phone Number: 615...> Show Phone Number 615-369-7788
Let the seller know you found their listing on Surplus Record!
Description

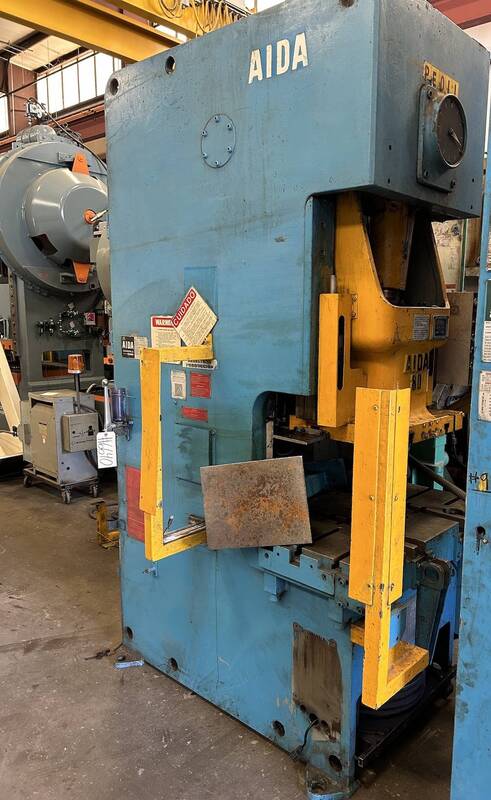

| CAPACITY | 88 US TONS | STROKE | 6.3" | DIE HEIGHT | 12.6" SDAU OVER 5.5" H BOLSTER PLATE | BED AREA | 37.4" X 23.6" (rl x FB) | BOLSTER PLATE | 5.5" H X 37.4" RL X 23.6" FB (T-SLOT) | SLIDE AREA | 21.3" RL X 18.1" FB (T-SLOT) | SLIDE ADJUSTMENT | 3.1" MOTORIZED | DISTANCE BETWEEN UPRIGHTS | 24.5" | FLOOR TO BED HEIGHT | 31" | CLUTCH | AIDA wet CLUTCH / BRAKE COMBINATION | ELECTRICS | 10 HP 1650 RPM 480V-3-60 EDDY CURRENT DRIVE & new CIECO 1100R PRESS CONTROL FOR RECONDITIONED PRICE. | APPROX. DIMENSIONS | 108" H X 44" RL X 65" FB | APPROX. WEIGHT | 16,000 LBS | Equipped With | AIR CUSHION IN BED, DUAL AIR COUNTERBALANCES, FLOOR STANDING, BACK GEARED DESIGN, CAST IRON FRAME | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
Get Your Price from Alma Machinery Co-Columbia TN!
