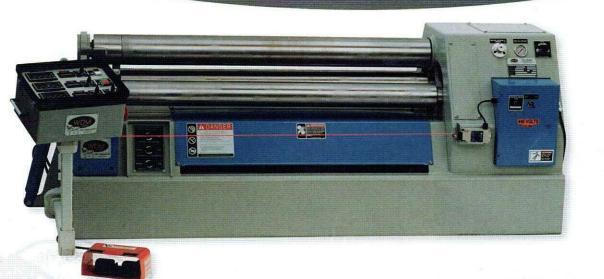

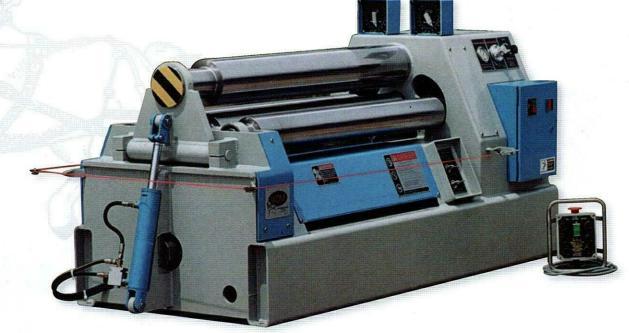

8' x .41" WDM #403-10-8, Double Pinch Plate Roll, 10" diameter roll, 10 HP, 230/460 V., 3 phase, TEFC, 2 roll dr, cone attachment, NEW

Manufacturer: Wdm
Model: 403-10-8
Length': 8.00
CapacityInches or Gauges: .41000
Stock # 86843

For Sale by Smith Machinery Co

Surplus Record Dealer Since 2001
Platinum Level Dealer
Location: Ames, IA
Contact Jim Smith
Let the seller know you found their listing on Surplus Record!

Description

Specifications

Equipped With
Equipped With
SPECIFICATIONS:
NOMINAL ROLL DIAMETER -------------------- 10"
RATED ROLLING CAP. (MILD STEEL) ---------- 0.41” mild steel plate to 40” diameter x 8' wide
MOTOR ------------------------------------ 10 HP
VOLTAGE ---------------------------------- 230/460/3PH TEFC
APPROXIMATE WEIGHT ----------------------- 14,200 LBS
FEATURES:
• 1045 carbon rolls
• Hydraulic driven roll which provides instant start, stop, and reverse
• NEMA 12 control cabinet with fused control transformer
• Electrics meet NFPA 79 specifications
• 230/460-volt 3 phase 50/60 hertz electrics (specify voltage when ordering)
• Electronic overload protection
• Two roll drive
• SKF spherical roller bearings on all main bearings
• LSHT type hydraulic drive motor with high volumetric and overall efficiency
• Infinitely variable speed from 0-22 FPM
• Safety cable around perimeter of machine
• Beta 4 roving pendant control. Push button control of main functions and 3 digital readouts to show the position of the 3 lower rolls.
• Rolls driven through planetary or spur gear type speed reducers with brake(s)
• Machine sets directly on level floor
• Ability to roll symmetrical steel sections without additional attachments
• Hydraulic operated drop end support
• Cone Attachment
• Hardened and Polished Rolls
• Pinch Roll Trim
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
• Cone Attachment - $2,150
• Heavy Duty Cone Attachment - $4,000
• Hardened Only Rolls - $10,400
• Hardened and Polished Rolls - $18,950
• Pinch Roll Trim - $3,300
• Circular Grooves 3/8, 1/2, 5/8 - $1,000
• Starting Groove - $450
• Side Support Each - $9,050
• Overhead Support 12' Max - $10,000
• Pre 4.2 Control - $12,650
• Auto 4.2 Control - $29,100
DELIVERY:
4-6 Weeks

Get Your Price from Smith Machinery Co!

Buyers Who Viewed This Listing Also Viewed:

8' x 1/2" Bertsch, initial pinch mechanical plate roll, 3-roll, manual drop end

Seller: Equilibrium Machinery
Location: Waukesha, WI
Mfr: Bertsch
Bertsch Mechanical Plate Rolls 8′ x 1/2″, 3 Roll Initial Pinch, Capacity 8′ x 1/2″, Manual Drop End.

8' x 5/16" Lemas #TR-200/8, Hydraulic 3-Roll Initial Pinch Plate Bending Roll, 7.87" roll diameter, 16 FPM, 5 HP drive, cone bending, 480 V., new

Seller: Smith Machinery Co
Location: Ames, IA
Mfr: Lemas
Model: TR-200/8
* Capacities in mild steel with 36,000 PSI yield strength: 8' x 5/16" * Diameter of all rolls: 7.87" * Rolling speed - approximately 16' per minute * Total connected motor power @ 480 volts – 5 HP drive motor; 3 HP hydraulic system motor * Approximate net weight –8,900 pounds :, * Positive drive ...more

8' x 1/4" Heller #MSMS-2530X7, initial pinch roll, powered roll adj., 2002

Seller: Mid Atlantic Machinery
Location: Harrisburg, PA
Mfr: Heller
Model: MSMS-2530X7
Year: 2002
Capacity: 8 ft. x 1/4’’ -7 mm, Powered rear roll adjustmanual front roll adjust.

8' x 1/4" Beloit Hendley & Whittemore #8-G, initial type plate bending roll, angle bending attachment, manual drop end, 10 HP

Seller: Mohawk Machinery Inc
Location: Cincinnati, OH
Mfr: Hendley & Whittemore
Model: 8-G
8' X 1/4 BELOIT HENDLEY & WHITTEMORE 8-G INITIAL TYPE PLATE BENDING ROLL W/ANGLE BENDING ATTACHMENT - Manual Drop End - Power Rear Roll Adjustment - Angle & Pipe Rolls - 2-1/2 x 2-1/2 x 1/4 Leg-In & Leg-Out Capacity - 10 HP Motor, 8 x 1/4 BELOIT HENDLEY & WHITTEMORE 3-ROLL INITIAL, PLATE BENDING ...more

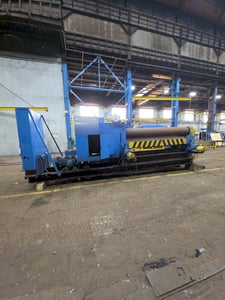

8' x 1" Bertsch, 3-Roll Initial Pinch Plate Bending Roll
