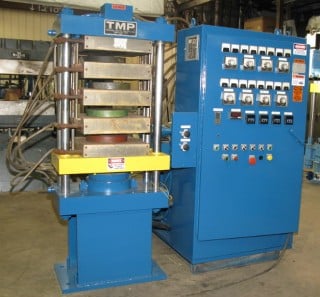

75 Ton, TMP, 4 DL' s, 18" x 18" elec.heat/wtr.cool, 13" stroke, hyd.unit & controls, #2149

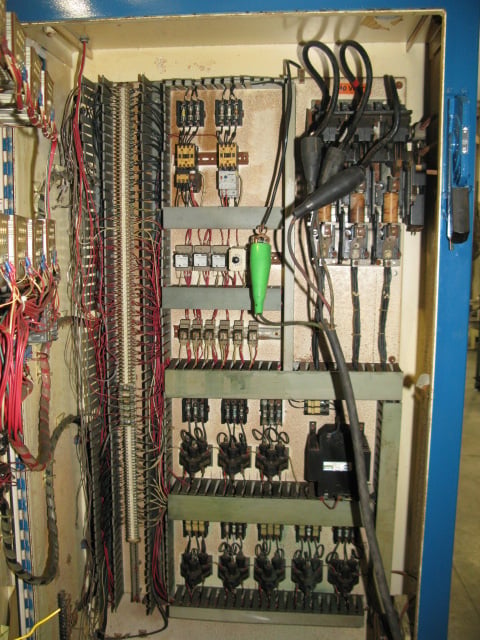

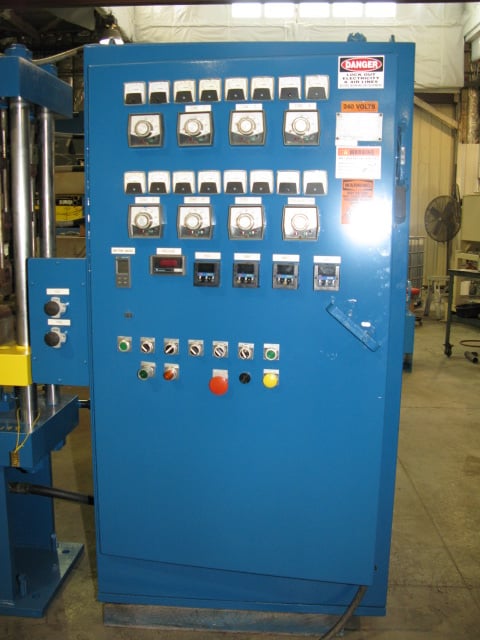

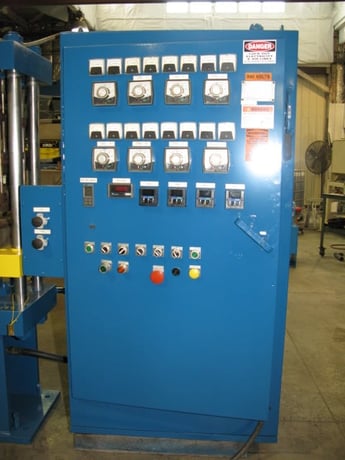

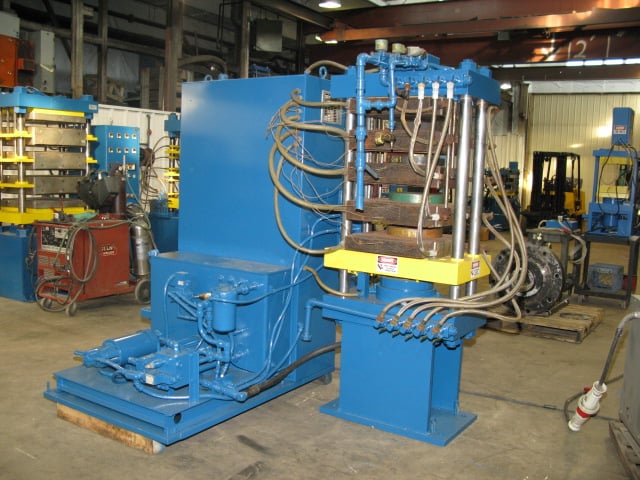

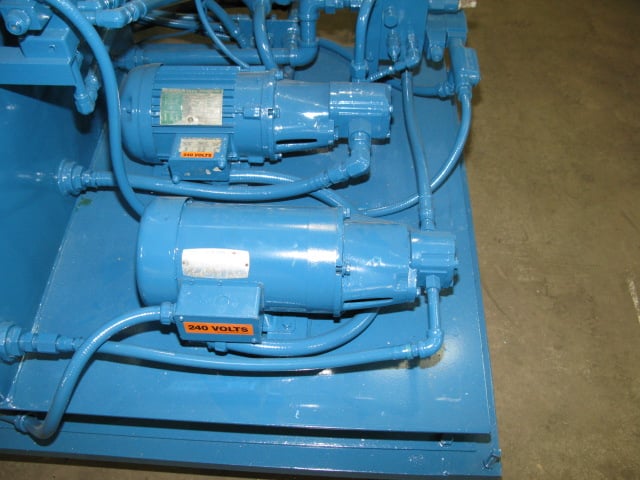

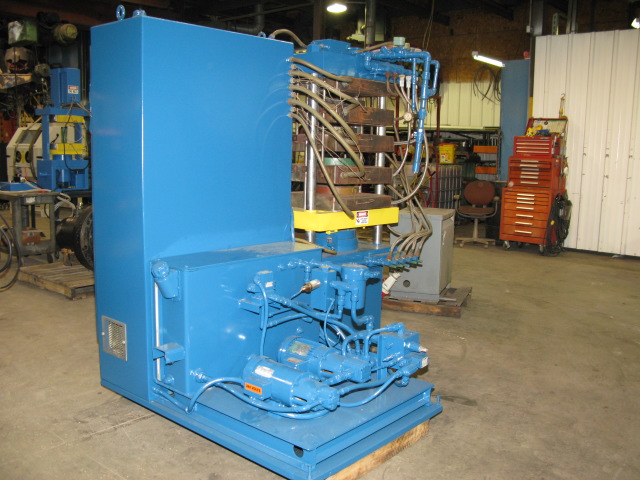

MODEL 18X18-75T-EHWC. SERIAL #20090. SET UP WITH FOUR DAYLIGHT OPENINGS OF APPROX 3" EACH. CLAMP CYLINDER IS APPROX 8" BORE WITH 13" OF MAX STROKE. PLATENS ARE ELECTRICALLY HEATED WITH OPTIONAL WATER COOLING. TOP AND BOTTOM PLATENS ARE 3.5" THICK; INTERMEDIATE PLATENS ARE 4.5" THICK. INTERMEDIATE PLATENS ARE ZONED TOP AND BOTTOM (8 TOTAL ZONES ON PRESS). TOP AND BOTTOM PLATENS HAVE 2 OUTSIDE HEATERS (208V; 1000W) AND 6 INSIDE HEATERS (208V; 900W). INTERMEDIATE PLATENS HAVE 4 OUTSIDE HEATERS (208V; 700W) AND 12 INSIDE HEATERS (208V; 625W). MAX TEMP IS APPROX 600 F. DAYLIGHT WITH JUST TWO PLATENS WOULD BE APPROX 25.5". FULLY GUIDED ON 2.5" DIAMETER POSTS WITH 4" BUSHINGS. OPERATOR HEIGHT INCLUDING LOWER PLATEN IS 42.5". MAX CLEARANCE BETWEEN TIE RODS IS 24.5" L TO R X 6.5" F TO B. FREE-STANDING CONTROL PANEL AND HYDRAULIC UNIT. TWO 2 HP MOTORS (1800 RPM). ONE IS TAGGED 208-230/460V AND ONE IS TAGGED 200/400V. TWO 3000 PSI DOWTY GEAR PUMPS: ONE RATED TO 0.85 GPM AND THE OTHER TO 8.75 GPM. APPROX 30 GALLON RESERVOIR. 0-3000 PSI TRANSDUCER. RELAY CONTROLS INCLUDE: TIMERS (KISS; CURE; MIST; COOL); 2 CLOSE BUTTONS; OPEN; AUTO/MANUAL; E-STOP; 16 AMP METERS; EIGHT 0-600 F TEMP CONTROLLERS; ETC… PRESS IS APPROX 40" X 30" X 84" TALL. CONTROLS/POWER UNIT APPROX 62"X 52" X 83" TALL. APPROX 9,500 POUNDS TOTAL. MANUAL AND SOME PRINTS. C. ITEM #2149C.
