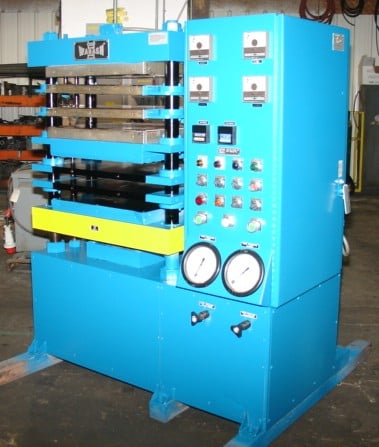

75 Ton, Wabash, 24" x 18", multiple daylight, 3 hot/3 cold, self-cntnd, 12" stroke, #1333

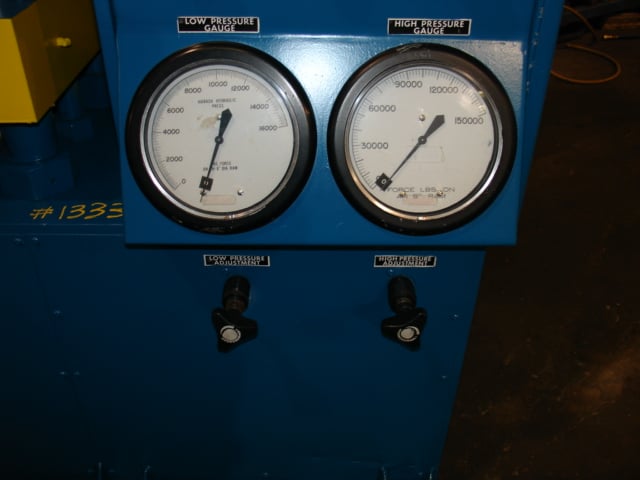

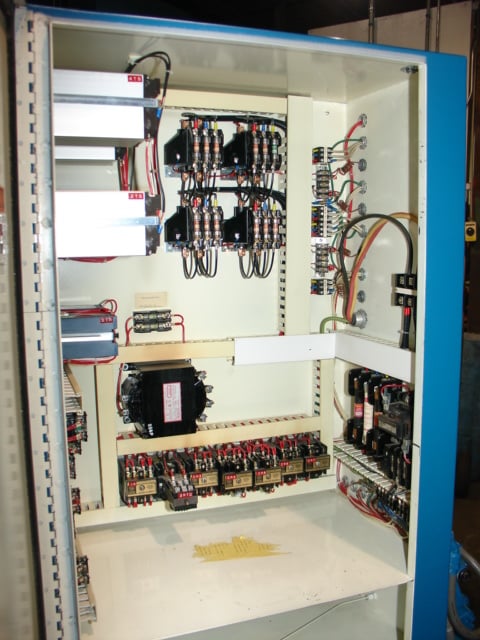

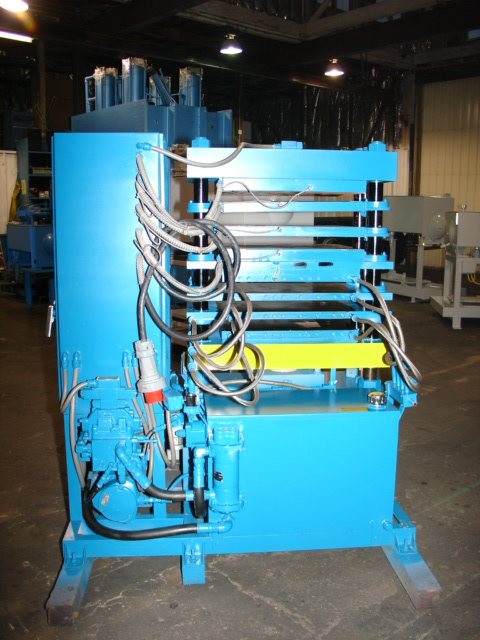

MODEL PC75-2418-4WC. SERIAL #7564. PRESS IS SET UP WITH 3 "HOT" DAYLIGHTS AND 3 "COLD" DAYLIGHTS. EACH DAYLIGHT OPENING IS APPROX 2". FOUR 24" X 18" X 1.75" ELECTRICALLY HEATED PLATENS AND FOUR WATER-COOLED PLATES. EACH HEATED PLATEN HAS TEN CARTRIDGE HEATERS THAT ARE .5" DIAMETER X 18.25" LONG AND 240 VOLTS. HEATERS IN TOP AND BOTTOM PLATENS ARE 750 WATTS EACH AND 1200 WATTS EACH IN THE OTHER TWO. HEATED PLATENS ARE FULLY INSULATED. 8" BORE HYDRAULIC CYLINDER WITH 12" STROKE AND 3.5" ROD. TOTAL AVAILABLE DAYLIGHT WITH ALL PLATENS REMOVED IS 28.25". OVERALL CLEARANCE LEFT TO RIGHT BETWEEN THE 2.5" DIAMETER POSTS IS 24.5"; CLEARANCE FRONT TO BACK BETWEEN POSTS IS 8.5" (IF PLATENS ARE REMOVED). FULLY GUIDED. OPERATOR HEIGHT INCLUDING BOTTOM PLATEN IS APPROX 33". SELF-CONTAINED HYDRAULIC SYSTEM: 3 HP; 480/3/60; WATER COOLER; REXROTH PUMP AND VALVES; ETC… SELF-CONTAINED RELAY CONTROLS INCLUDIING : APPROX FOUR 0-600 F. TEMP CONTROLLERS; TIMERS FOR LOW PRESSURE AND HIGH PRESSURE; TWO CLOSE BUTTONS; ONE OPEN BUTTON; COOLING ON/OFF; HEAT ON/OFF; LOW AND HIGH PRESSURE ON/OFF; ETC.. LOW AND HIGH PRESSURE GAUGES AND ADJUSTMENT KNOBS. 60 AMPS. OVERALL DIMENSIONS: 58" X 48" X 67" TALL. APPROX 7,500 LBS. MANUAL AND BLUEPRINTS. (ITEM #1333)
