For Sale by Alma Machinery Co-Columbia TN
Surplus Record Dealer Since 1960
Location: Columbia, TN
Contact Ken King
Phone Number: 615...> Show Phone Number 615-369-7788
Let the seller know you found their listing on Surplus Record!
Description

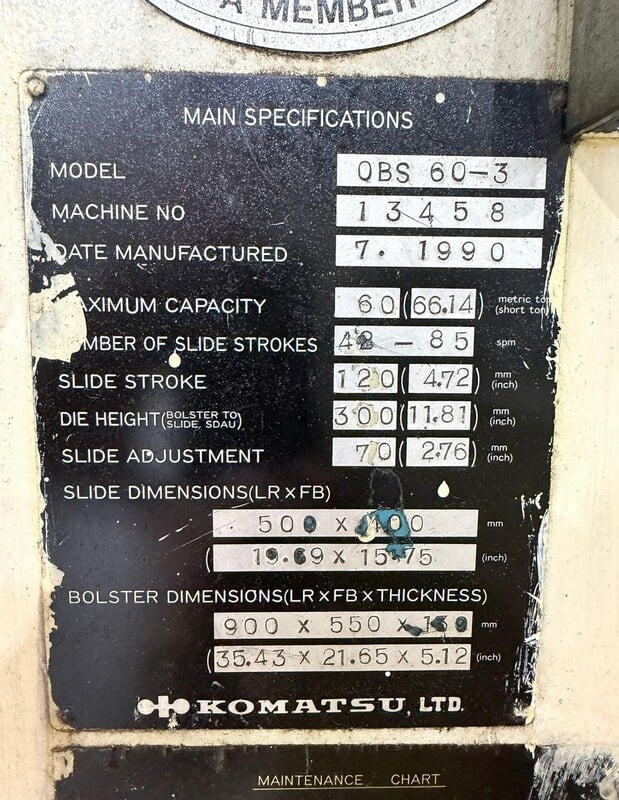

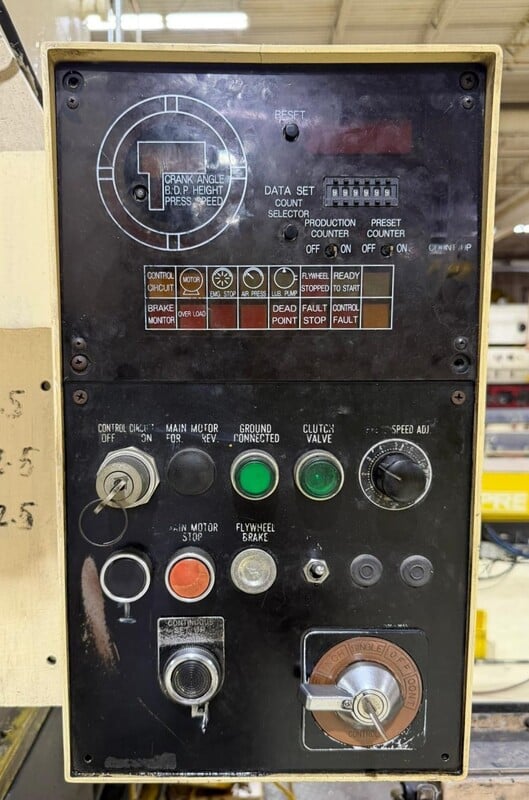

| Capacity | 66 US TONS | Stroke | 4.72" | max die height | 11.81" sdau over 5.12" THICK bolster plate | bed Area | 35.43" X 21.65" (RL X FB) | RAM / SLIDE AREA | 19.69" X 15.75" (RL X FB) | Bolster Plate | 35.43" X 21.65" (RL X FB) X 5.12" THICK T-SLOTTED PLATE | RAM / slide adjustment | 2.76" motorized | Speed | 42 - 85 spm | Distance Between Uprights | APPROX. 20.5" | Floor to bed height | APPROX. 36" | shank hole diameter | APPROX. 2" | Clutch | Komatsu wet Clutch / Brake combination | Press Controls | Komatsu Controller | Electric Motor | 7.5 HP 480v-3-60 MOTOR | ELECTRICAL NOTE | __ | MACHINE DIMENSIONS | APPROX. 48" x 58" (RL x FB) x 108" High | WEIGHT | APPROX. 11,023 LBS. | Equipped With | __ | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
Get Your Price from Alma Machinery Co-Columbia TN!
