Description

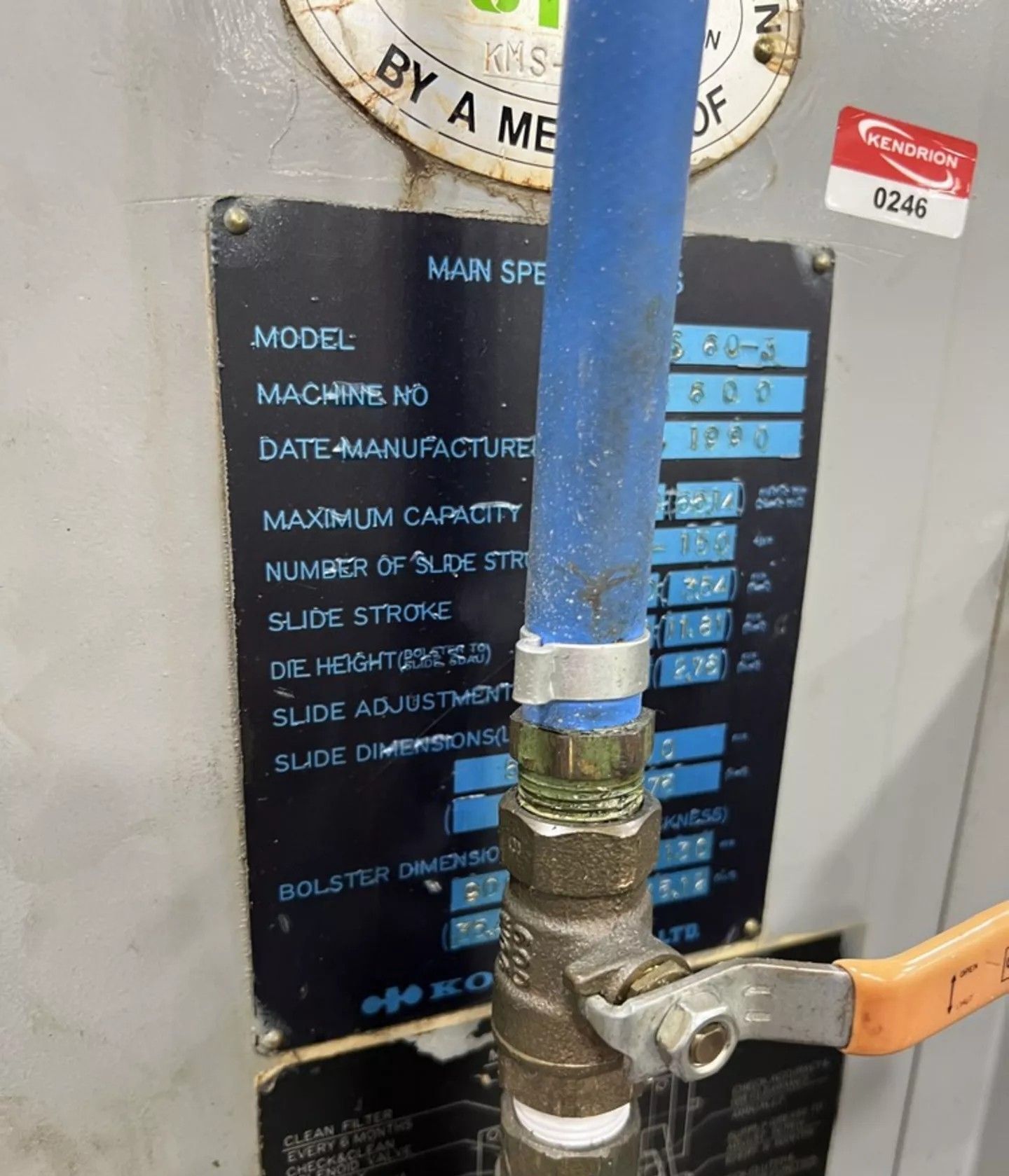

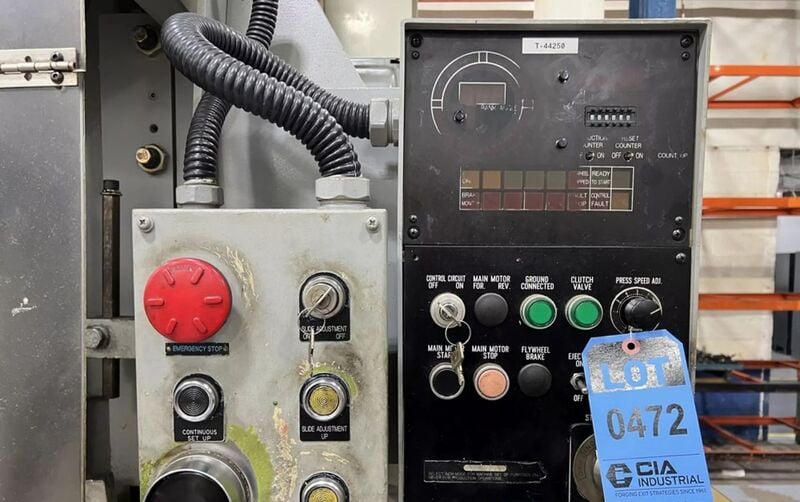

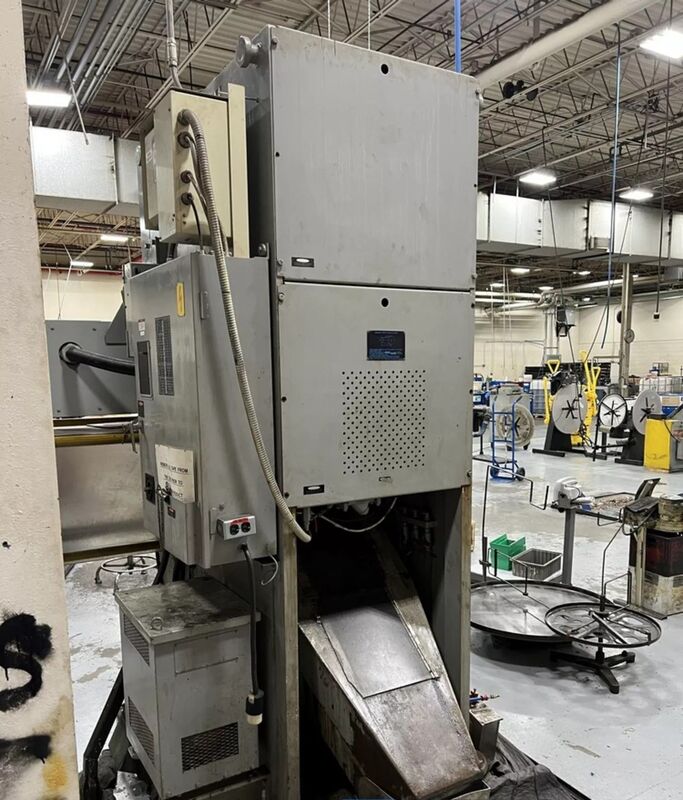

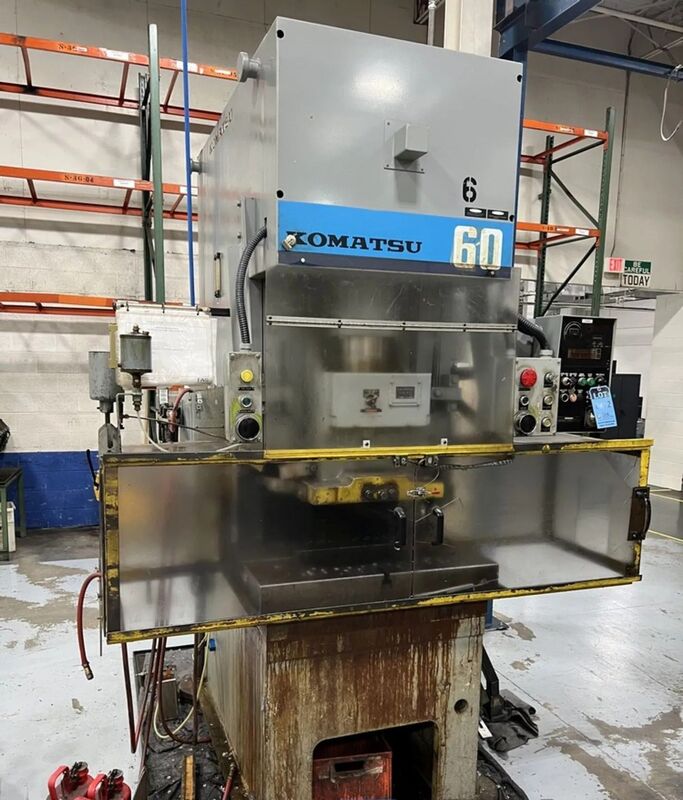

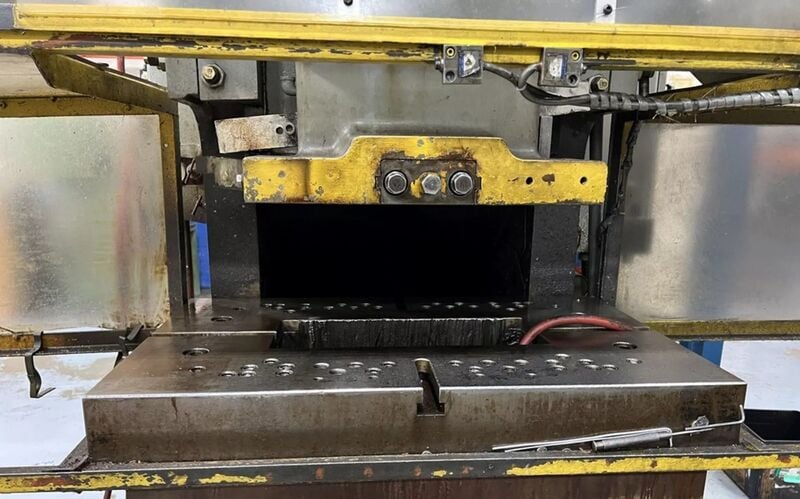

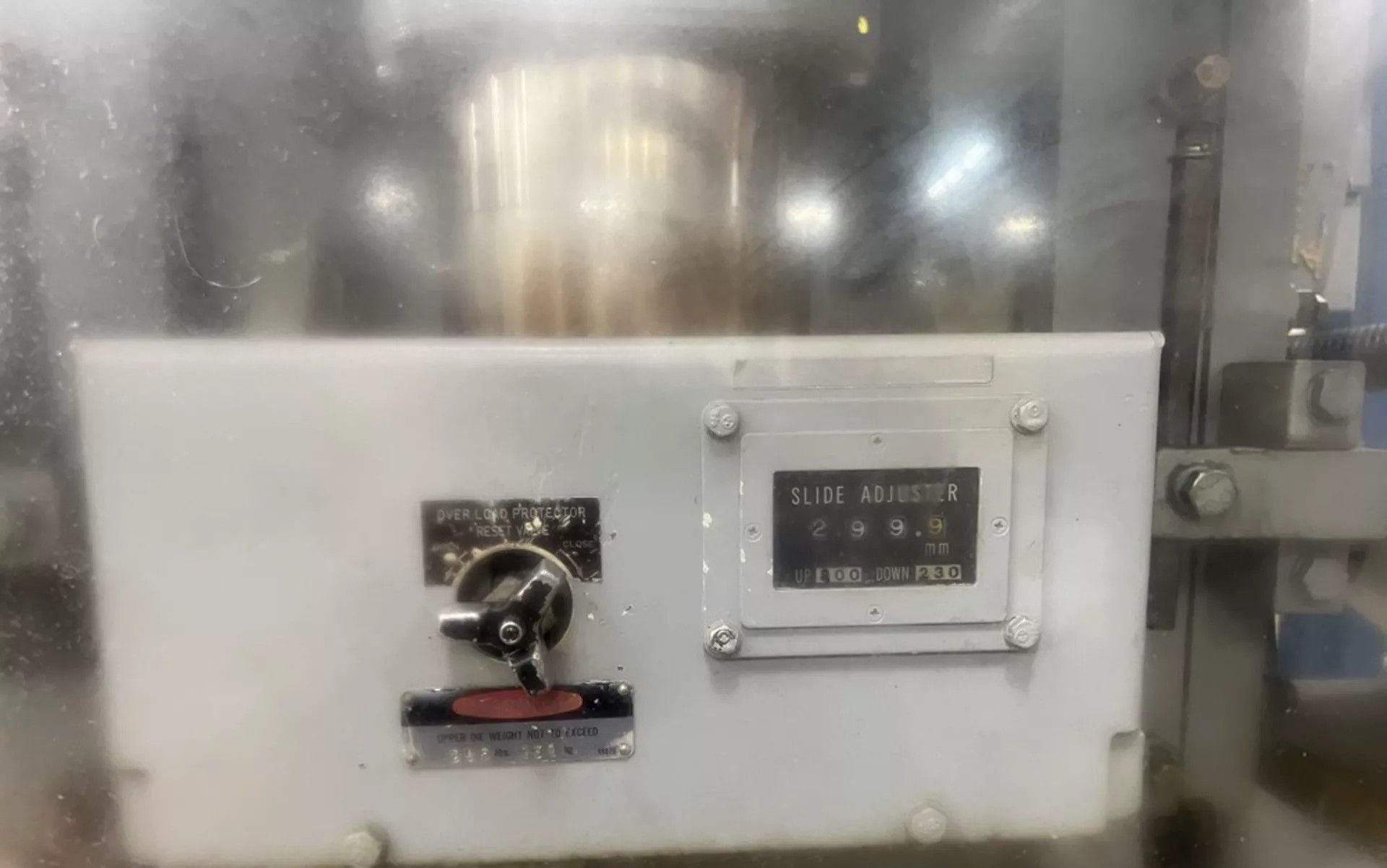

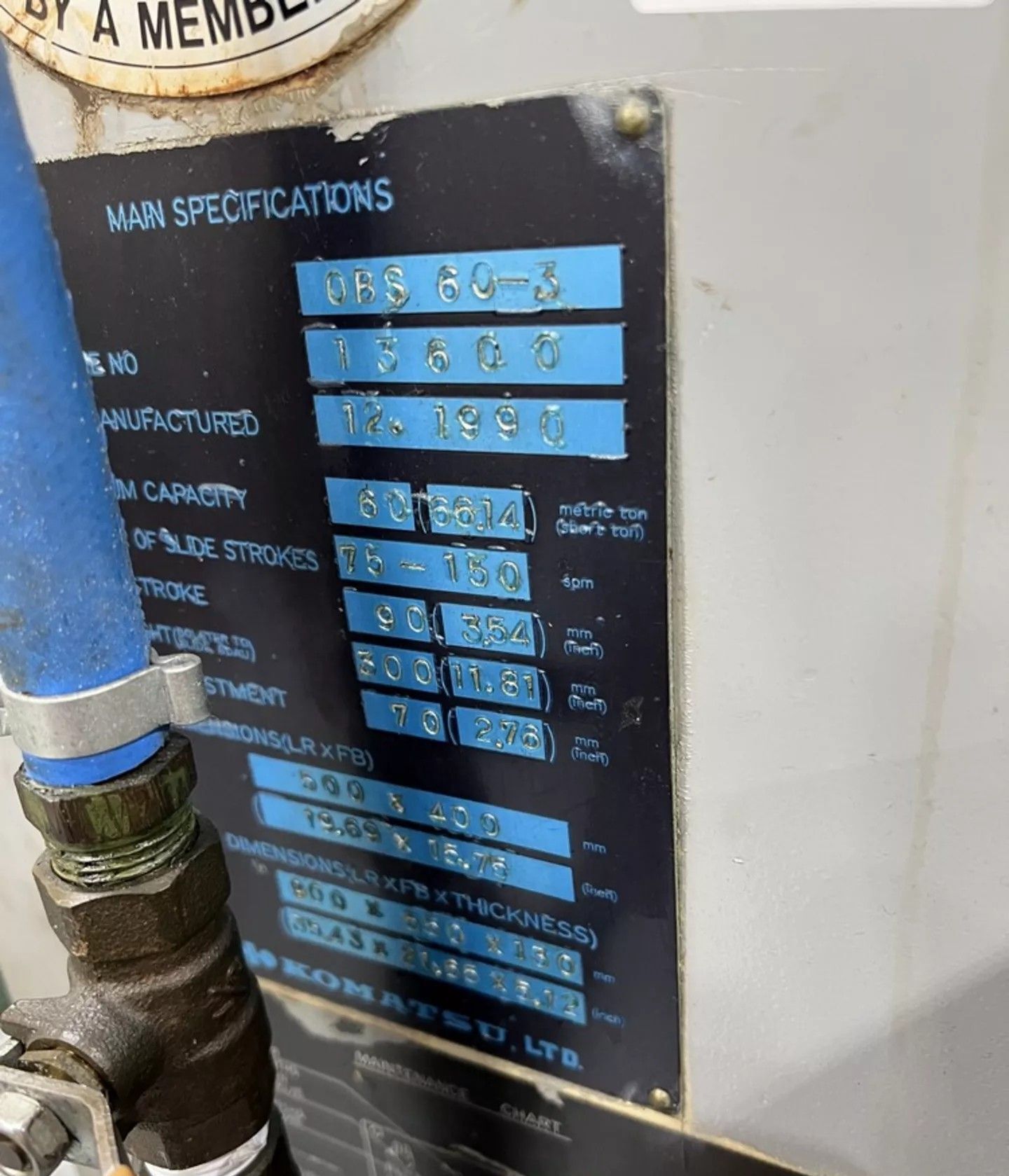

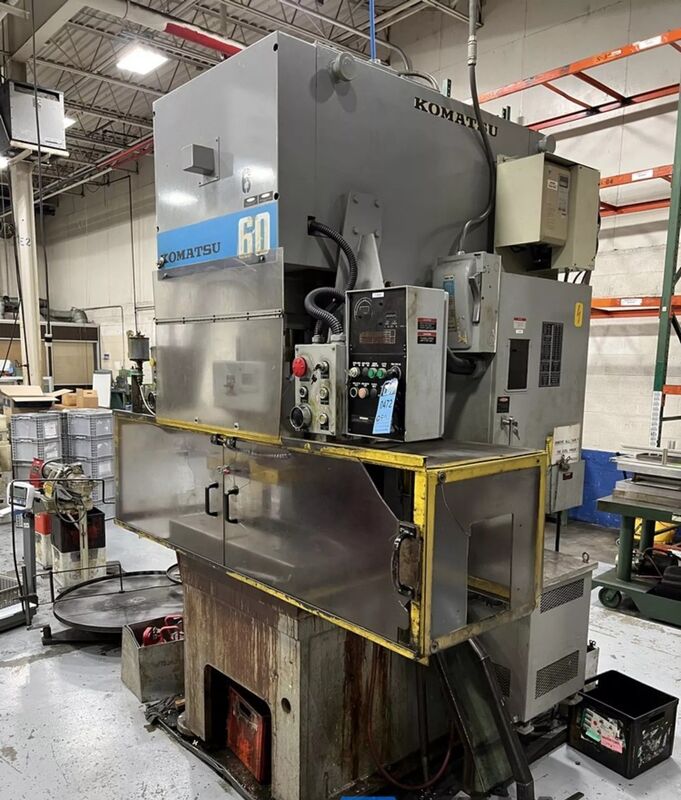

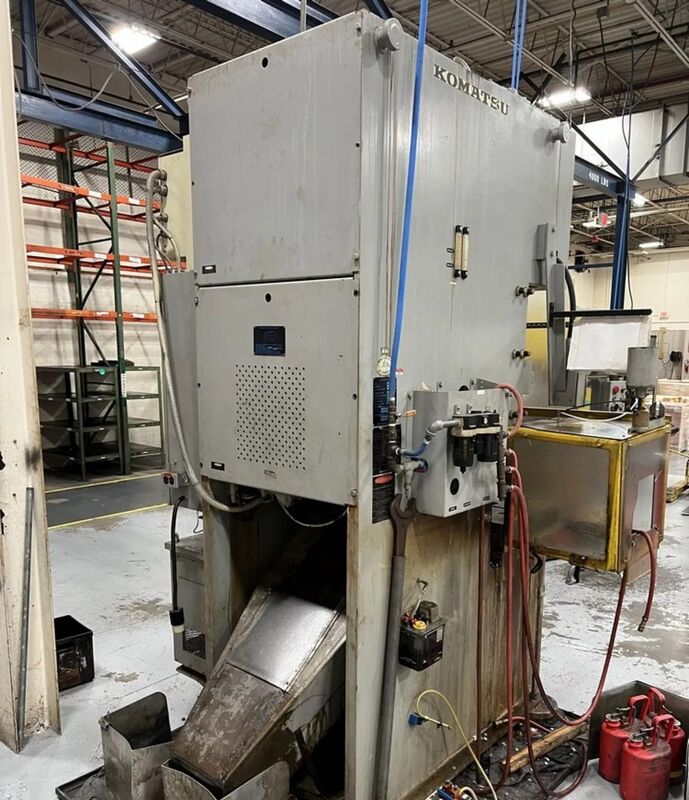

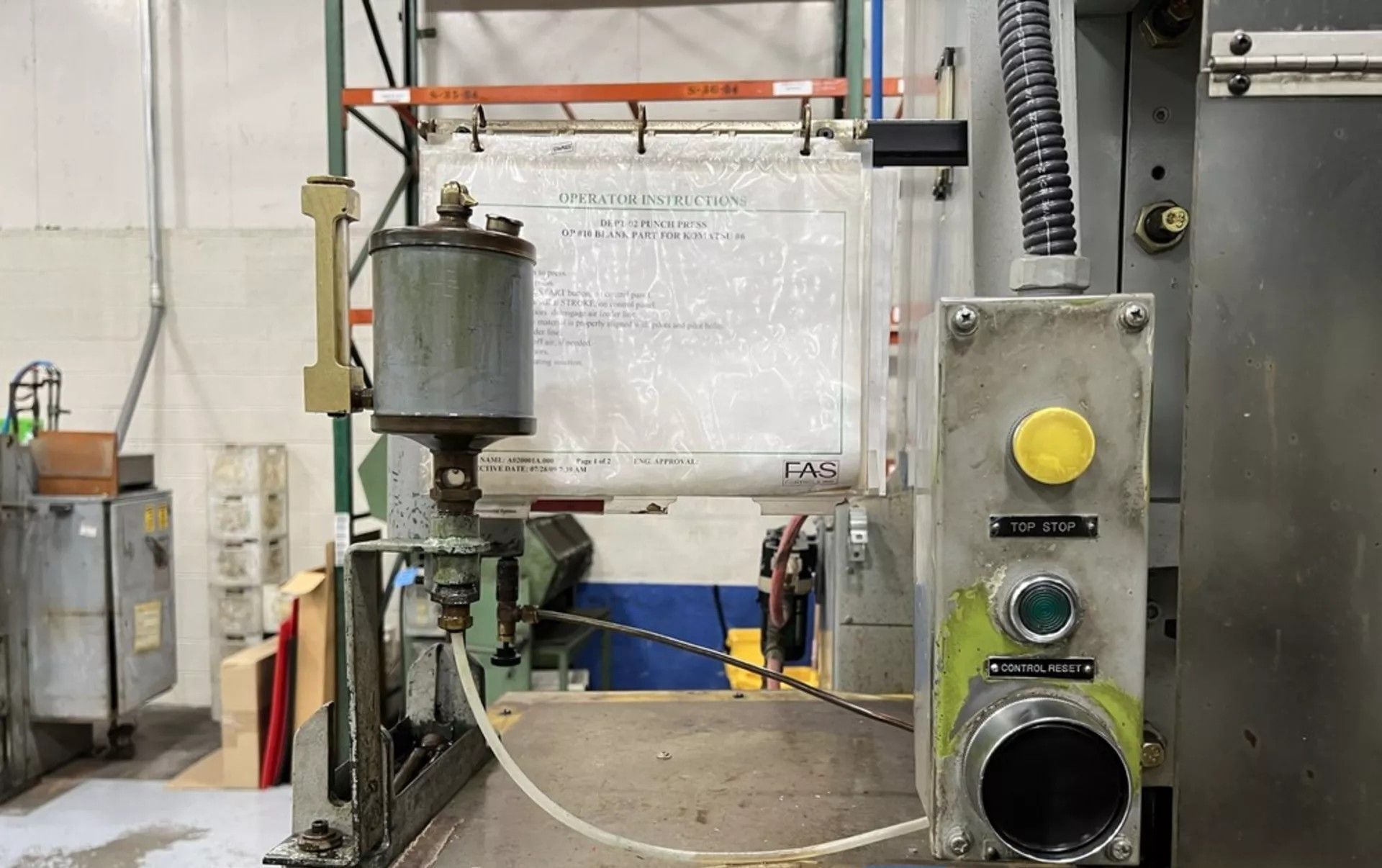

66 TON KOMATSU "OBS 60-3" OPEN BACK VARIABLE-SPEED MECHANICAL GAP FRAME PRESS - 3.54" Stroke - 75 to 150 SPM - 35.43" x 22.55" Bolster 66 TON KOMATSU OPEN BACK GAP-FRAME PRESS Serial No 13600, Model OBS 60-3 EQUIPPED WITH: Low Inertia Wet Clutch & Brake Built-In Air Counterbalance Hydraulic Overload Protection Palm Button Controls CATALOG SPECIFICATIONS: Tonnage Capacity, Short Tons (USA) 66 TON Tonnage Capacity, Metric 66 TON Stroke Length 3.54" 90MM Die Height, (SDAU) 11.81" 300MM Slide Adjustment 2.76" 70MM Slide Area, L-R x F-B 19.09" x 15.75" Slide Area, L-R x F-B 500MM x 400MM Bolster Area, L-R x F-B 35.43" x 22.5" Bolster Area, L-R x F-B 860MM X 550MM Bolster Thickness 5.12" 150MM Strokes per Minute, Variable 75 to 150 SPM Width Of Opening In Back 23.6" Motor Horsepower 7.5 HP 5.5 KW Weight, Approximately 12000 LBS FOB OUR WAREHOUSE
Capacity66 US TONS Stroke4.72" max die height11.81" sdau over 5.12" THICK bolster plate bed Area35.43" X 21.65" (RL X FB) RAM / SLIDE AREA19.69" X 15.75" (RL X FB) Bolster Plate35.43" X 21.65" (RL X FB) X 5.12" THICK T-SLOTTED PLATE RAM / slide adjustment2.76" motorized Speed42 - 85 spm Distance Between ...more

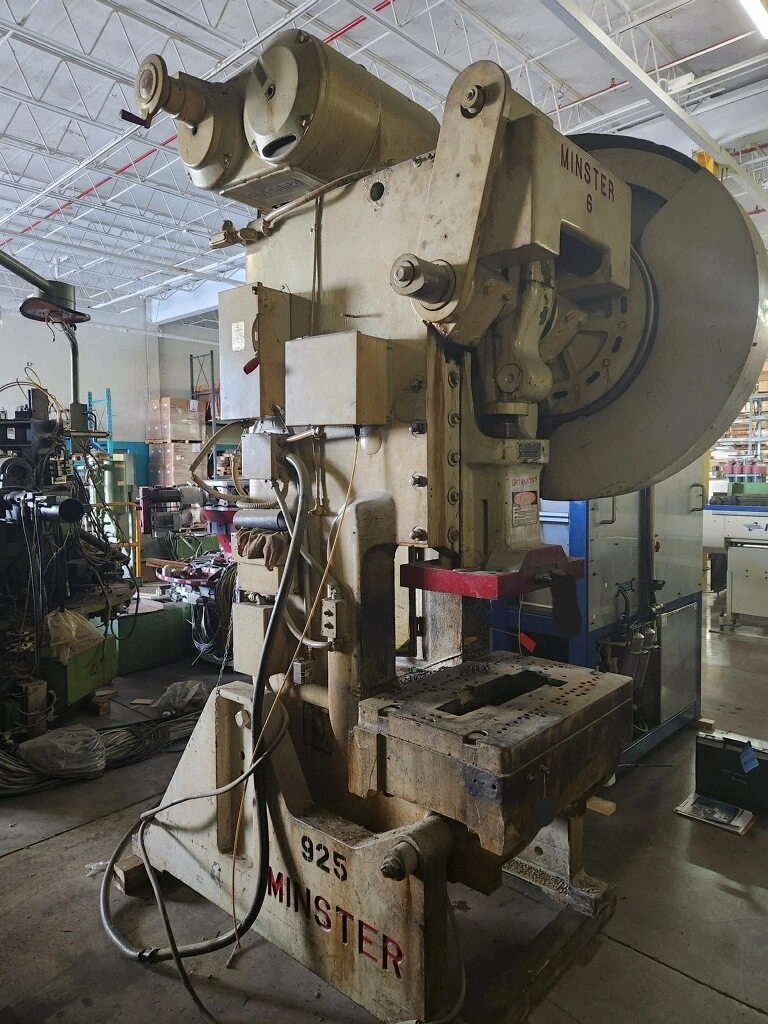

The Minster model 6 Open Back Inclinable (O.B.I.) press is a robust 60-ton capacity machine. Key s include an air clutch and brake system, and a Reeves variable-speed drive, powered by a 7.5 HP motor in a flywheel design. Technical a 4-inch stroke length and a 13-inch shut height to the bed (SDAU) with a 3-inch ram ...more
