Click to zoom in
For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

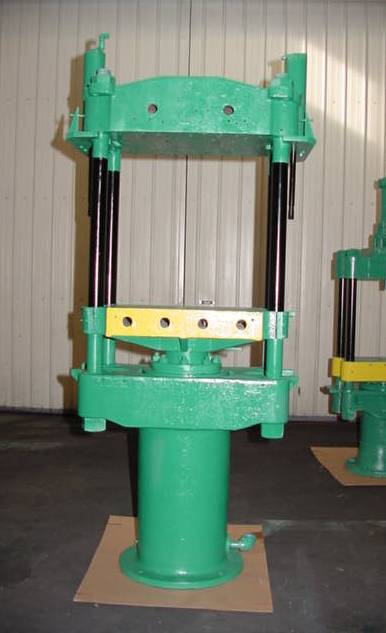

DISTANCE BETWEEN POSTS: 32" L to R X 12 \u00bd" F to B. POST DIAMETER 3 \u00bc". MAIN RAM: 9" DIAMETER, SINGLE ACTING, RATED AT 2000 PSI, 1 \u00bd" NPT PORTS. STROKE APPROX 30". DAYLIGHT 33 \u00be". FULLY GUIDED SLIDE WITH 5" BUSHINGS. TWO SINGLE ACTING BREAKAWAY CYLINDERS: 3 \u00bd" BORE, 1 \u00bc" ROD, APPROX 12" STROKE, \u00bd" NPT PORTS. OPERATOR HEIGHT: 55 \u00bd". OVERALL DIMENSIONS: 48" L to R X 32" F to B X 112" TALL. APPROX WEIGHT: 15,000 LBS. R 2 (ITEM #307)
Get Your Price from Icon Industries, Inc!
