15 Results
44 Ton, Williams -White, 21.5x17", up-act, 26" daylight, 12" stroke, 25 HP hydraulic system, 41" work hght, #34
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Williams
SERIAL #C-3027. FRONT TO BACK BETWEEN POSTS IS 9.5". NOMINAL BED AREA IS 21.5" X 17". MAIN RAM IS APPROX 7" DIAMETER WITH 12" STROKE. 26" DAYLIGHT. FULLY GUIDED WITH 4.75" BUSHINGS ON A 2.5" DIAMETER POSTS. 41" OPERATOR HEIGHT. TWO 3" BORE SINGLE-ACTING PUSH-BACK CYLINDERS. T-SLOTTED BED AND CROWN. HYDRAULIC ...more
50 Ton, Williams #5, 4-post hydraulic press, 36" stroke, 46" daylight, Vickers hydraulic pump, 1984
D & D Industries Inc | Monclova, OH
Category: Hydraulic Presses
Seller: D & D Industries Inc
Location: Monclova, OH
Mfr: Williams
Model: 5
Year: 1984
Stroke 36 inches Daylight 46" Ram Size 72" x 36" Bed Size 72" x 36" Motor HP 25 HP 230/460/60/3 Maximum operating presssure 2546 at 50 Tons Fast Approch Speed 550 Inches Per Minute Pressing Speed 85 Inches Per Minute Return Speed 529 Inches Per Minute Approximate Dimensions 106" LR x 60" FB x 13' 10" Approximate ...more
63 Ton, Williams up-acting 4-post press, 30" stroke, 9" ram, 34" daylight, 32" x24", 2 cylinders, #307
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Williams
DISTANCE BETWEEN POSTS: 32" L to R X 12 \u00bd" F to B. POST DIAMETER 3 \u00bc". MAIN RAM: 9" DIAMETER, SINGLE ACTING, RATED AT 2000 PSI, 1 \u00bd" NPT PORTS. STROKE APPROX 30". DAYLIGHT 33 \u00be". FULLY GUIDED SLIDE WITH 5" BUSHINGS. TWO SINGLE ACTING BREAKAWAY CYLINDERS: 3 \u00bd" BORE, 1 \u00bc" ROD, APPROX 12" ...more
80 Ton, Williams White, 120" x 60", up-act, 34" daylight, 24" stroke, (8) 5" bore cyls, #60
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Williams
EIGHT 5" BORE CYLINDERS WITH APPROX. 24" STROKE. MAX DAYLIGHT IS 34". OPERATOR HEIGHT IS 39". CLEARANCE BETWEEN POSTS LEFT TO RIGHT IS 122"; FRONT TO BACK IS 35" (NOMINAL BED OF 120" X 60"). FULLY GUIDED WITH 6" BUSHINGS ON 4" DIAMETER TIE RODS. OVERALL DIMENSIONS: 150" X 62" X 102" TALL. APPROX 25,000 POUNDS. ...more
92 Ton, Williams, 24.5" x20", up-act 4-post, 12" stroke, 25" daylight, 50 HP, 42" work height, #36
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Williams
SERIAL #C-3135. FRONT TO BACK BETWEEN THE POSTS IS 10.5". NOMINAL BED AREA IS 24.5" X 20". MAIN RAM IS APPROX 10" DIAMETER WITH 12" STROKE. 25" DAYLIGHT: FULLY GUIDED WITH 8.5" BUSHINGS ON 3.25" DIAMETER POSTS. 42.5" OPERATOR HEIGHT. TWO 3" BORE SINGLE-ACTING PUSH-BACK CYLINDERS. T-SLOTTED BED AND CROWN. HYDRAULIC ...more
Get email updates for newly added Hydraulic Presses
Hydraulic Presses (also known as hydraulic molding presses or hydraulic stampers) are machines that use hydraulic force to apply pressure for shaping, forming, or compressing materials. Commonly used in industries like automotive, metalworking, and manufacturing, they are ideal for tasks such as metal stamping, plastic molding, and rubber pressing. Hydraulic presses are essential for producing high-quality parts with precise force and control in heavy-duty applications.
150 Ton, Williams, 30.5" x24.5", upact 4-post, 36" stroke, 28" daylight, 12" ram, 60" work height, #295
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Williams
DISTANCE BETWEEN POSTS IS 32" L to R X 10" F to B. 3 \u00bd" POST DIAMETER. MAIN RAM: 12" DIAMETER, SINGLE ACTING, RATED AT 2700 PSI, 1 \u00bd" NPT PORTS. APPROX 36" STROKE. 28" DAYLIGHT. FULLY GUIDED WITH 5" BOLT ON BUSHINGS. TWO SINGLE ACTING, BREAK AWAY CYLINDERS: 3 \u00bd" BORE, 1 \u00bc" ROD, APPROX 12" STROKE ...more
150 Ton, Williams, 30.5" x48.5", upact 4-post, 36" stroke, 45" -71" DL, 12" ram, 60" work height, #288
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Williams
FRONT TO BACK DIMENSION INCLUDES TWO 12" REMOVABLE EXTENSIONS ON CROWN AND SLIDE. NOMINAL PLATEN SIZE WITHOUT EXTENSIONS IS 30 \u00bd" L to R X 24 \u00bd" F to B. DISTANCE BETWEEN POSTS: 31 \u00be" L to R X 10 \u00bd" F to B. POST DIAMETER 3 \u00bd". MAIN RAM: 12" DIAMETER, SINGLE ACTING, RATED AT 2700 PSI, 1 \u00bd" ...more

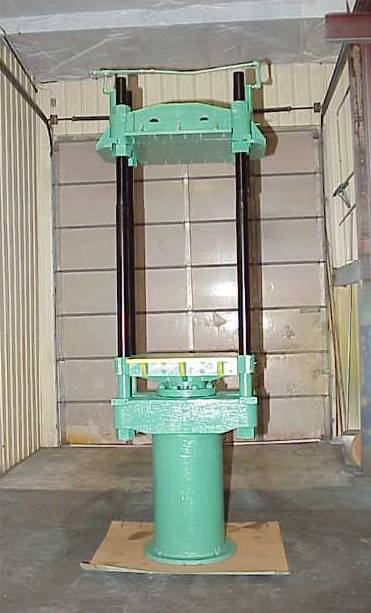

150 Ton, Williams, 30.5" x40.5", upact.4-post, 36" stroke, 45" -71" DL, 12" ram, 60" work height, #286
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Williams
FRONT TO BACK DIMENSION INCLUDES TWO 8" REMOVABLE EXTENSIONS ON CROWN AND SLIDE. NOMINAL PLATEN SIZE WITHOUT EXTENSIONS IS 30 \u00bd" L to R X 24 \u00bd" F to B. DISTANCE BETWEEN POSTS: 31 \u00be" L to R X 10 \u00bd" F to B. POST DIAMETER 3 \u00bd". MAIN RAM: 12" DIAMETER, SINGLE ACTING, RATED AT 2700 PSI, 1 \u00bd" ...more
250 Ton, Williams, 30" x30", upact 4-post, 18" stroke, 47" daylight, 42.5" work height, 16" ram, #239
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: Williams
DISTANCE BETWEEN POSTS: 31 \u00bd" L to R X 11 \u00bd" F to B. 47" DAYLIGHT. APPROX 18" STROKE. 4 \u00bc" DIAMETER POST. 16" DIAMETER, SINGLE-ACTING MAIN RAM RATED AT 2500 PSI. 2" NPT PORTS. \u00bc SURROUND ADJUSTABLE GUIDING ON MOVING BOLSTER. 42 \u00bd" OPERATOR HEIGHT. OVERALL DIMENSIONS: 50" L to R X 36" F to B X ...more
400 Ton, Williams White, gib-guided, 30" stroke, 43" daylight, 84" x48" bed, 2-cushions in bed, sr5551
Alma Machinery Co-Ann Arbor MI | Ann Arbor, MI
Category: Hydraulic Presses
Seller: Alma Machinery Co-Ann Arbor MI
Location: Ann Arbor, MI
Mfr: Williams
capacity 400 Ton @ 2322 psi, max. stroke 30", max. daylight to bed 43.5" (35.75" to Bolster), BED & RAM AREA (OVERALL) 84" x 48" (RL X FB), BOLSTER PLATE 7.75" THICK T-SLOTTED BOLSTER PLATE, RAM SPEEDS 1250/90/1140 ipm, SIZE OF SIDE WINDOWS 20.5" WIDE X 25" HIGH, CYLINDER SIZE 19" DIA. BORE, FLOOR TO BED 54" ...more
600 Ton, Williams & White, hydraulic press, 16" stroke, 36" daylight, 20" Shut Height, 72" x60" die space
National Machinery Exchange | Newark, NJ
Category: Hydraulic Presses
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Williams
600 TON WILLIAM & WHITE HYDRAULIC PRESS, TONNAGE (US TONS), PRESSING - 600, STRIPPING - 60, NET LIFT @ FAST OPEN - 5, ECCENTRIC LOAD CAPCITY (INCH TONS)* - 4800, ** AN OUT OR PARALLEL CONDITION WILL NOT EXCEED 0.005 INCHES PER FOOT WITH, ZERO GIB CLEARANCE. THIS IS BASED ON A MAXIMUM OFF-CENTER LOAD OF 4800 INCH ...more
650 Ton, Williams & White, 4-post, 26" stroke, 52" daylight, 66x66" OA bed, 48x66" usable, floor stand, 1985
Alma Machinery Co-Ann Arbor MI | Ann Arbor, MI
Category: Hydraulic Presses
Seller: Alma Machinery Co-Ann Arbor MI
Location: Ann Arbor, MI
Mfr: Williams
Year: 1985
max. capacity 650 ton @ 3000 psi - pressing | 74 ton @ 3000 psi - stripping, max. stroke 26", Max. daylight to bed 52", overall bed & ram area 66" x 66" (RL X FB), distance between post 48" x 48" (RL X FB), usable bed area 48" x 66" (RL X FB), speed TBD, bolster size 80" X 48" (RL X FB) X 8" THICK, cylinder sizes ...more
800 Ton, Williams & White hydraulic press, 44" stroke, 6.5" bolster, 200 HP
Reid Machinery Inc | Lansing, MI
Category: Hydraulic Presses
Seller: Reid Machinery Inc
Location: Lansing, MI
Mfr: Williams
800 Tons Williams & White Hydraulic Press Asset: L026, Capacity: 800 Ton, Serial Number: C-1818, Capacity: (Metric Tons) 800 Tons, Stroke: 44" - 1,117.6 mm, Closing Speed: 510 IPM, Fast Pressing Speed (480 Tons): 10-37 IPM, Pressure 1815, 480 Ton, Slow Pressing Speed (825 Tons): 10-24 IPM, Pressure 3120, 825 Ton ...more
1000 Ton, Williams #SH-1000-120-72, straight side hyd press, 36" stroke, 122" between housing, 50" daylight, 120" x 72" bed
Rygate, LLC | Clarkston, MI
Category: Hydraulic Presses
Seller: Rygate, LLC
Location: Clarkston, MI
Mfr: Williams
Model: SH-1000-120-72
Capacity………………………. 1000 Tons, Stripping Capacity………………. 85 Tons, Intermediate Press Capacity………. 215 Tons, Distance Between Housings………… 122″ LR, Stroke ...more
4000 Ton, Williams & White #H-4000-180-96, 4-post hydraulic downacting press, 60" stroke, 100" daylight, 40" Shut Height, Allen Bradley PLC 540 Control, 1998
Presses for Industry | Detroit, MI
Category: Hydraulic Presses
Seller: Presses for Industry
Location: Detroit, MI
Mfr: Williams
Model: H-4000-180-96
Year: 1998
Preliminary, Williams & White Model H-4000-180-96 Downacting, 4000 tons capacity, 60" Stroke, 100" Daylight open, 40" Shut Height, 226"LR x 96" Lower Platen and Ram Area, 182.75" LR x 50.75" Area Between posts, 20" floor to top of bolster, 1" T-slots @ 6" centers, Speeds:, -1000-1500 IPM Fast close, -25-250 IPM ...more
