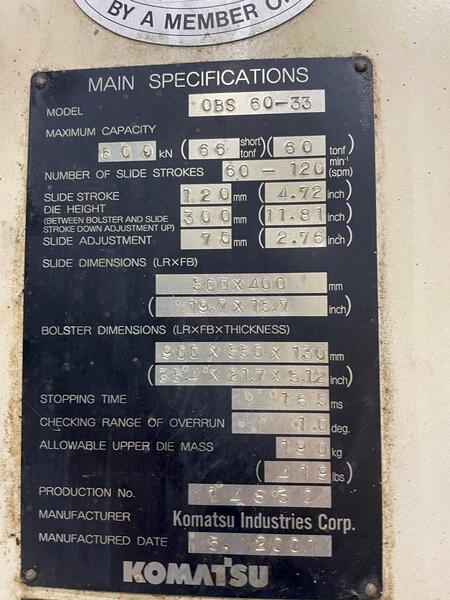

Standard Specifications
60 TON KOMATSU Model OBS-60
MECHANICAL METAL STAMPING GAP FRAME
60 Metric Ton Capacity
66 Short Ton Capacity
4.72" Stroke
16.93" Shut Height on Bed
11.81" Die Height on Bolster
2.76" Motorized Adjustment
35.4" LR x 21.7" FB Bed Area
19.7" LR x 15.7" FB Slide Area
60-120 Strokes Per Minute
Equipment and Features
Single Point
High Torque Wet Clutch and Brake
Pneumatic Counterbalances
Plunger Guided Design
T-Slotted Ram and Bolster
5.12" Thick Bolster
Hydraulic Overloads
Komatsu Press Controls
Heavy Plate, Rigid Frame Construction
Pendant Mounted Controls
Vibration Isolation Levelers
T-Stand Palm Buttons
Eccentric Shaft
Floor Standing
Dimensions
106" Tall
12,000 lbs. Approx. Weight

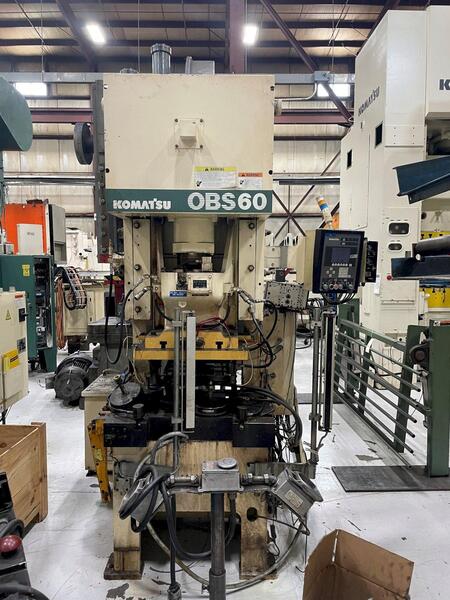

This used 60-ton Komatsu Mechanical Metal Stamping Press can be seen under power in the S&G Press Livonia Michigan Warehouse!
Click here to see more 60-ton Press Options
The Komatsu OBS60 gap press, with its 60-ton capacity, delivers world-class features standard. Its plunger-guided slide extends die life by at least 30%. Experience a virtually maintenance-free wet clutch and brake, keyless-splined eccentric main shafts, and precision helical gearing in oil. Komatsu's SIT-IV press control offers job memory and easy automation expansion. Built for superior reliability and consistency, the OBS series excels in progressive and manual die work. Expect superior deflection characteristics, increased bearing slide guiding, faster stopping times, higher production, and improved part quality and die life. High performance is standard with Komatsu.
