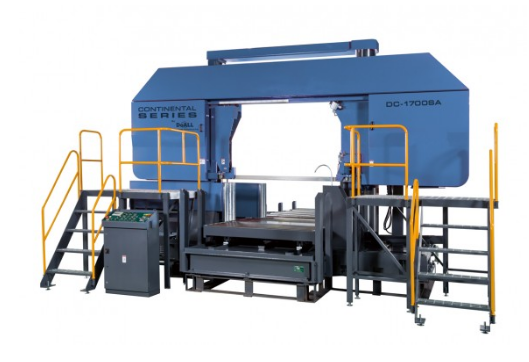

51-1/4" x 67" DoAll #DC-1700SA, dual column semi-auto band saw, 512" x 3-3/20" x 0.063" blade, 26.8" passline, 39-246 FPM, PLC, new

Manufacturer: Doall
Model: DC-1700SA
Max Throat or Width: 51.25
Max Height / Under Guide: 67.00
Stock # 3042

For Sale by Southern Fabricating Mchy Sales

Surplus Record Dealer Since 2015
Gold Level Dealer
Location: Lithia, FL
Contact Dan McCurdy
Let the seller know you found their listing on Surplus Record!

Description

51-1/4” x 67" Band Saw with Programmable Logic Controller (PLC) Control for all Electric and Hydraulic Functions Power Driven, Coolant Flushed, Blade Cleaning Wire Brush Flushing Hose and Auxiliary Coolant Nozzles Hydraulic Blade Tension Automatic Chip Conveyor Blade Breakage/Stall Motion Detector Shut Off Switch Band Door Interlocks One 6.5 foot (2 meter) Gravity Conveyor Tool Kit Complimentary DoALL Cutting Fluids Package One DoALL Bi-Metal Saw Blade Instruction and Parts Manuals on CD or USB Data Stick.

GENERAL SPECIFICATIONS

  • Cutting Capacity Round: 51.2″
  • Cutting Capacity Rectangle: 67″ x 51.2″
  • Band Saw Blade: 512 x 3-3/20 x 0.063"
  • Band Speed: 39-246 FPM
  • Band Drive: 20 hp
  • Hydraulic Pump: 5 hp
  • Hydraulic Tank Capacity: 43.6 gal
  • Coolant Pump: ¼ hp
  • Coolant Tank Capacity: 74 gal
  • Material Pass Line Height: 26.8"
  • Machine Weight: 46297 lbs
  • Dimensions W x L x H: 244” x 110.2” x 149.6″

INCLUDES: Power Driven Coolant Flushed Blade Cleaning Wire Brush, Flushing Hose and Auxiliary Coolant Nozzles, Hydraulic Blade Tension, Automatic Chip Conveyor, Blade Breakage/Stall Motion Detector Shut Off Switch, Band Door Interlocks, One 6.5 foot (2 meter) Gravity Conveyor, Tool Kit, Complimentary DoALL Cutting Fluids Package, One DoALL Bi-Metal Saw Blade, Instruction and Parts Manuals on CD or USB Data Stick.

***All Price, Location and Specifications Subject to Change without Notice***
