For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

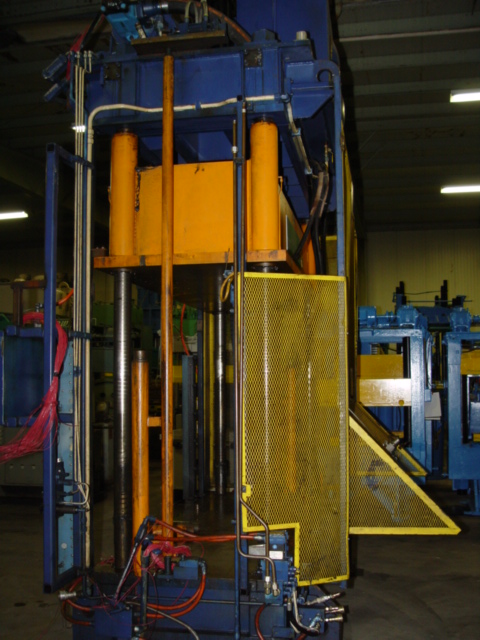

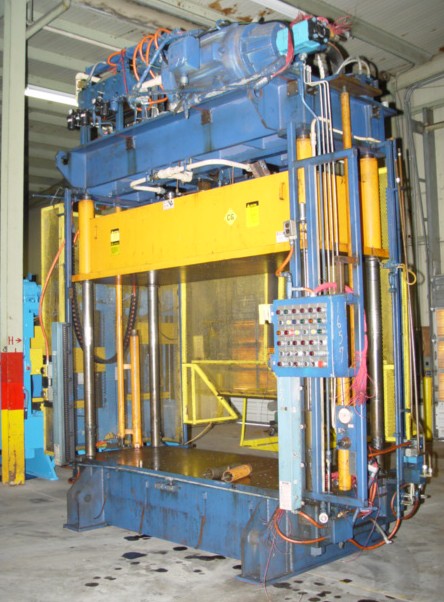

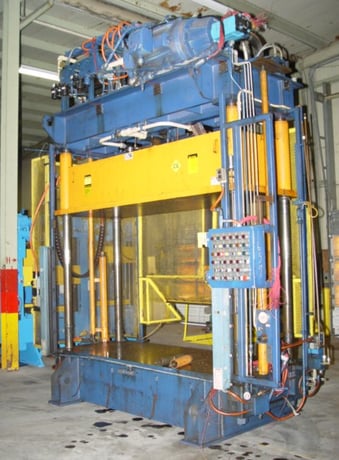

F TO B BETWEEN THE POSTS IS 28". L TO R OVERALL IS APPROX 120". NOMINAL BED SIZE IS 101" X 42". TWO CYLINDERS: 5" BORE , 3.5" ROD, RATED AT 2546 PSI AND APPROX 52" STROKE. MAX DAYLIGHT IS 66". FULLY GUIDED WITH 31" BUSHINGS ON 4" DIAMETER POSTS. OPERATOR HEIGHT IS APPROX 24.5". LUBE SYSTEM. MANY DRILLED AND TAPPED HOLES IN BED AND SLIDE. RATCHET TYPE SAFETY BAR.. PAIR OF 48" LIGHT CURTAINS. SOME CONTROLS. MAGNATECH PROGRAMMABLE LIMIT SWITCH. TOP MOUNTED HYDRAULIC POWER UNIT: 200 GALLON RESERVOIR; 75 HP MOTOR (1200 RPM, 460 VOLTS), VICKERS PUMP: 4535V-60A38-1AA20-282; ETC… APPROX SPEEDS: 1105 IPM FAST CLOSE; 429 IPM INTERMEDIATE; 210 IPM PRESSING; 1062 IPM FAST OPEN; 412 IPM SLOWDOWN. OVERALL DIMENSIONS: 13'6" X 8' F X 15' TALL. APPROX 30,000 LBS. SOME PRINTS. SIMILAR TO ICON #1659 AND #1660. (ITEM #1657)
Get Your Price from Icon Industries, Inc!
