Description

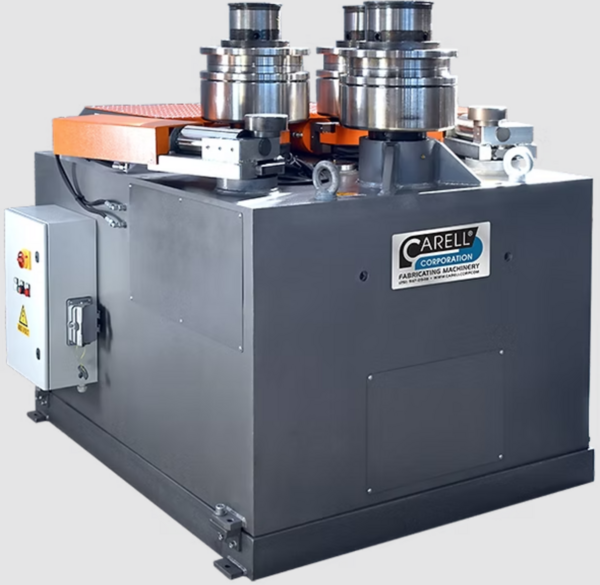

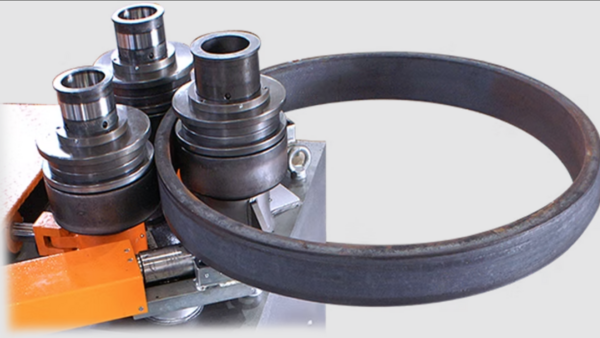

CARELL's 308HV double initial pinch universal roll bending machines are available with 6 way multi-axis adjustable lateral guides, variable speed powered rotation of all three bending rolls and independent hydraulic adjustment of the lower rolls for double pre-bending. This versatile unit is ideal for rolling standard/special sections plus tube & pipe in a variety of material types. The 308HV Series Universal Roll Set is designed for bending standard profiles, flat bar (on flat and on edge), square bar, tees, channel as well as round bar, square & rectangular tube sections, angles leg-in, leg-out and can be setup to operate in horizontal or vertical position adding further value to your production.

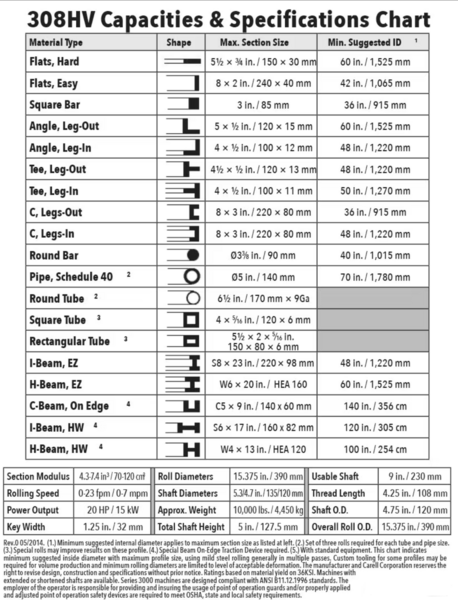

Specifications
| Angle (L1) | 5" | 127 mm |
| Angle (L2) | 4" | 101.6 mm |
| Pipe Capacity | 5" | 127 mm |
| (Init/Dbl Pinch or Pyramid) | DBL PINCH | DBL PINCH |
| Hyd/Mech | HYD | HYD |
| Operation (Horz, Vert, Horz/Vert) | HORZ/VERT | HORZ/VERT |
| Power | 20 hp | 14.9 kW |
Equipped With
Standard Features
Dual LED Digital Displays monitor bending roll positions.
Rigid, one piece solid steel weldment frame, normalized and precision machined, ample sized access panels and ventilation for internal hydraulic unit.
3 Shafts Driven w/ 3 Direct Coupled Hydraulic Motors and Planetary Speed Reducers for 100% efficient torque delivery.
Larger, high strength steel shafts, heat treated and ground, journaled in dual self aligning spherical roller bearings for optimum performance.
Hydraulic power unit integral to the machine frame.
Multi axis, 6 way, fully adjustable lateral guides.
Variable Speed rotation via electronic proportional valves.
Universal bending rolls with modular components, hardened and wear resistant.
Operates in both horizontal & vertical orientations.
Options
Rolls for tubes pipes, and special profiles
Tooling for production of half tubes
Overhead Supports for coil production
Compression and Tension tooling for C, & I hard way
NC and CNC Controls with various automation levels for repetitive jobs and production of variable radius bends and parts with multiple bends
LED digital displays for movements on lateral material guides
