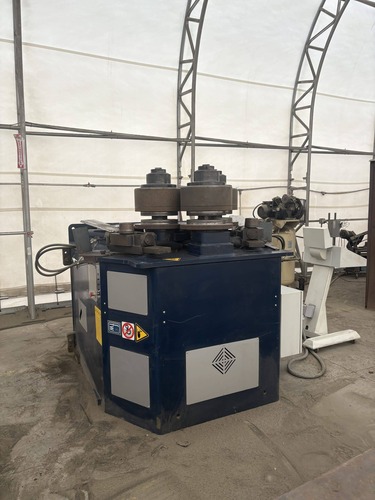

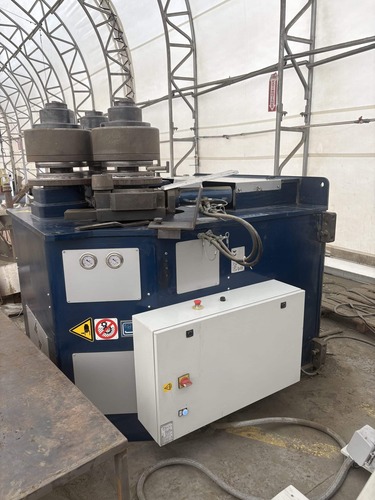

Shaft & Roll: Shaft diameter: 130 mm ((5.1) in) Roll diameter: 410 mm ((16.14) in) Motor: 25 HP ((18.4) kW) Section modulus: (6.1) cubic inches ((100cm^{3})) Bending speed: Up to (30) FPM ((6) m/min) Bending capacities: Angle toe out: (5.1) in x (5.1) in x (0.59) in Angle toe in: (4.9) in x (4.9) in x (0.47) in Flat on edge: (4.7) in x (1.18) in x (47.2) in Square pipe: (3.9) in x (0.31) inPipe: (5.5) in x (0.19) in x (59.05) in Machine dimensions & weight: Length: 1,900 mm Width: 2,200 mm Height: 1,900 mm Weight: 5,720 kg
