Description

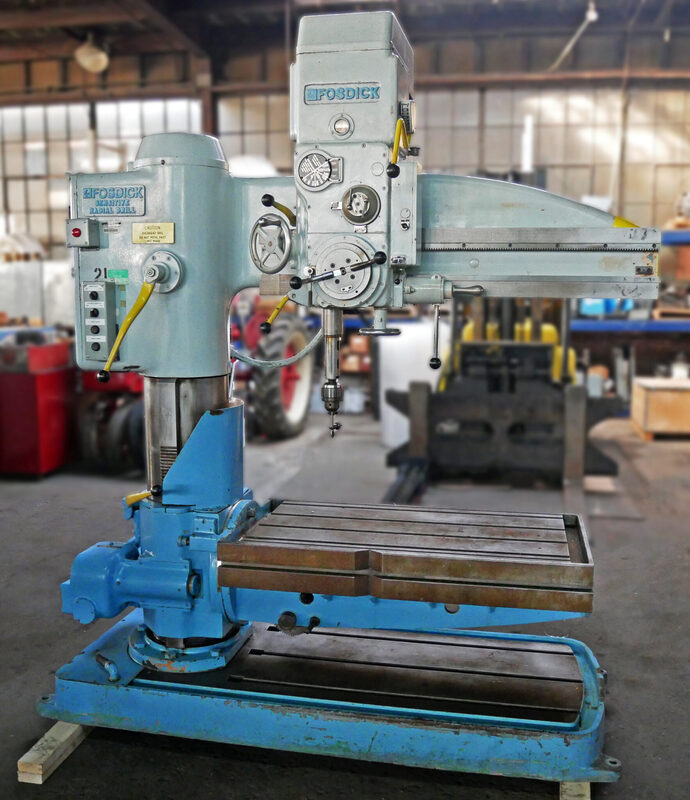

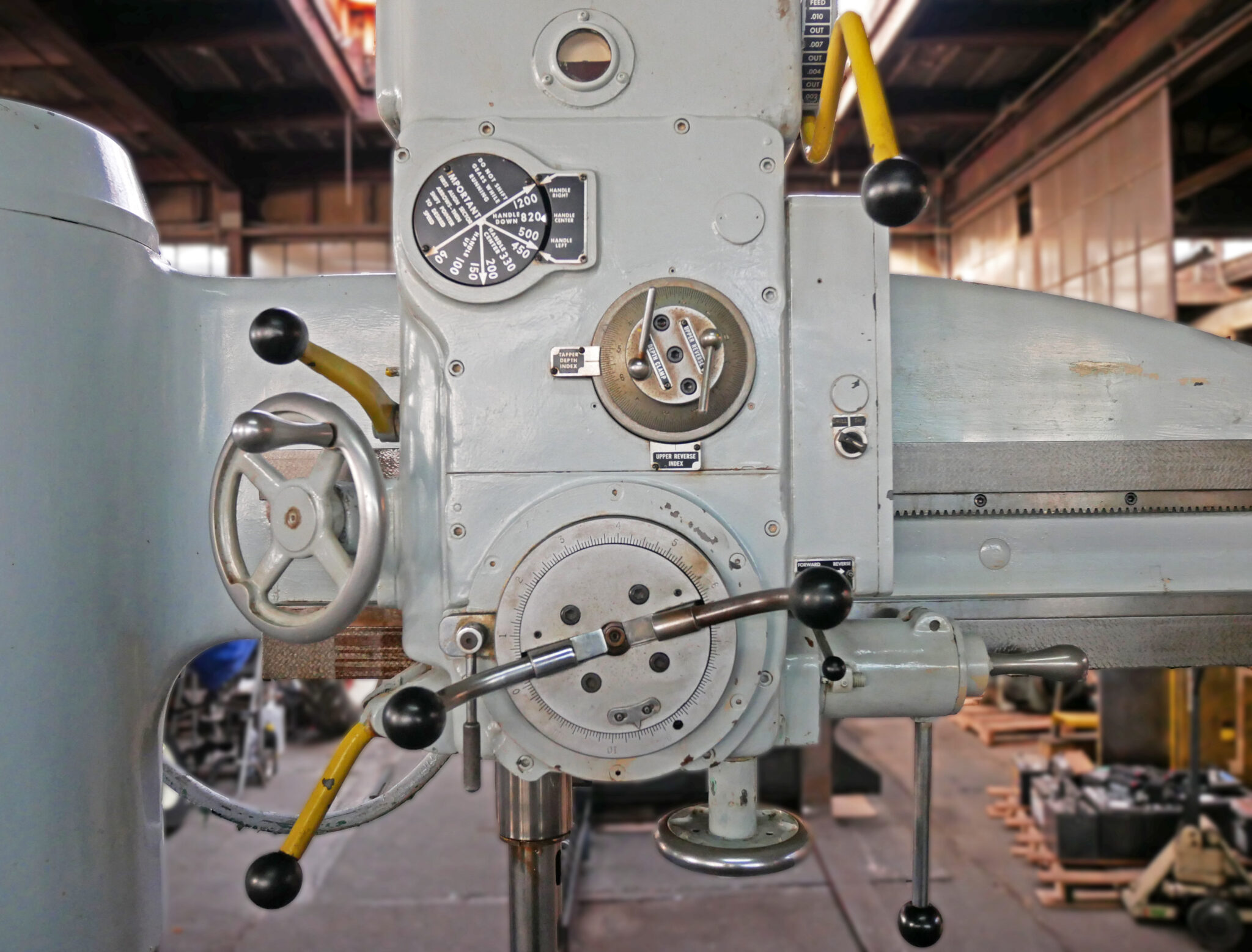

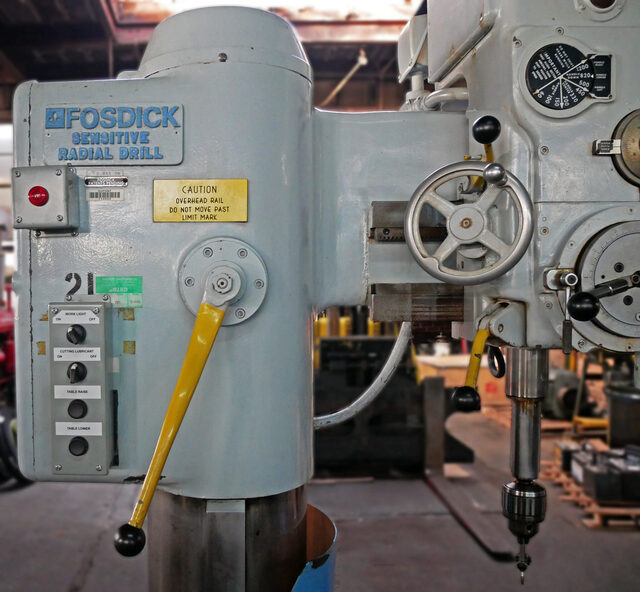

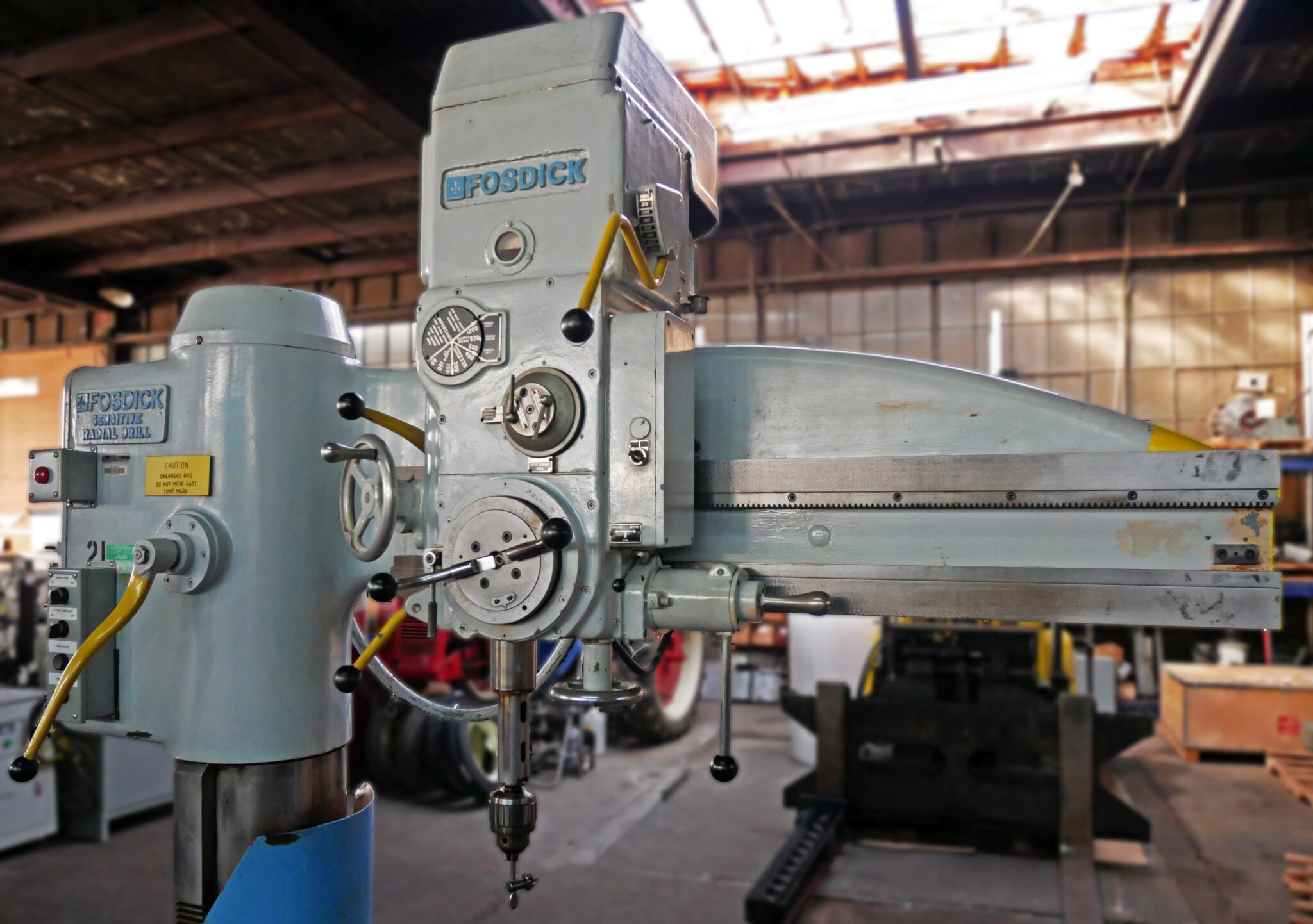

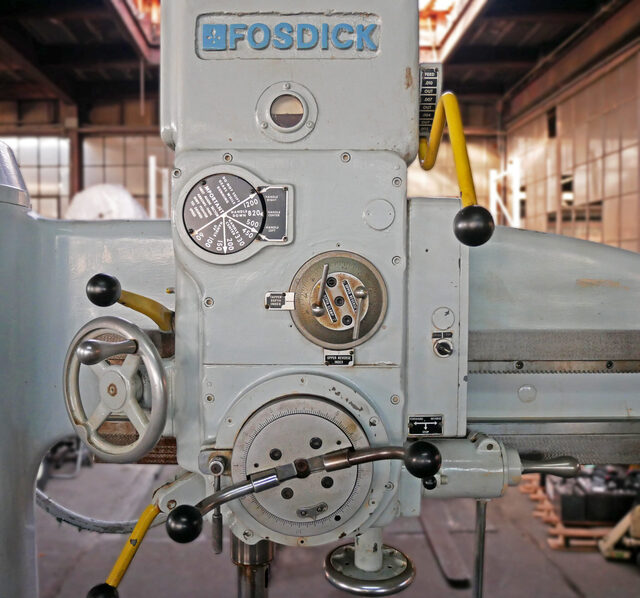

4' FOSDICK SENSITIVE RADIAL DRILLING MACHINE
S/N: 20866,… NEW: 1970
SPECIFICATIONS:
SPINDLE TO FACE OF COLUMN .................... 48" MAX.
SPINDLE TO FACE OF COLUMN ..................... 9" MIN.
DIAMETER OF COLUMN ................................ 12"
HORIZONTAL TRAVEL OF HEAD ON ARM ..................″9"
BASE TO SPINDLE MAX./MIN. ................... 44" /″2"
TABLE TO SPINDLE MAX. ......................... 23-1/4"
TABLE TRAVEL VERTICAL ......................... 16-1/2"
TABLE WORKING SURFACE ....................... 24" X 48"
BASE WORKING SURFACE ........................″0" X 41"
SPINDLE TRAVEL IN HEAD ............................ 10"
SPINDLE MORSE TAPER .............................. #4MT
SPINDLE SPEED RANGE (18) ................ 60 - 1200 RPM
SPINDLE FEEDS (4) ......... .002, .004, .007… .010 IPR
APPROXIMATE WEIGHT .......................... 5,300 LBS
APPROXIMATE DIMENSIONS ............. 78"L x″0"W x 95"H
EQUIPPED WITH:
- AUTOMATIC TAPPING REVERSE

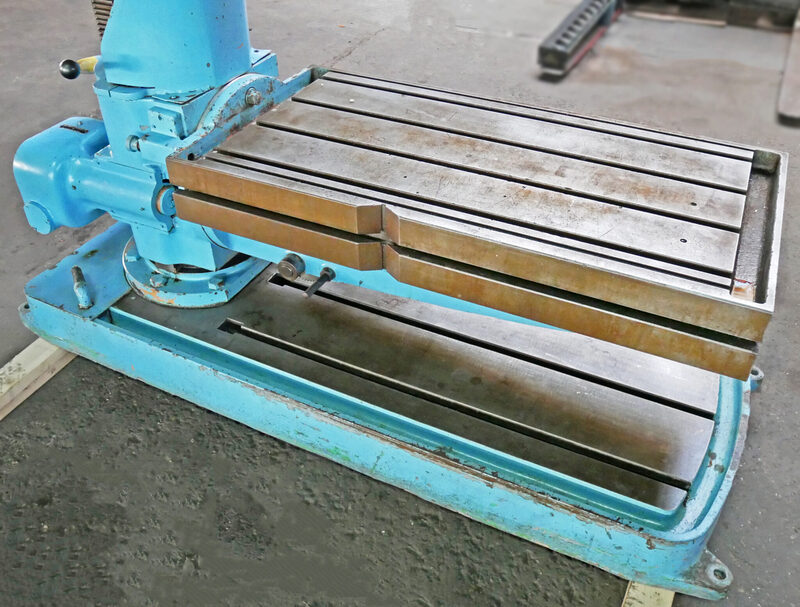

- UNIVERSAL TILTING TABLE
- T-SLOTTED TABLE AND BASE
- POWER ELEVATION OF TABLE ON COLUMN
- 5 HORSE POWER TWO SPEED SPINDLE MOTOR
