For Sale by Great American Eqpt Co
Surplus Record Dealer Since 1991
Location: Cincinnati, OH
Contact Sales Dept.
Phone Number: 513...> Show Phone Number 513-771-2111
Let the seller know you found their listing on Surplus Record!
Description

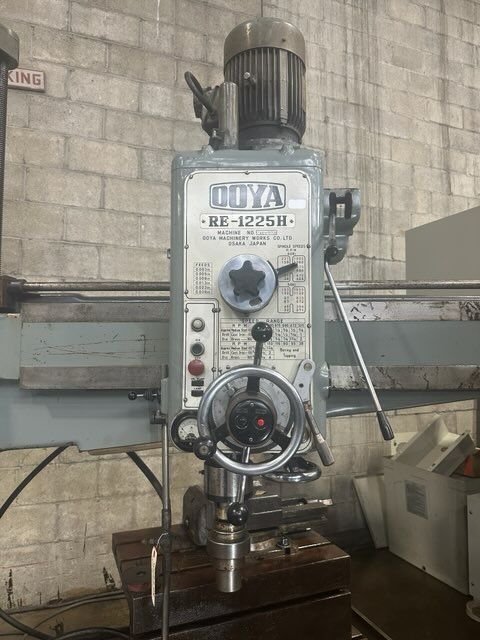

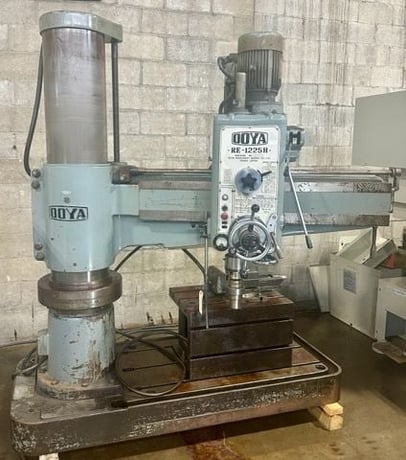

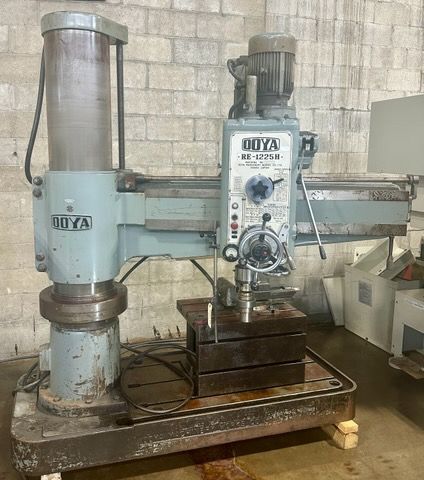

4' x 12" OOYA RE-1225H RADIAL DRILL
Model RE-1225H, S/N 0A6-11735, New 1977
Stock# Q12248
Model RE-1225H, S/N 0A6-11735, New 1977
Stock# Q12248
EQUIPPED WITH:

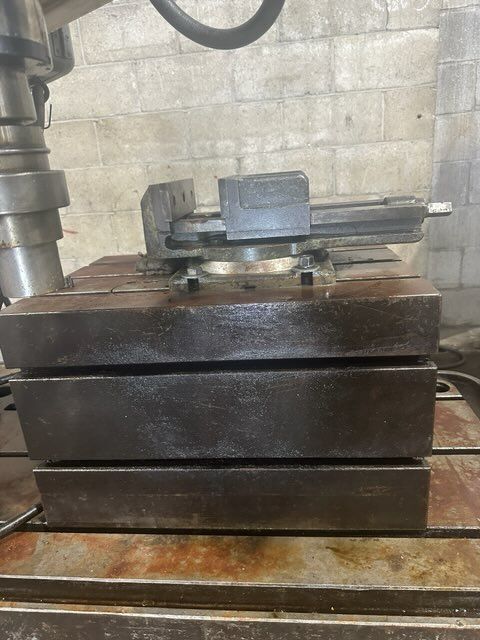

18" x 26" x 16" 2-Sided Box Table w/ Vise, Hardened Arm Ways, Tapping Capabilities, Power Elevation, Power Clamping, Coolant System (Built-In).
CATALOG SPECIFICATIONS:
| Arm Length | 4.08' |

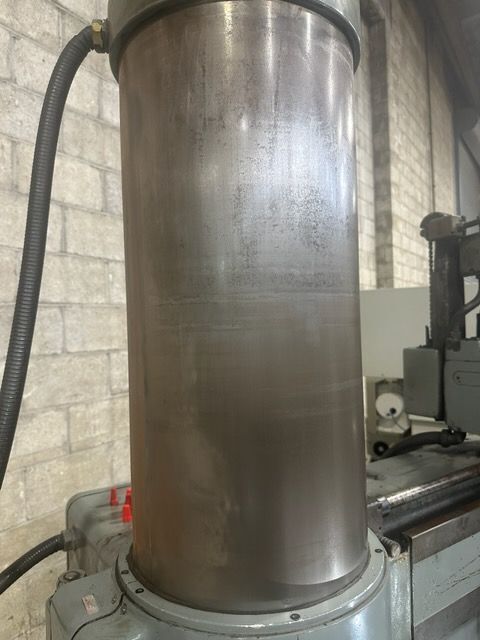

| Column Diameter | 12.625" |
| T-Slotted Base Working Surface-L | 75" |
| T-Slotted Base Working Surface-W | 30" |
| Vertical Spindle Travel in Head | 11.8125" |
| Vertical Arm Travel on Column | 25.625" |
| Horizontal Head Travel on Arm | 37.75" |
| Max Distance Spindle to Base | 51.75" |
| Min Distance Spindle to Base | 13" |
| Max Distance Face of Column to Spindle | 49.375" |
| Min Distance Face of Column to Spindle | 11.625" |
| Spindle Taper | #5 MT |
| Spindle Diameter | 2.375" |

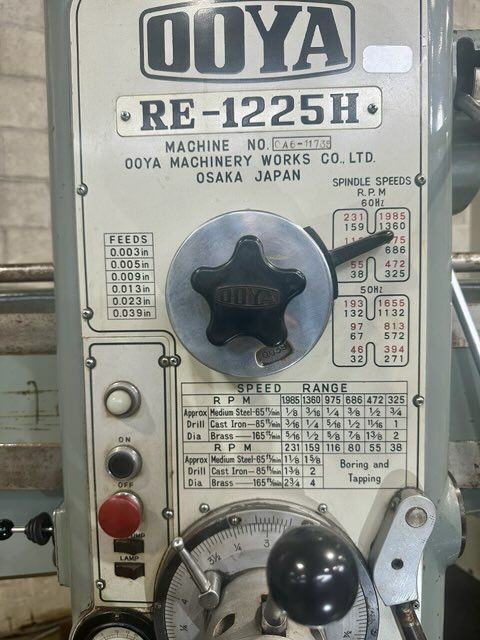

| # Spindle Speeds | 12 |
| Max Spindle Speed | 1985 RPM |
| Min Spindle Speed | 38 RPM |
| # Spindle Feeds | 6 |
| Spindle Feeds Range | .003-.039 in/min |
| Drilling Capacity, Solid Steel | 2" |
| Drilling Capacity, Cast Iron | 2.25" |
| Boring Capacity, Steel | 4" |
| Boring Capacity, Cast Iron | 7.125" |
| Motor Power | 5 hp |
| Electrics | 220/440/3/60 |
| Extreme Height, Column Above Floor | 85.75" |
| Dimensions | 80" x 48" x 90" |
| Weight | 6,100 lbs |
CONDITION: This Machine Appears to be in Very Good Condition.
Get Your Price from Great American Eqpt Co!
