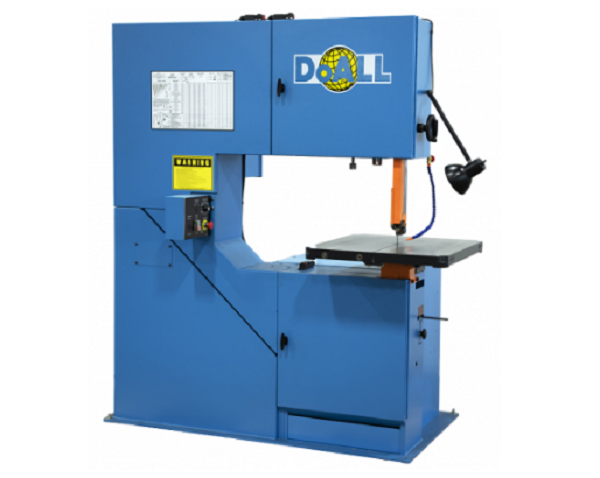

36" x 13" DoAll #3613-V5, high speed contour band saw, 199" band, 550-5500 FPM, new

36″ x 13″ Band Saw with One Set of High-Speed, Insert-Type Guide Blocks for Bands 1/8″ Through 1/2″ One Set of Steel Guide Inserts for Bands 1/4″, 3/8″ and 1/2″ Job Selector Band Speed Indicator Reading in fpm/mpm Band Tension Indicator Manual Post Elevating Variable Frequency AC Drive Chip Pan Chip Blower Work Light Post Elevating Hand Wheel Wrench for Saw Guides Wrench for Table Trunnion One DoALL Bi-Metal Saw Blade Instruction and Parts Manuals on CD or USB Data Stick.

GENERAL SPECIFICATIONS

• Cutting Capacity at 90° Rectangle: 36″ x 13″
• Cutting Capacity at 90° Round: 13″
• Throat Band to Column: 36″
• Band Width Capacity: 1/8″ - 1″
• Saw Band Length: 199″
• Variable Band Speed: 550-5,500 fpm

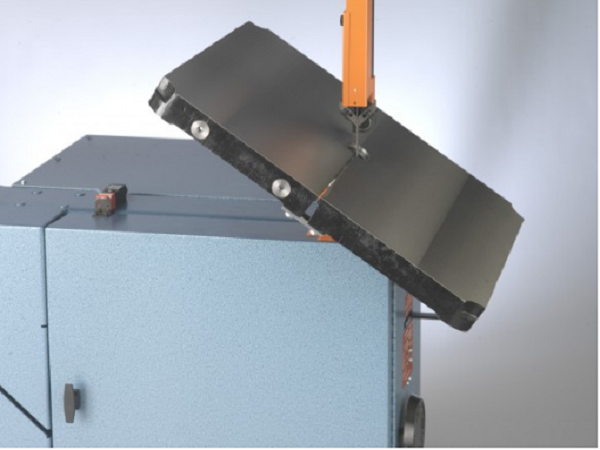

• Table Tilt: 45° Right and 10° Left
• Material Pass Line Height: 39″
• AC Drive Motor: 5 hp
• Table Size: 26″ x 26″
• Table Capacity: 500 lbs

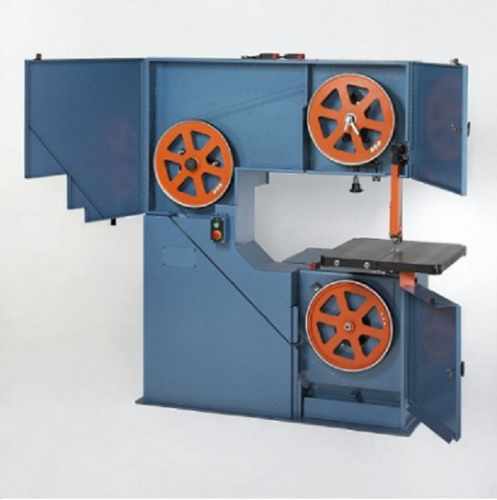

• Wheels: 20" Aluminum with Crowned Rubber Tires
• Upper Wheel Adjustment: 3″
• Floor Space Required: 74″ x 45″ x 81-1/2″
• Weight: 1550 lbs

INCLUDES: Job Selector, Band Speed Indicator Reading in fpm/mpm, Band Tension Indicator, Manual Post Elevating, Variable Frequency AC Drive, Chip Pan, Chip Blower, Work Light, Post Elevating Hand Wheel, Wrench for Saw Guides, Wrench for Table Trunnion, One DoALL Bi-Metal Saw Blade, Instruction and Parts Manuals on CD or USB Data Stick.

***All Price, Location and Specifications Subject to Change without Notice***
