36" x 10" Paxson, slitting line w/ automatic strapping, 60.7:1 gear reducer, 20" -24" hydraulic expansion

Manufacturer Paxson
Width 36.0"
Arbor 10.000"
Stock # 3866

For Sale by Universal Tube & Rollform

Platinum Level Dealer
Surplus Record Dealer Since 1984

Description

UTUBE NUMBER: 3866
MANUFACTURER: PAXSON
YEAR: 1981

SPECIFICATIONS:
Material: HRS, CRS, HRPO, Galvanized / Maximum Strength: 50,000 PSI Shear, 40,000 PSI Yield
Thickness: .015″ – .250″
Coil Weight Capacity: 40,000 lbs.
Coil Width (Maximum): 60″ Trimmed, 62″ Untrimmed
Coil I.D.: Entry: 20″ – 24″ / Exit 20″
Coil O.D.: Entry: 42″ – 72″ / Exit: 42″ – 72″
Line Speed: Two-Speed, 130 and 390 FPM @ bare drum
Line Direction: Right to Left
Mode of Operation: Pull-Thru & Drive Assist
Slitter Cut Capacity:

Distance Between Collars
32″38″44″50″56″62″
Gauge130 FPM390 FPM130 FPM390 FPM130 FPM390 FPM130 FPM390 FPM130 FPM390 FPM130 FPM390 FPM
.250″171717171411
.218″222222221612
.187″303303303253193153
.156″306306306306236176
.125″301130113011301129112211
.078″303030303030303030303030
.062″303030303030303030303030
.050303030303030303030303030

EQUIPPED WITH:
Entry Coil Car:
S/N 11700-1
L-Type
Self-Contained Hydraulic Power Unit
Hydraulic Lift & Travel

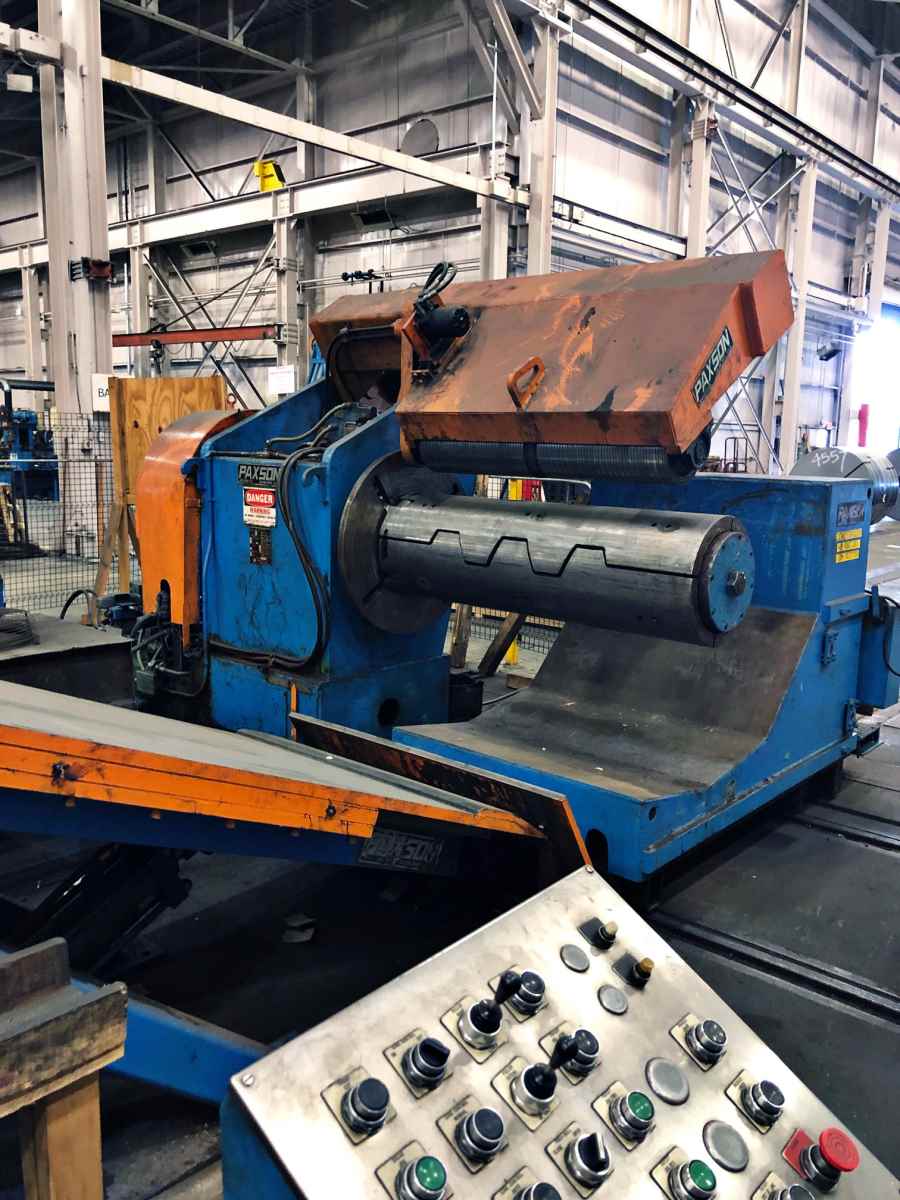

Uncoiler:
S/N 11700-3-4-82
Hydraulic Expansion: 20″ – 24″
4-Segment Pumpkin Tooth Mandrel
Powered Overarm Hold-Down
Slide Base
Hydraulic Motor Feed-up
Water Cooled Brake

Hydraulic Peeler Table:

S/N 11700-2-3-82

Slitter Entry Unit:
S/N 11700-4-3-82
Driven Pinch Rolls
Independent Manual Adj. Roller Side Guides
Roller Crop Shear

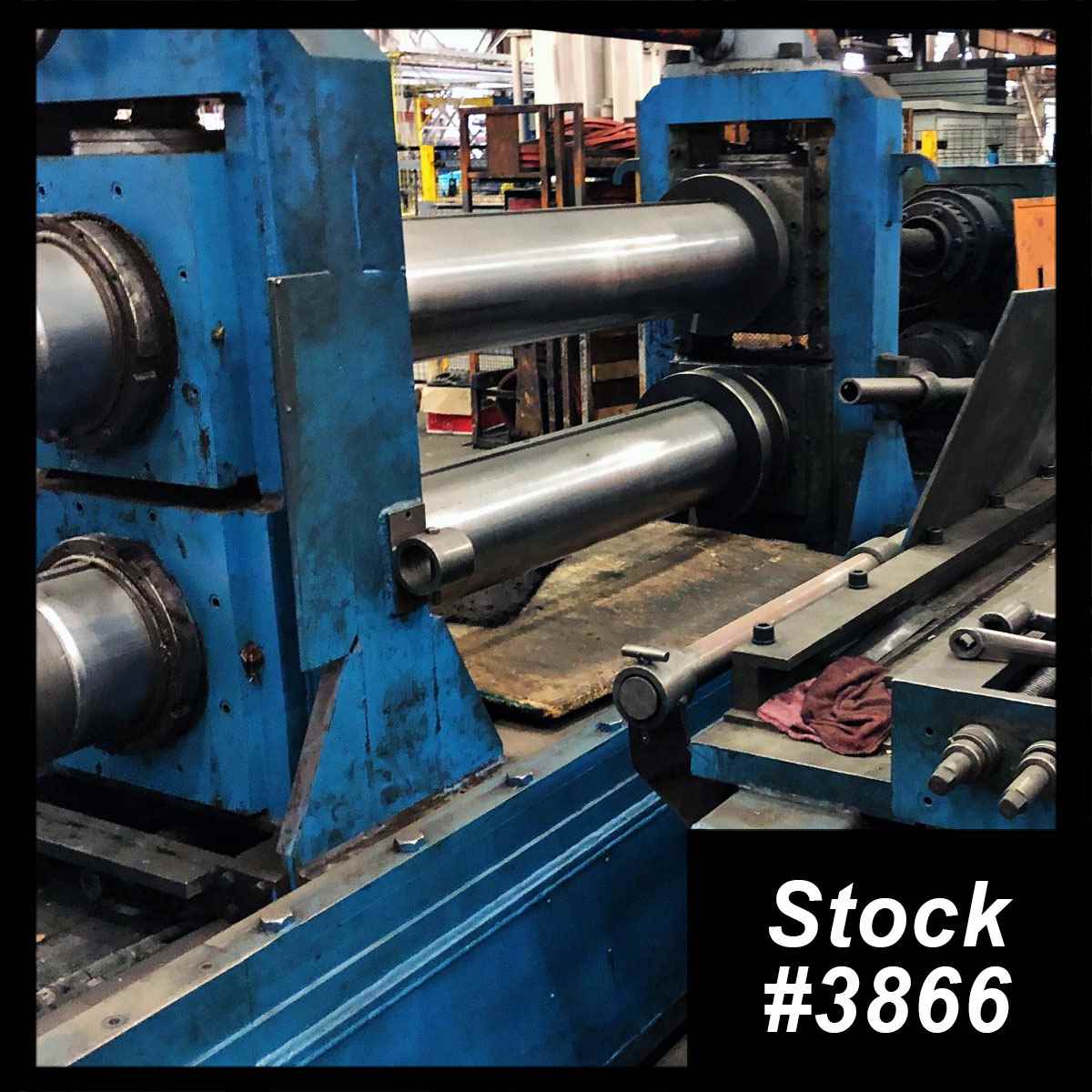

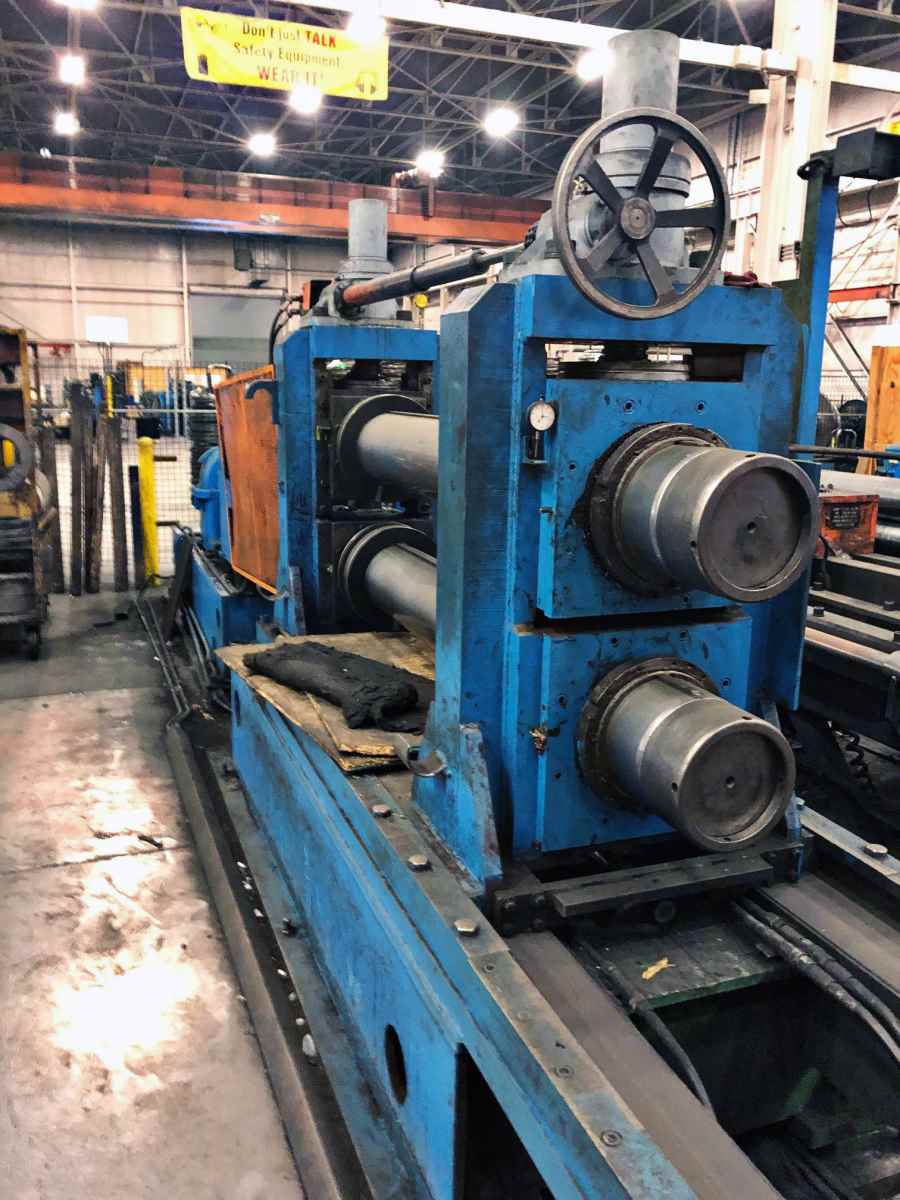

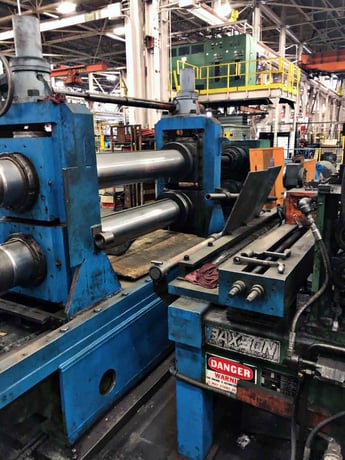

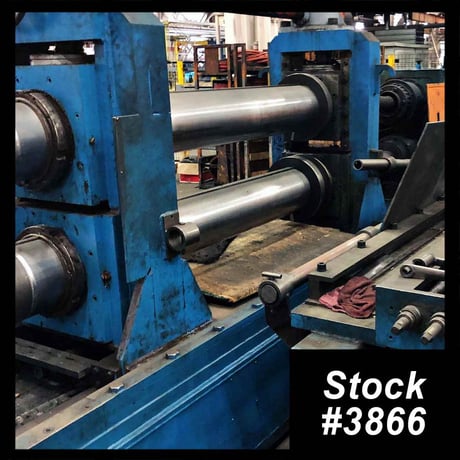

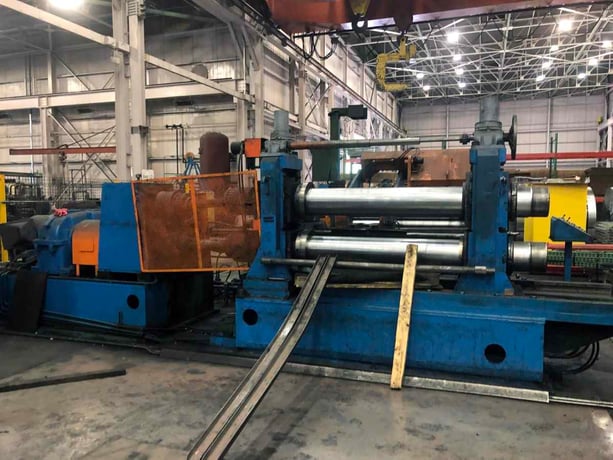

Slitter Head:
Removable Type, (1) Head
Over Arbor Outboard – Can Travel up to 36″ Wide
150 HP DC Motor, 1750/2000 RPM, 500 V
Reducer w/60.7:1 ratio
Pinion Stand

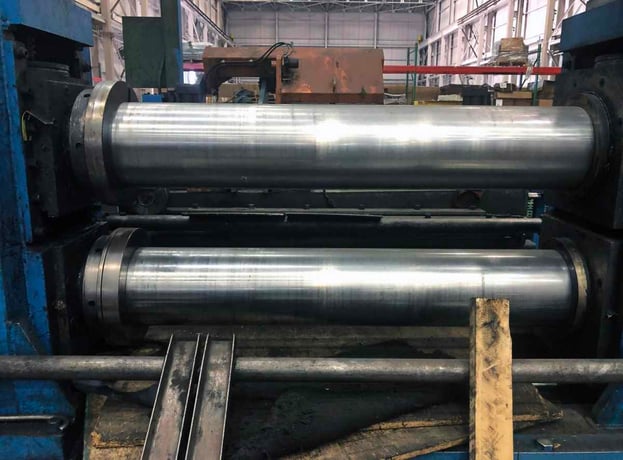

Arbors: 10″ Diameter

Hydraulic Lift Table for Threading

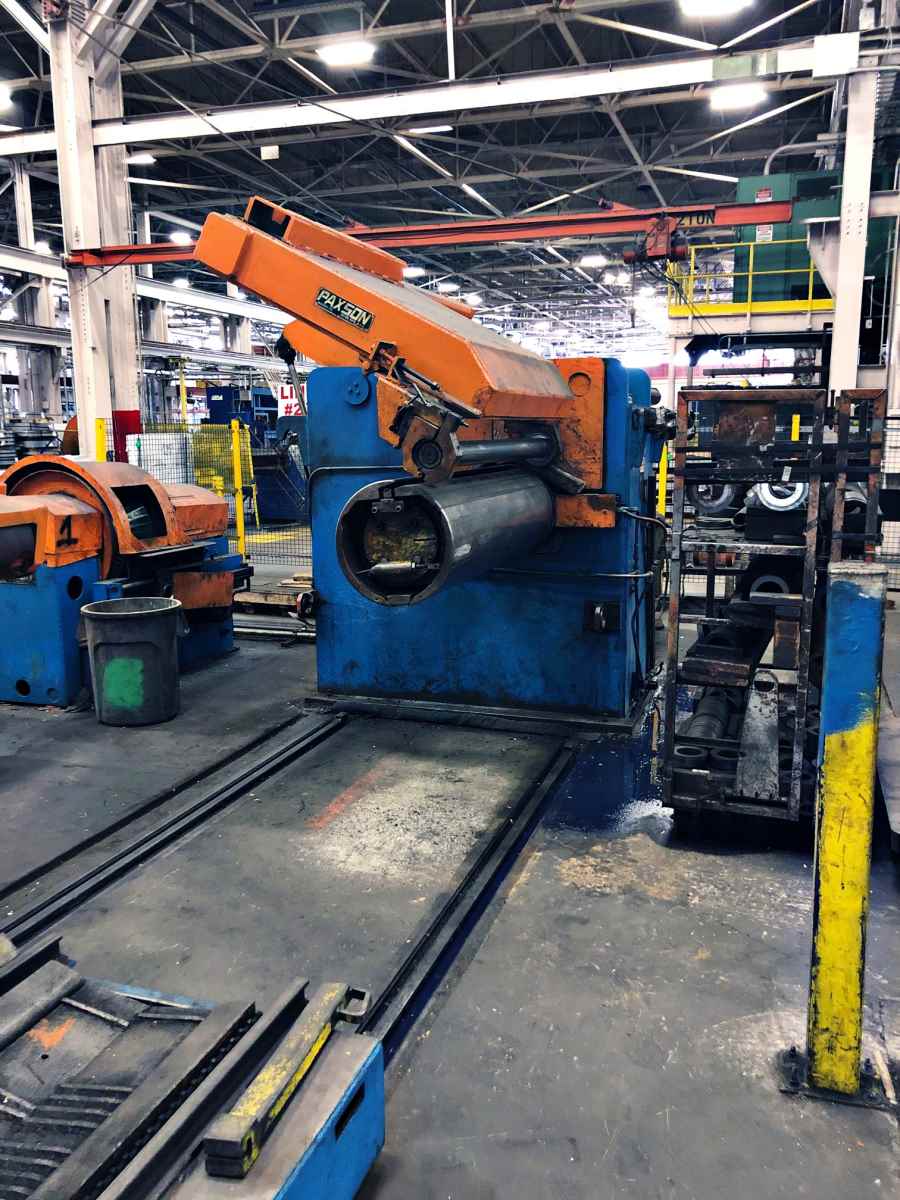

Recoiler:
S/N 11700-7
Face Drum: 20″ Dia. x 65″
Hydraulic Grip & Expand
Overarm Separator
100 HP DC Motor 650/1950 RPM, 500 V
Integral Reducer w/24:1 ratio
2 Speed Drive-All Transmission w/1:1 and 3:1 ratios

Exit Coil Car:
L-Type
Hold-down Arm
Keeper Arms
Strapping Slots in Base
Self-Contained Hydraulic Power Unit
Hydraulic Lift and Travel

2-Arm Turnstile:
S/N 11702-50
Power Rotation

(2) Heavy Duty Scrap Winders:
S/N 11700-9-3-82
Opposed Cones
Level Wind
Auto Dump
Hydraulic Motor Drive

Full Auto Strapping Unit w/Automated Strapping Table:

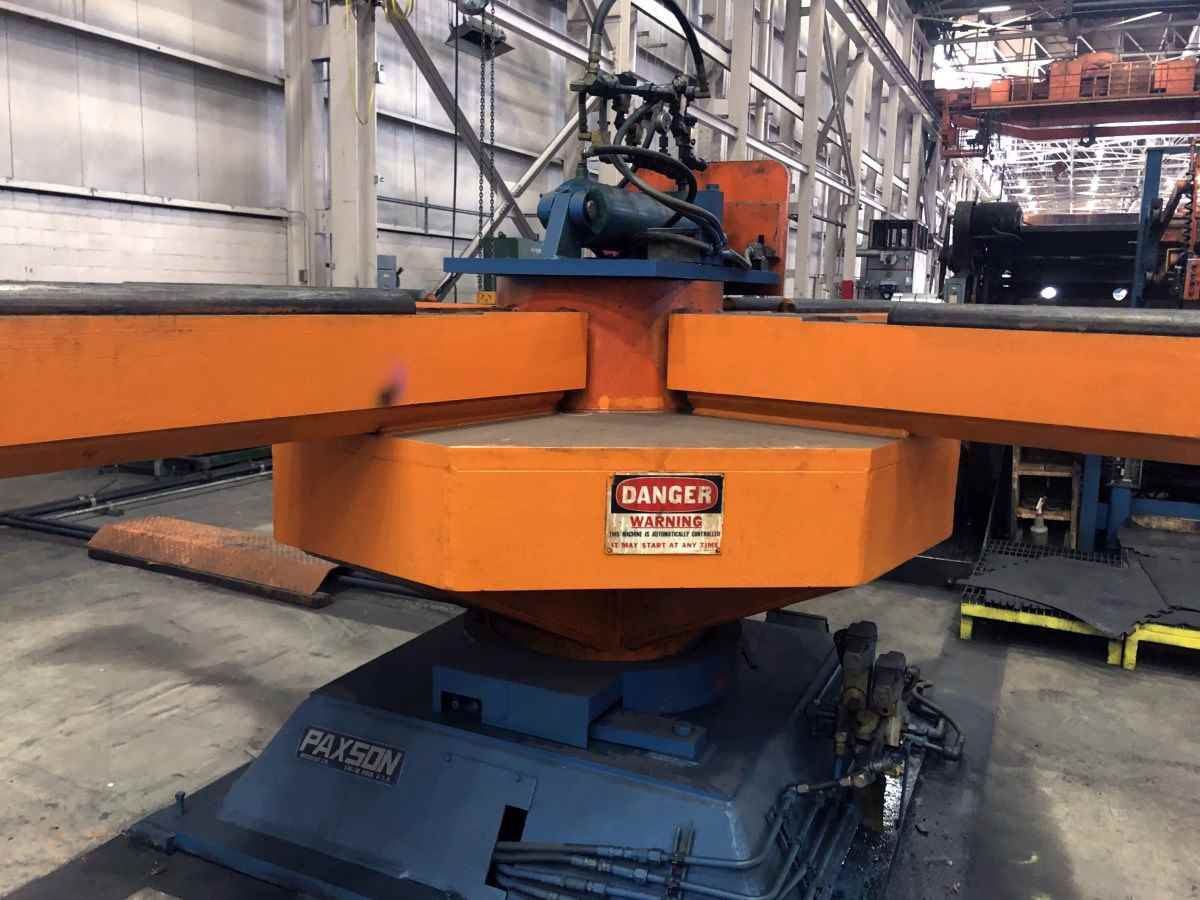

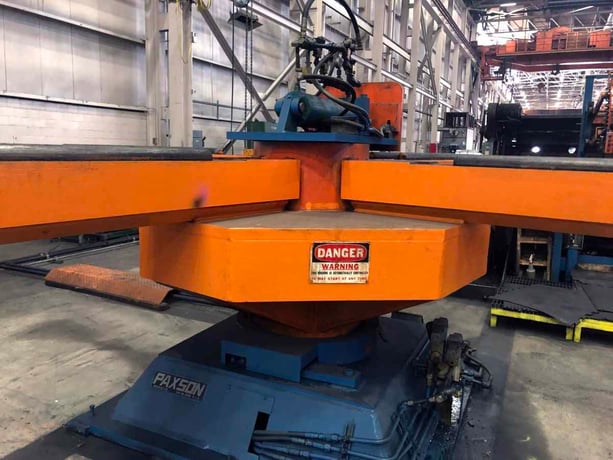

PAXSON 4-Arm Turnstyle w/Hydraulic Push-Off
– Arms 64″ Long
– S/N: 11700-50-4-82

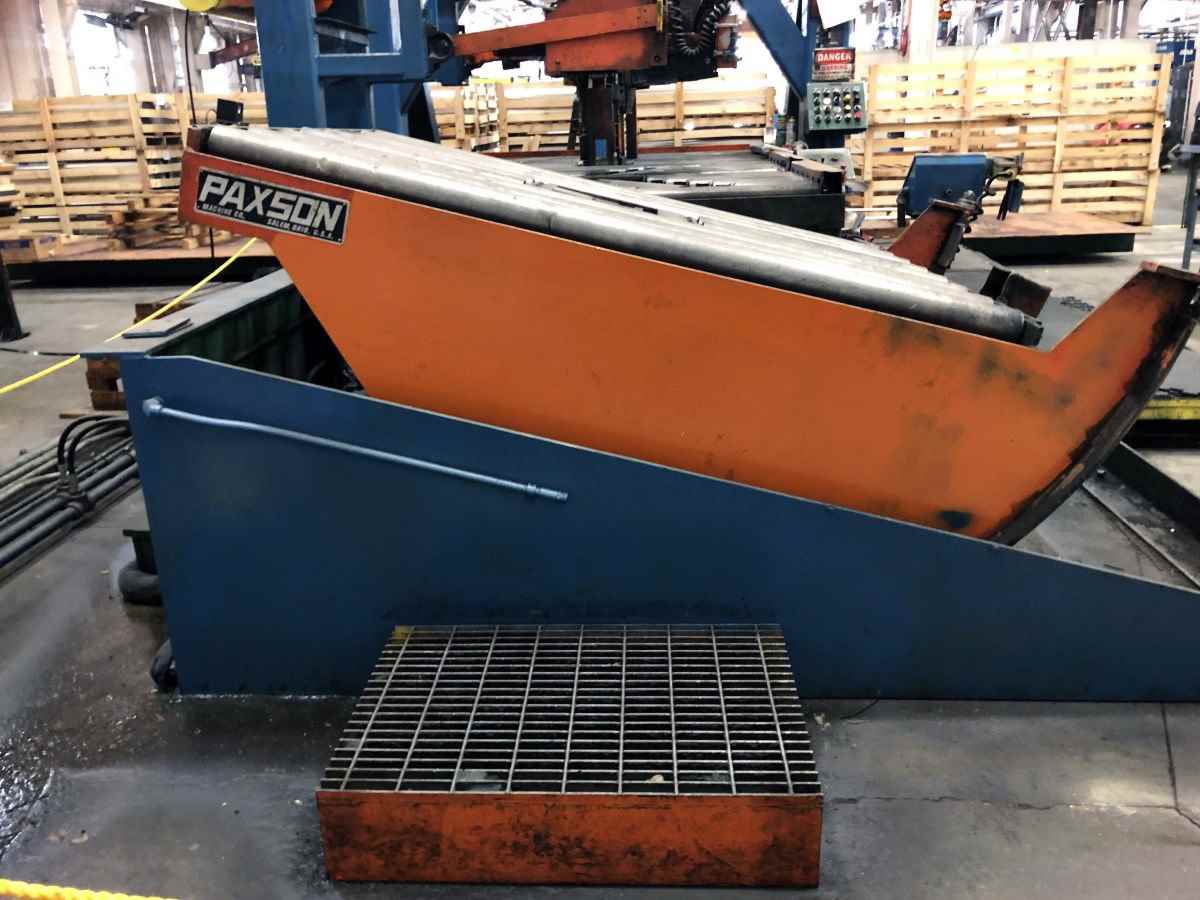

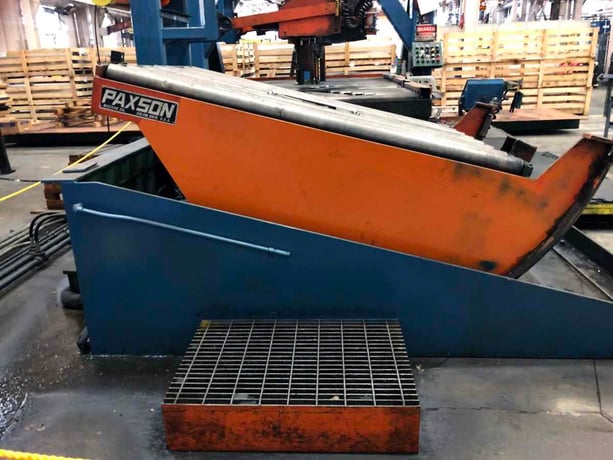

PAXSON Single Coil Tilt Table (to lay coil down)
– S/N: 11702-11-3-82
PAXSON Coil Rotating Table w/Auto SIGNODE Strapper
– Straps Coil from I.D. to O.D.
– S/N: 11702-17
PAXSON Single Coil Lifting Table (lifts coil and transfers it to storage table)
– S/N: 11702-38-4-82
PAXSON Coil Storage Table
– 35′ Long x 6′ Wide

Slitter Tooling:
Large amount of Knives, Spacers and Rubbers

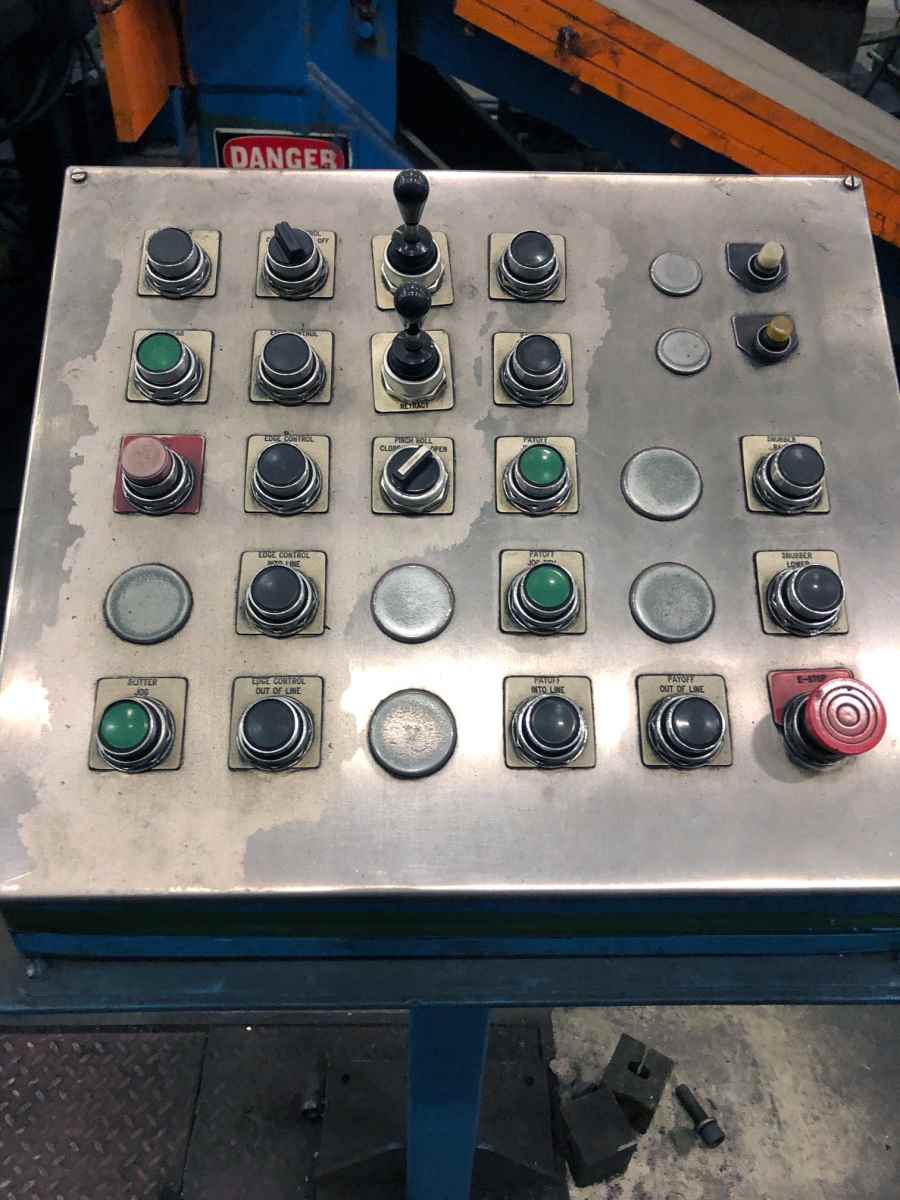

Operators Panels

Hydraulic Power Units

The line is installed and under power, can be viewed in-person by appointment
