60" x 45000" lb. Pro-Eco, slitting line, 72" outside dimension, 24"-30" entry ID, 215 & 630 FPM, coil car, mandrel uncoiler, 5-roll flattener, 1977

Preliminary Specifications
PRO-ECO Slitting Line
Year 1977
MATERIAL............................ CR - HR - HRPU - HSLA
WEIGHT CAPACITY.............. 45,000 LBS
WIDTH.................................. 60"
COIL O.D. ............................. 72"
COIL I.D. ENTRY .................. 24" - 30"
COIL I.D. EXIT ...................... 20" & 24"
LINE SPEED ......................... 215 & 630 CONSTANT
OPERATING MODES............ PULL THRU - DRIVE ASSIST - LOOP
LINE DIRECTION ................. RIGHT TO LEFT

CONSISTING OF THE FOLLOWING:

ENTRY PIT TYPE COIL CAR:
SELF CONTAINED HYD. POWER UNIT
HYDRAULIC LIFT & TRAVEL
COIL SADDLES

MANDREL UNCOILER:
OVERARM HOLDDOWN ROLL - POWERED
HYDRAULIC EXPANSION
SLIDE BASE
WATER COOLED BRAKE
HYDRAULIC MOTOR FEEDUP

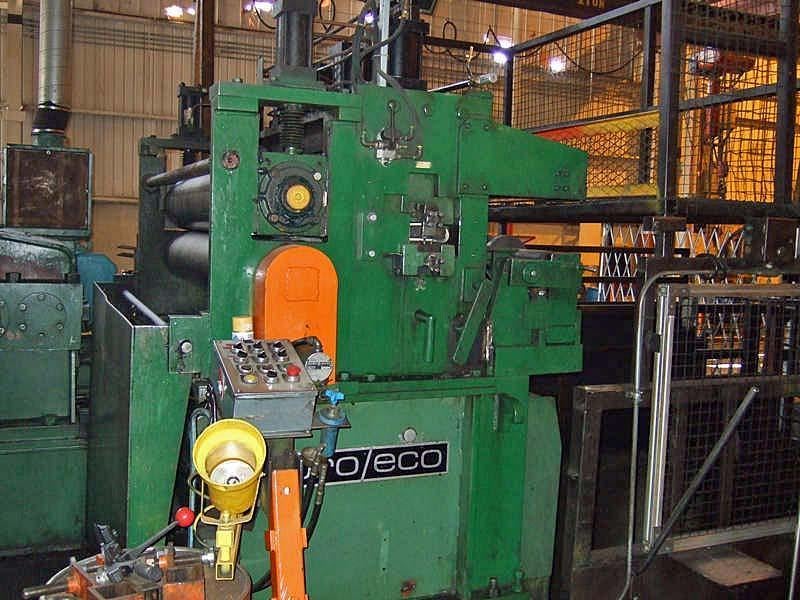

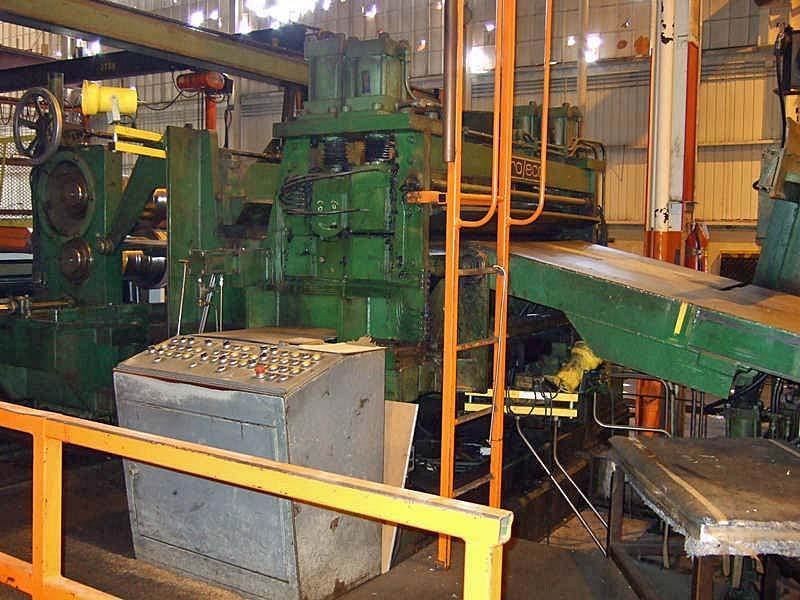

ENTRY UNIT:
PEELER TABLE WITH HYDRAULIC LIFT AND EXTEND
PHOTO EYE EDGE DETECTOR
5 ROLL FLATTENER WITH PINCH ROLLS
ROLLER TYPE SIDE GUIDES
CROP SHEAR

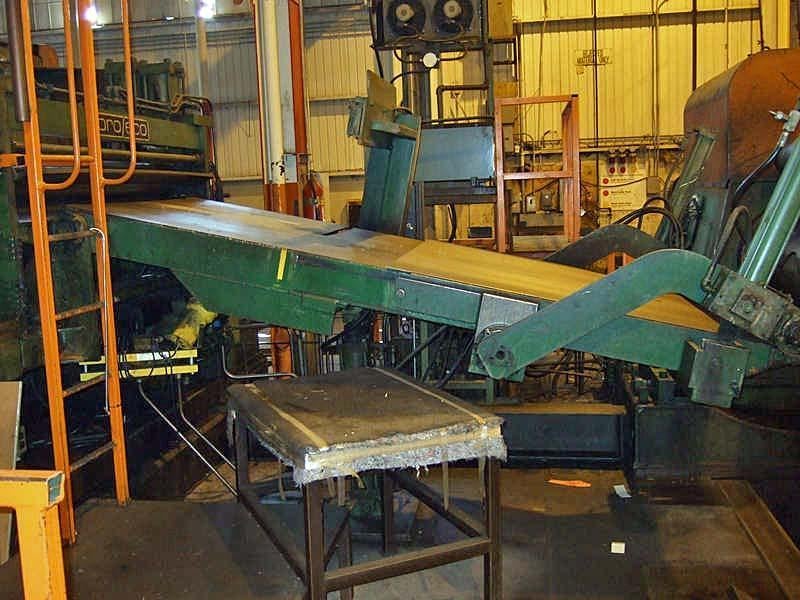

FEEDUP TABLE:
DROP AWAY TYPE FOR CROP REMOVAL
CROPPED END SCRAP BIN

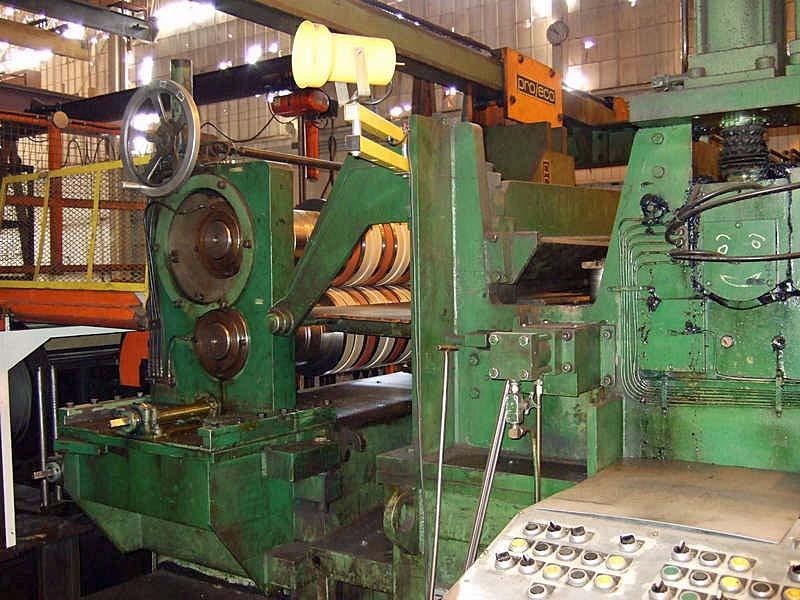

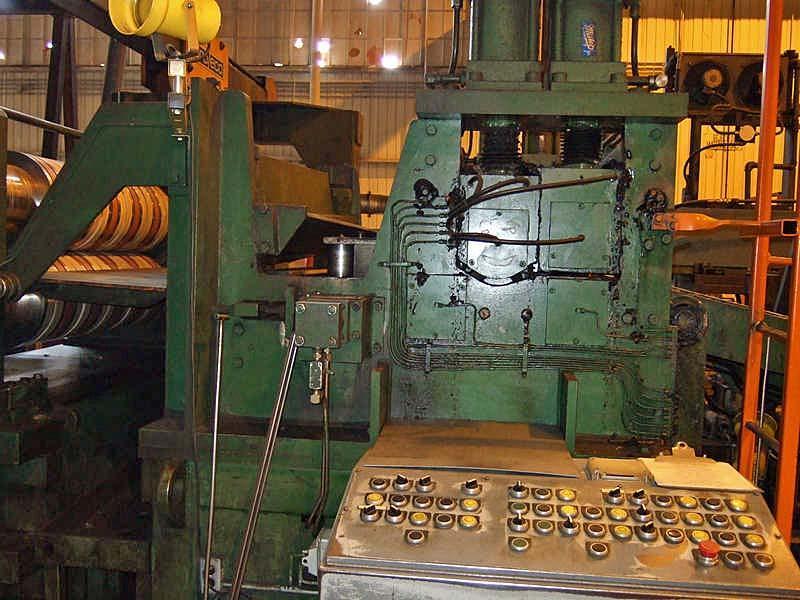

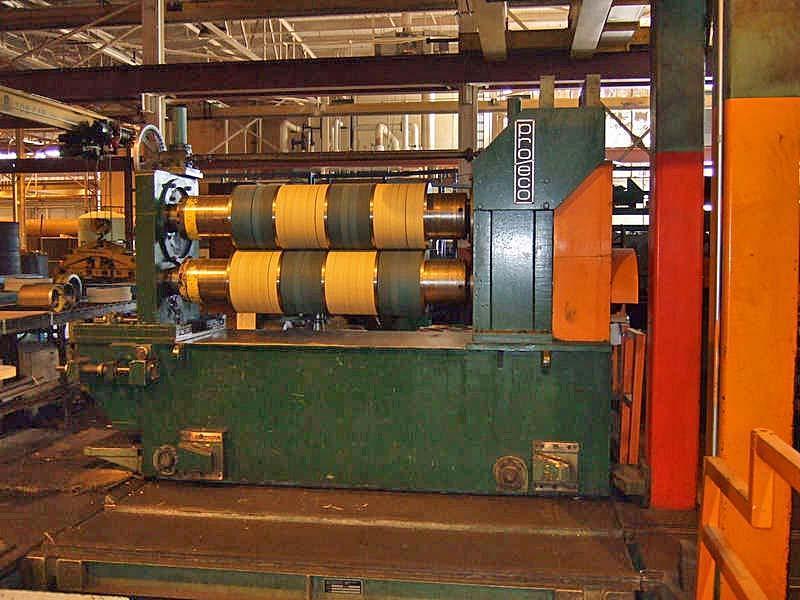

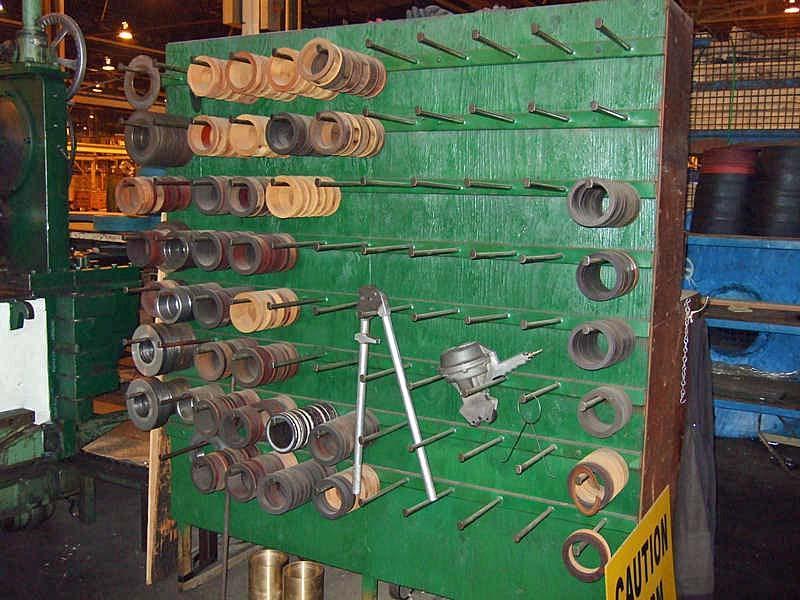

INJECTOR TYPE SLITTER HEADS:
(2) HEADS
9" DIA. x 66" FACE ARBORS
SINGLE ECCENTRIC ARBOR ADJUSTMENT
OVERHEAD CYLINDER SET UP TO MOVE HEADS IN & OUT

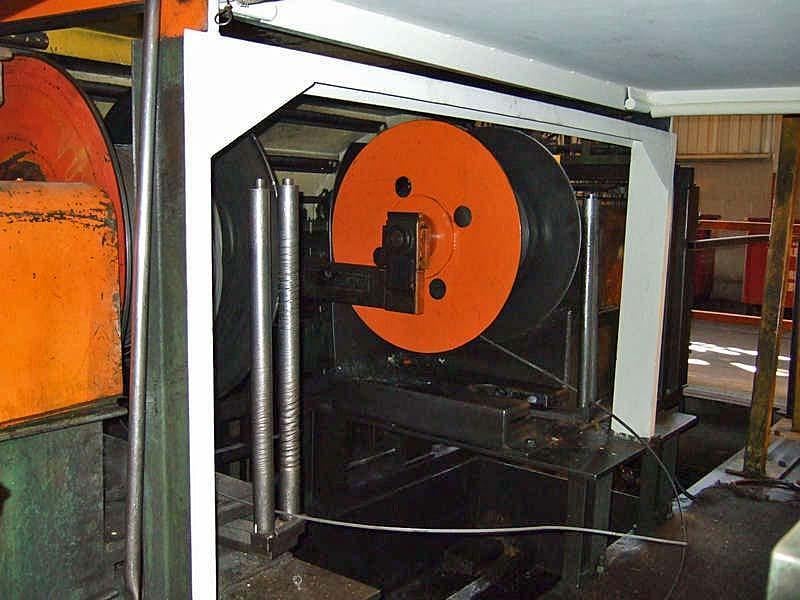

DUAL SCRAP WINDER:
INSPECTION TABLE OVER THE TOP
BOTTOM DROP OUT OF THE SCRAP BALL
HYDRAULIC MOTOR WIND
HYDRAULIC CYLINDER LEVEL WIND

PIT CROSS OVER TABLE

TENSION STAND:
ENTRY SEPARATOR TOOLING BAR
PAD TYPE TENSION UNIT
AIR BRAG TYPE TENSION CONTROL
EXIT PINCH ROLLS WITH TACH
THREADING TABLE

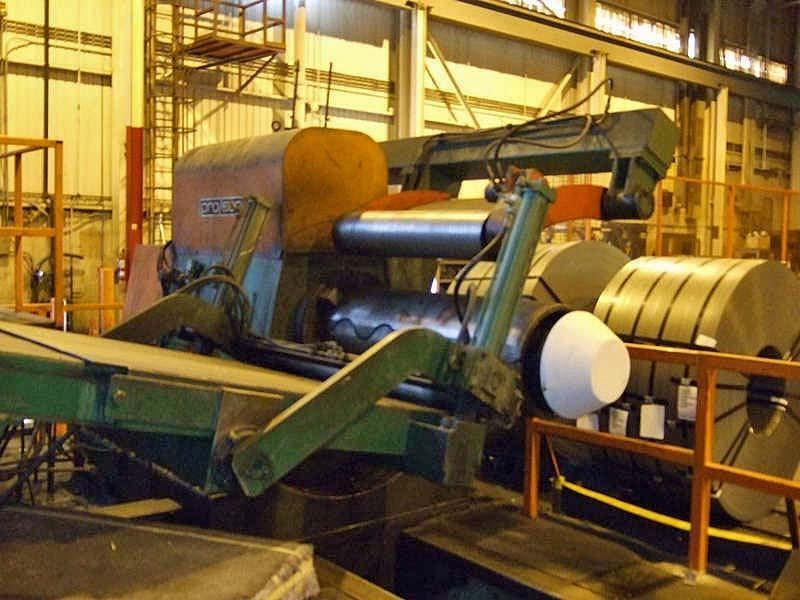

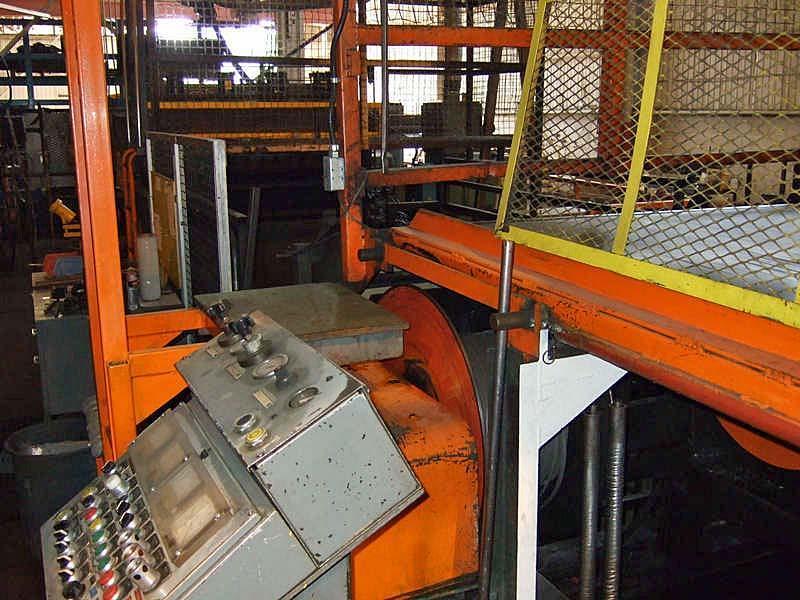

RECOILER:
20" HYDRAULIC GRIP & EXPAND THRU OVERARM SEPARATOR
HYDRAULIC PUSHOFF
200 HP DC MAIN MOTOR 650 / 1950 RPM
INTEGRAL 2 SPEED REDUCER /47 AND 16:1 RATIO

FLOOR MOUNT COIL CAR:
KEEPER ARMS
SELF CONTAINED HYDRAULIC POWER UNIT
SIDE MAST DESIGN

2 ARM EXIT TURNSTILE:
MECHANICAL PUSHOFF
RIGHT ANGLE DOWNLAYER:
72" OD x 10,000 LB. CAPACITY
24" LONG HORN
POWERED CONVEYOR TOP

12' STORAGE CONVEYOR:
72" OD

CALDWELL 16,000 LB. MECHANICAL ID / OD GRAB
NOTE: ALL PICTURES ARE FOR REFERENCE ONLY

Specifications Subject To Verification; Subject To Prior Sale & Price Change
We encourage your personal inspection of this machine, available immediately!
