60" x .035" B & K, Slitting Line, 50000 lb., 76" max coil outside dimension, 19"-26" entry ID, 20"-30" exit ID, 150 HP

Maximum Coil Weight: 50,000#
Incoming Strip Width: 62"
Outgoing Strip Width: 60"
Minimum Strip Thickness: .035"
Maximum Strip Thickness: .312"
Incoming Coil ID: 19" to 20, Up to 26" with Filler Pads (Nominal 20 ID)
Outgoing Coil ID: 20" to 24", Up to 30 with Filler Pads (Nominal 20 ID)
Maximum Coil OD: 76"
Line Direction: Right to Left
Three Arm Turnstile, 60" Arms

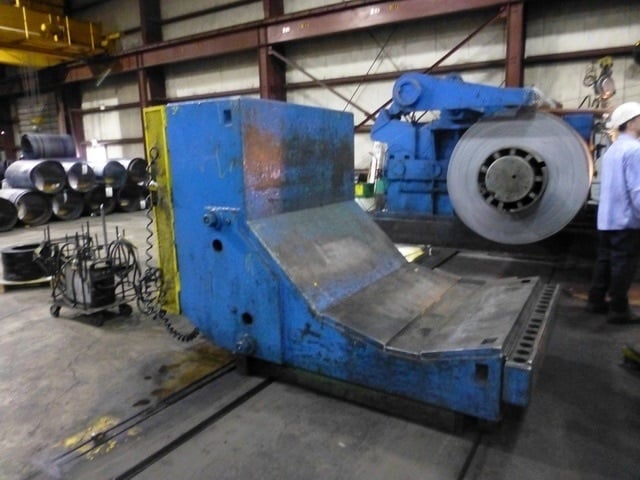

Coil Car
44" Wide Deck, 18 Vertical Lift
Self-Contained Hydraulics
Platform Top "V" Saddle
Coil Car Traverse 15' by Hydraulic Orbit Motor Chain & Sprocket
64" Wide Uncoiler with Heavy Duty Twin Hold Down Rolls
19 to 20 ID Coils with Filler Pads for Up to 26 ID (Nominal 20 ID)
Sliding Base 6 from Centerline, Air Clutch
AC Motor Feed and Recoiling
Water Cooled Air Brake
Peeler System, In/Out, Up/Down

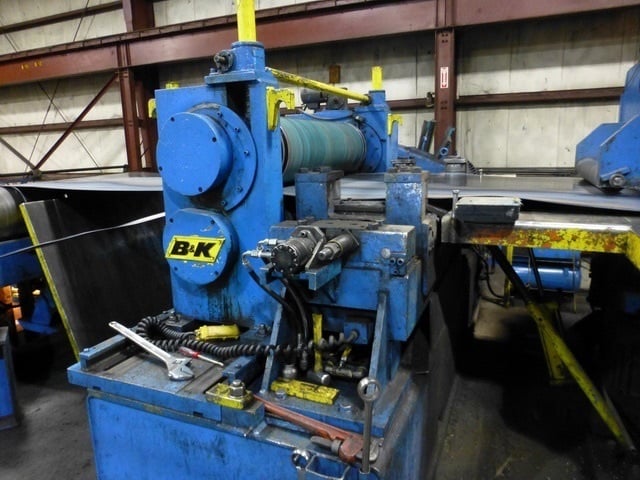

Powered Pinch Roll System, 66 Face
Hydraulic Shear for Cropping Heads & Tails of Coils
64" Wide x 10 Diameter Precision Arbor Slitter with Feed Up Drive, (2) Heads
Dog Clutch for Quick Head Removal

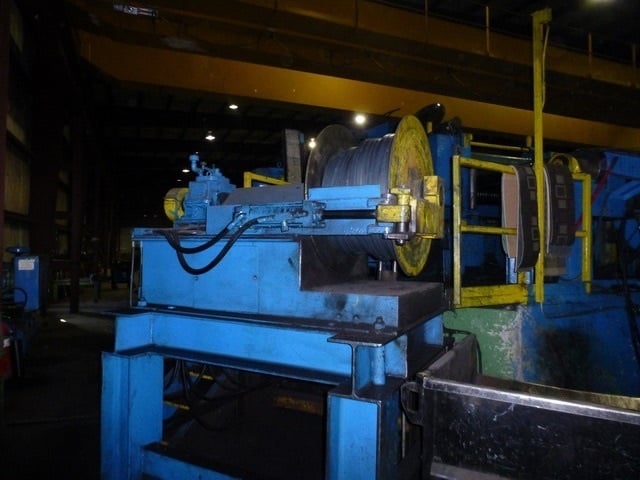

(2)-18 Wide x 42 OD Capacity Scrap Winders with Level Wind
Hydraulic Self Dump with Oscillating Eye
Hydraulically Actuated Threading Table

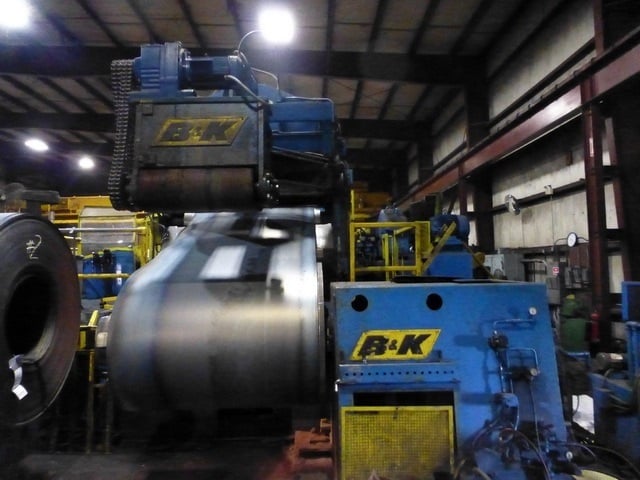

72" Wide Recoiler with Separator Shaft and Full Complement of Tooling
Two-Speed Gearbox
Hydraulic Gripper Slot
Heavy Duty Drum for 20 to 24 ID Coils with Filler Pads for Up to 30 ID (Nominal 20 ID)
150 HP DC 650/1950 RPM, 500V Reliance Motor (Modern)

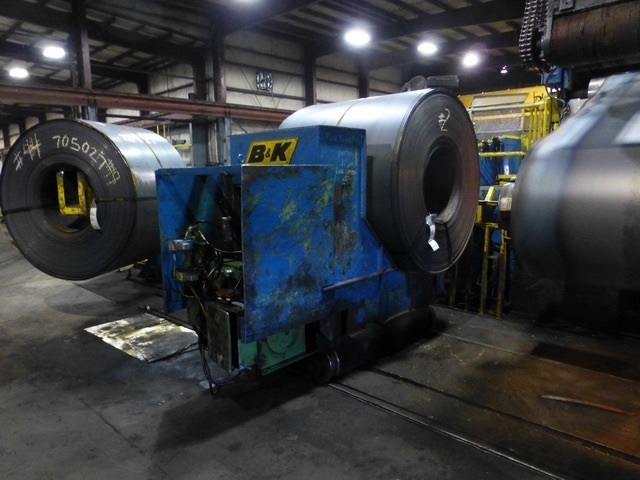

Exit Coil Car, 63" Wide Bed
Holding Finger Design for Narrow Slit Coils
60,000# Capacity Two-Arm Turnstile
Wide Slots for C-Hook Coil Removal or Hydraulic Push Off to Banding Line
3. Overarm Tooling
a. Full Complement of Shimless Tooling
4. Various Sized Rubber Stripper Rings
HYDRAULICS: Hydraulic pump and tank unit, 40 HP @ 1,000 PSI
