31" x 80" GMC #GML-3280, Gap Bed Lathe, 1600 RPM, 15 HP, 32" Swing, 3" Chuck

Estimated monthly payment valid upon approved credit.

Request Formal Quote

SO 9001 certified
Taiwan machines

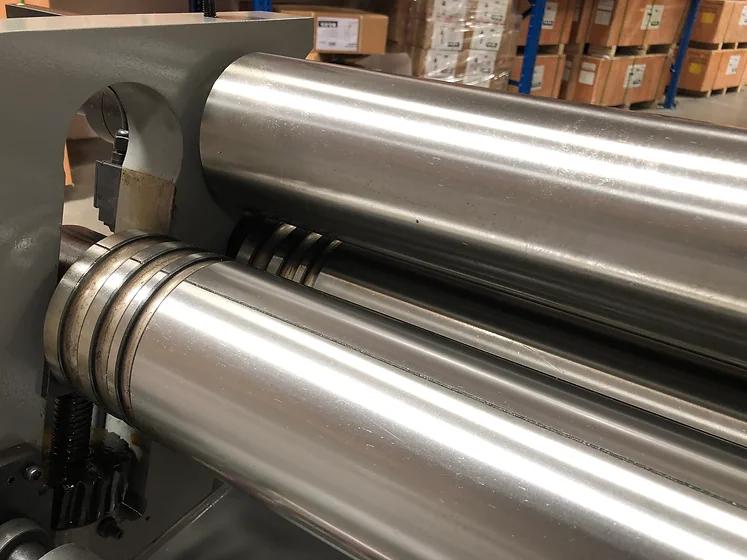

All (3) rolls are hardened rolls, up to 50-52 HRC
3-rollers are driven to perform high accuracy

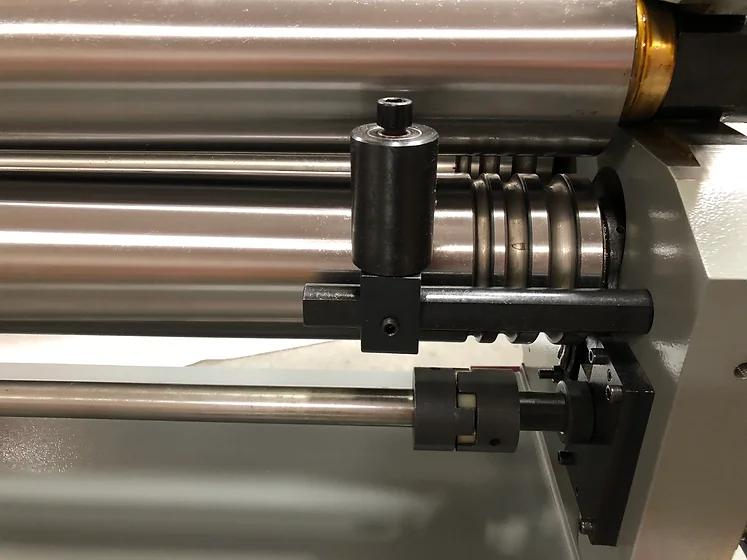

Adjustable cone attachment included
3/8, and 5/8 grooves on rollers

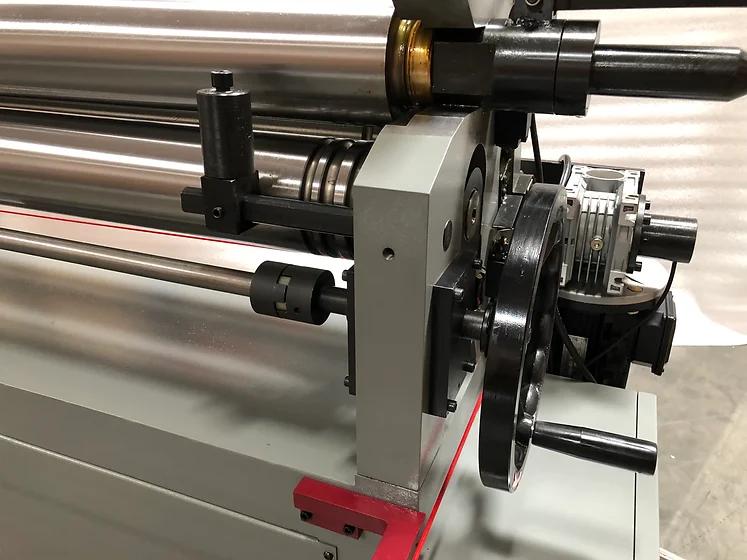

One wheel one-side operated for bending roll
One wheel one-site operated for pinch roll (E model is powered)
Heavy duty casting frame
Heavy duty all steel welded construction
1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
Quiet running operation
Easy swing-out top roller
Safety line all around the machine for emergency stop
All rolls run forward and reverse
Safety type forward/reverse foot pedal
Power source 220V, (option: 440V, 3 phase)
One year industrial warranty for parts
Capacity:
Mild Steel
Stainless Steel
soft aluminum
min. thickness
5'1" x 10Ga.
5'1" x12Ga.
5'1" x 1/4"
26Ga
Roll Dia. 4 3/4"Min. Bending Dia. Inch6"Pre-bend inch0.12"Rolls Speed ft/min20Rolls Opening 1/2"Main Motor3HP 3PH 220V or 440VWeight3,050 lbs. Overal Dimensions 96" x 32" x 52"
Length of Rolls: 5'
Max Thickness (gauge): 12 gauge
# Rolls: 3
Roll Diameter: 3.75"
