Manufacturer: Scotchman
Model: AL100U-02
Thickness: .750
Length x: 3.000
Width of Notch Size: 3.000
Stock # 25763
Click to zoom in
For Sale by C.W. Wood Machinery Inc
Surplus Record Dealer Since 1965
Location: Cincinnati, OH
Contact Sales Dept.
Phone Number: 800...> Show Phone Number 800-745-6008
Let the seller know you found their listing on Surplus Record!
Description

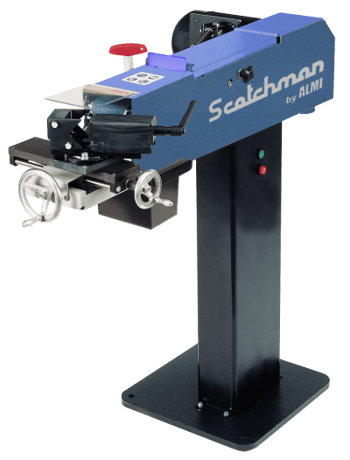

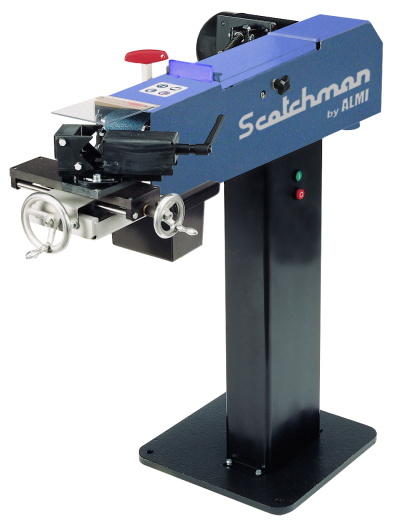

(NEW) SCOTCHMAN TUBE & PIPE GRINDER/NOTCHER
Grinding Capacity: 3/4" to 3" O.D.
Angle Range: Straight = 90 Degrees to 30 Degrees
Speed: 3420 RPM
Belt Speed: 98.4 Feet Per Second
Belt Size: 4" x 78-3/4"
EQUIPPED WITH
4 HP Motor
Dimensions: 59" x 47" x 20"
Approximate Weight: 420 Lbs.
F.O.B. Philip, South Dakota
FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
Grinding Capacity: 3/4" to 3" O.D.
Angle Range: Straight = 90 Degrees to 30 Degrees
Speed: 3420 RPM
Belt Speed: 98.4 Feet Per Second
Belt Size: 4" x 78-3/4"
Scotchman Tube & Pipe Grinder/Notchers are strong, accurate machines that operate at high speeds. Stainless-steel sections and pipes can be machined problem free, at high speed without grinding burrs or heat discoloration. The grinding rollers can be changed without tools in just seconds, saving time and money! The grinding belt can also be changed easily from one side of the machine. Once the sections and pipes have been ground, they can be deburred using the handy deburring table on top of the machine.
Scotchman machines with lever operation are suitable for left and right-handed operators. The pipe grinder/notchers offer toruble-free, accurate, quick and efficient machining of tubes and pipes for many years; and are backed by a 3-year warranty
| Produces Gap-free Fits Ready for Welding |
| Smooth Operation with Minimal Vibration |
| Notches via Adjustments Straight =90° to 30° in Tube or Pipe from 3/4" to 3" Diameter in Seconds |
| Operated with Two Handwheels or a Hand Lever |
| Two Axis Precision Crossfeed Table with Both Handwheels and Hand Lever Feed Handle |
| Heavy Duty Frame and Base Construction |
| Mandrel Centerline Adjustment |
| One Vise Holds All Pipe and Tube Sizes |
| Top-mounted Deburring Surface |
| Easy Setup with Vise Graduated in Degrees |
| 13 Mandrels available to Ensure Correct Gap-free Fits |
| Supplied with 2 Belts and Two Pipe Mandrels (1-1/4" & 1-1/2") |
| Belt Tensioning System Simplifies Tensioning the Grinding Belt |
| Tool-free Belt and Mandrel Change over |
| Grinding Belt can be Tensioned Quickly using the Hexagonal Spanner Supplied with the Machine |
| Grinding Rollers can be Changed in Seconds |
| Warranty: Three Years |
EQUIPPED WITH
4 HP Motor
Dimensions: 59" x 47" x 20"
Approximate Weight: 420 Lbs.
F.O.B. Philip, South Dakota
FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
Get Your Price from C.W. Wood Machinery Inc!
