For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Jim Smith
515-23...> Show Seller's Phone Number 515-233-6330 Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
SUBJECT TO STOCK
| Swing Over Bed | 26 inches |
| Swing Over Cross Slide | 17.5 inches |
| Swing In Gap | 35.1 inches |
| Gap Width in Front of the Face Plate | 10.625 inches |
| Distance Between Centers | 90 inches |
| Width of Bed | 15.75 inches |
| Height of Center from Leg Bottom | 44.3 inches |
| Spindle Bore | 4.0625 inches |
| Taper of spindle bore and center | MT#7 x #5 |
| Type of Spindle Nose | D1-11 |
| Number of Spindle Speeds | 12 |
| Spindle Speed | 13-1,200 RPM |
| Number of Feed Changes | 16 |
| Feeds per revolution Longitudinal | 0.0012-0.039 |
| Feeds per revolution Cross | 0.0007 0.0188 |
| Leadscrew Diameter & Threads Per Inch | 1.77 , 2 TPI |
| Range of Inch Threads | 1-42 TPI (48) |
| Range of Metric Pitches | 0.2 14 (39) |

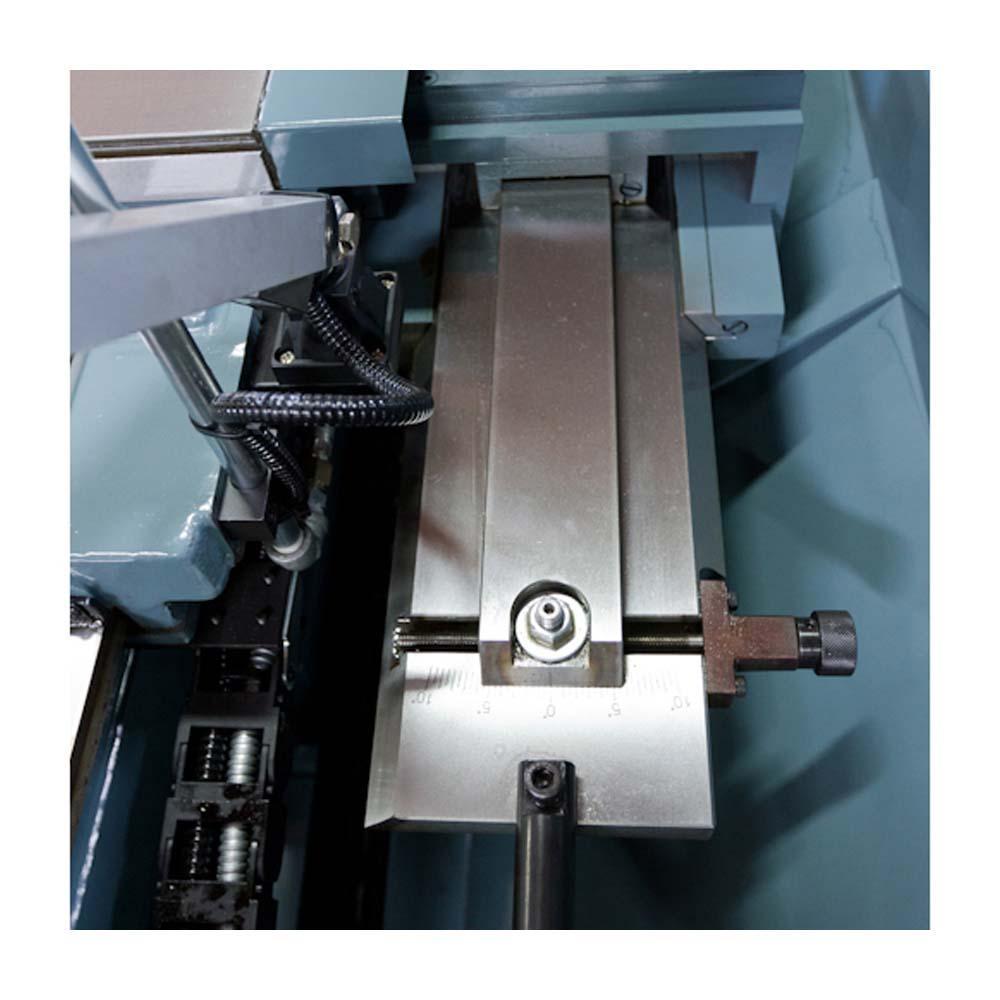

| Maximum Travel of Compound | 9.5 inches |

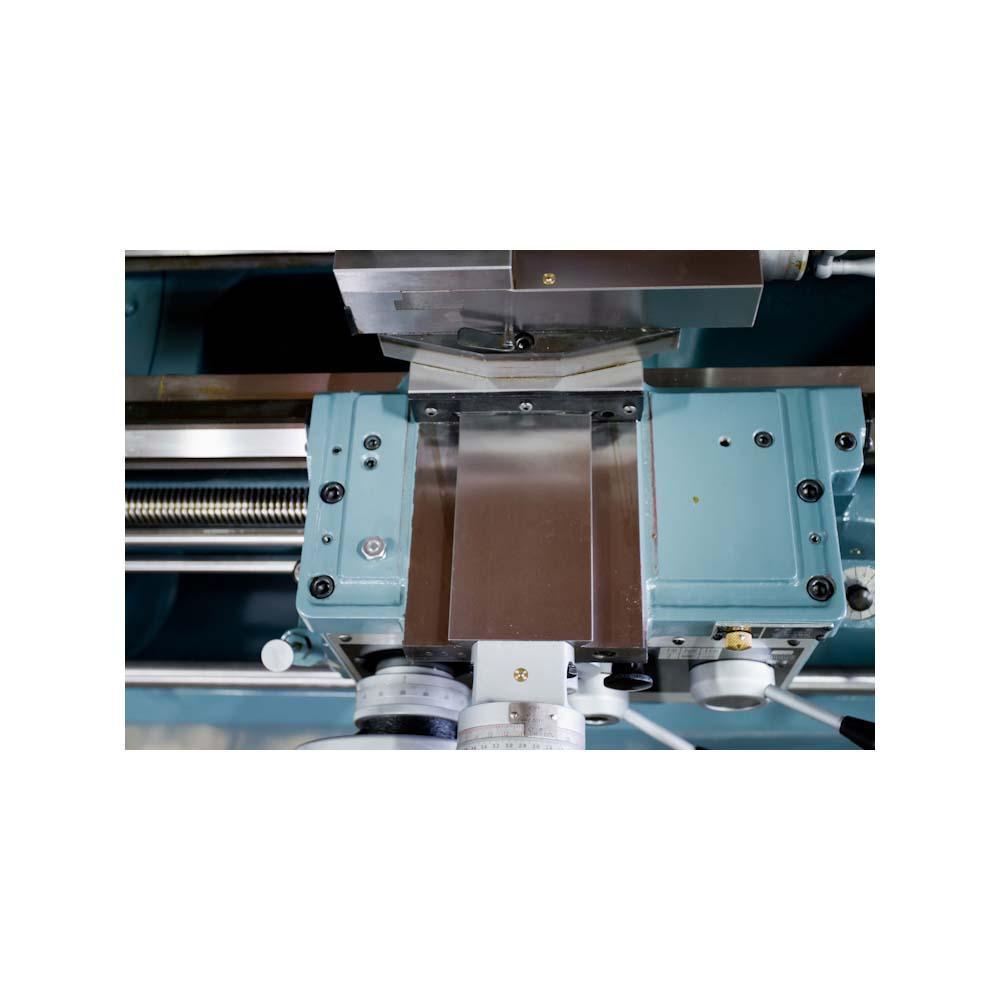

| Maximum Travel of Cross Slide | 15.8 inches |

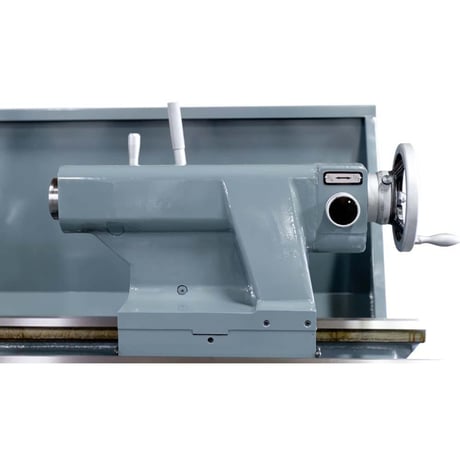

| Tailstock Quill Travel | 9.8 inches |
| Tailstock Quill Diameter | 2.9 inches |
| Taper in Tailstock Quill | M.T. #5 |
| Main Drive Motor | 15 HP |
| Coolant Pump Motor | 1/8 HP |
| Floor Space | W: 47 L: 217 |
| Machine Weight | 8000 pounds |
Equipped With
Equipped With
Standard Features:
• Hardened & Ground Bed & Cross Slide Ways
• Thread Chasing Dial
• Automatic Longitudinal Feed Stop Bar
• 4-Way Tool Post Fitted To T-Slotted Compound
• LED Work Light
• 10” Steady Rest with Roller Jaws
• Z-Axis Rapid Traverse (Except 35” & 60” C.C.)
• Chuck Guard
• Ground Steel Center MT#5 For Headstock
• 12" Back Plate

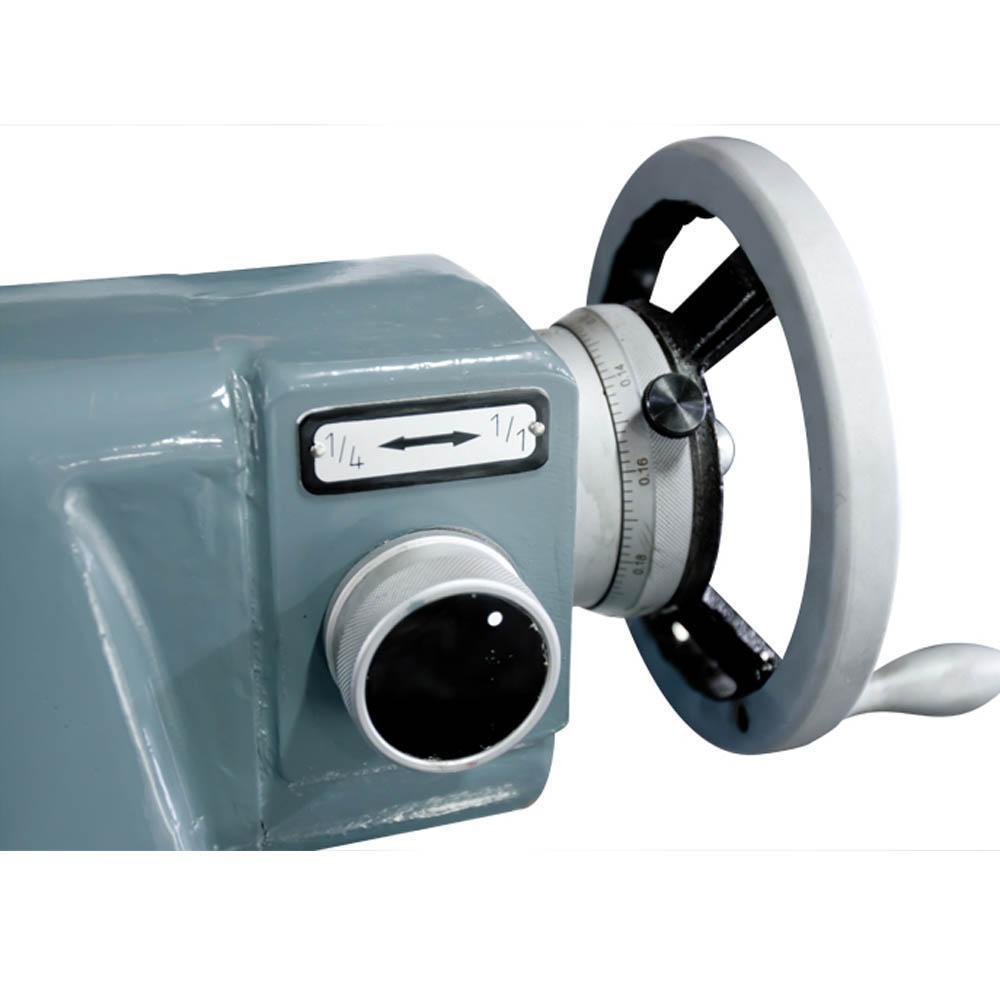

• Two-Speed Drive Tailstock Spindle (MT#5)
• Coolant System with Pump and Piping
• Full Length Splash Guard
• Pull Drawer Chip (Oil) Pan
• Tool Box w/ Necessary Wrenches & Spanners
• Instruction Manual & Parts List
• Emergency Stop Button
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
Additional 10" Steady Rest with Roller Jaws (Min. Capacity 1.6") $3,500
15" Steady Rest with Roller Jaws (Min. Capacity 7.5") $3,900
18.9” Steady Rest with Roller Jaws for HD-26 & HD-30 only (Min. Capacity 8.6”) $4,500
7" Follow Rest $1,500
Telescopic Taper Turning Attachment $5,900
Drilling Attachment $1,900
Z-axis Rapid Traverse on 35” or 60” Bed $3,500
Turret or Micrometer Carriage Stop $ 450
Tailstock Complete Crank Assembly $ 400
Bison Super Precision Live Center MT#5 (4180 lbs, 0.0002 max runout) $ 425
Convert Cross Feed Screw (HD-22 to 5 TPI, HD-26 to 8 TPI) $1,250
Aloris CA Tool Post Only $1,050
Aloris CA Tool Post + 6 Tool Holders (Set #4) $2,125
Aloris DA Tool Post Only $1,475
Aloris DA Tool Post + 6 Tool Holders (Set #5) $2,795
Newall 2-Axis Digital Readout + Installation (Net):
35” C.C. $3,800 + $550
60” C.C. $3,900 + $550
90” C.C. $5,800 + $650
120” C.C. $6,000 + $750
160” C.C. $7,200 + $850
WORKHOLDING:
Chandox SK 12” 3-Jaw Semi-Steel Scroll Chuck (D1-8 plate, solid jaws) $ 2,100
Chandox KT 12” 3-Jaw Steel Body Adjustable Chuck (D1-8 plate, hard+soft solid jaws) $ 2,900
Taiwan KC 12” 4-Jaw Semi-Steel Independent Chuck (D1-8 direct mount, solid jaws) $ 1,450
D1-8: Bison 16” 3-Jaw Forged Steel Scroll Chuck (direct mount, 2pc jaws) $ 5,700
D1-8: Bison 16” 4-Jaw Forged Steel Independent Chuck (direct mount, 2pc jaws) $ 4,750
Taiwan KC 16” 4-Jaw Semi-Steel Independent Chuck (D1-8 direct mount, solid jaws) $ 2,400
D1-11: Bison 20” 3-Jaw Forged Steel Scroll Chuck (direct mount, 2pc jaws) $12,500
D1-11 Bison 20” 4-Jaw Forged Steel Independent Chuck (direct mount, 2pc jaws) $ 7,500
D1-11: Taiwan KC 20” 4-Jaw Semi-Steel Independent Chuck (direct mount, solid jaws) $ 3,250
20” Face Plate $ 1,500
Other Chucks Upon Request
SAFETY ACCESSORIES:
Add Limit Switch to Chuck Guard $ 150
Clear Lexan Chuck Guard [Installed] $ 500
Leadscrew Guard [60” / 90” Lengths Only] $1050 / $1150
Travelguard Tool Post Guard [Kingston Installation] $ 550
Heavy Duty Tool Post Guard [Factory Installation Only] $2,000
Rear Spindle Cover $ 250
NRTL / UL Ready [UL/NFPA standards, No Certification] Upon Request
NRTL / UL Certification Upon Request
DELIVERY:15" Steady Rest with Roller Jaws (Min. Capacity 7.5") $3,900
18.9” Steady Rest with Roller Jaws for HD-26 & HD-30 only (Min. Capacity 8.6”) $4,500
7" Follow Rest $1,500
Telescopic Taper Turning Attachment $5,900
Drilling Attachment $1,900
Z-axis Rapid Traverse on 35” or 60” Bed $3,500
Turret or Micrometer Carriage Stop $ 450
Tailstock Complete Crank Assembly $ 400
Bison Super Precision Live Center MT#5 (4180 lbs, 0.0002 max runout) $ 425
Convert Cross Feed Screw (HD-22 to 5 TPI, HD-26 to 8 TPI) $1,250
Aloris CA Tool Post Only $1,050
Aloris CA Tool Post + 6 Tool Holders (Set #4) $2,125
Aloris DA Tool Post Only $1,475
Aloris DA Tool Post + 6 Tool Holders (Set #5) $2,795
Newall 2-Axis Digital Readout + Installation (Net):
35” C.C. $3,800 + $550
60” C.C. $3,900 + $550
90” C.C. $5,800 + $650
120” C.C. $6,000 + $750
160” C.C. $7,200 + $850
WORKHOLDING:
Chandox SK 12” 3-Jaw Semi-Steel Scroll Chuck (D1-8 plate, solid jaws) $ 2,100
Chandox KT 12” 3-Jaw Steel Body Adjustable Chuck (D1-8 plate, hard+soft solid jaws) $ 2,900
Taiwan KC 12” 4-Jaw Semi-Steel Independent Chuck (D1-8 direct mount, solid jaws) $ 1,450
D1-8: Bison 16” 3-Jaw Forged Steel Scroll Chuck (direct mount, 2pc jaws) $ 5,700
D1-8: Bison 16” 4-Jaw Forged Steel Independent Chuck (direct mount, 2pc jaws) $ 4,750
Taiwan KC 16” 4-Jaw Semi-Steel Independent Chuck (D1-8 direct mount, solid jaws) $ 2,400
D1-11: Bison 20” 3-Jaw Forged Steel Scroll Chuck (direct mount, 2pc jaws) $12,500
D1-11 Bison 20” 4-Jaw Forged Steel Independent Chuck (direct mount, 2pc jaws) $ 7,500
D1-11: Taiwan KC 20” 4-Jaw Semi-Steel Independent Chuck (direct mount, solid jaws) $ 3,250
20” Face Plate $ 1,500
Other Chucks Upon Request
SAFETY ACCESSORIES:
Add Limit Switch to Chuck Guard $ 150
Clear Lexan Chuck Guard [Installed] $ 500
Leadscrew Guard [60” / 90” Lengths Only] $1050 / $1150
Travelguard Tool Post Guard [Kingston Installation] $ 550
Heavy Duty Tool Post Guard [Factory Installation Only] $2,000
Rear Spindle Cover $ 250
NRTL / UL Ready [UL/NFPA standards, No Certification] Upon Request
NRTL / UL Certification Upon Request
SUBJECT TO STOCK
Get Your Price from Smith Machinery Co!
