Description

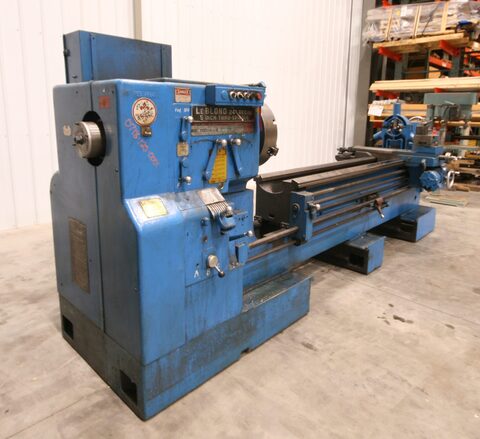

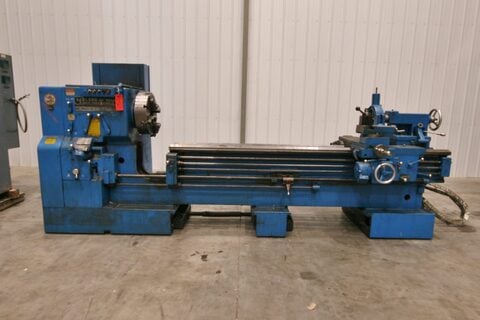

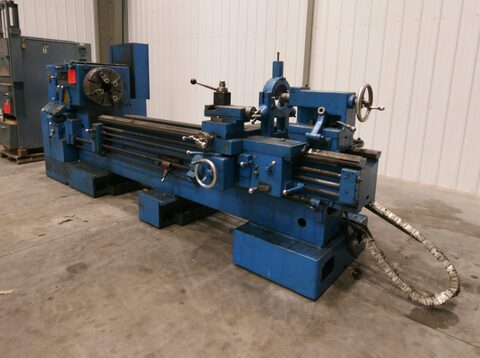

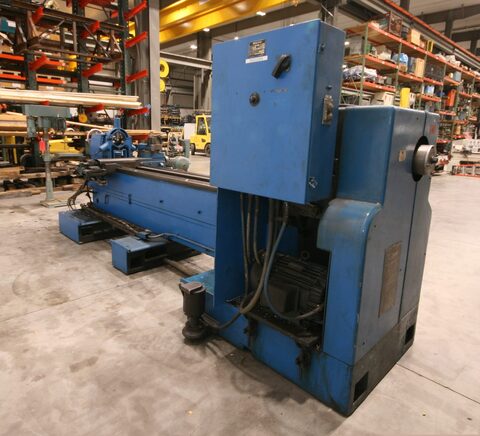

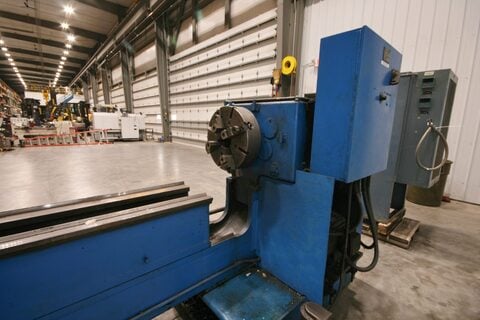

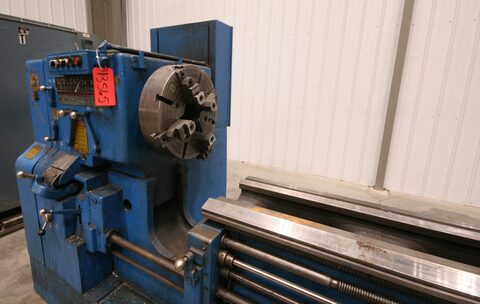

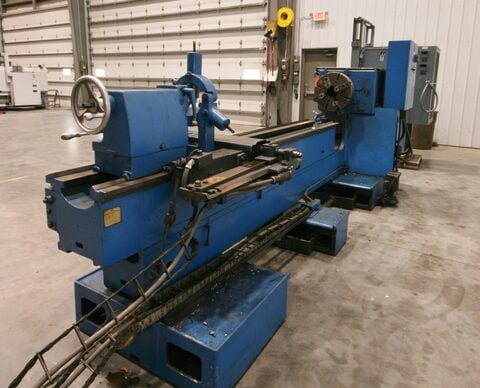

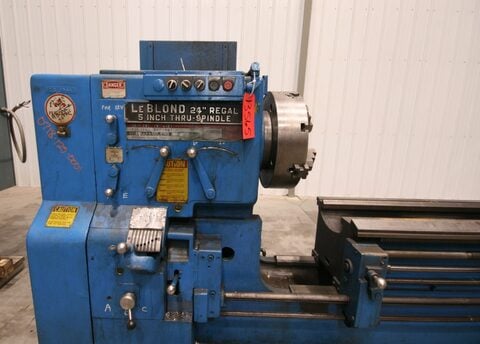

LeBlond 24" / 54" x 96" / 132" Sliding Gap Bed Lathe
Serial # 6HS 507 Asset # 13565
Specifications: Swing thru Gap 52" Center Distance Bed Closed 96" Center Distance Bed Extended 132" Maximum Bed Length Open 36" Turning Length with Extension Rest 15 1/2" Maximum Turning Diameter with Extension Rest 33 1/2" Distance Spindle Center to Floor 48 7/8" Bed Length, Centers Closed 8' 6" Top Bed Length 5' 9" Top Bed Width 17" Carriage Length on Bed 27" Cross Slide Travel 19 1/2" Size Hole Thru Spindle 5 1/4 Spindle Speeds (12) 12-900 RPM Spindle Size of Center #5 MT Spindle Nose 11" A-1 Motor 20 HP, 1800 RPM
Lathe is equipped with an 18" 4 Jaw Chuck and taper attachment.
Preliminary Specifications - Subject to Verification
THE LODGE & SHIPLEY "POWERTURN" GAP-TYPE ENGINE LATHE, MODEL RXE 2516, IS POWERED BY A 30 HP MAIN MOTOR AND S A 2.5-INCH HOLE THROUGH THE SPINDLE. THE LATHE HAS AN ACTUAL SWING OVER THE BED WAYS AND CARRIAGE WINGS OF 26.5 INCHES, A RATED SWING OF 25 INCHES, AND A SWING OVER THE CROSS-SLIDE OF 20 INCHES. ...more
, New in 2013 with 4.5" spindle bore and Newall DP700 DRO, Spec Sheet:, 22"/31" x 100" Sharp 22100B Gap Bed Lathe w/Newall DRO, Newall DP700 DRO, 16" BTC 3 Jaw Chuck, 20" Face Plate, 4" Through Hole, D1-11, 4 Way Toolpost, Steady Rest(4 11.5), Follow Rest, Direct selection for inch / metric threads, Quick change ...more
PROMAX 26”/35” x 90”cc Gap Lathe DRO 4” Bore #8166, PROMAX 26”/35” x 90”cc Gap Lathe DRO 4” Bore #8166, Reference #8166, Model # 2690, Serial # CH98740, Year of manufacture- 1999’, Swing over bed- 26”, Swing over carriage- 17-1/2”, Swing in Gap- ...more
Swing Over Bed 26 inches Swing Over Cross Slide 17.5 inches Swing In Gap 35.1 inches Gap Width in Front of the Face Plate 10.625 inches Distance Between Centers 90 inches Width of Bed 15.75 inches Height of Center from Leg Bottom 44.3 inches Spindle Bore 4.0625 inches Taper of spindle bore and center MT#7 x #5 Type of ...more
