Description
Spec Sheet: The Victor S2660S is a high-precision, heavy-duty engine lathe engineered to turn large parts. It is equipped with a powerful 15 HP main motor and offers generous capacities, featuring a 26" swing over the bed, 60" distance between centers, and a spacious spindle bore. Capacity Swing Over Bed: 26" Swing Over Cross Slide: 16" to 18-1/16" Swing Over Gap: 33-1/4" Distance Between Centers: 60" Spindle Spindle Bore: 4-1/8" Spindle Nose: D1-11 Speed Range: 15 ~ 1,200 rpm (or 25 ~ 1,600 rpm depending on the specific model sub-type) Speed Selections: 12 steps (15, 25, 35, 50, 85, 120, 160, 265, 375, 520, 860, 1200) 20" Face Plate, 4" Through Hole, D1-11 Motor & Electrics Main Motor: 15 HP, 3-Phase Threads & Feeds Longitudinal Feeds: 0.0014" ~ 0.0387" /rev Cross Feeds: 0.0007" ~ 0.01935" /rev Inch Threads: 2 ~ 112 TPI (60 kinds) Bed & Tailstock Bed Width: 15" Tailstock Quill Diameter: Typically 3-15/16" Quill Travel: Typically 6" to 7-7/8"
Swing Over Bed 26 inches Swing Over Cross Slide 17.5 inches Swing In Gap 35.1 inches Gap Width in Front of the Face Plate 10.6 inches Distance Between Centers 60 inches Width of Bed 15.75 inches Height of Center from Leg Bottom 43 inches Spindle Bore 4.0625 inches Taper of spindle bore and center MT#7 x #5 Type of ...more
The Nardini Sagaz SZ25160T is a gap bed lathe featuring a 25-inch swing over bedways, a 31-inch swing over the gap, a 17-inch swing over the cross slide, and a 160-inch distance between centers. It is a 3.25-inch spindle bore and offers spindle speeds ranging from 19 to 1,500 RPM. Powered by a 12 HP motor, the machine ...more

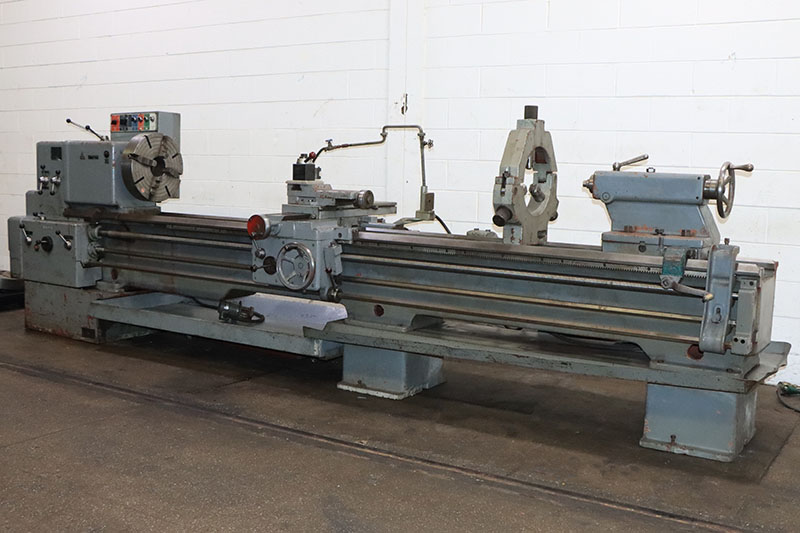

25"/34.5" X 120" TOS REMOVABLE GAP BED ENGINE LATHE, MODEL: SN63B, S/N: 063373159, NEW 1973 :SWING OVER BED… CARRIAGE WINGS. 25"SWING OVER CROSS SLIDE. 13.5"SWING OVER GAP.″4.5"LENGTH OF GAP FROM SPINDLE NOSE. 15.25"DISTANCE BETWEEN CENTERS. 120"WIDTH OF BED. ...more
