Manufacturer: Daewoo Ikegai
Model: DA25
Year: 1981
Swing: 25.0
Centers: 120.0
Stock # 29514
Price: $24,500 USD
1 / 10
Click to zoom in
1 / 10
For Sale by Mohawk Machinery Inc
Surplus Record Dealer Since 1956
Location: Cincinnati, OH
Contact Mr. Secord
Phone Number: 513...> Show Phone Number 513-771-1952
Let the seller know you found their listing on Surplus Record!
$24,500 USD
Finance for as low as $497/mth
Description

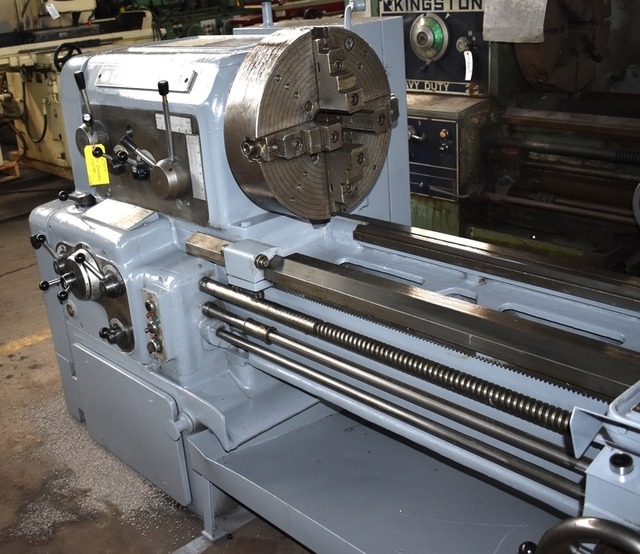

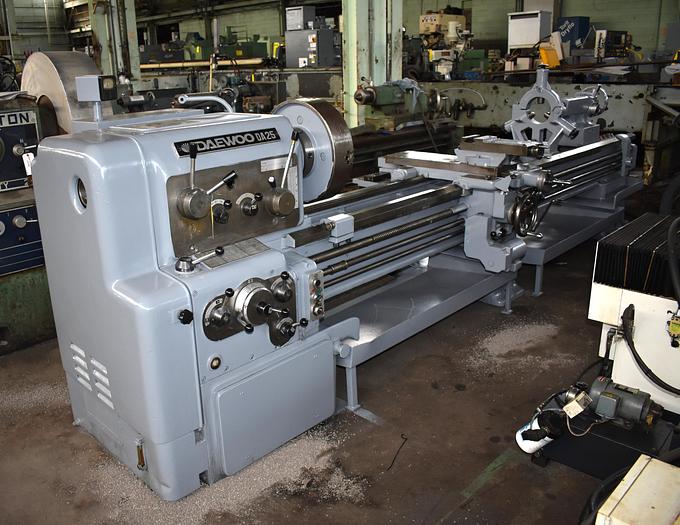

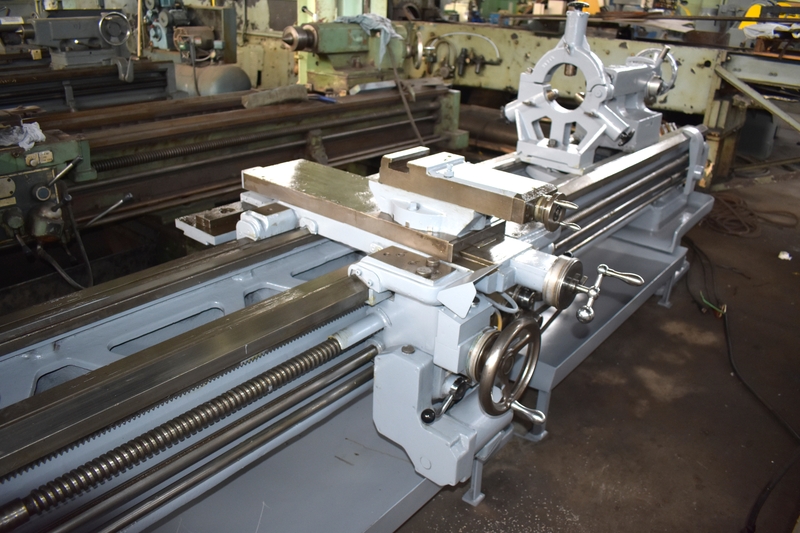

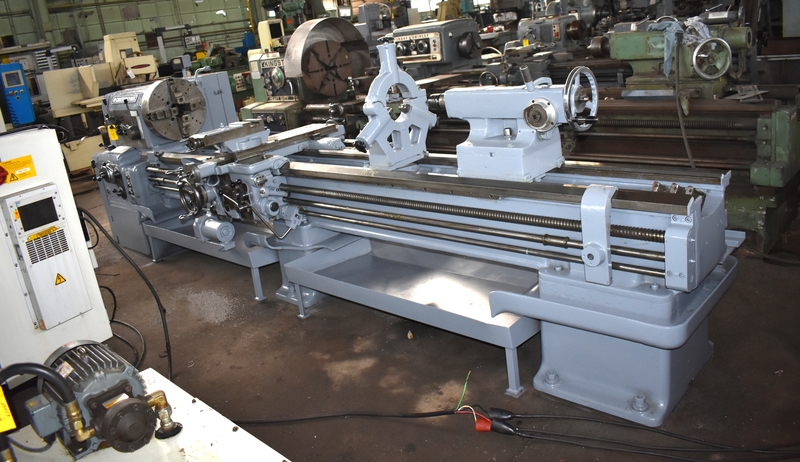

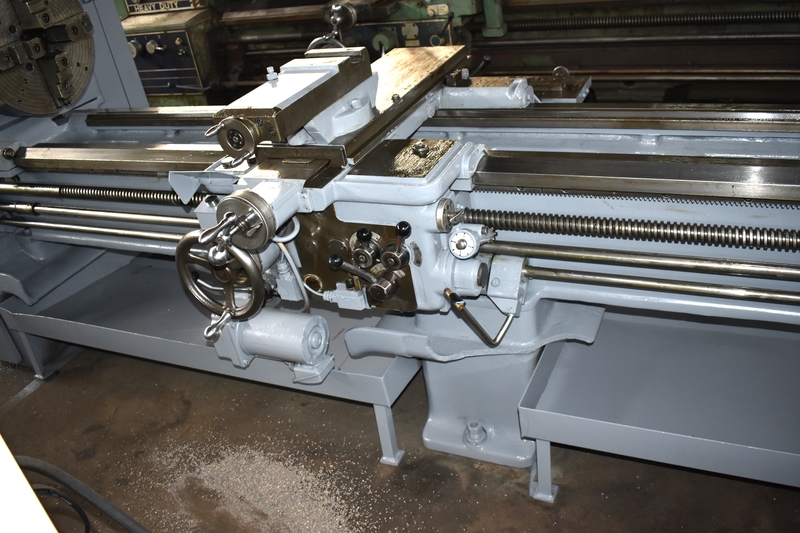

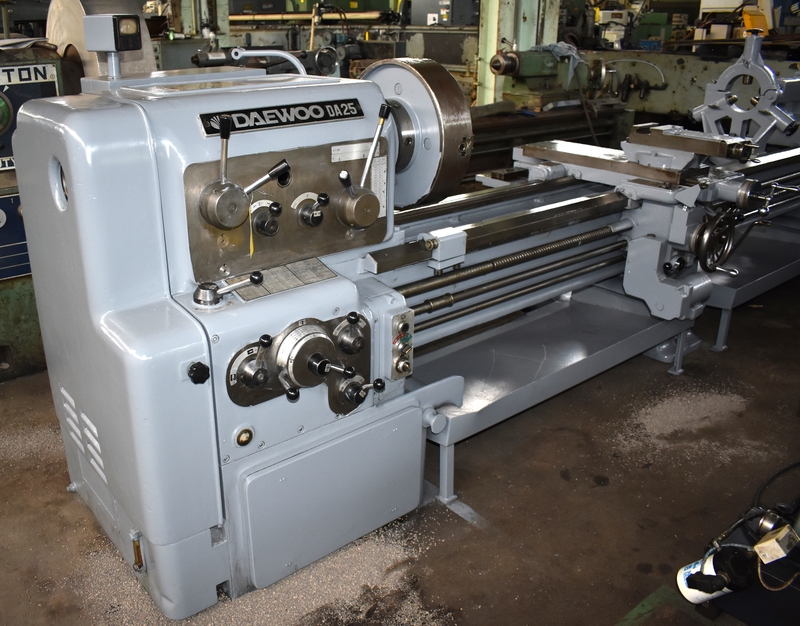

25" x 120" DAEWOO-IKEGAI HIGH SPEED PRECISION
ENGINE LATHE W/TAPER ATTACHMENT

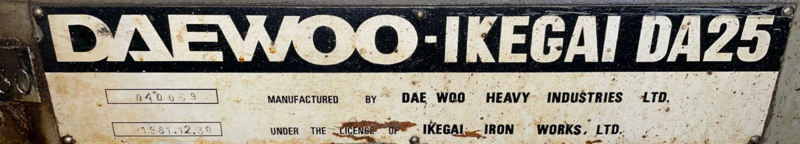

Serial No. 040059, Model DA25
25" x 120" DAEWOO-IKEGAI HIGH SPEED PRECISION
ENGINE LATHE W/TAPER ATTACHMENT
Serial No. 040059, Model DA25
EQUIPPED WITH:
Taper Attachment
2.2" Hole Thru Spindle
Inch-Metric Threading Capabilities - Steady Rest
Threading Dial - Power Rapid Traverse (4-Way)
18" 4-Jaw Chuck w/Jaws - Hardened & Ground Bed Ways
CATALOG SPECIFICATIONS:
Hole Thru Spindle .......... 2.2"
Swing Over Bed Ways, Rated .......... 25"
Swing Over Bed Ways, Actual .......... 24.4"
Swing Over Carriage .......... 15.5"
Distance Between Centers .......... 120"
(20) Spindle Speeds, Range .......... 25 to 2000 RPM
(44) Longitudinal Feeds, Range .......... .0067 to .0957 IPR
(44) Longitudinal Feeds, Range .......... .17 to 2.43 MM/R
(44) Cross Feeds, Range .......... .06 to .83 MM/R
(44) Cross Feeds, Range .......... .0024 tp .0033IPR
(40) Whitworth Thread Changes, Range .......... 2 to 28 TPI
(55) Metric Thread Changes, Range .......... 1 to 224 MM
(42) Module Thread Change, Range .......... .25 to 56 MM
Lead Screw Pitch .......... 2 THREAD/INCH
Lead Screw Pitch .......... 12 THREAD/MM
Motor Horsepower .......... 15 HP
Electrical System .......... 220-440/3/60
Weight Approximately .......... 10250 LBS
PRICE: F.O.B. OUR WAREHOUSE
Hole Thru Spindle: 2.2"
Swing Over Carriage: 15.5"
Distance Between Centers: 120"
(20) Spindle Speeds, Range: 25 to 2000 RPM
(44) Longitudinal Feeds, Range: 0067 to .0957 IPR
(44) Longitudinal Feeds, Range: 17 to 2.43 MM/R
(44) Cross Feeds, Range: 06 to .83 MM/R
(44) Cross Feeds, Range: 0024 tp .0033IPR
Lead Screw Pitch: 2 THREAD/INCH
Lead Screw Pitch: 12 THREAD/MM
Motor Horsepower: 15 HP
Electrical System: 220-440/3/60
Weight Approximately: 10250 LBS
ENGINE LATHE W/TAPER ATTACHMENT
Serial No. 040059, Model DA25
25" x 120" DAEWOO-IKEGAI HIGH SPEED PRECISION
ENGINE LATHE W/TAPER ATTACHMENT
Serial No. 040059, Model DA25
EQUIPPED WITH:
Taper Attachment
2.2" Hole Thru Spindle
Inch-Metric Threading Capabilities - Steady Rest
Threading Dial - Power Rapid Traverse (4-Way)
18" 4-Jaw Chuck w/Jaws - Hardened & Ground Bed Ways
CATALOG SPECIFICATIONS:
Hole Thru Spindle .......... 2.2"
Swing Over Bed Ways, Rated .......... 25"
Swing Over Bed Ways, Actual .......... 24.4"
Swing Over Carriage .......... 15.5"
Distance Between Centers .......... 120"
(20) Spindle Speeds, Range .......... 25 to 2000 RPM
(44) Longitudinal Feeds, Range .......... .0067 to .0957 IPR
(44) Longitudinal Feeds, Range .......... .17 to 2.43 MM/R
(44) Cross Feeds, Range .......... .06 to .83 MM/R
(44) Cross Feeds, Range .......... .0024 tp .0033IPR
(40) Whitworth Thread Changes, Range .......... 2 to 28 TPI
(55) Metric Thread Changes, Range .......... 1 to 224 MM
(42) Module Thread Change, Range .......... .25 to 56 MM
Lead Screw Pitch .......... 2 THREAD/INCH
Lead Screw Pitch .......... 12 THREAD/MM
Motor Horsepower .......... 15 HP
Electrical System .......... 220-440/3/60
Weight Approximately .......... 10250 LBS
PRICE: F.O.B. OUR WAREHOUSE
Hole Thru Spindle: 2.2"
Swing Over Carriage: 15.5"
Distance Between Centers: 120"
(20) Spindle Speeds, Range: 25 to 2000 RPM
(44) Longitudinal Feeds, Range: 0067 to .0957 IPR
(44) Longitudinal Feeds, Range: 17 to 2.43 MM/R
(44) Cross Feeds, Range: 06 to .83 MM/R
(44) Cross Feeds, Range: 0024 tp .0033IPR
Lead Screw Pitch: 2 THREAD/INCH
Lead Screw Pitch: 12 THREAD/MM
Motor Horsepower: 15 HP
Electrical System: 220-440/3/60
Weight Approximately: 10250 LBS
