Click to zoom in
For Sale by Yoder Machinery Sales
Surplus Record Dealer Since 1960
Location: Holland, OH
Contact Sales
Phone Number: 866...> Show Phone Number 866-692-8933
Let the seller know you found their listing on Surplus Record!
Description

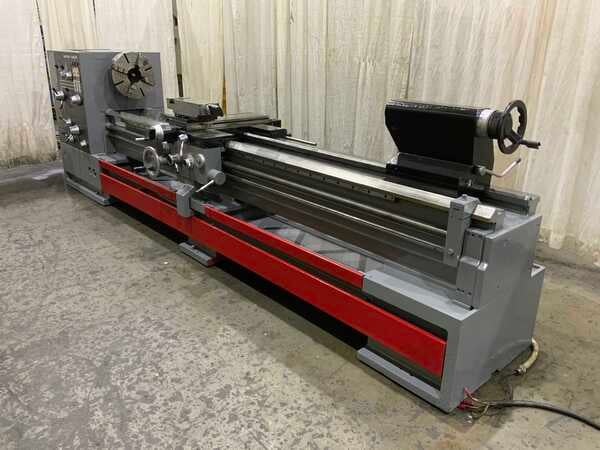

SERIAL ...................... N315H83GT0276
MODEL ....................... NORDIC 25
SWING OVER WAYS ............. 25"
SWING IN GAP ................ 35"
SWING OVER CROSS SLIDE ...... 15-3/4"
DISTANCE BETWEEN CENTERS .... 120"
SPINDLE SPEEDS .............. 18 TO 1400 RPM
CHUCK ....................... 16" 4-JAW
FEEDS LONGITUDINAL .......... 0.0028 TO 0.0045 IPR
CROSS FEEDS ................. 0.0014 TO 0.02225 IPR
THREADS (ENGLISH) ........... 1/2 TO 64 TPI
THREADS (METRIC) ............ 0.065 TO 118 MM PR
TAILSTOCK TAPER ............. 5 MT
SPINDLE HOLE ................ 2-3/4"
TAPER ATTACHMENT ............ YES
THREAD DIAL ................. YES
CHIP PANS ................... YES
MOTOR ....................... 10 HORSEPOWER
Get Your Price from Yoder Machinery Sales!
