Description

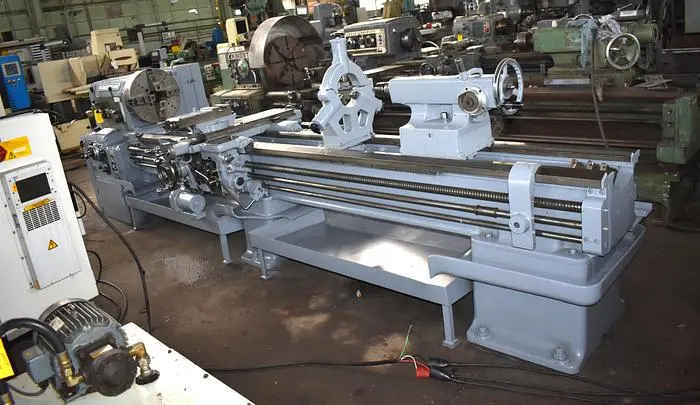

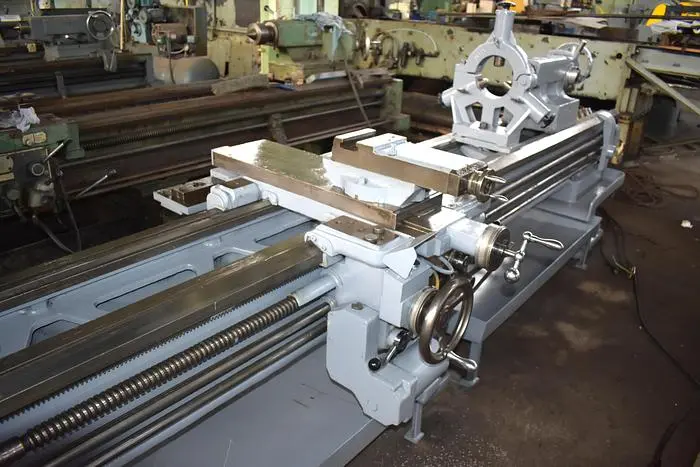

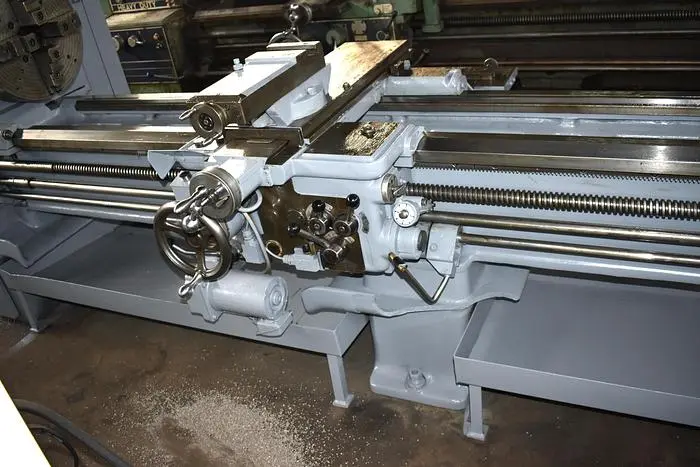

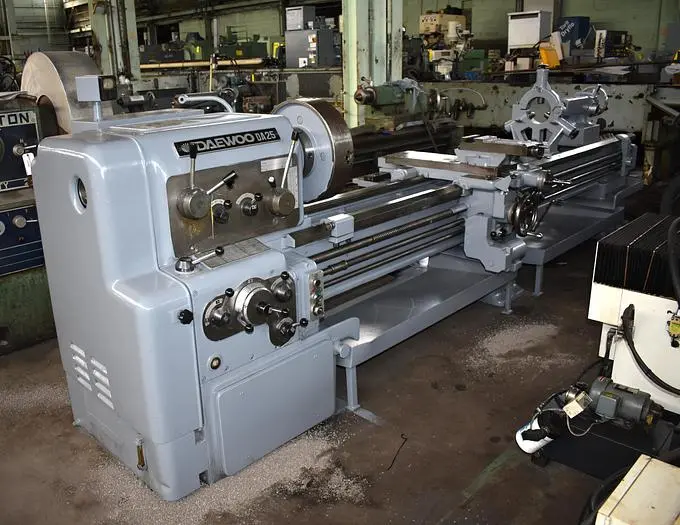

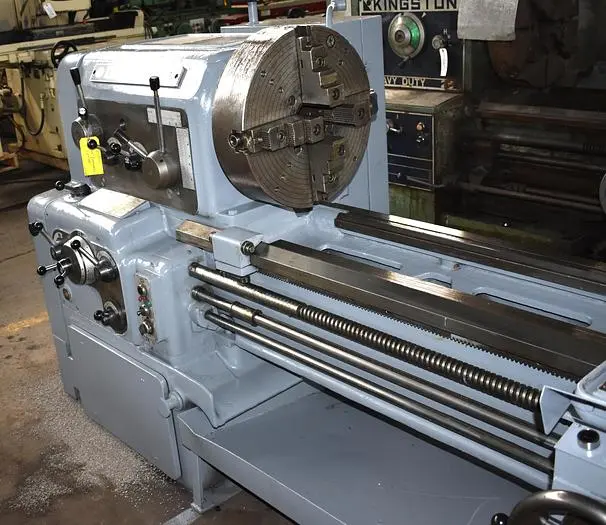

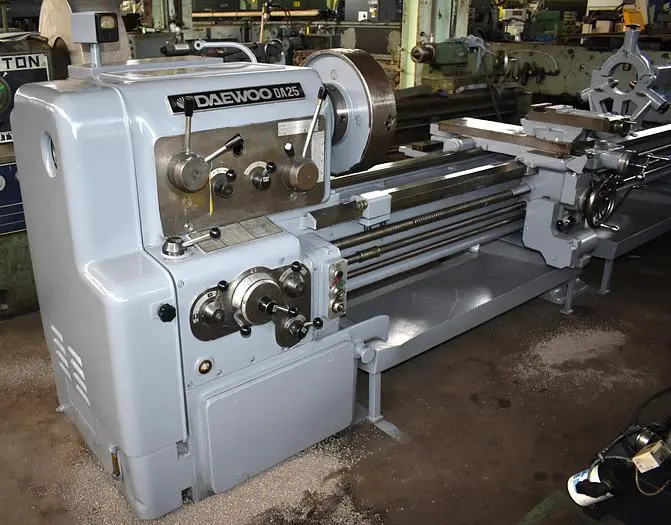

THIS HIGH-SPEED PRECISION ENGINE LATHE FEATURES A 25-INCH RATED SWING OVER THE BED WAYS (24.4 INCHES ACTUAL) AND A 15.5-INCH SWING OVER THE CARRIAGE, WITH A DISTANCE OF 120 INCHES BETWEEN CENTERS. THE SPINDLE HAS A 2.2-INCH HOLE AND OFFERS 20 SPEEDS RANGING FROM 25 TO 2000 RPM, POWERED BY A 15 HP MOTOR. ITS THREADING CAPABILITIES INCLUDE INCH-METRIC FUNCTIONALITY, WITH 40 WHITWORTH THREAD CHANGES (2 TO 28 TPI), 55 METRIC THREAD CHANGES (1 TO 224 MM), AND 42 MODULE THREAD CHANGES (.25 TO 56 MM), UTILIZING A LEAD SCREW PITCH OF 2 THREAD/INCH OR 12 THREAD/MM. FEEDS CONSIST OF 44 LONGITUDINAL FEEDS (.0067 TO .0957 IPR / .17 TO 2.43 MM/R) AND 44 CROSS FEEDS (.0024 TO .0033 IPR / .06 TO .83 MM/R). KEY EQUIPMENT INCLUDES A TAPER ATTACHMENT, THREADING DIAL, FOUR-WAY POWER RAPID TRAVERSE, 4-JAW CHUCK WITH JAWS, AND HARDENED AND GROUND BED WAYS. THE MACHINE OPERATES ON A 220-440/3/60 ELECTRICAL SYSTEM AND HAS AN APPROXIMATE WEIGHT OF 10,250 LBS.
Inventory No. 0226-181-0001 Manufacturer American / A Wyle Company Name Lathe Arrival Date 04-10-2026 Dimensions L x W x H (inches) 316 x 75 x 85 Capacity 25" X 120" Weight (lb.) 16270 Category Machine Tools Condition Used Available Quantity 1 Item Tail Stock, Tool Post, Accu-rite Controls, 2 1/2" Bore, 24" 4 Jaw ...more
Used engine lathe s a 25" swing, 120" centers, and 15 hp motor. digital readouts, coolant, and splash guard. Spindle speeds range from 63-1,700 RPM, with steady rest and 4-jaw 24.5" chuck., SWING OVER WAYS. 25", SWING OVER CROSSLIDE. 18", SWING IN GAP. 35", LENGTH OF GAP. 15", DISTANCE BETWEEN CENTERS. 120", SPINDLE ...more
SERIAL. N315H83GT0276MODEL. NORDIC 25SWING OVER WAYS. 25"SWING IN GAP. 35"SWING OVER CROSS SLIDE. 15-3/4"DISTANCE BETWEEN CENTERS. 120"SPINDLE SPEEDS. 18 TO 1400 RPMCHUCK. 16" 4-JAWFEEDS LONGITUDINAL. 0.0028 TO 0.0045 IPRCROSS FEEDS. 0.0014 TO 0.02225 IPRTHREADS (ENGLISH). 1/2 TO 64 TPITHREADS (METRIC). 0.065 TO 118 ...more
