Manufacturer: Daewoo Doosan
Model: DA25
Year: 1981
Swing: 25.0
Centers: 120.0
Stock # 1462J
Price: $24,500 USD
1 / 6
Click to zoom in
1 / 6
For Sale by Machinery Central
Surplus Record Dealer Since 2020
Location: Cincinnati, OH
Contact Denis Frankenberger
Phone Number: 502...> Show Phone Number 502-219-7311
Let the seller know you found their listing on Surplus Record!
$24,500 USD
Finance for as low as $497/mth
Description
Spec Sheet:

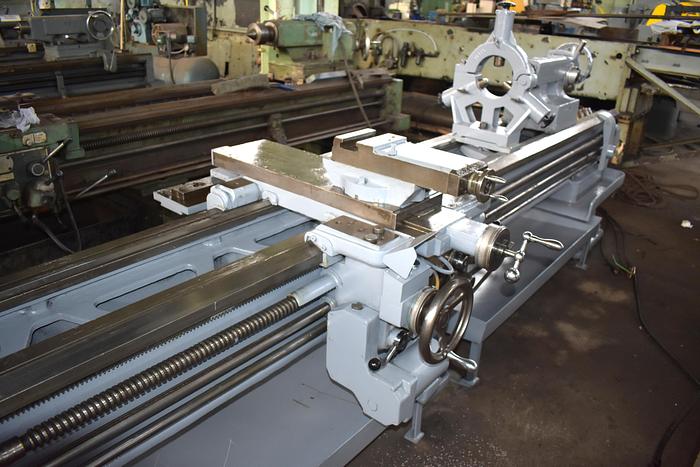

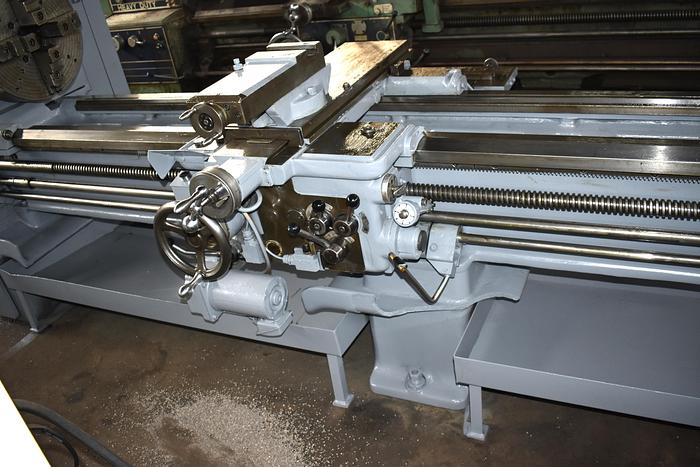

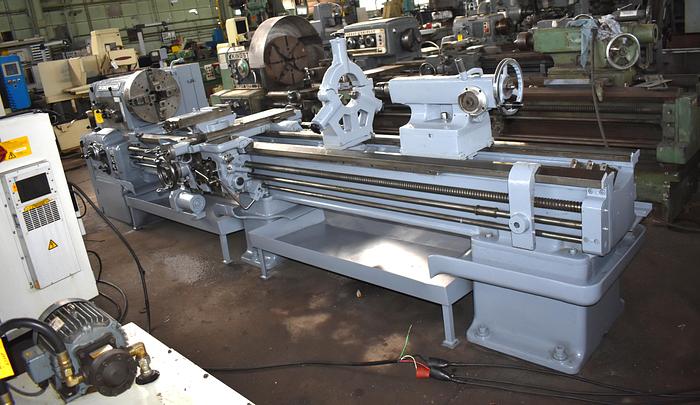

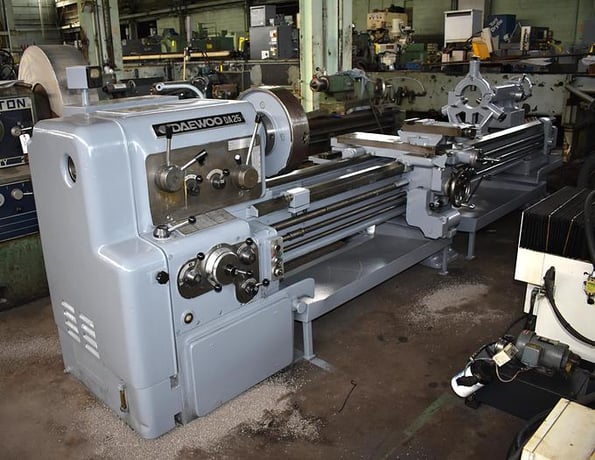

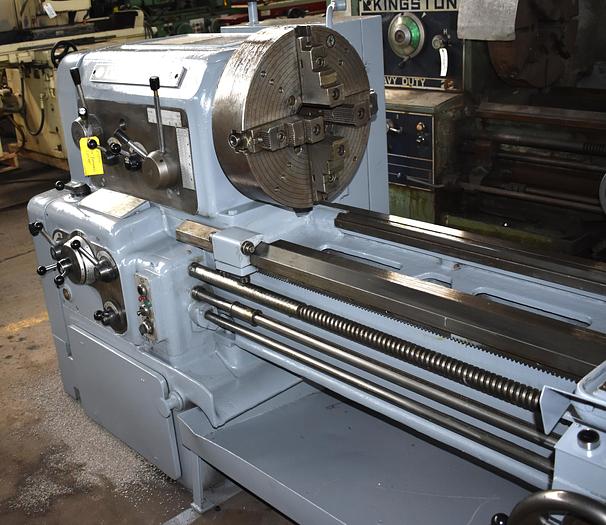

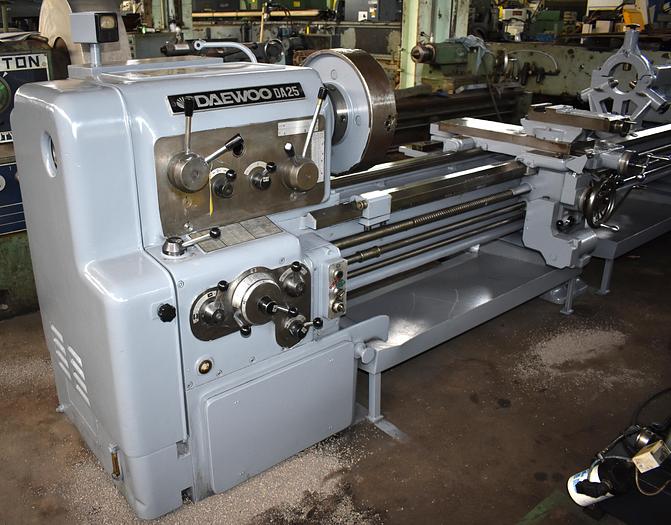

25" x 120" DAEWOO-IKEGAI HIGH SPEED PRECISION
ENGINE LATHE W/TAPER ATTACHMENT
Serial No. 040059, Model DA25
EQUIPPED WITH:
Taper Attachment
2.2" Hole Thru Spindle
Inch-Metric Threading Capabilities
Threading Dial - Power Rapid Traverse (4-Way)
4-Jaw Chuck w/Jaws - Hardened & Ground Bed Ways
CATALOG SPECIFICATIONS:
Hole Thru Spindle 2.2"
Swing Over Bed Ways, Rated 25"
Swing Over Bed Ways, Actual 24.4"
Swing Over Carriage 15.5"
Distance Between Centers 120"
(20) Spindle Speeds, Range 25 to 2000 RPM
(44) Longitudinal Feeds, Range .0067 to .0957 IPR
(44) Longitudinal Feeds, Range .17 to 2.43 MM/R
(44) Cross Feeds, Range .06 to .83 MM/R
(44) Cross Feeds, Range .0024 tp .0033IPR
(40) Whitworth Thread Changes, Range 2 to 28 TPI
(55) Metric Thread Changes, Range 1 to 224 MM
(42) Module Thread Change, Range .25 to 56 MM
Lead Screw Pitch 2 THREAD/INCH
Lead Screw Pitch 12 THREAD/MM
Motor Horsepower 15 HP
Electrical System 220-440/3/60
Weight Approximately 10250 LBS
PRICE: F.O.B. OUR WAREHOUSE $24,500.00
DAEWOO IKEGAI LATHE
MODEL# DA25
25" SWING 120" BETWEEN CENTERS, CARRIAGE TAIL STOCK,
STEADY REST,
18" DIAMETER
4-JAW CHUCK
POWER RAPID TRAVERSE
INCH/METRIC THREADING
25" x 120" DAEWOO-IKEGAI HIGH SPEED PRECISION
ENGINE LATHE W/TAPER ATTACHMENT
Serial No. 040059, Model DA25
EQUIPPED WITH:
Taper Attachment
2.2" Hole Thru Spindle
Inch-Metric Threading Capabilities
Threading Dial - Power Rapid Traverse (4-Way)
4-Jaw Chuck w/Jaws - Hardened & Ground Bed Ways
CATALOG SPECIFICATIONS:
Hole Thru Spindle 2.2"
Swing Over Bed Ways, Rated 25"
Swing Over Bed Ways, Actual 24.4"
Swing Over Carriage 15.5"
Distance Between Centers 120"
(20) Spindle Speeds, Range 25 to 2000 RPM
(44) Longitudinal Feeds, Range .0067 to .0957 IPR
(44) Longitudinal Feeds, Range .17 to 2.43 MM/R
(44) Cross Feeds, Range .06 to .83 MM/R
(44) Cross Feeds, Range .0024 tp .0033IPR
(40) Whitworth Thread Changes, Range 2 to 28 TPI
(55) Metric Thread Changes, Range 1 to 224 MM
(42) Module Thread Change, Range .25 to 56 MM
Lead Screw Pitch 2 THREAD/INCH
Lead Screw Pitch 12 THREAD/MM
Motor Horsepower 15 HP
Electrical System 220-440/3/60
Weight Approximately 10250 LBS
PRICE: F.O.B. OUR WAREHOUSE $24,500.00
DAEWOO IKEGAI LATHE
MODEL# DA25
25" SWING 120" BETWEEN CENTERS, CARRIAGE TAIL STOCK,
STEADY REST,
18" DIAMETER
4-JAW CHUCK
POWER RAPID TRAVERSE
INCH/METRIC THREADING
Inquire Further with Machinery Central!
